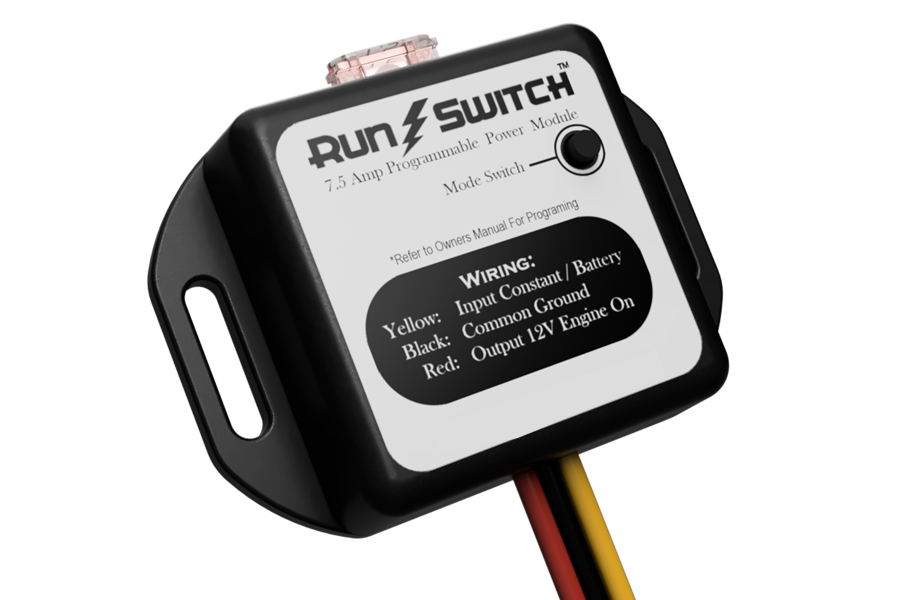

RunSwitch Plus 7.5 Amp Programmable Power Module

RunSwitch Plus combines the functionality of RunSwitch with two added features – a Timer mode that extends power to accessories for up to 90 minutes after the engine is turned off and a Battery Saver mode that disconnects power to the accessory when the battery level is low ensuring the battery will not fully drain. Timer Mode is ideal for mimicking CAN BUS shut down times and creating a retained accessory power (RAP) circuit.    Ideal for lighting, DVR cameras, audio systems, console accessories, sunroofs, trolling motors and many more.

Wire Connections

YELLOW: Connect directly to a 12V battery (+) terminal.  This is the INPUT power to the RunSwitch module and requires a constant power connection directly from the 12V battery.

BLACK: Connect to system Ground.  This could be the vehicle chassis or direct connection to the (-) terminal on the 12V battery.

RED: Connect this wire to the accessory (+) INPUT that is typically connected to 12V power.  The accessory GROUND wire will require a connection to chassis or (-) to complete the circuit.

The RunSwitch will automatically detect when the vehicle engine is running and will provide power to the accessory device. The RunSwitch fuse will be illuminated to indicate power is

available to the accessory device at that time. When the engine is turned OFF, the RunSwitch will automatically detect the loss of alternator charging and will turn OFF.
