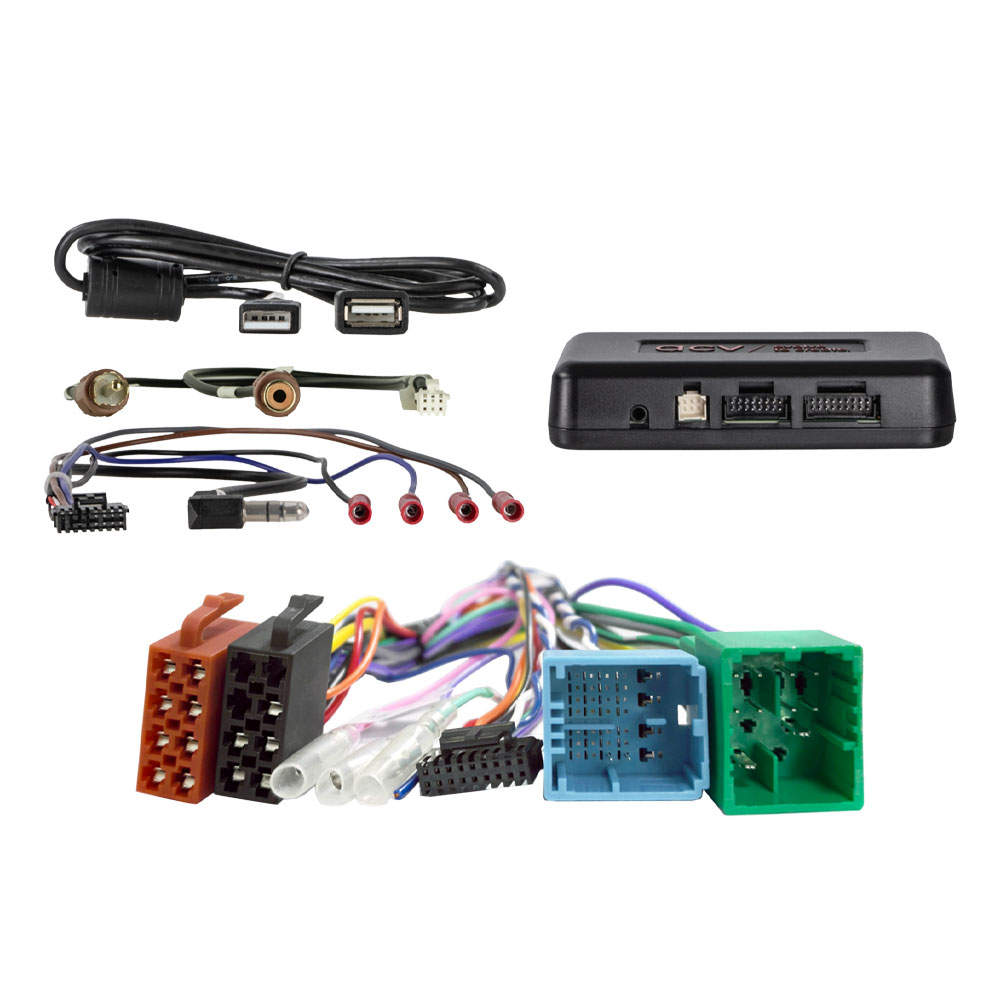

i-dapter Steering Wheel Control Interface For Citroen, Fiat, Opel, Peugeot And Toyota
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 10
- Brand: ACV
- Model: IDFT3 / 43XFT03
- Other Part #: CTUFT03
- EAN: 7427288176747
- Warranty: 1 Year Warranty
Available Options
Description
The i-dapter allows you to retain the visual display of vehicle functions, such as parking sensors, climate control, and seat heating, when replacing the original radio. Vehicle-specific settings are supported and displayed on the aftermarket unit.
The vehicle's steering wheel remote control function is also supported. Depending on the vehicle's equipment, as well as the functionality and software of the aftermarket unit, some operating functions may be omitted or replaced by others.
Please ensure that the original factory radios we have listed and the adapter connectors shown match your vehicle's equipment.
Before installation, check the vehicle menu for various settings. Test the functionality of the settings and the vehicle system before final installation.
Product Compatibility Chart
| Make | Model | Varitions | Years | Notes |
| Citroen | E-Jumper | 2024 - 2026 | (259) | |
| Citroen | Jumper | 2024 - 2025 | (250) | |
| Citroen | Relay | 2024 - 2026 | (250) | |
| Fiat | Ducato | 2021 - 2023 | (ZAF 250) | |
| Fiat | Ducato | 2023 - 2026 | (ZAF 250) | |
| Fiat | E-Ducato | 2021 - 2026 | (ZAF 250) | |
| Opel | Movano | 2024 - 2026 | Electric Cargo C (Y) | |
| Peugeot | Boxer | 2024 - 2026 | (Y) | |
| Peugeot | E-Boxer | 2024 - 2026 | (Y) | |
| Toyota | Proace |
Gen 1 (2019 - 2023) | 2024 - 2026 | Max |
| Toyota | Proace | 2025 - 2026 | Max Electric |
The following signals are provided:
Reimported vehicles or vehicles with different software may be incompatible in terms of functions. Red: +12V Ignition Terminal 15 Orange: +12V Lighting Terminal 58 Purple/White: +12V Reverse Signal Not supported in all vehicles Pink: Speed Signal Green: Ground GND Handbrake Signal Output Load Capacity: 250 mA max. Current requirement greater than 250 mA: 1 relay coil resistance 75 ohms min. 2 relays coil resistance 150 ohms min. Steering wheel remote control vehicle settings supported General Installation Instructions: Verification: 1: Check all operating functions and vehicle setting functions of the OEM device 2: Disassembly of the OEM device Perform the following steps with the power off: 3. Check all interface connections for correctness and continuity with the power off.
Please note that in some cases, not all functions are supported. For example, Trailer Assist, eCall, or other driver assistance and comfort systems.
Note: Vehicles with steering wheel remote control CAN bus connection: 12-pin green / 32-pin blue Fiat connector Connection: OEM steering wheel remote control > 3.5mm jack / loose cable Vehicles with 5" OEM device Vehicles with 7" OEM device Vehicles with 10" OEM navigation Activate and configure the reversing camera input in the retrofit device menu i-adapter connection: purple/white: +12V reversing signal RCA (male) ochre: reversing camera input Retrofit device visualization i-adapter settings > Retrofit device reversing camera input Camera image or i-adapter settings and visualization not available: Connection of an additional ground contact RCA outer conductor at the camera connection and device connection i-adapter settings: Steering wheel remote control Press and hold track forward or backward Depending on the OEM vehicle equipment and software: Not all vehicle settings are supported Not all vehicle functions are supported Not all vehicle information is visualized
+12V reversing signal not supported in all vehicles
The following settings are supported:
Language / Distance units / Clock / Temperature units / Consumption units / Speed units / Follow Me function / Automatic door unlocking when exiting / Turn signal with locking / Interior lighting / Automatic door locking / Daytime running lights / Cornering lights / Ambient lighting / Welcome light / PDC volume control / High beam control / PDC / Rain sensor / Lane departure warning / Lane departure warning sensitivity / Tire pressure units / Traffic sign recognition / Traffic sign warning / Vehicle shutdown options / Blind spot assist / Headlight sensor sensitivity / Forward collision warning / Forward collision sensitivity
Vehicles with OEM reversing camera:
Reversing camera interface Citroen/Fiat/Opel/Toyota OEM camera > Item: 771094-1031
- Always perform DIP switch settings with the power off.
- Reconnect the interface after setting.
- DIP switch settings for the OEM device (see operating instructions).
- DIP switch settings for the aftermarket device manufacturer (see operating instructions).
What's Included
- IDFT3 Steering Control Adaptor
- FREE Stereo Patch Lead
Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.
Please make sure that is the correct Steering Control Adaptor for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
