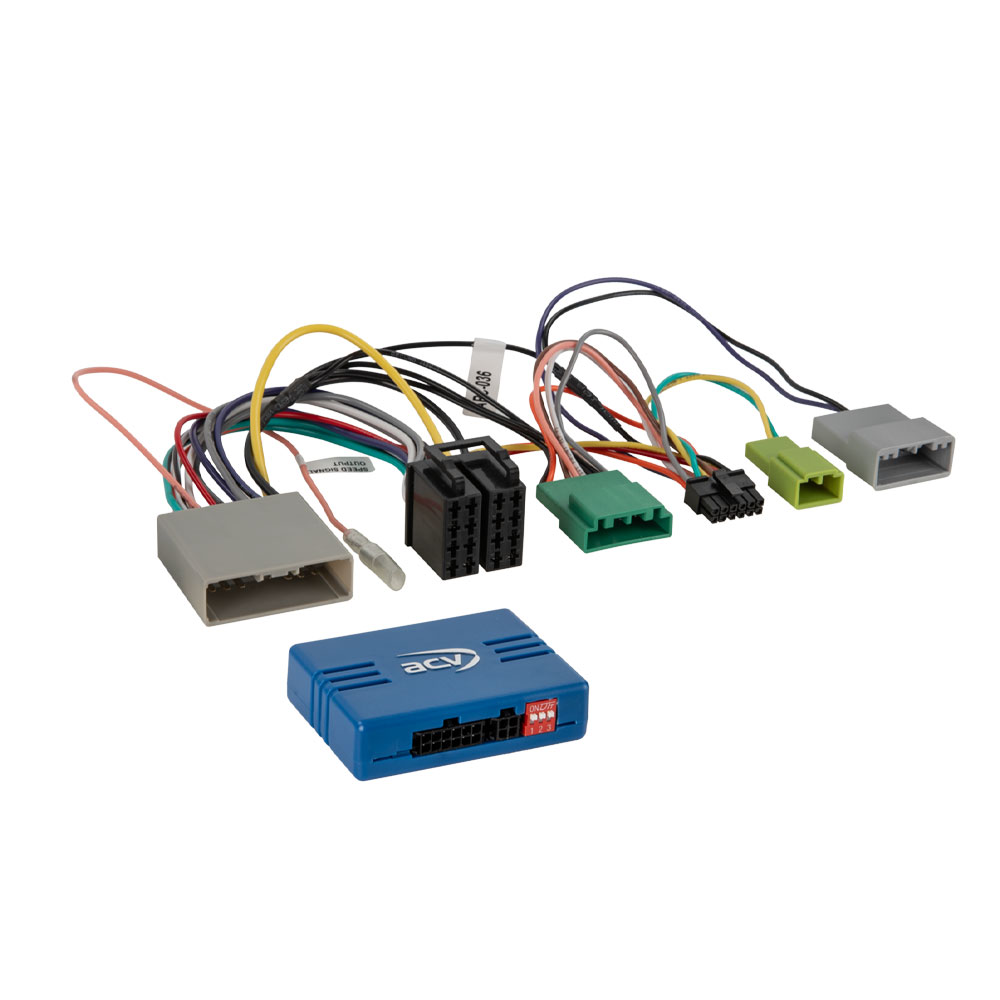

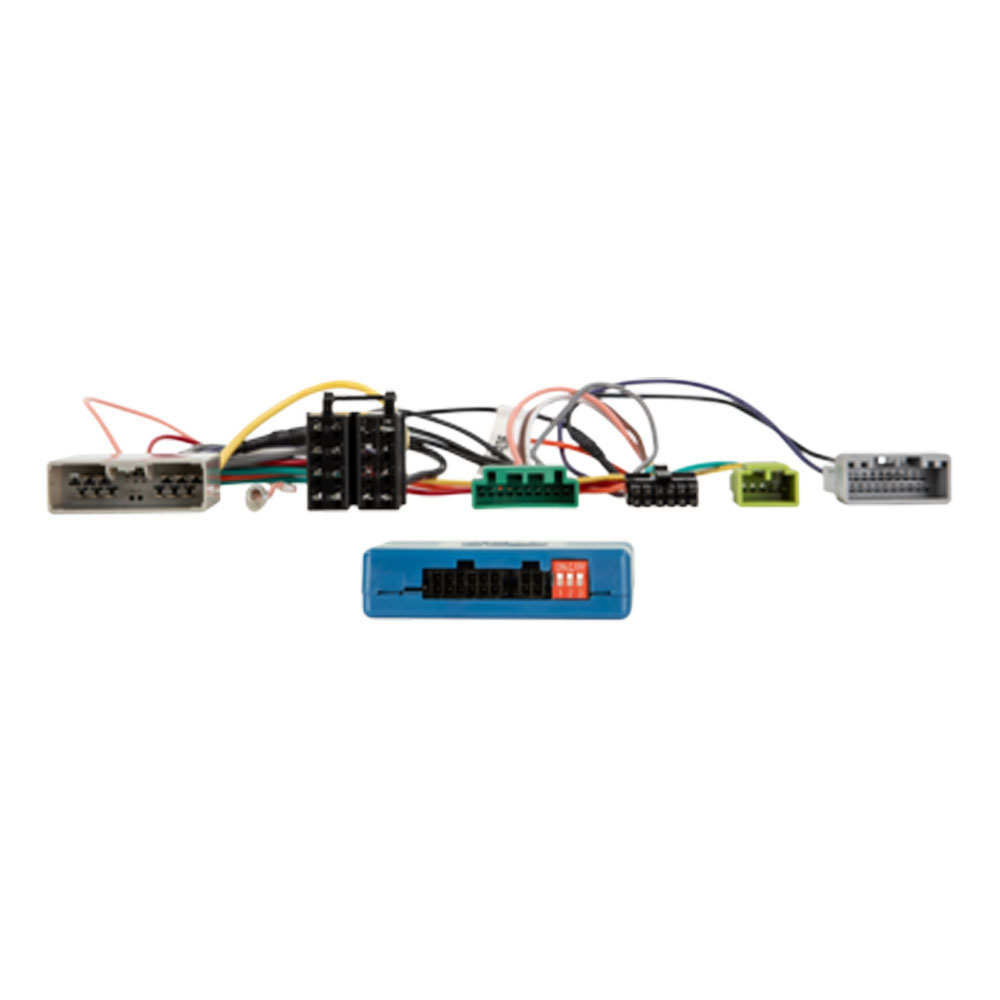

Honda Civic 2005 - 2012 Steering Control Adaptor ACV 42A-1130-002-0
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 5
- Brand: ACV
- Model: 42A-1130-002-0
- Other Part #: CTSHO002
- EAN: 4026724346138
- Warranty: 2 Years Warranty
Description
Steering Wheel Control Interface Adaptor. Connecting to the original radio connector and plugging in to the back of the new head unit is simple to fit.
A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.
Product Compatibility Chart
| Make | Model | Years | Notes |
| Honda | Civic | 2005 - 2012 | This Lead Will NOT Work With Cars Which Have The Factory Sat Nav |
CAN Bus
analogue steering wheel remote controlconnection: 17 pin / 20 pin Honda connector
connection: 5 pin / 10 pin Displayblue: +12V Amp Remote

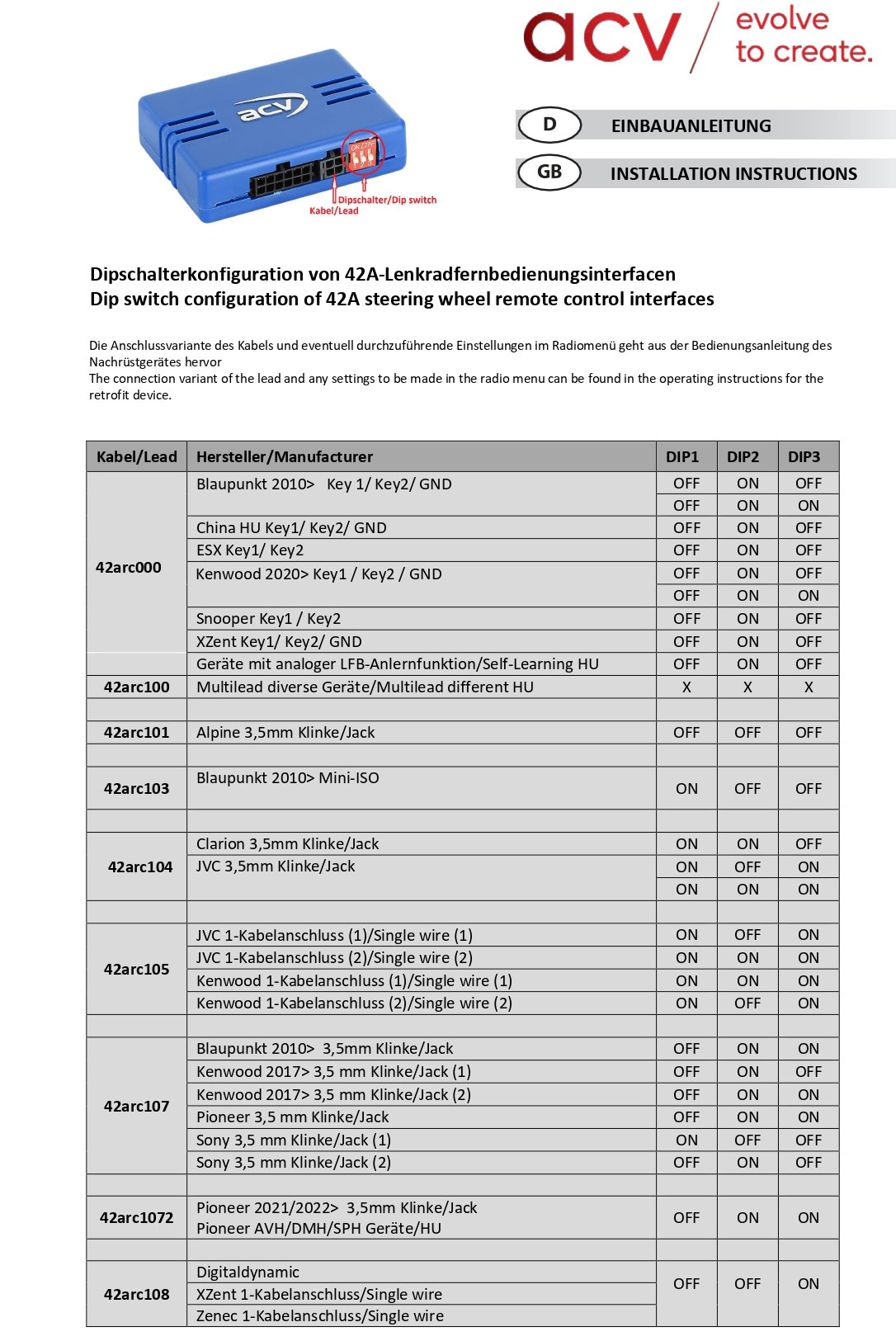

check dip switch position
Vehicles with climate control on the top display
Vehicles without OEM navigation with color monitor
Vehicles without hybrid driveTime settings supported:
Setup Clock: Press Mode/SEL Reset simultaneously for 5 seconds
Setup Minute/Hour: Vol up/Vol down
Setup Time: Channel +/Channel -
Exit setup: Press Mode/SEL Reset simultaneously for 5 secondsOEM sound system supported
Diagnosis LED:
blue constant > Interface active +12V power supply ignition current present
red > Steering wheel remote control button function recognized
What's Included
- ACV 42A-1130-002-0 Steering Control Adaptor
- FREE Stereo Patch Lead
Universal Patch Lead
Patch Lead connects to a compatible car stereo wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.
Supplied with instruction sheet
Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.
Please make sure that is the correct Steering Control Adaptor for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
