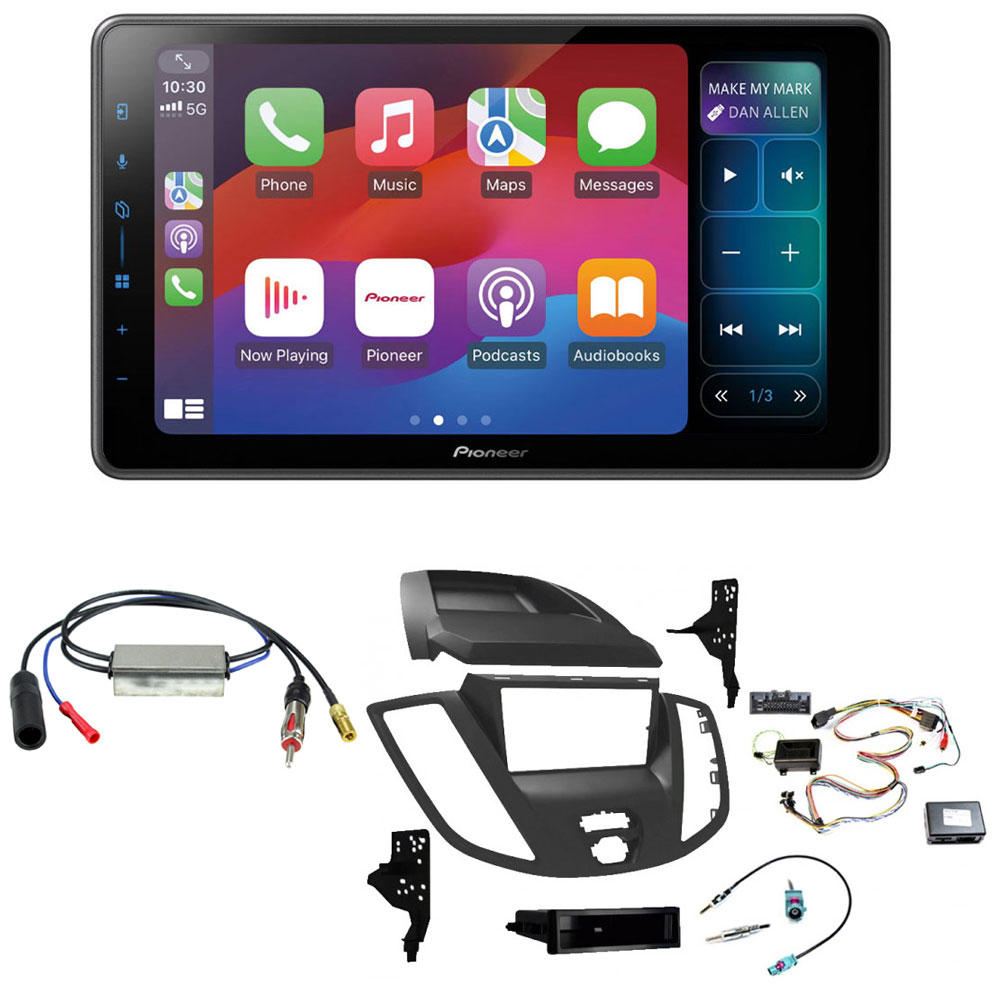

Package Includes

• Pioneer SPH-EVO98DAB 9" Wireless CarPlay / Android Auto DAB/DAB+ Bluetooth Car Stereo
• DAB Splitter (Uses Vehicle Antenna For Both DAB And FM Signal)
• Fascia With Brackets (Dark Grey)
• Steering Control Interface Adaptor
• AM/FM antenna adapter
• Stereo Patch Lead

Installation of this kit will result in the ORIGINAL TOP DISPLAY BEING LOST

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

The fascia adaptor allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio. The fascia kit uses side fixing brackets, the brackets fit directly to the sides of the new radio and the fascia panel. This replaces the need for a fitting cage and gives a flush professional appearance to the installation. A spare pocket is supplied for fitting a single din stereo.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

A steering wheel control interface is also included in this kit. This will retain the use of the original audio controls on the steering wheel with the new radio.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

A Fakra to DIN antenna adapter is also included in the kit, this adapts from the original style antenna connector in the van, known as a Fakra connector, to a standard aftermarket antenna connector, known as a din connector.

An additional airbag light unit or blanking plate is also required. If the vehicle originally had a passenger airbag status light in the radio panel, a replacement airbag status light unit is required, failure to refit one will cause airbag warning lights to show on the instrument cluster. If the vehicle does not have a passenger airbag status light, a blanking plate is required to fill the space in the new fascia.

See the image below for examples of the components fitted into a fascia.

Pioneer SPH-EVO98DAB

Thanks to its modular structure, the 9.0" SPH-EVO98DAB can be fitted to cars where this was previously impossible. 9.0" Capacitive touchscreen modular multimedia player with easy smartphone connectivity supporting Apple CarPlay® wireless, Android Auto™ wireless, DAB/DAB+ Digital Radio, Bluetooth®, Pioneer PxLink Companion App and a 13-band GEQ.

With the ‘floating’ or ‘tablet’ style installation the SPH-EVO950DAB modular receiver can be installed into many vehicle types, for example, traditional 1-DIN, 2-DIN, Campervan specific, or even vehicles where a traditional stereo does not fit thanks to its unique universal floating installation or in-dash installation capabilities.

Pioneer introduces two new unique capabilities on the SPH-EVO98DAB.

1. Pioneer Split Screen Mode, to display and control specific functions on an adjacent partition of the screen by dynamically resizing the Apple CarPlay user interface.
2. Selectable Viewing Mode, giving you enhanced visibility by allowing you to switch the mode of the screen between Light Mode and Dark Mode, to suit your preference.

Vehicle Bus

By connecting the optional Pioneer Vehicle Bus adapter to the product, you can retain and operate your vehicle's operation, such as vehicle information, gauges, climate control and parking assist on the Pioneer display.

	Wi-Fi® Wireless connectivity specifically designed to support a cable free connection between your smartphone and the receiver.
	Apple CarPlay Apple CarPlay® is a smarter, safer way to use your iPhone in the car. It allows you to stay focused on the road and get directions, make calls, send and receive messages and listen to music.
	Android Auto Android Auto™ automatically brings you useful information and organises it into simple cards that appear just when they’re needed. It’s designed to minimise distraction so you can stay focused on the road ahead.
	Aux IN - Plug your compatible device for easy and convenient playback.
	DAB+ Enjoy the convenience of listening to your favourite radio stations in crystal clear digital quality thanks to a built-in Digital Radio tuner.
	Digital Radio Tick Mark Approved product Manufacturers must meet the minimum specification, verified by independent testing. All Pioneer products that use this Digital Radio Tick Mark have been independently tested and approved so you can buy with confidence.
	Bluetooth® Stay safe and obey local laws with Built‑in Bluetooth® wireless connectivity, providing hands‑free calling and audio streaming.
	Capacitive Touchscreen - Capacitive Touchscreen allows for very responsive multi-touch gestures like pinch to zoom, plus swipe and scroll controls at your fingertips.
	Advanced Sound Retriever - Reproduce high-quality sound from compressed digital audio files and Bluetooth® wireless audio streams.
	FLAC Enjoy FLAC lossless digital audio files in your vehicle with playback output at CD quality, without the need to convert.
	13-band Graphical EQ Adjust acoustic settings in greater details, according to your preferences.
	Multi colour illumination Match the display or key illumination to your vehicle's interior lighting with a range of colour combinations.
	Modular Design The screen panel can be installed separately from the main unit, useful for cars with no dashboard space expanding your installation options.
	WebLink The new WebLink app expands in-car entertainment with an amazing world of apps. Enjoy personalised music, videos, and other connected content powered by your phone/ tablet and the cloud.
	Vehicle Bus By connecting the optional Vehicle Bus adapter, you can display vehicle information such as gauges, climate control and parking assist. (Optional vehicle adaptor required, sold separately)

Key Features

• Screen Size: 9.0 inch
• LCD Screen Type: Capacitive Touchscreen
• Apple CarPlay® Connection: Wireless / wired
• Android Auto™ Connection: Wireless / wired
• Wi-Fi®
• Weblink Mirroring
• Pioneer Split Screen Mode: Apple CarPlay
• Pioneer PxLink Companion App
• Navigation Via Apple CarPlay , Via Android Auto
• DAB+
• DAB Antenna: Optional CA-AN-DAB.001 (Sold separately)
• Vehicle Bus
• Bluetooth
• Customisable Key and Display Illumination
• Multi color illumination

Audio Features

• Graphic Equaliser: 13-Band
• Advanced Sound Retriever
• Listening Position Selector
• High Pass Filter
• Low Pass Filter
• FLAC
• Subwoofer Control

Tuner Features

• DAB+
• Digital Radio Tick Mark Approved product
• RDS FM Radio

Connections

• Camera Input: 2
• RCA AV Input: 0
• RCA Pre Outs: 3. (Front, rear and subwoofer)
• Aux-in: 1 Rear AV Aux-In

Other Specifications

• Rear View Camera: Optional ND-BC9 (Sold Separately)
• HD-TVI (High Definition rearview camera):
• Steering Wheel Control: Supported
• Mechafree:
• Accessories:
  • External Bluetooth microphone (included)
  • GPS antenna (included)
  • USB extension cable (included)

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
