Ford Transit 4TH GEN 2013-2020 6.5" Coaxial Car Front Door Speaker Under Seat Subwoofer Upgrade Pack
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 5
- Brand: Dynamic Sounds
- Model: Stage1 621 + CT25FD14 + CT55-FD02 + BASSLINK MINI
- EAN: 7427307014128
- Warranty: 2 Years Warranty
Description

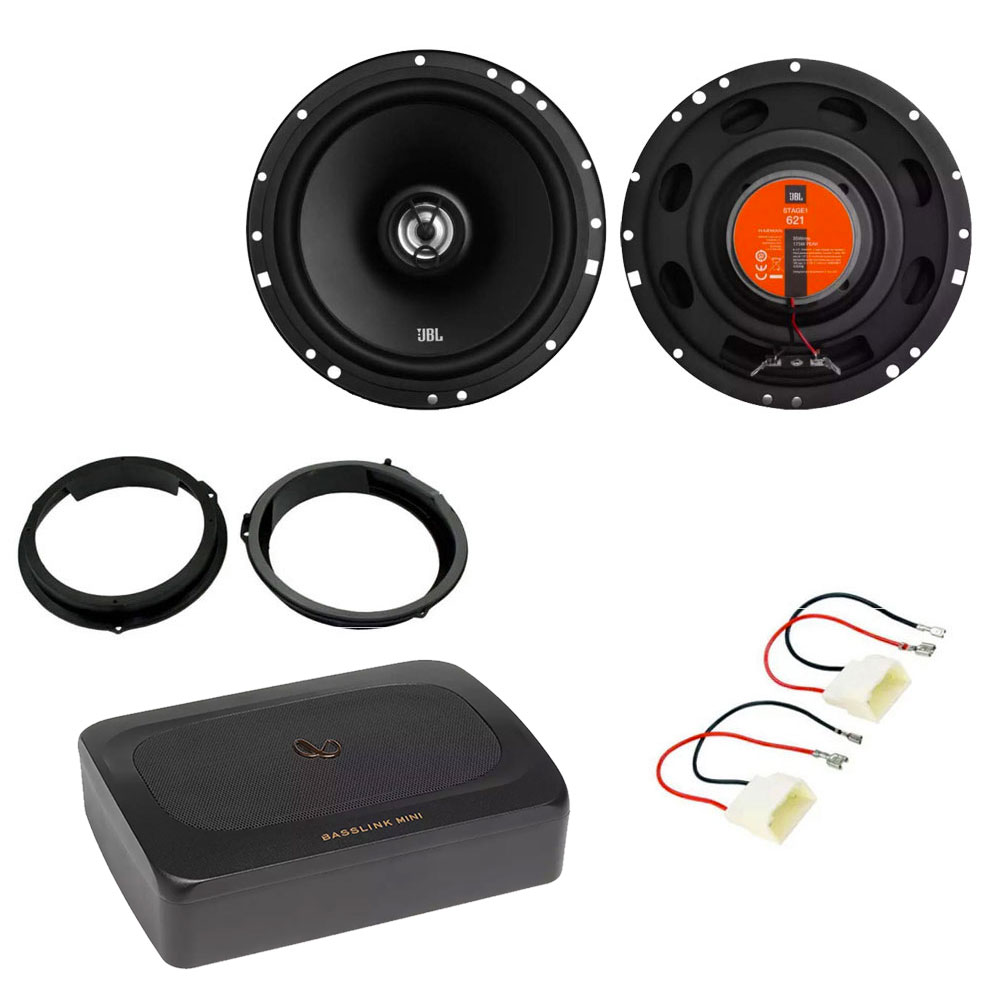

Package Includes
- JBL Stage1 621 6.5" 16.5cm 2 Way Coaxial Car Shelf Door Speakers 175 Watts
- Infinity BASSLINK MINI Compact Under Seat Powered Subwoofer System
- 165mm Front Door Speaker Adaptor
- Speaker Adaptor Plugs
Product Compatibility Chart
| Make | Model | Years | Notes |
| Ford | Transit | 2013 - 2020 |
Speaker Adaptor kits allow aftermarket standard size speakers to be fitted into the original apertures of your car audio system.
Speaker Adaptor Plugs. Converts OEM Plugs To Standard Aftermarket Speaker Connectors.
Stage1 621
The Stage1 Series speakers brings a JBL concert experience to your car, truck or SUV and a surprisingly affordable price. Their Polypropylene woofer delivers a strong performance with great low end extension and clean tight midrange. The woofer is couple with a Mylar Balanced dome tweeter which fills out their sonic signature with crisp, high-end frequencies. Legendary JBL sound for less than the cost of a concert ticket.
General Specifications
- Power Handling 35Wrms, 175W peak
- Nominal Impedance 4ohms
- Country of origin China
Audio Specifications
- Sensitivity (@ 2.83V) 90dB
- Frequency Response 55Hz – 20kHz
BASSLINK MINI Compact Under Seat Powered Subwoofer System
Infinity BassLink MINI delivers deep bass and takes up little space. Infinity's smallest powered subwoofer can be hid in the most compact of locations and deliver exceptional performance to any car audio system. Powered by a 100Watts Amplifier, Basslink MINI delivers accurate, tight bass you would expect from Infinity, all while running cool and drawing minimal current from your vehicles charging system.
Features
Big Bass, Small Space
Infinity BassLink MINI delivers deep bass and takes up minimal space. Its on-board 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass.
Intelligent Electronic Design for Reliable and Extraordinary Performance
The BassLink MINI employs high-pass filters and limiters that deliver exceptional at-the-limits performance.
Die-Casting Aluminum Enclosure Design
The all-die-cast aluminum enclosure design not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.
Bass Volume Remote Control
Bass Volume Remote control is included to let you adjust the sound from the driver's seat.
General Specifications
- Driver Complement 6"x8"(152mmx203mm) Subwoofer
- Amplifier Power 100Wrms; 200W Max
- Frequency Response 30Hz – 150Hz
- Fuse 15A
- Maximum Current Draw 13 A
- Quiescent Current Draw <600 mA
- Input Sensitivity 0.1 V – 4.0 V Low-Level Input; 0.25 V – 20V High-Level Input
- Crossover Frequency 50 Hz – 150 Hz
- Crossover Slope 12 dB/octave
- Bass Boost 0dB to + 12dB @ 50Hz
- Dimensions (L x W x H) 11-7/16" x8-5/16" x 3" (289.6mm x 209.6mm x 75.0mm)
- Weight 8.22 lbs (3.73kg)
In The Box
- 1 x Under seat subwoofer
- 4 x Screws
- 4 x Small metal plate
- 1 x Wiring harness
- 1 x Bass volume remote control (with cable)
- 1 x 15A Fuse
