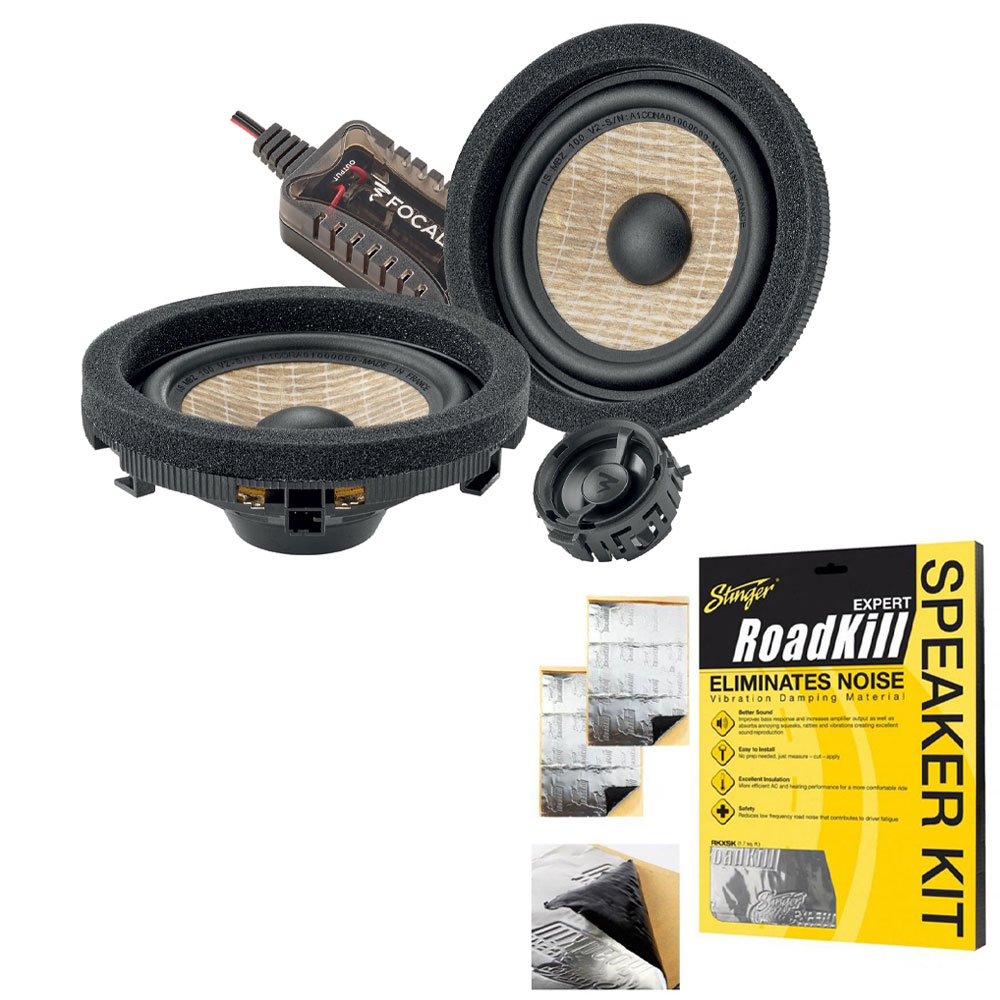

Package Included

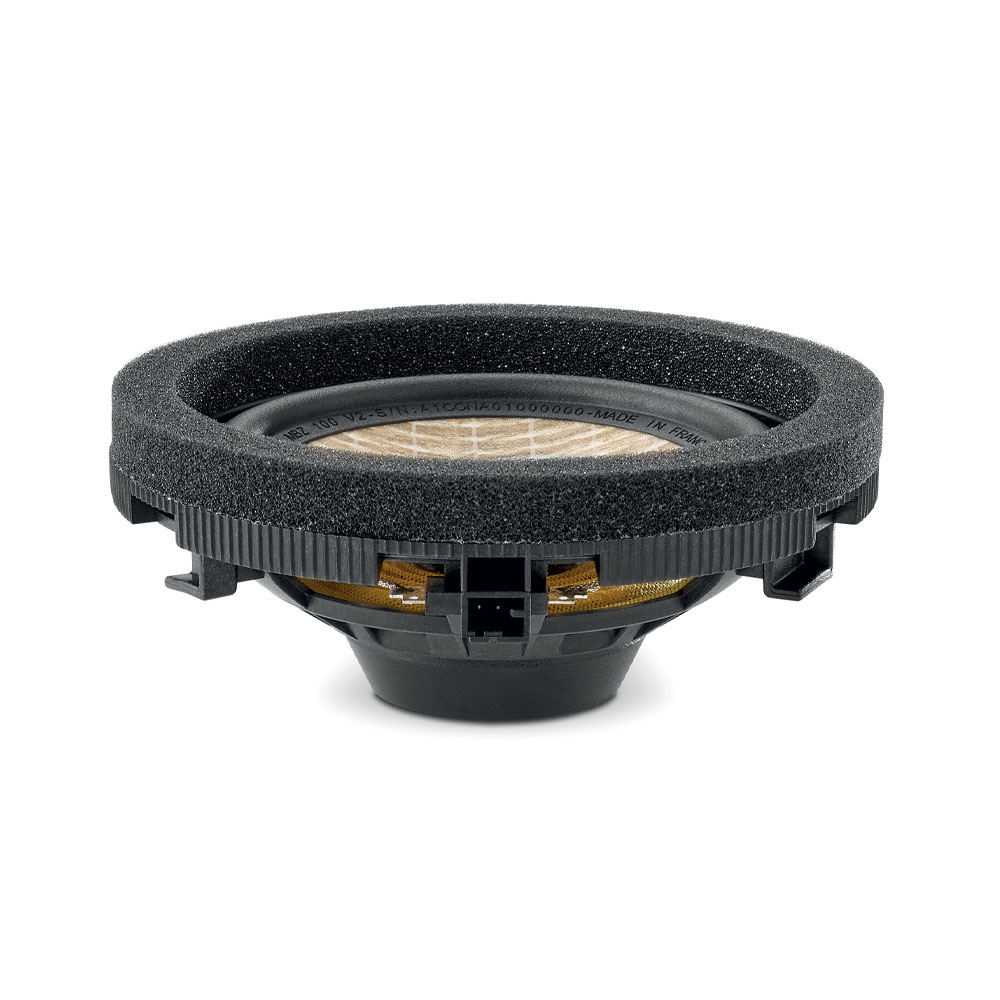

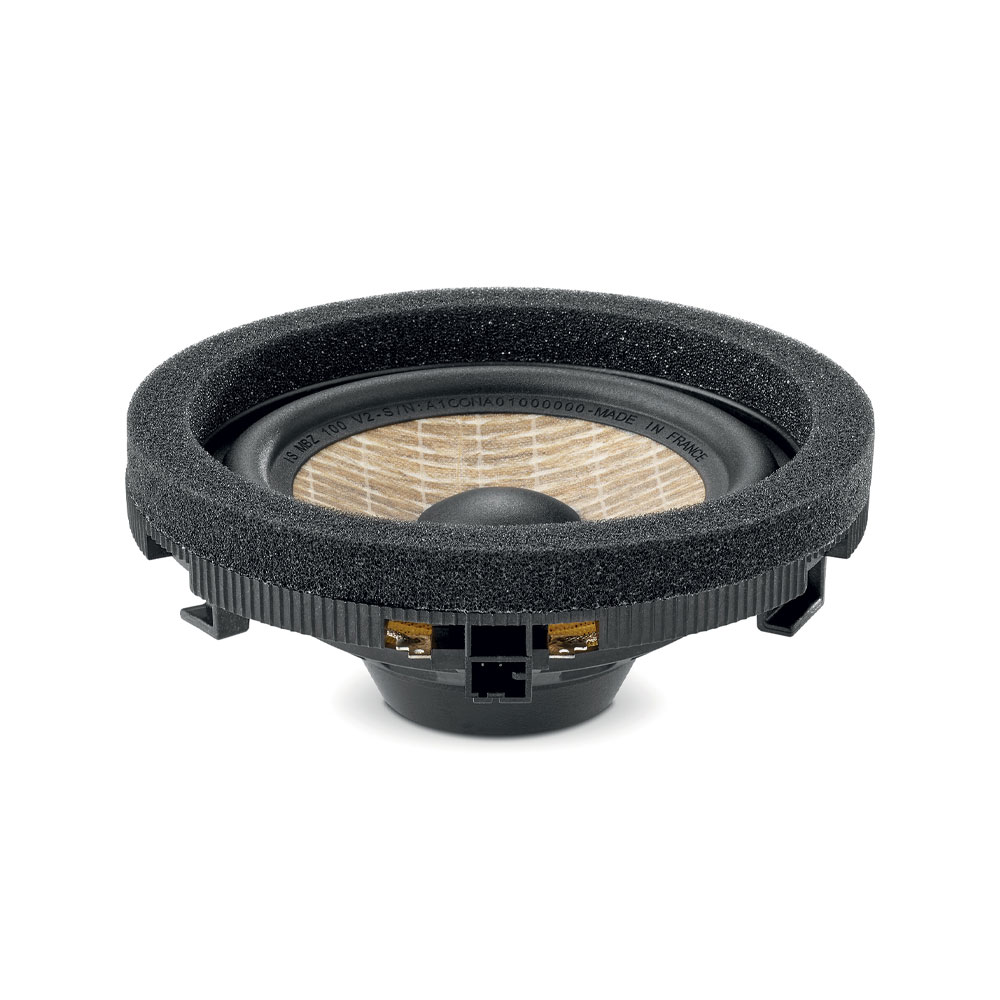

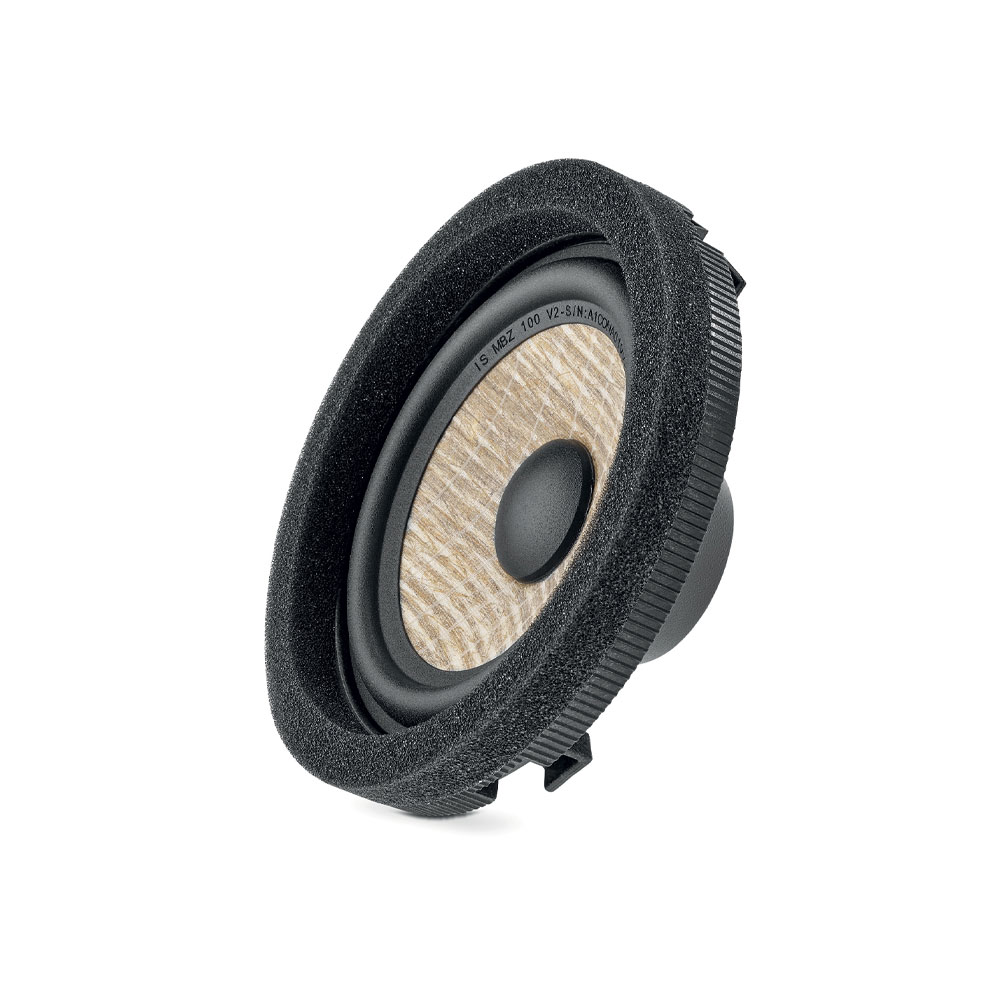

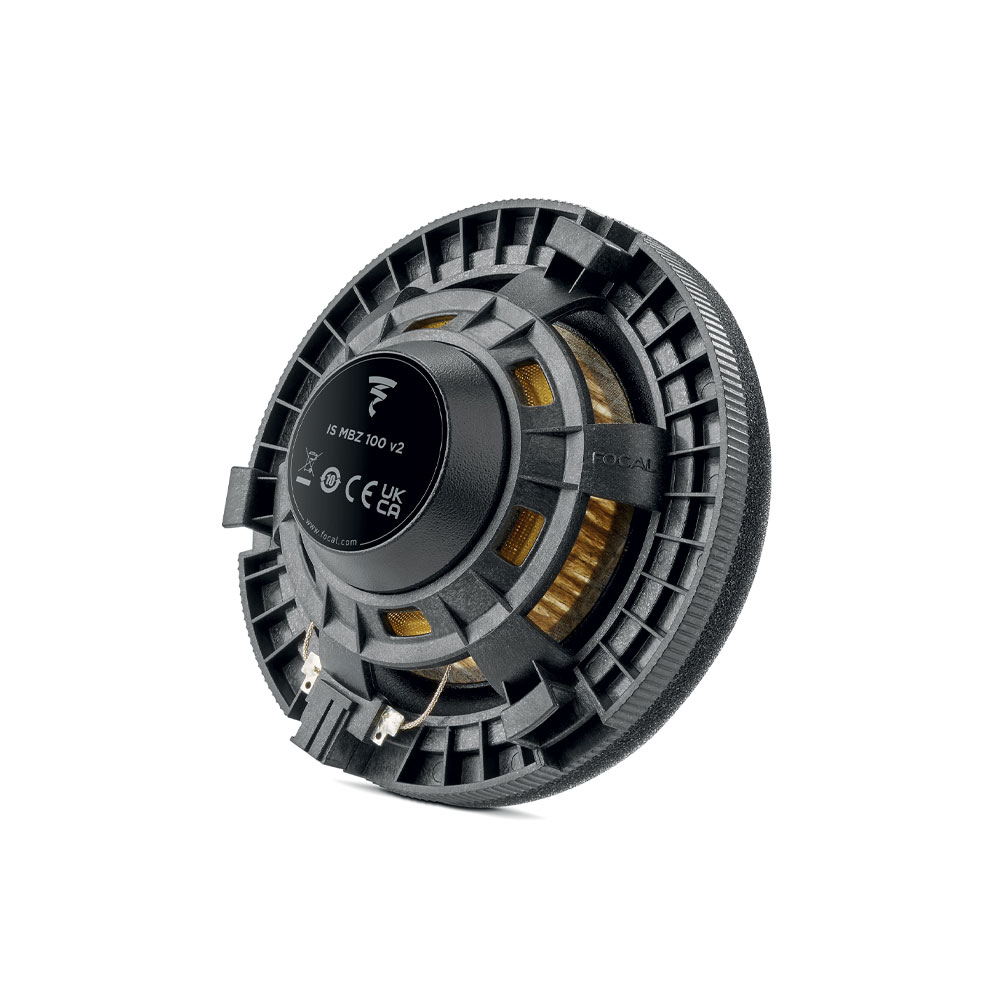

• Focal ISMBZ100-V2 Inside Series 4" Direct Fit Mercedes 2 Way Component Speaker
• Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

Compatibility Chart

2-Way Component Kit

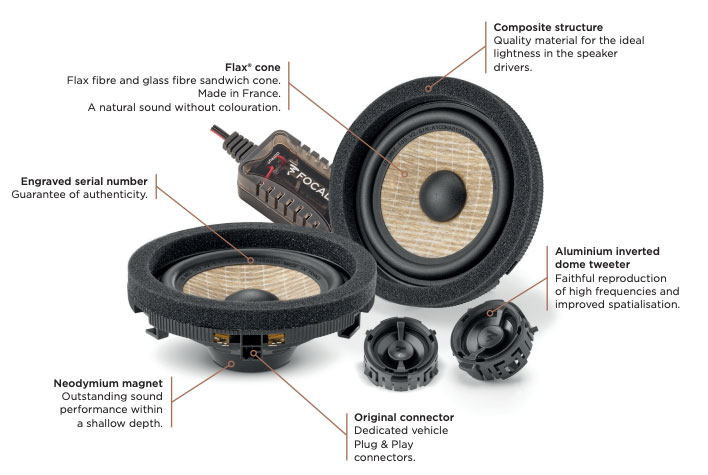

Upgrade your vehicle's front channels and discover a whole new world of audio with the impressive IS MBZ 100 v2 kit. It showcases cutting-edge Flax cone midrange drivers and aluminium inverted dome tweeters. The advanced Focal technology ensures crystal-clear highs and superior spatialization, resulting in an unbelievably natural sound experience. The kit was specifically engineered to seamlessly replace the original system in the newest Mercedes-Benz models.

Key Points

• Kit developed and manufactured in France
• Exclusive Focal high-fidelity sound
• Quick and easy to install with no modifications to the vehicle required
• Perfect integration into the cabin
• Installation tutorial video available on focal-inside.com and youtube.com

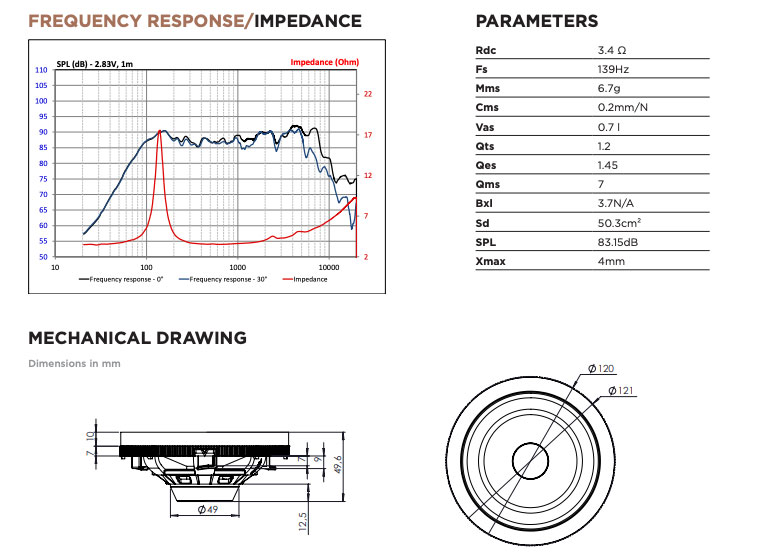

Specification

• Type 2-way component kit

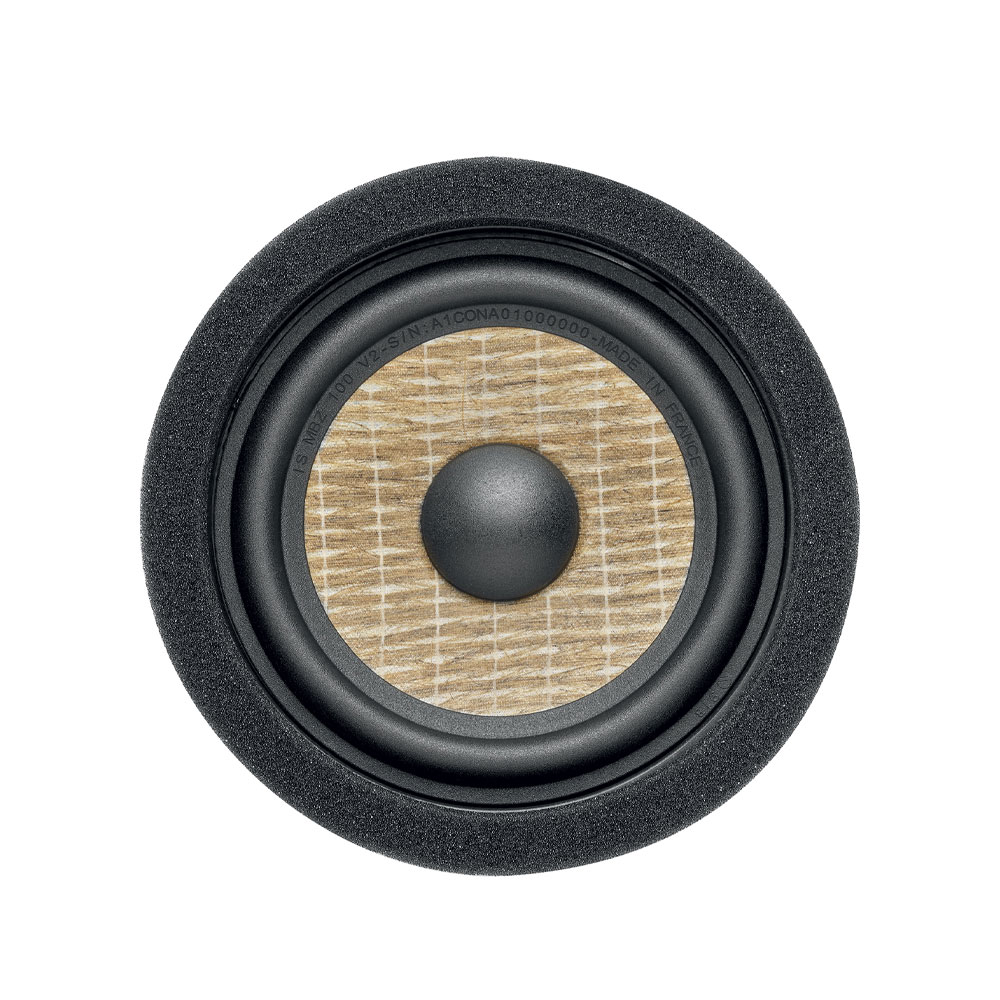

• Midrange 4" (100mm)
• Tweeter Aluminium inverted dome
• Voice coil diameter 1" (25mm)
• Voice coil height 5/16" (8mm)
• Magnet Neodymium
• Cone Flax
• Surround Butyl
• Impedance 4Ω
• Max. power 100W
• Nom. power 50W RMS
• Sensitivity (2.83V/1m) 87dB
• Frequency response 150Hz-20kHz
• Crossover
• Tweeter: in-line
• Woofer: in-line casing

Design

• Cut-Out diameter : 121 mm / 4.76 in
• Depth behind surface (Mounting depth) : 49.55 mm / 1.95 in

Sound - Acoustic

• Product type : 2-way separate kit
• Loudspeakers : Midrange: 4"
• Membrane : Flax
• Coil diameter : 1''
• Medium : 4"
• Filter : Woofer: Online / Tweeter box: Online
• Frequency response (+/- 3dB) : 150Hz - 20kHz
• Maximum power : 100 watts
• Motor : Neodymium
• Nominal Impedance : 4 Ω
• Nominal power : 50 W RMS
• Sensitivity : 87 dB
• Surround material : Butyl

Included Accessories

• Grilles : Included
• ISO cables supplied

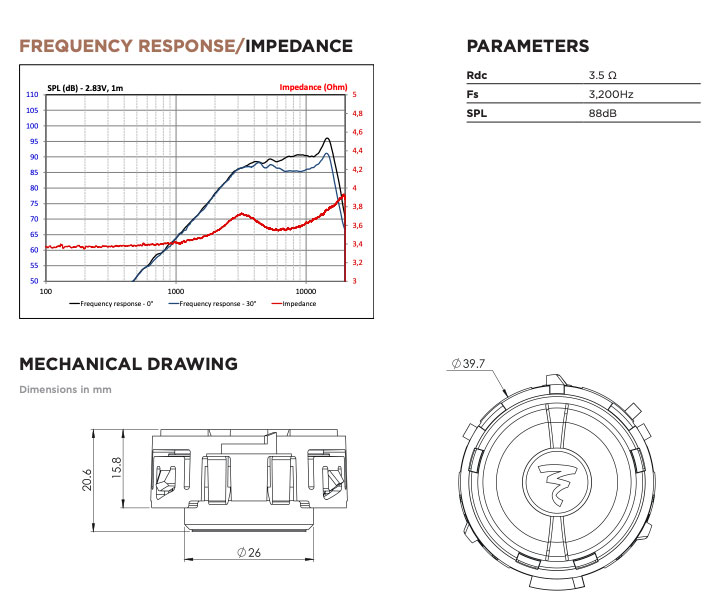

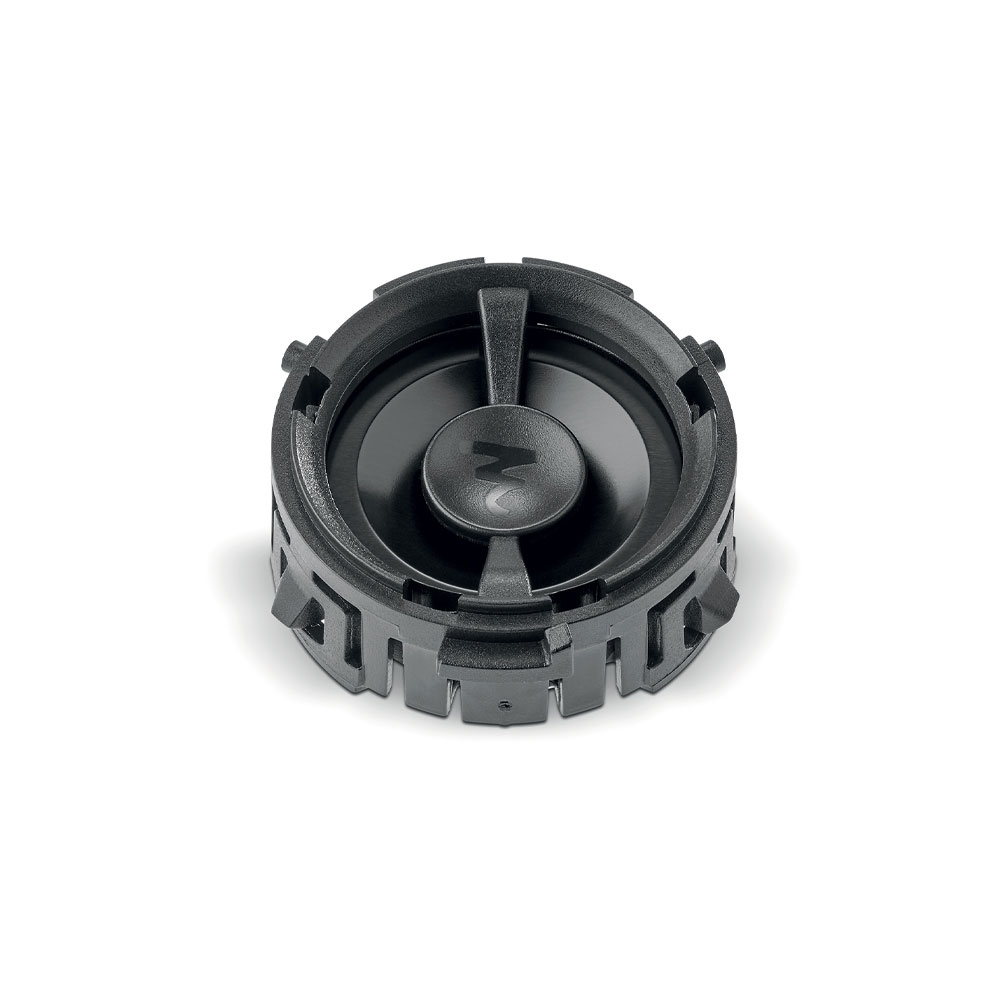

Tweeter Specification

• Nominal power 15W
• Maximum power 100W
• Sensitivity 91dB
• Nom. impedance 4 Ω
• Cone Alu
• DC resistance 3.4 Ω
• VC diameter 20mm 0.8"
• Former Kapton
• Layers 2
• Wire Alu
• Net weight 40g 0.08 lbs

Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

• Expert level sound dampening
• Aluminum outer layer
• Self adhesive
• Easy installation
• Use on all metal panels, doors, roof, floor, firewall & trunk
• Kills panel resonance, squeaks and rattles
• Highest damping vs. weight ratio of any material available
• Improves overall audio frequency response and bass output
• Speaker kit

Expert RoadKill Published Specifications

• Minimum Thickness 0.080in
• Minimum Weight 0.65bs/ft2
• Aluminum Layer- 6 mils

Note: This item/pack is sold as a pair and contains 2 speakers.
