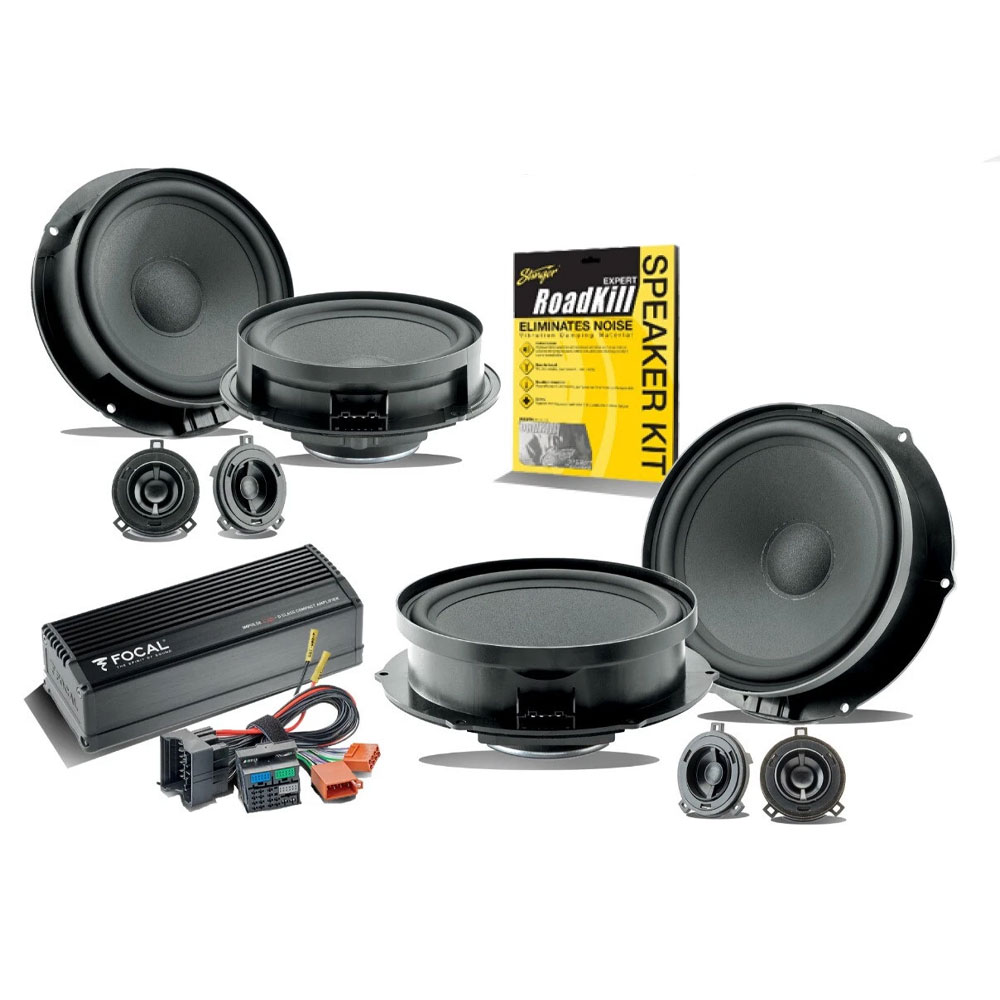

Focal ISVW155 & ISVW180 + Impulse 4.320 + Speaker Fitting Kit

Complete Premium Audio Upgrade For Volkswagen, SEAT & SKODA Vehicles

Package Included

• Focal ISVW155 Custom Fit 155MM 2-Way Component Volkswagen Speakers
• Focal INSIDE ISVW180 180mm 2-Way Component
• Focal INSIDE Impulse 4.320 Compact 4 Channel Car Amplifier 400 watts
• Focal Inside IW-VW-YISO T-Harness Adaptor
• Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

Compatibility Chart

Focal ISVW155 2-WAY SEPARATE KIT

The VW 155 2-way IS exploded kit is designed for all drivers who want to replace their original audio system with a hi-fi quality sound solution that is quick and easy to install.
The speakers incorporate Polyglass technology , which delivers well-defined midrange and bass. The sound is natural and without coloring. The aluminum inverted dome tweeter , Focal technology, provides perfect treble reproduction in addition to sound diffusion in all directions. Mounting foams for tweeters and anti-vibration foams are provided for uncompromising installation.

Compatible with the most recent Volkswagen models (Passat, Tiguan, Golf 8…),

this product can also be installed on many Seat and Skoda models. This kit is intended for vehicles with locations for tweeters.

Key Points

• Quick installation
• Spacer integrated into the chassis: perfect integration in the original locations
• Connector dedicated to the vehicle: no cables to cut or solder
• Improved sound quality and noise level
• No additional accessories required
• Dedicated harnesses allow get the most out of these speakers by coupling them to the Impulse 4.320 amplifier

Specifications

• Nominal power 50W
• Maximum power 100W
• Sensitivity 92dB
• Nom. impedance 2 Ω
• Cone Black Polyglass
• Surround Butyl
• DC resistance 2.08 Ω
• VC diameter 25mm 1"
• Former Kapton
• Layers 2
• Wire Copper
• Net weight 700g 1.54 lbs

Focal INSIDE ISVW180 2-Way Component Kit

The ISVW180 2-way component kit is designed for all drivers who want to replace their original audio system with a hi-fi quality sound solution.
The speaker drivers employ Polyglass technology, which delivers well-defined midrange and bass. The sound is natural, without coloration and The large emissive surface delivers deep bass. The Aluminium inverted dome tweeter, a Focal technology, provides perfect treble reproduction in every direction. In addition, tweeter mounting foams and anti-vibration foams are included for a perfect set up.

Quick and easy to install, this kit is compatible with the latest Volkswagen models (Passat, Tiguan, Golf 8, etc.), and can also be installed in many Seat and Skoda models.

This kit is designed for vehicles that have tweeter slots.

Key Points

• Quick and easy install
• Chassis-integrated spacer: perfect integration into the original locations
• Large emissive surface delivering deep bass
• Vehicle dedicated connector: no welding and no cables to cut
• Increased sound quality
• No additional accessories required
• Dedicated connectors improve the speaker drivers’ performance when paired with the Impulse 4.320 amplifier

Features

• Type 2-way component kit
• Woofer 180mm
• Tweeter Aluminium inverted dome
• Voice coil diameter 1" (25mm)
• Voice coil height 1/2"
• Magnet Ferrite
• Cone Polyglass
• Suspension Butyl
• Impedance 2Ω
• Max. power 150W
• Nom. power 75W RMS
• Sensitivity (2.83V/1m) 94dB
• Frequency response 50Hz-20kHz
• Crossover Woofer: integrated
• Tweeter: on line

Specifications

• Nominal power 75W
• Maximum power 150W
• Sensitivity 94dB
• Nom. impedance 2 Ω
• Cone Black Polyglass
• Surround Butyl
• DC resistance 2.07 Ω
• VC diameter 25mm 1"
• Former Kapton
• Layers 2
• Wire Copper
• Net weight 1050g 2.31 lbs

Note: This item/pack is sold as a pair and contains 2 speakers.

Compact 4-Channel Digital Amplifier

Give your head unit a breath of fresh air. Head unit amplifiers (whether OEM or aftermarket) soon reveal their limits in terms of power and dynamics. At high volume, they soon saturate and ruin the listening pleasure. To compensate for this and to enable you to get the best out of your speaker drivers, Impulse 4.320 is the ideal solution. It will give your installation a boost without you having to embark on a difficult installation process.

Semi “Plug&Play”, Impulse 4.320 is a miniature 4-channel digital amplifier delivering 4 x 55 Watts.

Impulse 4.320 is the perfect complement for your Focal Integration speaker drivers.

Very Easy To Install And Perfect Integration

Measuring only 67/8 x 17/8 x 25/8" (17.65 x 4.6 x 6.7 cm) Impulse 4.320 can easily be concealed within the dashboard or the center console.

Equipped with high-level (automatic detection feature) and low-level inputs, it is compatible with all head units. Supplied with all fastenings, an adaptor for the head unit’s speaker driver outputs, RCA adaptors for aftermarket head units and power connector, this amp was specially designed to be easy to install. No direct hook up to the vehicle’s battery is required.

An optional ISO connector is available for “Plug&Play” connectivity via the head unit’s harness.

Note: On certain cars, a harness adapter may be necessary.

Technology Issue From FD Amplifiers

The technology used for Impulse 4.320 was inspired by the Performance range’s FD amplifiers.

With an efficiency of more than 90%, Class D amplification has numerous advantages: less heat, low power consumption, low distortion at high volumes, compact... With the Impulse 4.320 amplifier, an unbeatable size/power ratio has been achieved. It delivers 4 x 55 or 2 x 160 Watts RMS at 4 Ohms.

Thanks to the adequate power and the fast attack for realistic and more aerated sound, it will completely transform the sound of your front and rear speaker drivers.

Extremely Versatile

To ensure compatibility with different head units, this amplifier features a 2-channel or 4-channel input selector switch.

Most of all, Impulse 4.320 has been designed to power front and rear speaker drivers. However, it can also be used in a 3-channel or 2-channel mode in order to meet all needs for improving small installations and it can also be used for powering the front speaker drivers and a small subwoofer.

Each pair of channels features an active crossover to adapt the sonic response according to the speaker drivers used. The front channels can be used for wideband speaker drivers or the high-pass filter can be used for frequencies above 75 Hz when only small speaker drivers are used. By avoiding having small speaker drivers reproduce very low frequencies, the sound will have more clarity. The rear channels are equipped with an active crossover (wideband, high-pass or low-pass) and with progressive phase adjustment for powering a small subwoofer or wideband speaker drivers of different sizes.

What Makes The Difference

• Far more powerful than a head unit
• Easy integration within the dashboard
• Compatible with all head units
• Extremely versatile
• Optional ISO connector for semi “Plug&Play” set-ups

Key Points

• Ultra-compact – Easy to install
• Compatible with all head units (OEM and after-market)
• Automatic start-up with your original head unit
• ISO compatible via cable accessories sold separately

Specifications

• CEA power (4 Ohms): 4x55Wrms
• Power max (2 Ohms): 4x80Wrms
• Power bridged (4 Ohms): 2x160Wrms
• Bandwidth: 10Hz / 20KHz
• Minimum THD: 0.02%
• SNR: 80dBA
• Weight: 1.2lbs
• Dimensions: 67/8x25/8x17/8" (175x66.5x47mm)

Inside Upgrade Harness

Focal's Inside system upgrades include new aftermarket vehicle-specific speakers and subs, along with their IMPULSE 4.320 4-channel amp.

• Designed specifically for your vehicle
• Quick and easy Plug and Play installation
• Direct link from the amplifier to your original head unit

Focal also offers a variety of cables and connectors that you may also need

• Extension cables to connect the T-harness to the amplifier. - IW-IMP-EXT150 Extension Cable
• Harness to connect the T-harness to the amplifier and subwoofer(s) - IW-IMP-2.2 AND IW-IMP-2.1 Harness

Check your vehicle compatibility by contacting us or checking the focal inside website.

Compatible Amplifiers

• Impulse 4.320
• FIT 9.660

What's Included

• Focal Volkswagen Y-ISO Harness

Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

• Expert level sound dampening
• Aluminum outer layer
• Self adhesive
• Easy installation
• Use on all metal panels, doors, roof, floor, firewall & trunk
• Kills panel resonance, squeaks and rattles
• Highest damping vs. weight ratio of any material available
• Improves overall audio frequency response and bass output
• Speaker kit

Expert RoadKill Published Specifications

• Minimum Thickness 0.080in
• Minimum Weight 0.65bs/ft2
• Aluminum Layer- 6 mils
