2-WAY COAXIAL KIT - 165MM WOOFER

The ICU Universal 2-way coaxial speaker kit improves on your original-fit speaker installation. Its compact size, achieved by reducing the housing depth, and its snap-off fixings make this kit easy to fit. The new generation Universal comes with innovations and new features, including a new inverted aluminium/magnesium tweeter for even more detailed treble reproduction. A new chassis has also been designed for optimal integration and a more elegant design. All this is with just one objective: to offer easy-fit products that maintain excellent sound. On this coaxial model, the aluminium/magnesium tweeter has a 2-position +3 dB adjuster (Flat/High) for treble boost. This adjustment comes into its own when the speaker is placed low in the door.

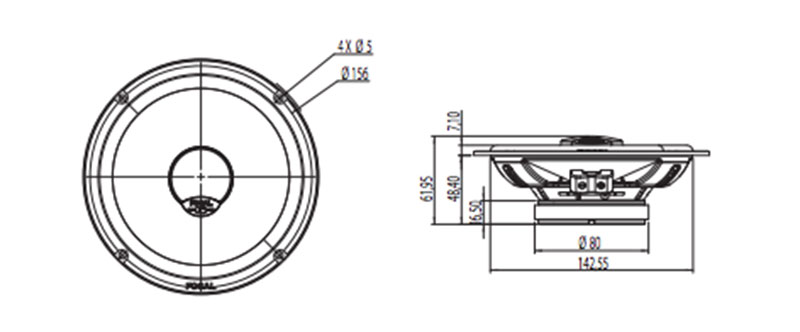

Shallow fitting: 48,4 mm.

NATURAL, UNCOLOURED SOUND

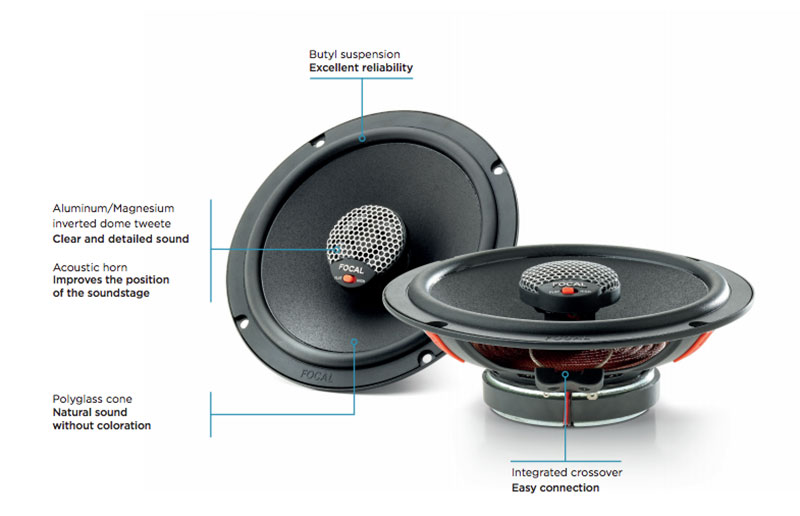

The Integration range is synonymous not only with ease of installation but also and most especially, with sound quality. At Focal we pride ourselves in supplying equipment of impeccable quality: for example, a polyglass membrane for natural, uncoloured sound and an inverted dome aluminium/magnesium tweeter for clear, detailed reproduction.

WHAT MAKES IT SPECIAL

• High sensitivity
• No-fuss treble adjustment
• Shallow fitting
• Improves on original-fit speakers
• Dynamism and neutrality

RELIABILITY A TOP PRIORITY

The Focal spirit also encompasses the reliability of our ever evolving technological equipment. Butyl suspension ensures that your speakers will stand the test of time. You will be able to enjoy the Focal sound for a long time, thanks to our high quality design: manufacturing processes and the choice of materials are always high priorities for our engineers, guaranteeing a result that exceeds your expectations.

TECHNICAL CHARACTERISTICS

• Woofer: 61/2" (165mm)
• Voice coil diameter: 1" (25mm)
• Max. power: 140W
• Nom. power: 70W RMS
• Sensitivity (2.83V/1m): 93dB
• Frequency response: 60Hz-21kHz
• Al/Mg inverted dome tweeter
• Accessories: delivered without grilles
• Integrated crossover: 6dB/oct

SPECIFICATIONS

• Nominal power 70W RMS
• Maximum power 140W
• Sensitivity (2,83V/1m) 93dB
• Frequency response 60Hz-21kHz
• Cone type Polyglass
• Surround type Butyl
• Nom. impedance 4Ω
• VC diameter 25mm 1"
• Net weight 750g 1.6lbs
