Focal ES165KX3E Elite K2 Power Series 6.5" 3 Way Component Speaker System With Sound Deadening Sheets
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 2
- Brand: Focal
- Model: ES165KX3E + RKXSK
- EAN: 7427307012698
- Warranty: 2 Years Warranty
Description

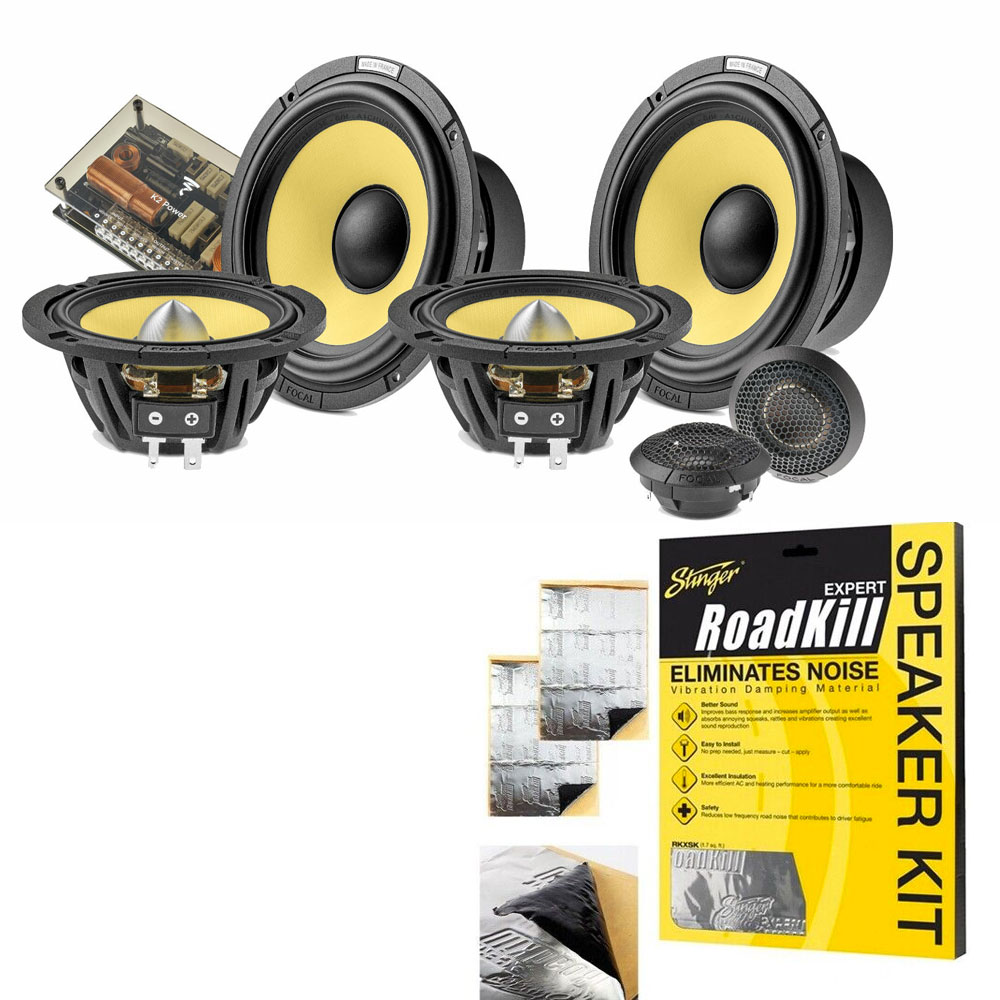

Package Includes
- Focal ES165KX3E Elite K2 Power Series 6.5" 3 Way Component Speaker System
- Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit

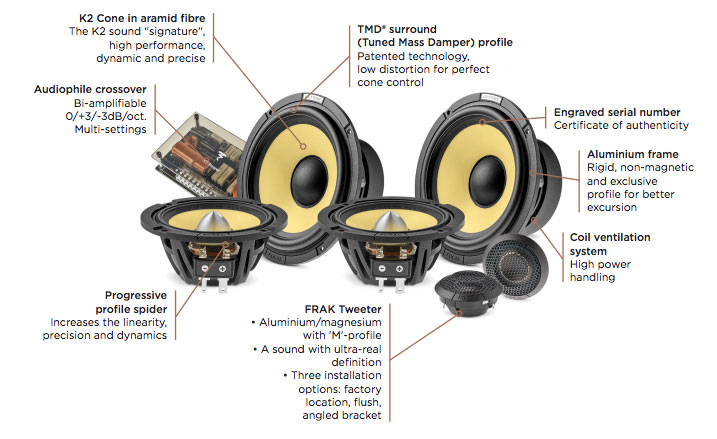

Key Points
- K2 Cone
- FRAK tweeter from the K2 Power M range
- Tweeter/midrange bracket
- Robust design and high quality materials
- Exceptional power handling

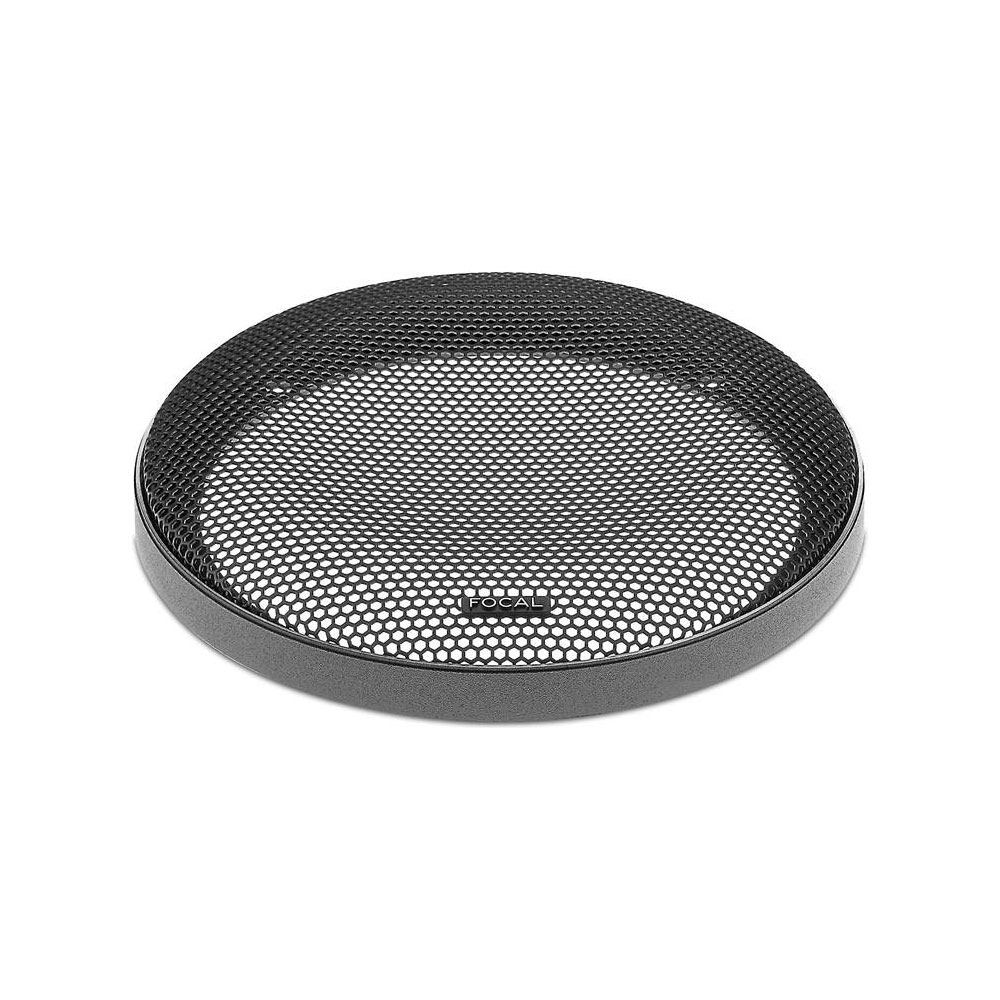

- Aluminium grilles included
3 Separate Way Kit
Two 16.5 cm woofers, two 8 cm midranges and two FRAK tweeters: complete, the ES 165 KX3E audio kit covers a wide frequency spectrum, with rich and dynamic mids, soft and precise highs and deep bass. The speakers are equipped with Focal’s iconic K2 membrane in aramid fiber, a performance-oriented cone for the pleasure of music in the car.
Realistic Sound
For perfect reproduction of treble and midrange, the kit includes FRAK tweeters. Patented by Focal, they deliver ultra-realistic, crystal-clear sound.
Outstanding Components

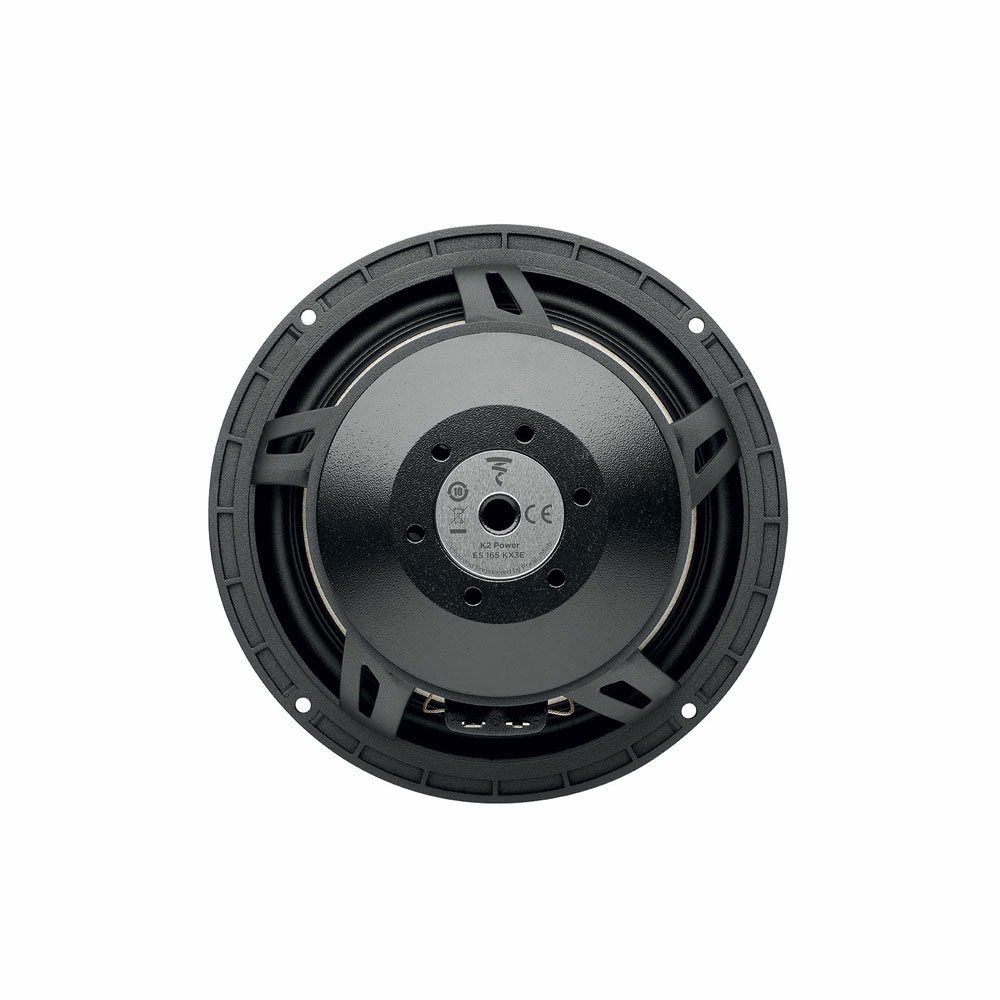

From the TMD® surround for perfect diaphragm control, to the rigid, non-magnetic aluminum frame, to the coil ventilation system that maximizes power handling: every component of the loudspeakers is designed and optimized to reproduce the full impact of the bass and enhance the precision and dynamics of the sound.
Flexible Installation
In addition to the available midrange/tweeter support, three mounting options are available for the tweeters: in the original slots, flush-mounted or on inclined brackets. The kit's installation thus combines efficiency, simplicity and flexibility.

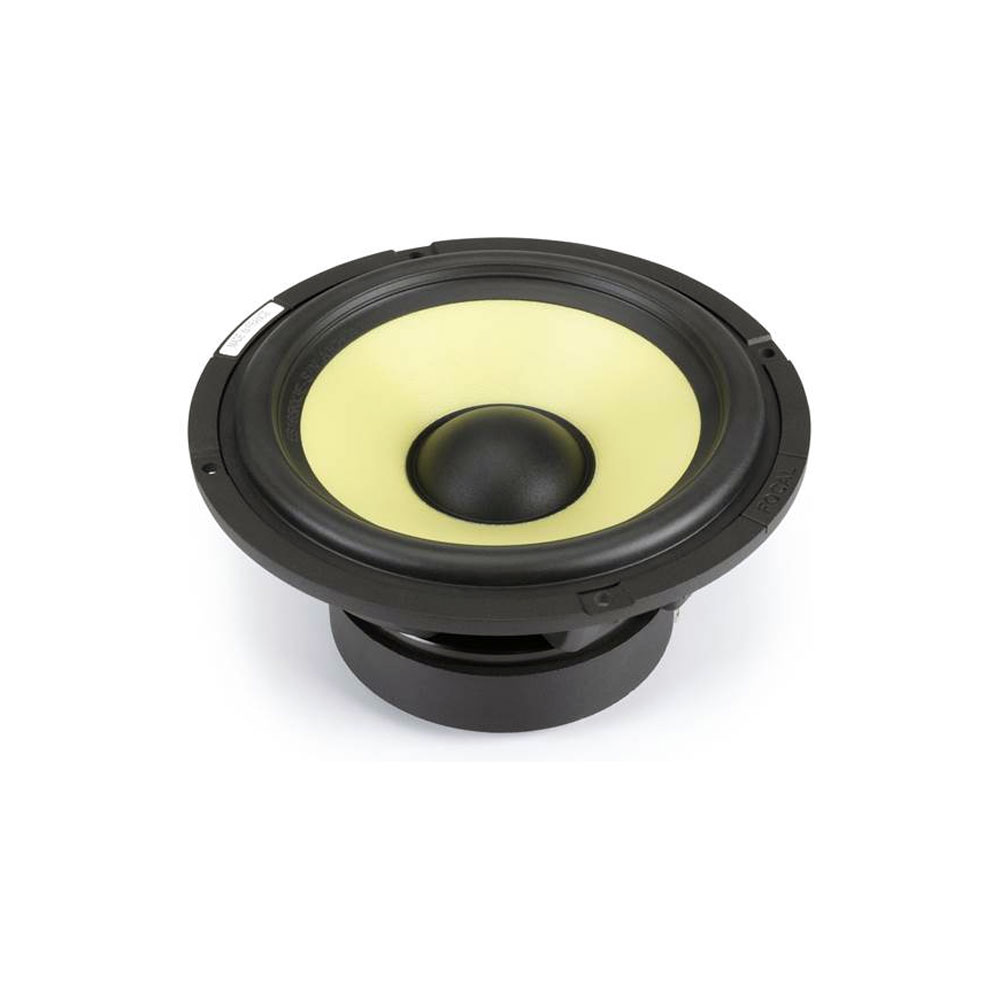

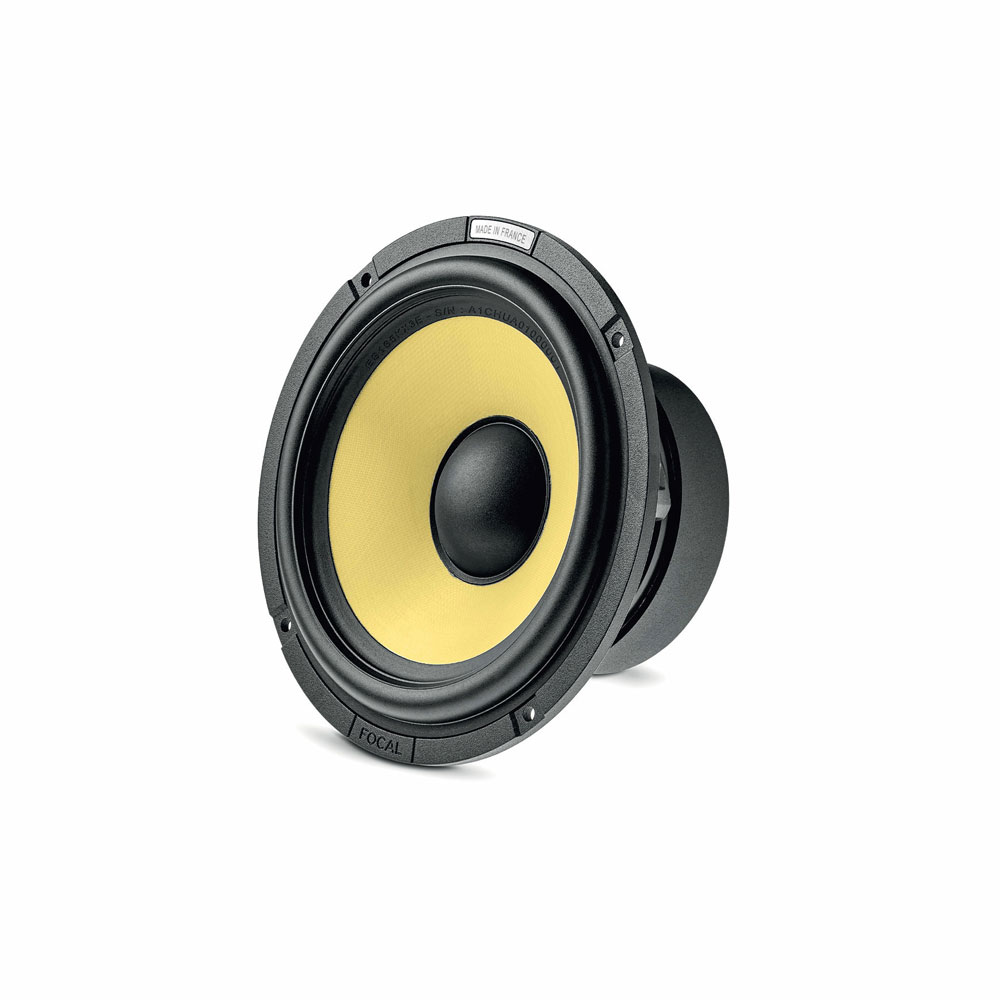

Woofer Specifications
- Type 3-way component kit
- Maximum power 240W
- Nominal power 120W
- Sensitivity (2.83V/1m) 93dB
- Frequency response 45Hz – 32kHz
- Impedance 4Ω
- Cone K2 Sandwich
- Diameter 61/2" (165mm)
- Voice coil diameter 15/8" (40mm)
- Depth 3" (76mm)
- Magnet Ferrite
- Surround TMD®
- Tweeter Aluminium, ‘M’-profile
- Crossover 6-12/12/12dB (3/4/500/3/5kHz)

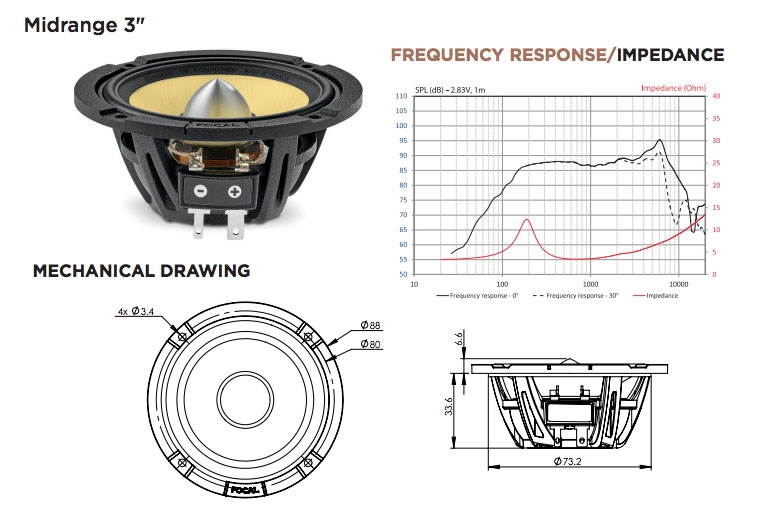

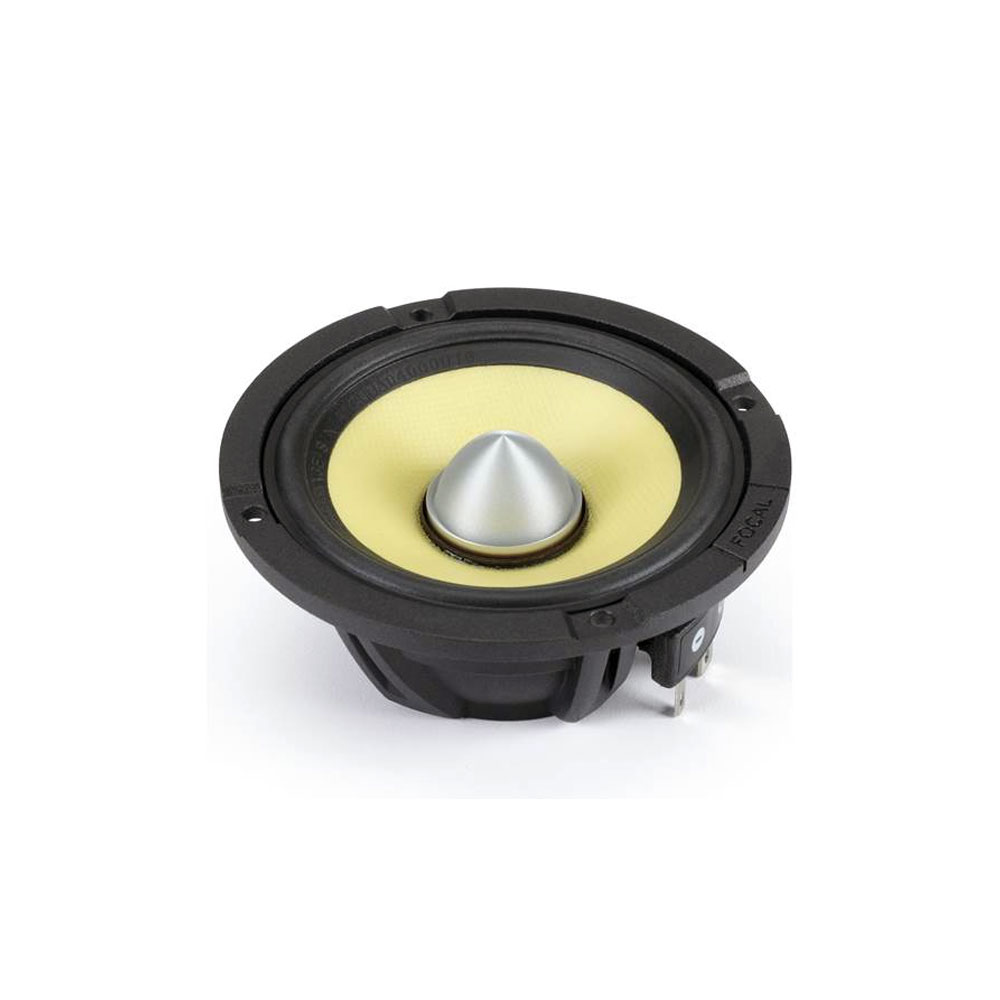

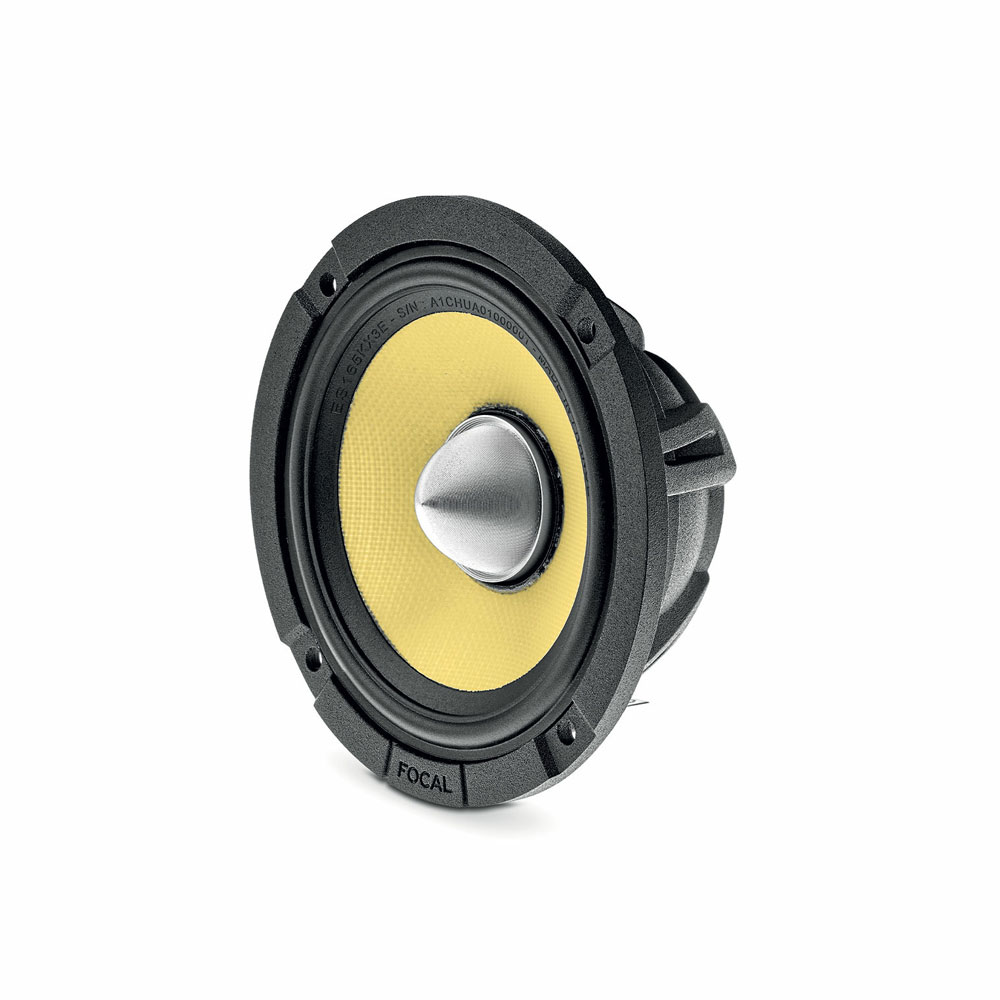

Midrange Specifications
- Nominal power 50W
- Maximum power 100W
- Sensitivity
- (2.83V/1m) 88dB
- Cone K2 Sandwich
- Nom. impedance 4Ω
- Surround Butyl
- DC resistance 3.2Ω
- VC diameter 20mm 3/4"
- Former Kapton
- Layers 2
- Wire CCWA
- Net weight 185g 0.40lbs
Parameters
- Rdc 3.2Ω
- Fs 190Hz
- Mms 3g
- Cms 0.2mm/N
- Vas 0.3l
- Qts 0.69
- Qes 0.92
- Qms 2.6
- Bxl 3.7 N/A
- Sd 35cm2
- SPL 86dB
- Xmax 2.3mm

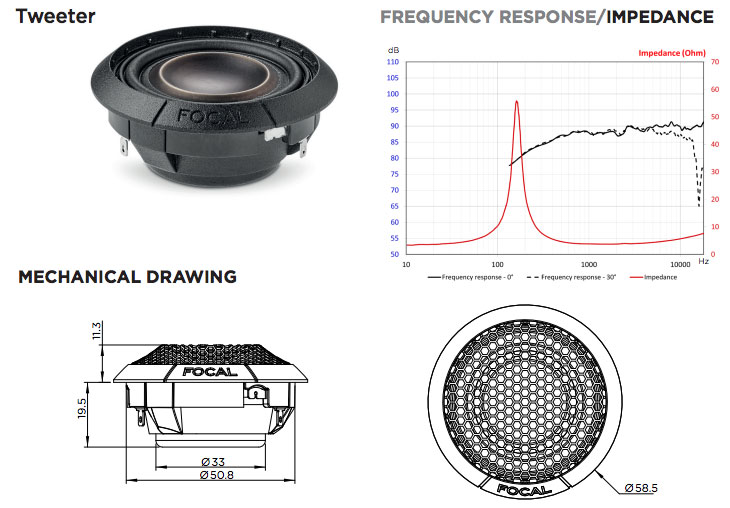

Tweeter Specifications
- Nominal power 25W
- Maximum power 150W
- Sensitivity 91dB
- Nom. impedance 4Ω
- Frequency response 600Hz-32KHz
- Cone Aluminium/Magnesium
- M-profile
- Surround TMD®
- VC diameter 25mm 1"
- Net weight 85g
Parameters
- Impedance 3.2Ω
- Fs 180Hz

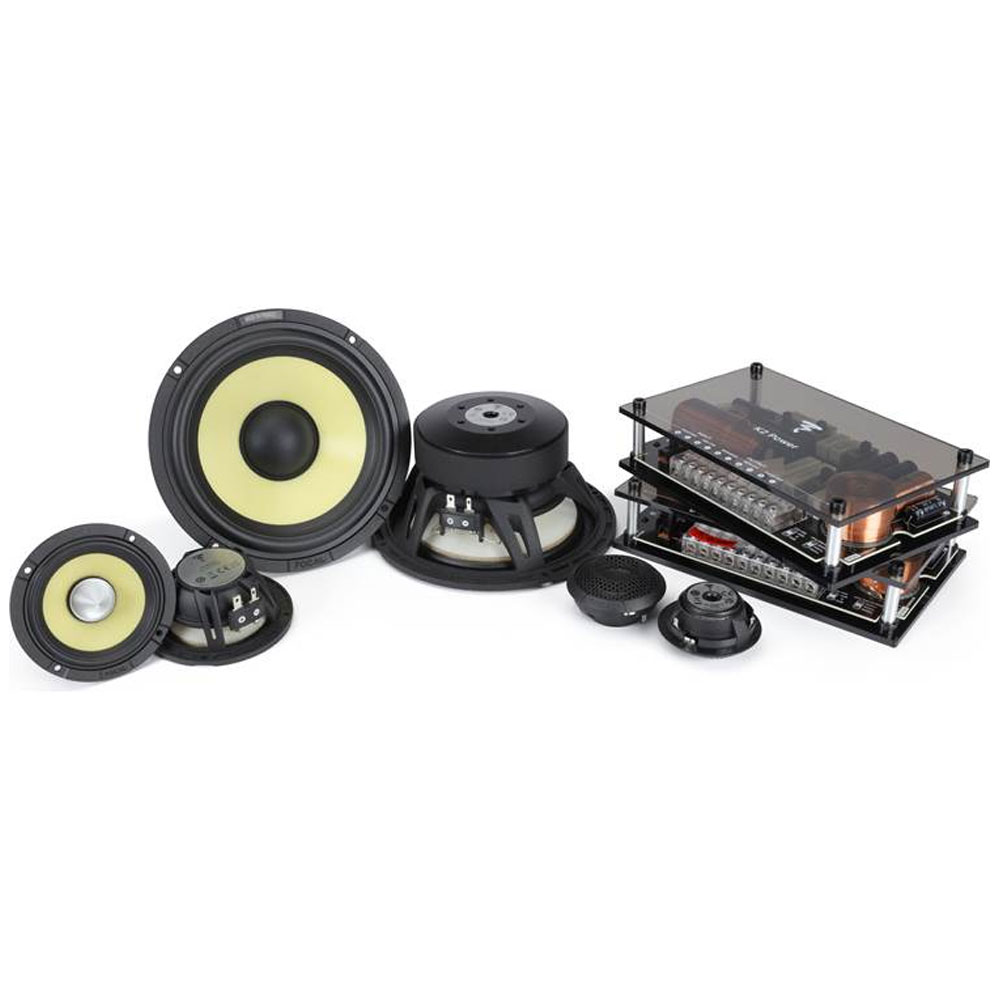

What's in the Box
- Two woofers
- Two midrange
- Two inverted dome tweeters
- 2 Tweeter flush mount rings

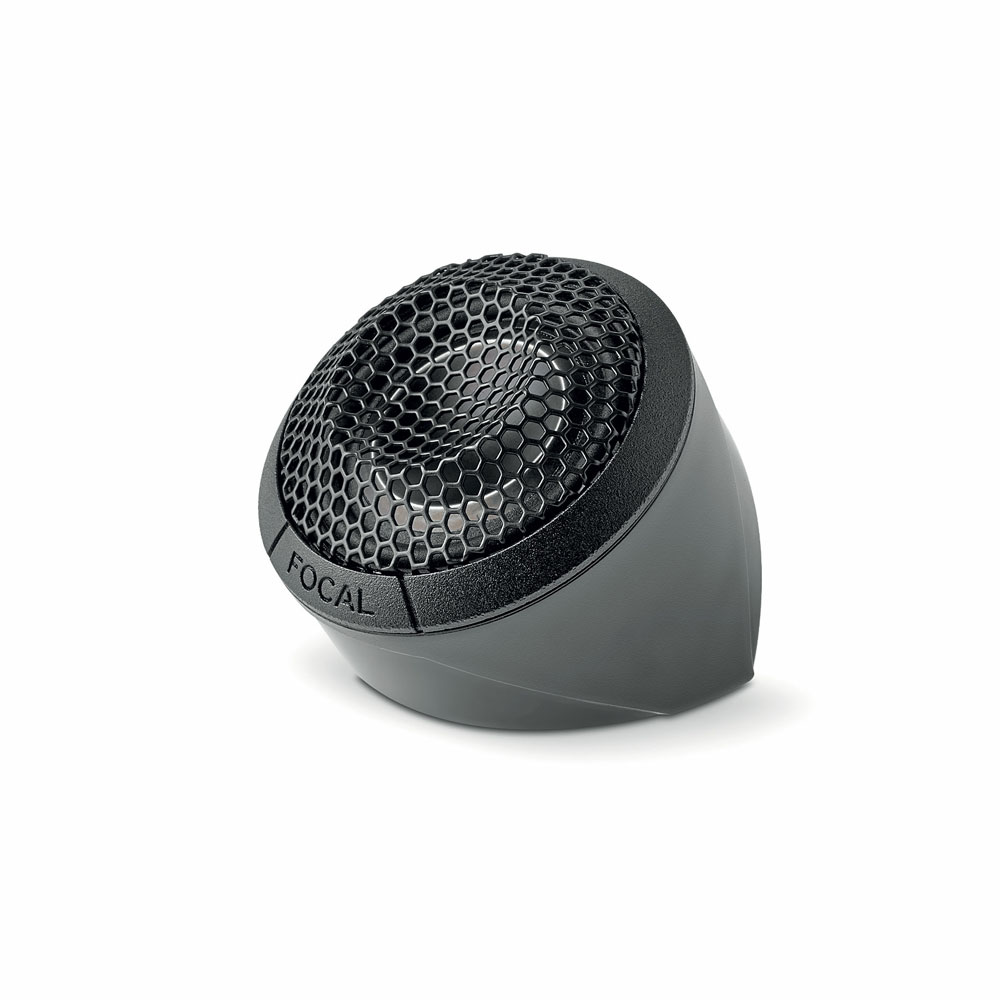

- 2 Tweeter angled surface mount cups
- 2 Midrange/Tweeter surface mount housings
- 2 Crossover networks
- 2 Woofer grilles
- 2 Woofer grille mounting rings

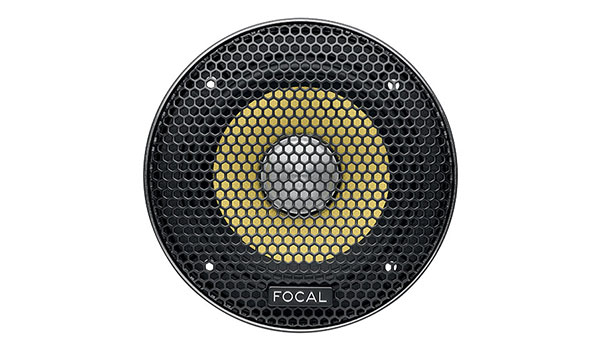

- 2 Midrange grilles
- 2 Midrange grille mounting rings
- 2 Woofer mounting gaskets
- 2 Midrange mouting gaskets
- 16 Speed clips
- Eight 1" Screws
- Two 3/4" Screws
- Eight 5/8" Screws (Black)
- Two 5/8" Screws (Silver)
- Two M3x8mm Machine screws
- Quick start guide
- 2 Focal window stickers
Stinger RKXSK Expert Sound Proofing Deadening Material 2 Sheet Speaker Kit
- Expert level sound dampening
- Aluminum outer layer
- Self adhesive
- Easy installation
- Use on all metal panels, doors, roof, floor, firewall & trunk
- Kills panel resonance, squeaks and rattles
- Highest damping vs. weight ratio of any material available
- Improves overall audio frequency response and bass output
- Speaker kit
Expert RoadKill Published Specifications
- Minimum Thickness 0.080in
- Minimum Weight 0.65bs/ft2
- Aluminum Layer- 6 mils
Aluminium grilles included
