Package Includes

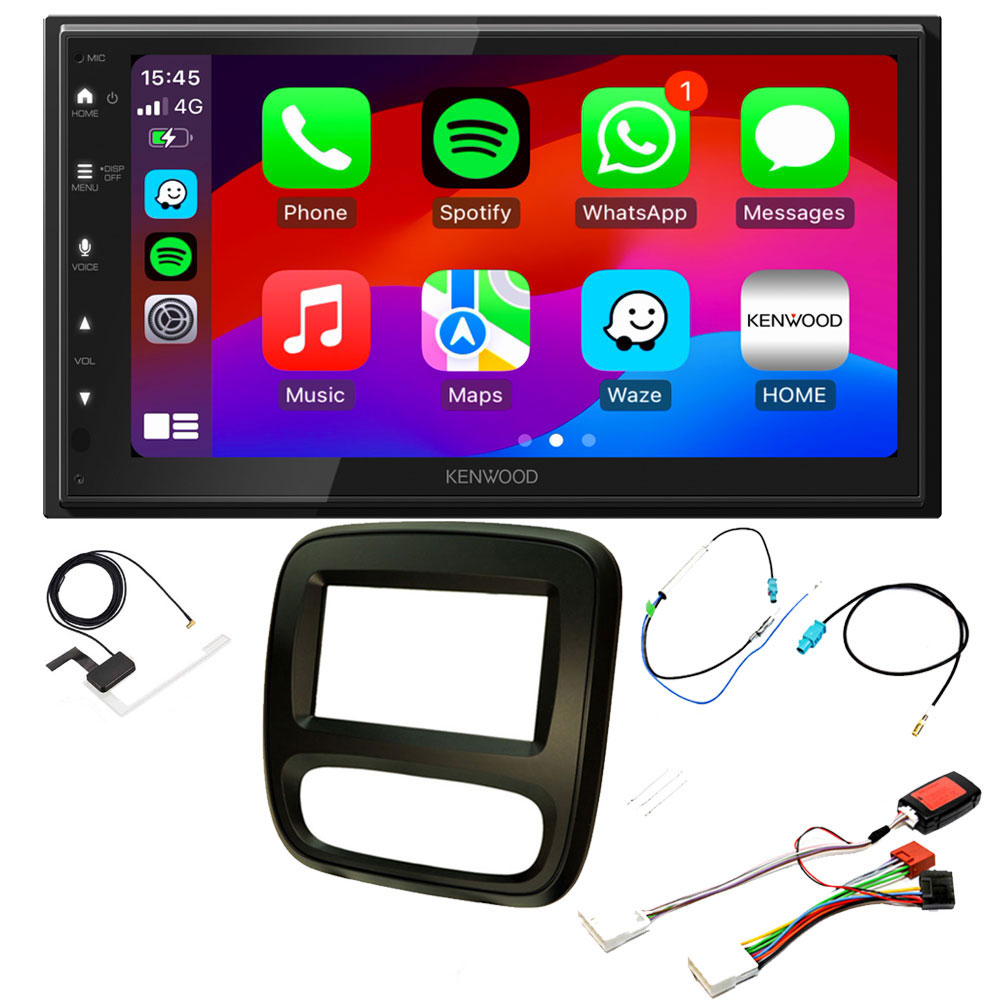

• Kenwood DMX5023DABS 6.8" WSVGA Display Bluetooth Double Din DAB Radio Wired Android Auto / CarPlay
• DAB Aerial
• Double Din Fascia (Matt Black)
• Steering Control Interface Adaptor
• Fakra to DIN Aerial Adaptor
• Fakra Male to SMB Female DAB Adaptor
• Stereo patch lead

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Replacement car audio fascia to enable you to change the original radio in the car to a Double DIN aftermarket version. This kit uses side fixing brackets to mount the new radio for a flush fit, so no cage is required. For single DIN fitting a universal pocket will need to be acquired.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

This interface will allow you to retain the use of the steering wheel controls with a standard original radio.

Fakra to DIN Aerial Adaptor Cable With 12v Phantom Power

This cable converts the original antenna connector in the car, known as a Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector. The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car. A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.

Fakra Male to SMB Female DAB Adaptor

Use this adapter to adapt a fakra DAB connector in a car to a DAB SMB connector on an after market DAB radio.

Universal Patch Lead

Universal patch lead to be used with In car Tec 29- series steering wheel control interfaces. Use for Alpine, Clarion, JVC, Kenwood, Pioneer, Sony, Zenec, Philips, Dynavin and non branded Chinese head units.

DMX5023DABS 2DIN Digital Media AV Receiver with 6.8 inch High Res WSVGA Display, DAB Tuner and Enhanced Smartphone Connections.

Key Features

• Wired Apple CarPlay® & Android Auto™ - Connect via USB
• Wired iPhone / Android USB Mirroring
• 6.8" WSVGA Display with Capacitive Touch Panel
• Built-in DAB+ Digital radio Tuner
• Built-in Bluetooth® Handsfree Calling & Audio Streaming
• High Current 2.1A Charging USB port.
• Front & Rear + Subwoofer (Mono) Preouts - 2.5V
• 13 Band EQ & Digital Time Alignment
• Rear View Camera Input with Parking Guidelines
• Single DIN Short Chassis Design for easy installation

MICROPHONE BUILT INTO STEREO

General Features

• DIN Size 2 DIN
• Smooth GUI
• Selectable GUI Background Wallpaper
• Key Illumination White color
• Attenuator with Smooth Volume Return
• Touch Sensor Tone
• Optional IR remote controller , (KNA-RCDV331)
• Digital Clock (24H)
• Built-in Bluetooth
• DAB Tuner Built-in
• Made for iPhone
• Works with Apple CarPlay
• Works with Android Auto
• USB Mirroring for iPhone / Android
• Firmware upgreadable

Monitor Features

• Screen Type 6.8" Wide SVGA
• Display Type Glare
• Display Panel Capacitive
• Display film Anti Fingerprint
• High Resolution WSVGA Screen 1024 x 600 pixel
• LCD backlight White LED
• Display Mode 3 Mode (Normal(default) / 16:9 / 4:3)
• Screen Adjustments Brightness / Tint / Color / Contrast
• Dimmer function Manual/Sync
• Dimmer Level Auto/On/Off
• Visual Source Mode Mirorring / CarPlay / Android Auto.
• Mechanism type Fixed
• NTSC/PAL judge (Auto)
• Display Off Mode

Multimedia GUI Features

• OSDC Type Graphic
• Menu text 14 languages:
  • English(UK)(Default)
  • English(US)
  • Spanish
  • French
  • German
  • Italian
  • Dutch
  • Portuguese
  • Arabic
  • Hebrew
  • Greek
  • Polish
  • Czech
  • Hungarian
• Demonstration Mode
• Top Menu Customize
• Opening Screen Type standard
• Background Customize 6 x presets + 2 x user set
• R-CAM interrupt
• R-CAM Parking Guide Lines, Built-in, customizable

Tuner Features

• FM Reception
• AM (MW/LW) Reception
• Tuning mode Auto1/Auto2/Manual
• Up/Down Seek/Scan
• Tuner Presets (FM/AM) 36 Presets (24FM / 12AM)
• Automatic Memory Entry (AME)
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• AF Regional Selectable: AF/AF Reg/OFF
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB Tuner Features

• DAB+ tuner built-in
• Digital Radio Certification Mark
• Intelligent seek
• Tuning mode / Seek mode Auto1/Auto2/Manual
• Service preset 15 ch * 1 bank presets,
• Service list by alphabet order
• Alphabet Search
• DAB-DAB/DAB-FM auto switch
• Seamless DAB-FM blending
• DLS (Dynamic Label)
• PTY (Programme Type) search
• Announcement Switching (ASW) Select
• Slide Show
• Soft linking
• Antenna power supply on/off switch

Bluetooth General Features

• Hands Free Profile (HPF) Ver. 1.8
• Audio Streaming (A2DP), (SBC/AAC)
• Simple Secure Pairing (SSP)
• Phonebook Access Profile (PBAP)
• PBAP call history Up to 20 entries of dialed, received and missed calls
• Audio/Video Remote Control Profile (AVRCP), V1.6
• iPhone & Android automatic pairing via USB
• Private mode
• Interrupt call request
• Voice Control
• Noise Canceller
• Echo Canceller
• High-quality noise canceling microphone built-in
• Bluetooth firmware upgradeable, Included in system updates

Playable Audio File

• AAC (*.aac) files are playable USB
• MP3 files are playable USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

CE_Playable Video File

• MPEG1/2 files are playable USB
• MPEG4 files are playable USB
• WMV files are playable USB
• H.264 files are playable  USB
• mkv files are playable USB

USB Features

• USB terminal, rear side / 1m cable / fix
• USB Type 2.0 High speed
• Drive Change
• File System FAT16 / FAT32 / exFAT / NTFS
• Tag Information Display
• Album Art Display
• Repeat Play Folder/File/All
• Random play Folder
• Category search
• Link Search
• Last Position Memory / Resume
• Time code display
• USB ports maximum output current 2.1A

iPhone Features

• Connection via: USB / Bluetooth
• Plug & Play
• Made for iPhone
• Tag Information Display
• Time Code Display
• List Access
• Album art support
• Random Play
• Repeat Play
• Skip
• iAP over Bluetooth
• Works with Apple CarPlay via USB

Android Phone Control

• Connection via USB / Bluetooth
• Works with Android Auto Via USB
• Android Open Accessory Protocol (For Android Auto)

Audio Features

• Max. Output Power 4 x 50W
• Primary Power Output 4 x 22W
• Pre-out 2 RCA : FRONT/REAR + SUB(mono)
• Pre-out Output Level 2.5V
• Volume Offset
• Volume Type DSP
• Built-in Amplifier Off
• Balance/Fader Control
• Beep On/Off

Multimedia DSP Features

• Position Preset 4 Presets
• Graphic Equalizer 13 bands
• G-EQ manual setting
• G-EQ adjustable level, +9db / -9dB
• Time Alignment 0 ~ 610cm
• HPF Cut Off Frequency 14 steps
• HPF Cut Slope Level 4 steps
• Low Pass Filter (LPF) (Non-Fading)
• LPF Cut Off Frequency 14 steps
• LPF Cut Slope Level 4 steps
• X'over
• Speaker Size Control
• Channel Level Control
• Loudness
• Tweeter volume
• Bass Boost
• Source Volulme Offset source independent

Connectivity

• DC-Cord 22pin to ISO
• Reverse sensor wire
• Parking sensor (handbrake) wire
• Power Control (P.CON) wire
• Dimmer control wire
• Preout 2 x RCA (Front/rear) + Sub (mono)
• AV-Input (Non Switchable) (Mini-jack) audio & video
• Video Out RCA x1 (Source: USB)
• Rear View Camera Input Dedicated RCA Video-in
• GPS Aerial Input GPS antenna included
• FM Antenna Input JASO connector
• DAB Aerial input SMB
• External microphone input 3,5mm mini-jack
• OEM Wired Remote Control ready, Optional interface needed
• Learning Steering Remote Function

DMX5023DABS Quick Set Up Guide for Apple & Android Mirroring

iPhone Instructions

1. Download Mirroring App from the App store. Install the latest version of the “MirrorAPP+” on your iPhone.

2. Pair your iPhone with the unit via Bluetooth (search and select DMX5023DABS on your iPhone Bluetooth menu)
3. Connect your iPhone via the USB terminal
4. Launch Mirroring App on your iPhone
5. Touch [Screen Mirror] to start Mirroring App

6. Touch [Start Broadcast] to start capturing your iPhone screen

7. Wait 15 to 30 seconds until the screen calibration is complete. (First time only)
8. Touch [Close] to close the message.
9. Select ‘USB Mirroring’ on the DMX5023DABS
10. You should now see the iPhone screen on the DMX5023DABS
11. The app screen should look like the below after successfully connecting your iPhone

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
