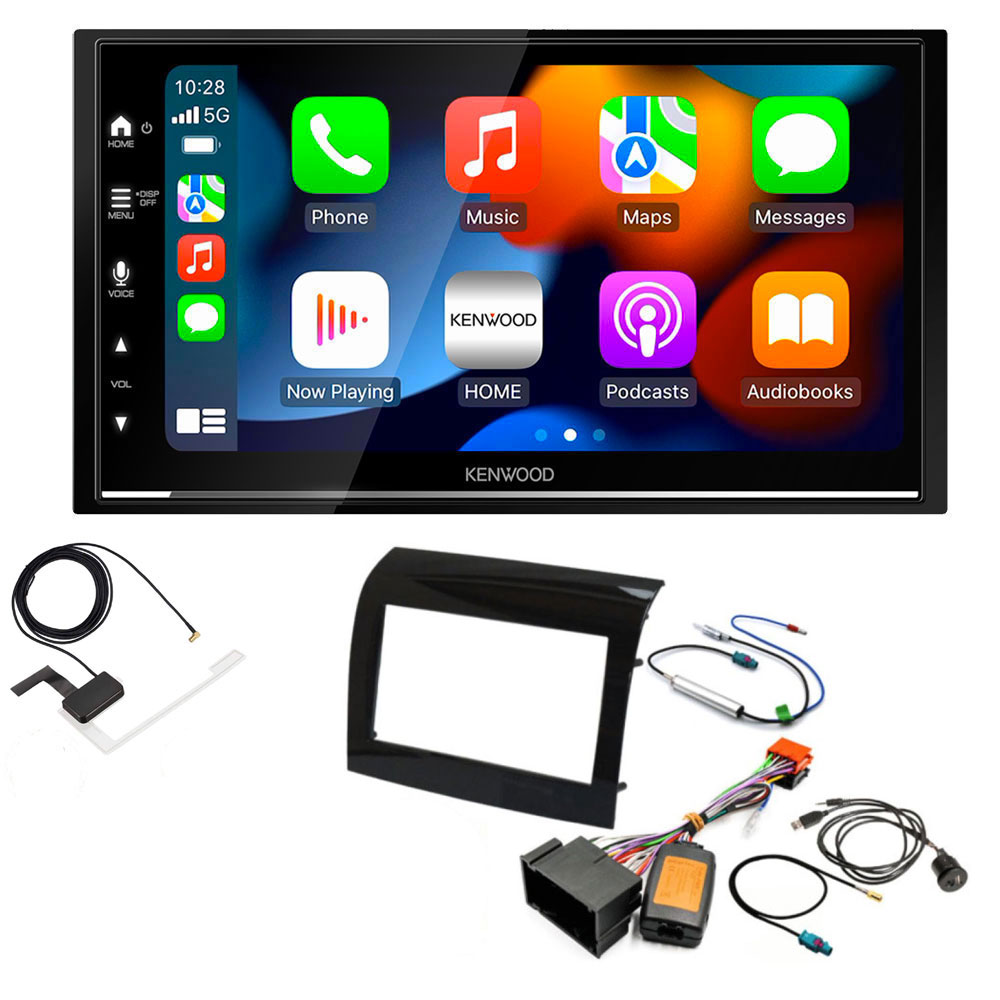

Package Includes

• Kenwood DMX7722DABS Wireless Apple CarPlay Android Auto Digital Media AV Receiver DAB Stereo
• DAB Aerial
• Double Din Fascia with Side Fix Brackets (GLOSS BLACK)
• CANbus Steering Wheel Control Interface (Daiichi radios)
• Fakra DAB Male to DAB SMB Female Antenna Adapter
• Fakra to Din Aerial Adapter with Phantom Power
• USB/ AUX Socket Extension
• Stereo Patch Lead

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Double Din fascia kit for 2014 onwards facelifted vehicles. This kit comes with side fixing brackets so no cage kit is required.

For single DIN installation an additional pocket will be required. There may be some additional plastic that requires cutting to allow the installation of a double-din unit.

This fitting kit is only suitable for vehicles with original large gloss black head units. Some vehicles are fitted with original basic single din units or with an open dashboard, these vehicles require different fitting parts.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

This interface is designed for the Fiat Ducato (2020 Onwards) originally fitted with a Daiichi Standard or Navigation radio (with single USB port below screen) and 8 button steering wheel as seen below:

These models use the later 52 pin large Fiat connector but do not use CAN ignition for the radio and operate with a switched 12v live.

This interface includes PHONE commands for compatible Bluetooth head-units

Fakra to DIN Aerial Adapter with Phantom Power

This cable converts the original antenna connector in the car, known as a Fakra connector, to a standard aftermarket antenna connector, known as a DIN connector.

The adapter cable has a built in module which provides a phantom power feed to the original antenna in the car. A phantom power feed is a 12v power supply that is sent up the centre wire of the antenna cable, this powers the amplifier built into the original antenna. The antenna adapter cable has a loose wire which needs to be connected to the 12v antenna power output of the new aftermarket stereo.

The phantom power feed terminates in a male bullet connector to make the phantom power lead easier to connect to ISO cables and steering wheel control interfaces with a female bullet connection for the electric antenna turn on

USB/ AUX Socket Extension

28mm push fit USB socket with 3.5mm AUX in Jack  extension cable. Allows you to extend the USB and 3.5mm jack sockets from the back of a new aftermarket head-unit to the cars dash or centre console.

Fakra DAB Male to DAB SMB Female Antenna Adapter

Use to convert the original (Fakra DAB) antenna connector in a car to a female SMB (used on aftermarket head-units)

Key Features

• 6.8 "WVGA capacitive touch panel with sharp, high-contrast images, vivid colors and wide viewing angles.
• Wi-Fi built-in for convenient wireless connection with a compatible smartphone.
• DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound.
• Bluetooth(R) Wireless Technology for hands-free calls and music streaming. (Available functions depend on cell phone).
• Supports CarPlay wirelessly (Wifi) and wired (USB).
• Supports Android Auto wirelessly (Wifi) and wired (USB).
• Supports Android USB Mirroring including 2-way touch control capability.
• Dedicated rear view camera input with parking guide lines
• 3 RCA high power (2.5V) preouts (front/rear/sub)
• Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements
• Short body (75mm) for easy installation.

General Features

• DIN Size 2 DIN
• Smooth GUI
• Selectable GUI Background Wallpaper
• Key Illumination Variable color
• Touch sensor
• Installer Memory
• Back-up Memory
• Attenuator with Smooth Volume Return
• Touch Sensor Tone
• Optional IR remote controller KNA-RCDV340
• Digital Clock (24H)
• Built-in Bluetooth
• DAB Tuner Built-in
• Wifi built-in
• Made for iPod
• Firmware upgreadable

Monitor Features

• LCD type 6,8 inch Wide VGA
• LCD backlight LED
• Display Mode 3 Mode (Full(default)/Auto/Normal)
• Screen Adjustments Noon/Night Mem/Brightness/Tint/Colour/Contrast
• Dimmer function Manual/Sync
• Dimmer Level Auto/On/Off
• Visual Source Mode CarPlay/Android Auto.
• Touch Panel Capacitive
• Display Type Glare
• Display film Anti Fingerprint
• Viewing Angle Adjustment "0" (Default) / "-1" / "-2" / "-3"
• NTSC/PAL judge (Auto)
• Display Off Mode

Multimedia GUI Features

• Menu text 14 languages:
  • English(UK)(Default)
  • English(US)
  • Spanish
  • French
  • German
  • Italian
  • Dutch
  • Russian
  • Portuguese
  • Hebrew
  • Greek
  • Polish
  • Czech
  • Hungarian
• Software updates (SoC) via USB
• Demonstration Mode
• Top Menu Customize
• Background Customize preset x 9 + user set x 1
• Screen Capture
• R-CAM interrupt
• R-CAM Caution On Screen Display
• R-CAM Parking Guide Lines

Network & Wifi Features

• WiFi built-in built-in
• Frequency Range Dual Band (2.4GHz / 5GHz)
• IEEE standard 802.11a/b/g/n/ac

Tuner Features

• Station Select List
• Tuner Type JKTS
• FM Reception
• AM (MW/LW) Reception
• AM Reception
• FM(RDS) + AM(MW/LW) Tuner
• Tuner Presets (FM/AM) 5 Presets (15FM / 5AM)
• Tuning mode Auto1/Auto2/Manual
• Up/Down Seek/Scan
• Automatic Memory Entry (AME)
• FM Stereo / Mono Selector
• Radio Data System
• Radio Text Plus
• Traffic Information
• Local search
• Auto TP search
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB Tuner Features

• DAB+ tuner built-in
• Digital Radio Certification Mark
• DAB/DAB+ Band Band III
• DAB/DAB+ Mode I, II, III, IV
• Intelligent seek
• Tuning mode / Seek mode Auto1/Auto2/Manual
• Service preset 5 ch * 3 bank presets,
• Preset list
• Alphabet Search
• Traffic Information
• DAB-DAB/DAB-FM auto switch
• Seamless DAB-FM blending
• DMB (Digital Multimedia Broadcasting) support
• Announcement Switching (ASW) Select
• EPG (Electronic Program Guide)
• Soft linking
• Antenna power supply on/off switch

Bluetooth General Features

• Hands Free Profile (HPF) Ver. 1.8
• 2 phones full time connection
• Audio Streaming (A2DP)
• High Quality Audio Streaming SBC/AAC
• Serial Port Profile (SPP)
• Simple Secure Pairing (SSP)
• Phonebook Access Profile (PBAP)
• Audio/Video Remote Control Profile (AVRCP) V1.6
• Multi Profile Support
• iPhone & Android automatic pairing via USB
• KENWOOD Music Mix Support
• Private mode
• Interrupt call request
• Voice Control
• Noise Canceller
• Echo Canceller
• High-quality noise canceling microphone External microphone unit

Playable Audio File

• AAC (*.m4a) files are playable USB
• AAC (*.aac) files are playable USB
• MP3 files are playable USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

CE_Playable Video File

• MPEG1/2 files are playable USB
• MPEG4 files are playable USB
• WMV files are playable USB
• H.264 files are playable USB
• mkv files are playable USB
• JPEG files are playable USB (for wallpaper)
• BMP files are playable USB (for wallpaper)
• PNG files are playable USB (for wallpaper)

USB Features

• USB terminal rear side
• USB Type 2.0 High speed
• Drive Change
• Works with Android Auto
• Works with Apple CarPlay
• USB Mirroring for Android install "Mirroring OA for KENWOOD" from Playstore
• Repeat Play Folder/File/All
• Random play Folder / File
• Category search
• Resume play
• Time code display
• 1,5A Smartphone Quick Charge

iPod Features

• Connection via: USB / BT / Wifi
• iPod Accessory Protocol (iAP) iAP2
• Works with Apple CarPlay

Audio Features

• Max. Output Power 4 x 50W
• Pre-out 3RCA: Front/Rear/Subwoofer
• Pre-out Output Level 2.5V
• Volume Offset
• Att.(-20dB) with smooth Volume Return

Multimedia DSP Features

• DSP Chip JKTS DSP
• Position Control
• Position Preset 4 Presets
• Position Cabin Size
• Graphic Equalizer 13 bands
• G-EQ KBS
• G-EQ manual setting
• G-EQ adjustable level +9dB / -9dB
• High Pass Filter (HPF)
• Low Pass Filter (LPF)
• 3-Way X'Over
• Channel Level Control
• Space Enhancer
• Supreme
• Realizer
• Loudness
• Stage EQ
• Bass Boost
• Drive EQ
• Speaker Size & Location Control
• Listening postion control / Time Alignment
• Equalizer presets / User set 8 presets / 4 User set
• Balance & Fader Control
• Source Volulme Offset source independent

Video Features

• Audio Video Output Video: RCA, Audio: mini-jack
• Audio/Video Input Mini-jack (Rear)
• Video-In for Rear-view Camera 1 dedicated video input (RCA)
• Detection Mode Rear View Camera Reverse sensor wire
• Parking Guide Line

Connectivity

• USB interface 1x Rear
• OEM Wired Remote Control ready
• Programmable OEM Steering wheel Remote Function
• DC-Cord NEW Mitsumi to ISO
• Parking sensor (handbrake) wire
• Power Control (P.CON) wire
• Dimmer control wire
• Preout 3 x RCA (Front/rear/subwoofer)
• AV-Input 1x mini-jack (selectable: AV-in / Camera-in)
• Video Out RCA x1
• Reverse sensor wire
• Rear View Camera Input Dedicated RCA Video-in
• GPS Aerial Input HRS GT5-1S connector
• FM Antenna Input JASO connector
• DAB Aerial input SMB connector
• External microphone input 3,5mm mini-jack

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
