CTKVX37 Vauxhall Vivaro (2014-2018) Double Din Car Stereo Fascia Facia Fitting Kit
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 10+ in stock
- Brand: Connects2
- Model: CTKVX37
- EAN: 3777259366474
- Warranty: 2 Years Warranty
Description
Product Compatibility Chart
| Make | Model | Years | Notes |
| Opel | Vivaro | 2014 - 2019 | (B) |
| Vauxhall | Vivaro | 2014 - 2018 | (B) |
Not suitable for vehicles with the sat nav system.
USE THE ORIGINAL TOP ORIGINAL SCREW POSITION FROM THE VEHICLE FOR THE TOP OF THE BRACKET AND FOR THE LOWER POSITION YOU NEED TO DRILL A NEW PILOT HOLE
SOME VEHICLES WITH STOP START FEATURE WILL REQUIRE AN INTERFACE TO BE INSTALLED INLINE WITH THE POWER ISO PLUG OF THE NEW STEREO.
THE INTERFACE WILL ALLOW THE UNIT TO STAY POWERED WHEN THE VEHICLE ENGINE SHUTS DOWN AND RESTARTS.
IF YOU ARE EXPERIENCING THIS WITH YOUR NEW INSTALLATION YOU WILL NEED A 10-603 ADAPTER IN ADDITION TO THE FITTING KIT.
Part in question is:
Vauxhall Double Din Radio Replacement Kit, Allows the fitment of a Double DIN aftermarket headunit to the selected vehicle. This kit includes double din fascia, Steering stalk controls, and Antenna connections.

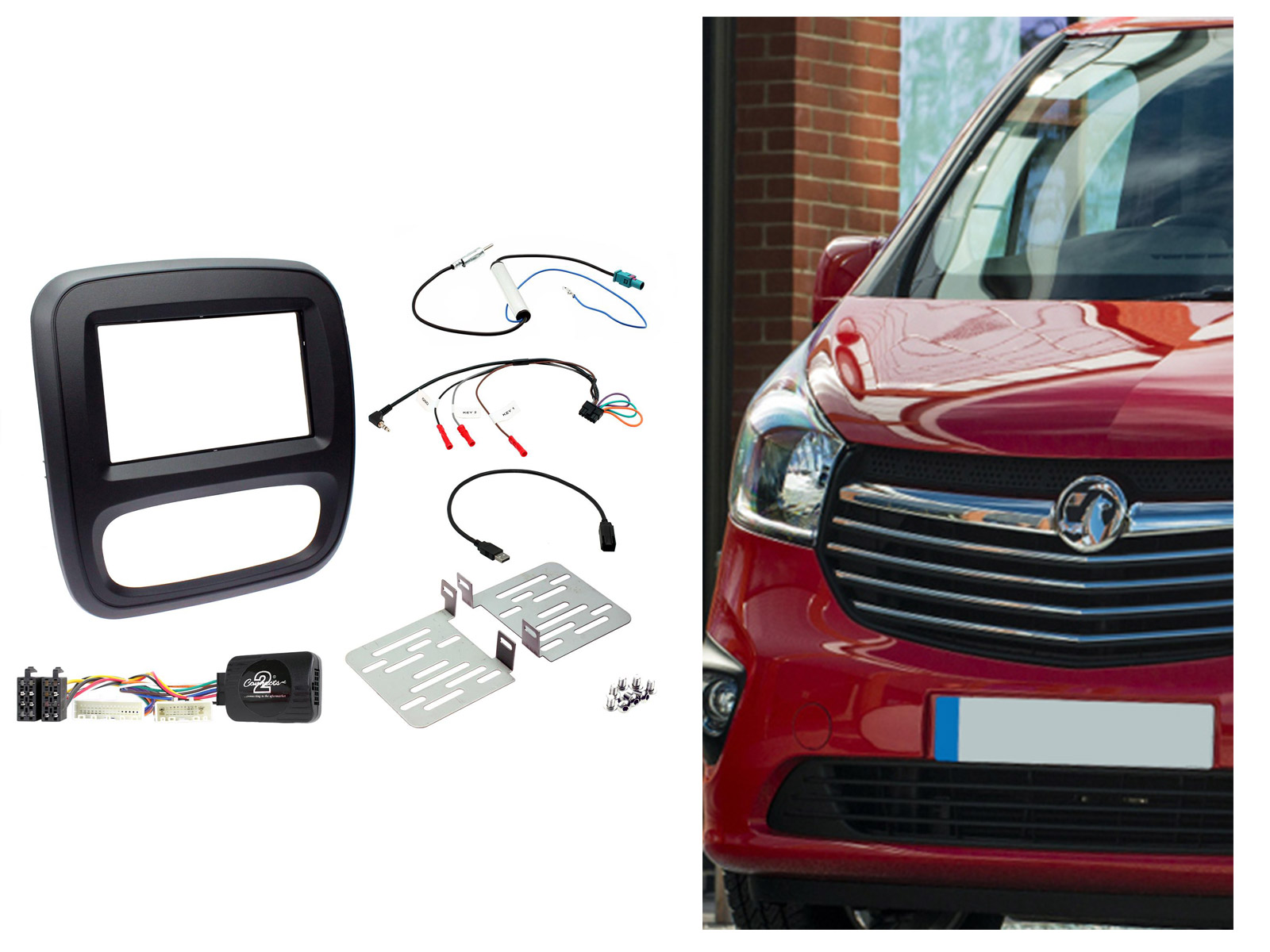

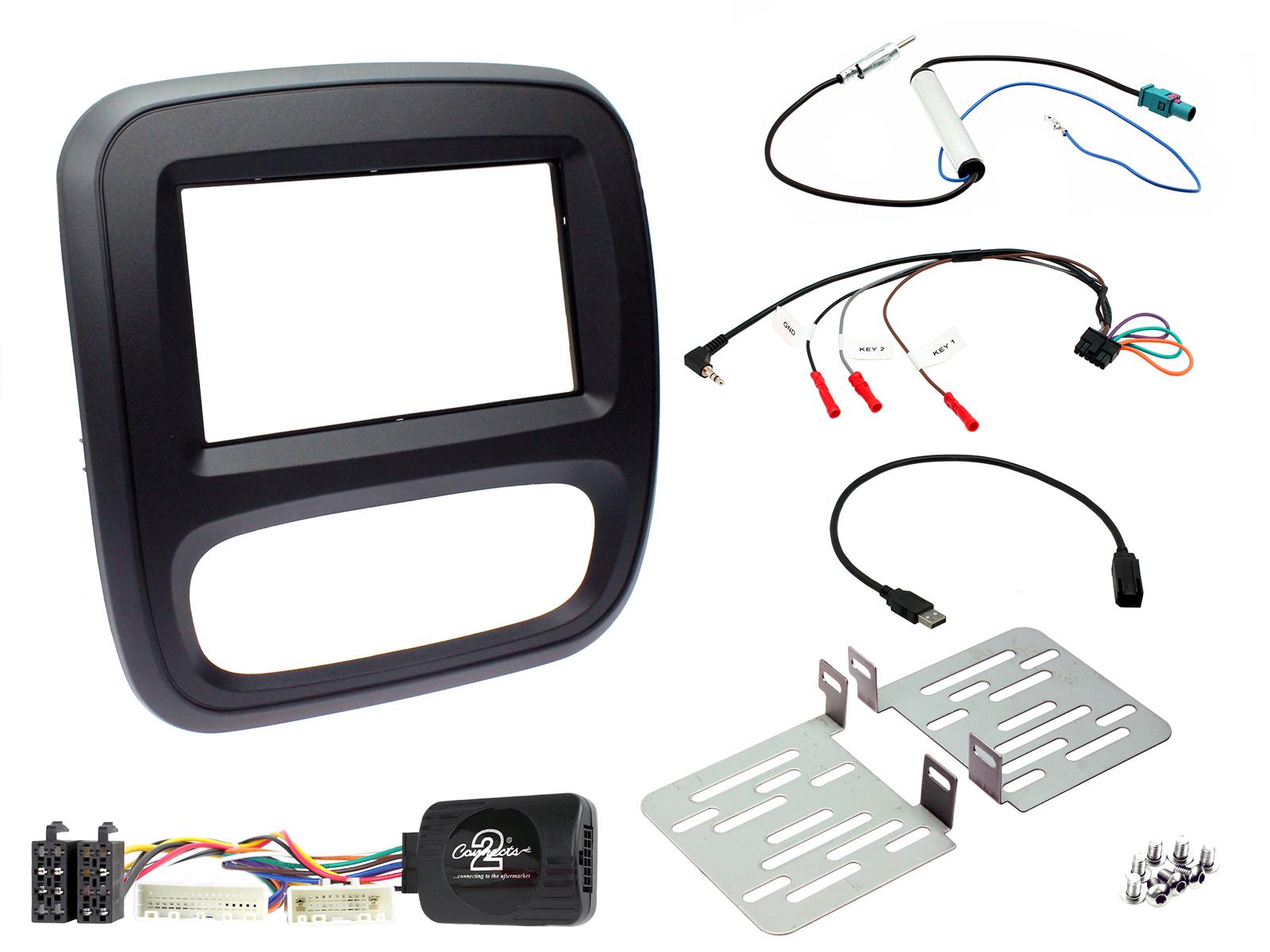

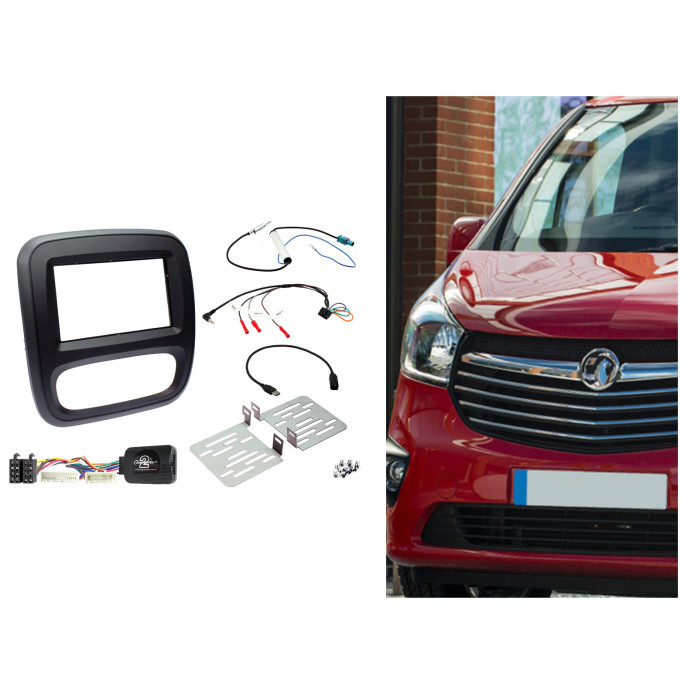

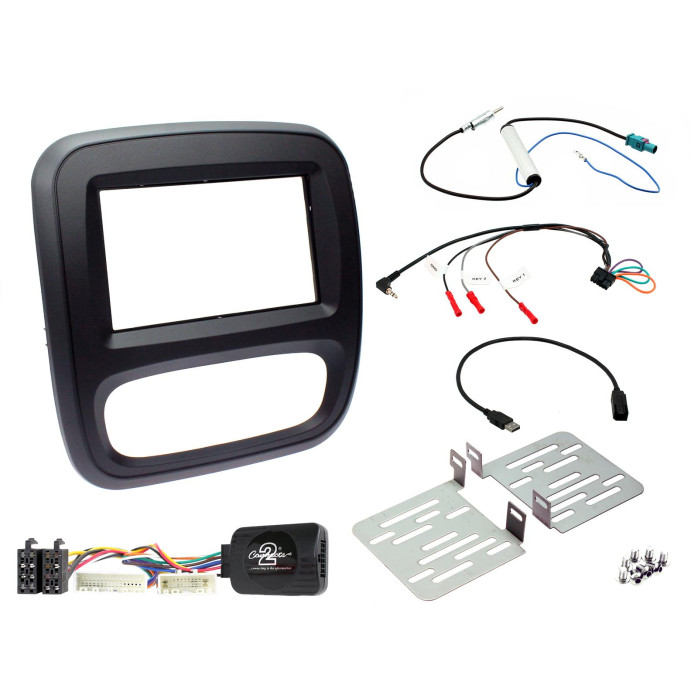

Kits Includes

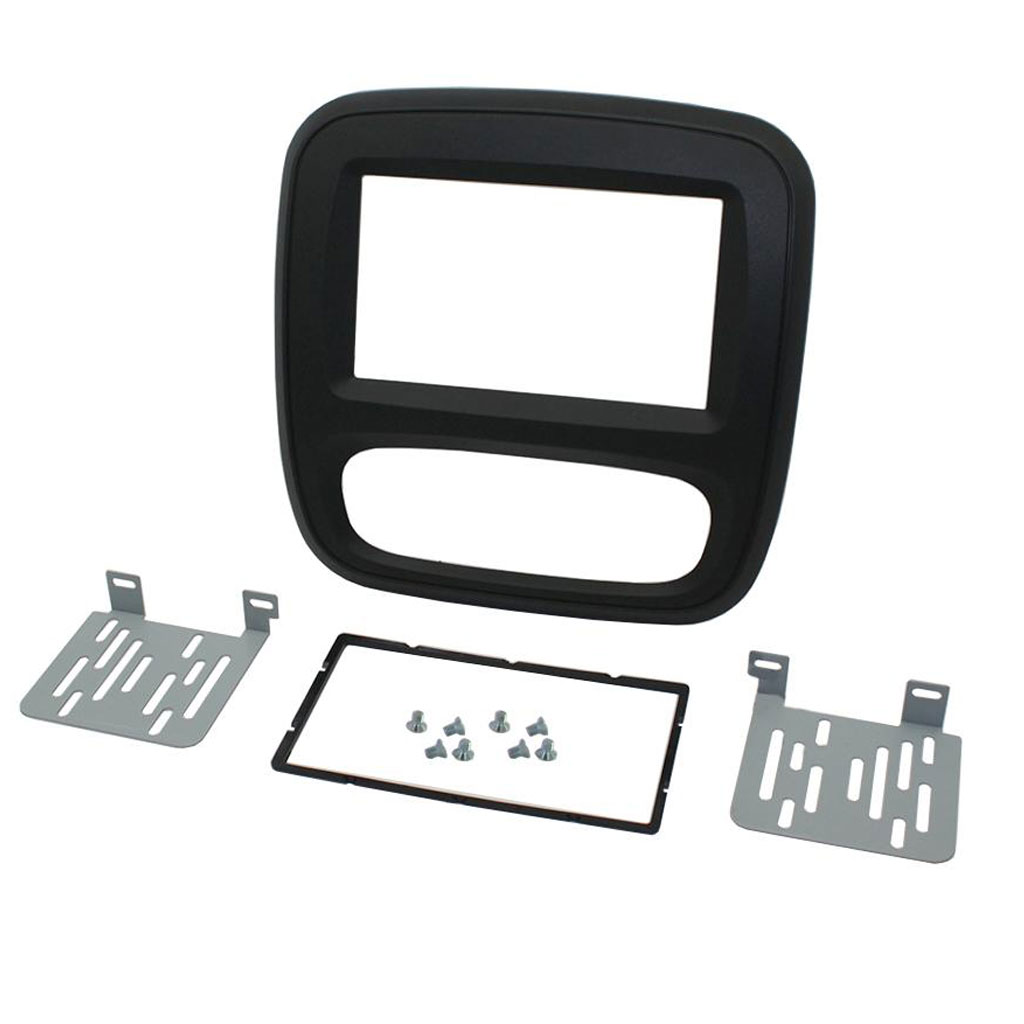

- Double Din Fascia Adaptor
- Steering wheel Control Adaptor

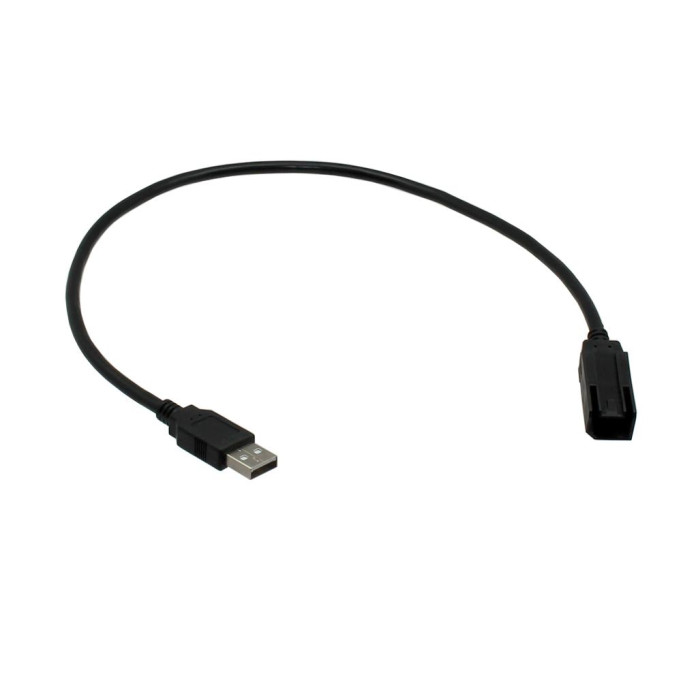

- USB Retention Lead
- Fakra Antenna Adaptor
- Stereo Patch Lead (Free CTMULTILEAD.2 Included)
Features
- Contains universal patchlead CTMULTILEAD.2
CTMULTILEAD.2 Universal Patch Lead
Patch Lead connects a compatible car stereo with a joystick input (blue line-in mini-jack) or wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.
Universal head unit connection lead for:
- Alpine (3.5mm jack)
- Beat (single wire connection)
- Chinese / Xtrons / 3 wire unbranded units (3 wire connection)
- Clarion (3.5mm jack)
- JVC (3.5mm or single wire)
- Kenwood (single wire)
- LG (3.5mm jack)
- Nakamichi (single wire connection)
- Panasonic (single wire but NOT AV units)
- Philips (single wire connection)
- Pioneer (3.5mm jack)
- Sony (3.5mm jack)
- Zenec (single wire)
- Other Chinese SWC learning head units
Important Patch Lead Notes:
- You can simply cut the loops / wires to select which brand you are fitting. Supplied with instruction sheet
- This patch lead CANNOT be used for Blaupunkt / Parrot / Becker / JVC KW-AVX head units / Older Kenwood units with the DIN plug. For those models you need to purchase the lead from the add-on options.
Important Fascia Notes:
- The fascias are made to suit industry standard sized stereos such as Pioneer, Kenwood, Sony, Alpine, JVC etc, NOT INCLUDING China units or unbranded units.
- China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
- We do not take any responsibility for China units not fitting as they are not industry standard size.
Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection & Shape in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
