CTKHD01 Dark Grey Honda Civic (2006-2011) Double Din Stereo Installation Fitting Kit
- Stock Status: Out Of Stock
- Item Condition : New
- Available QTY : 0
- Brand: ACV
- Model: 621130-20-2 / CTKHD01G
- EAN: 7427307017891
- Warranty: 2 Years Warranty
Description
This complete Double Din Radio Replacement Kit allows the fitment of a Double DIN aftermarket headunit to the selected vehicle.
The kit includes everything you need to complete the installation including fascia, steering stalk controls, and aerial connections.

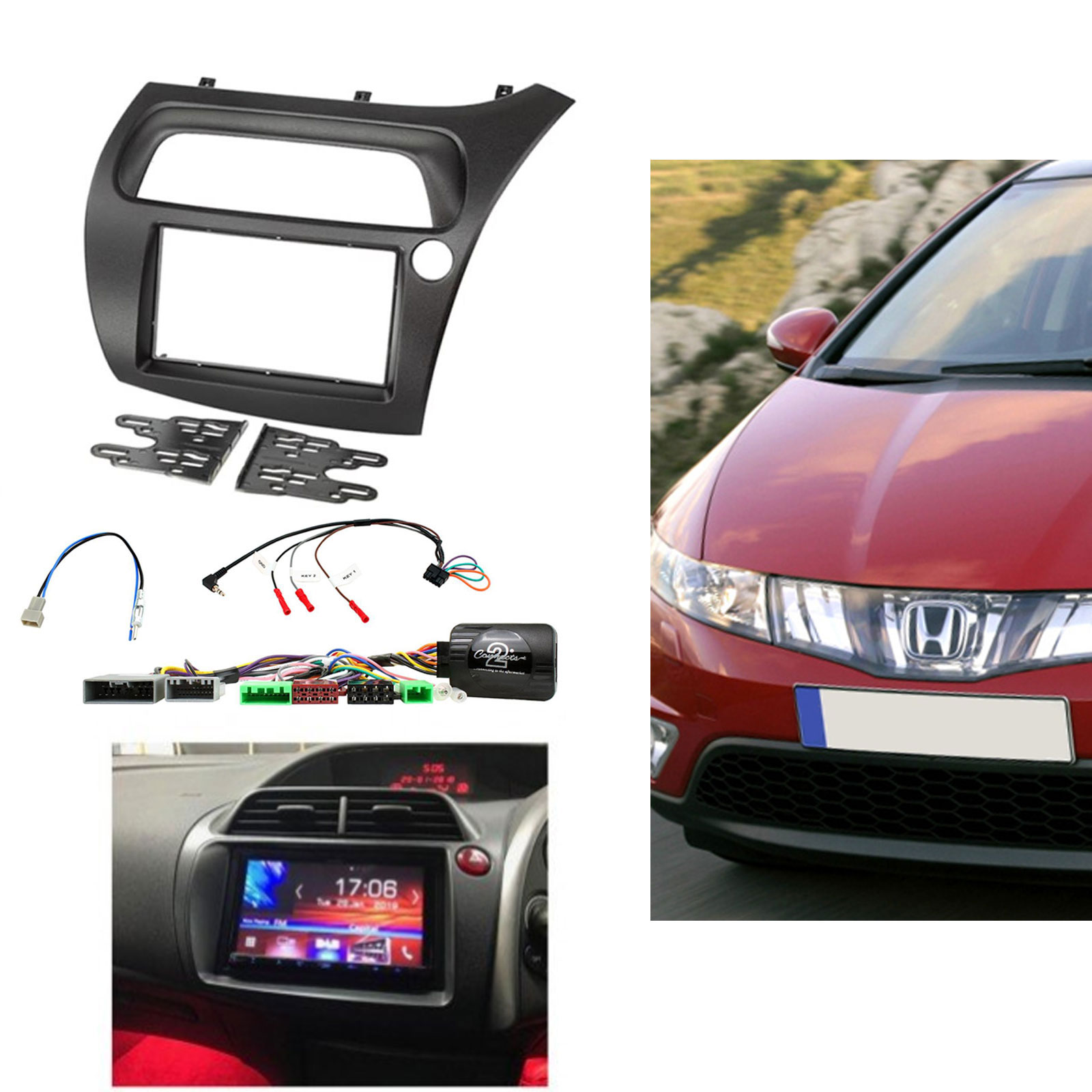

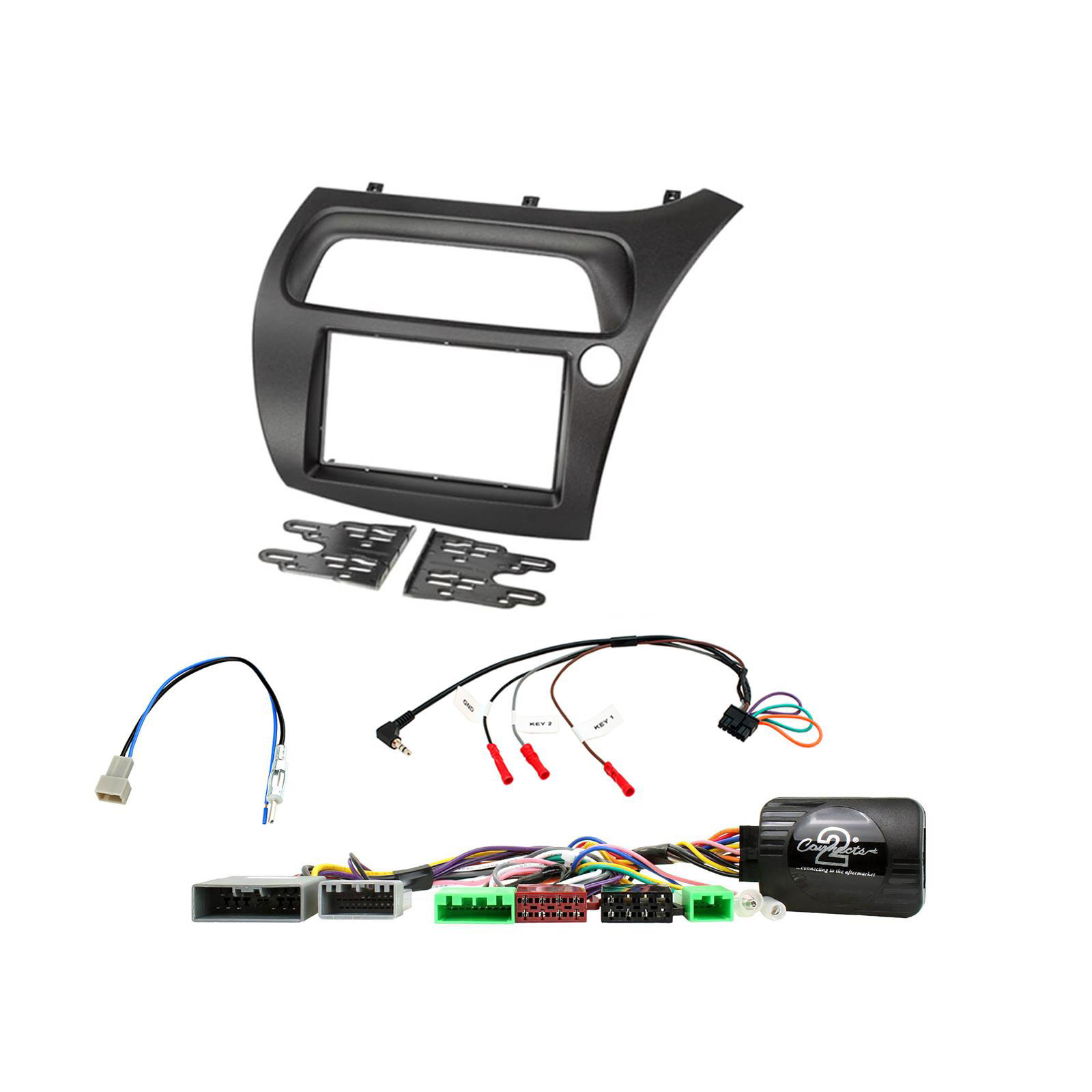

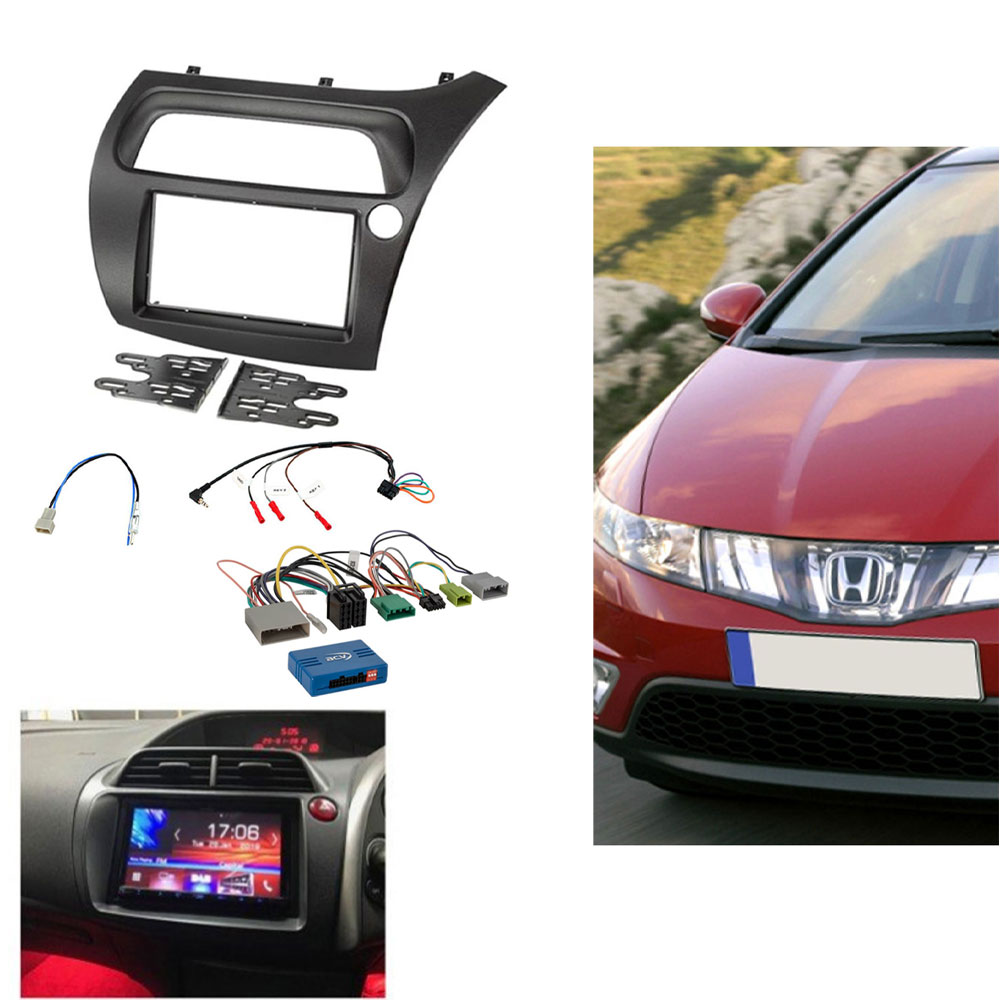

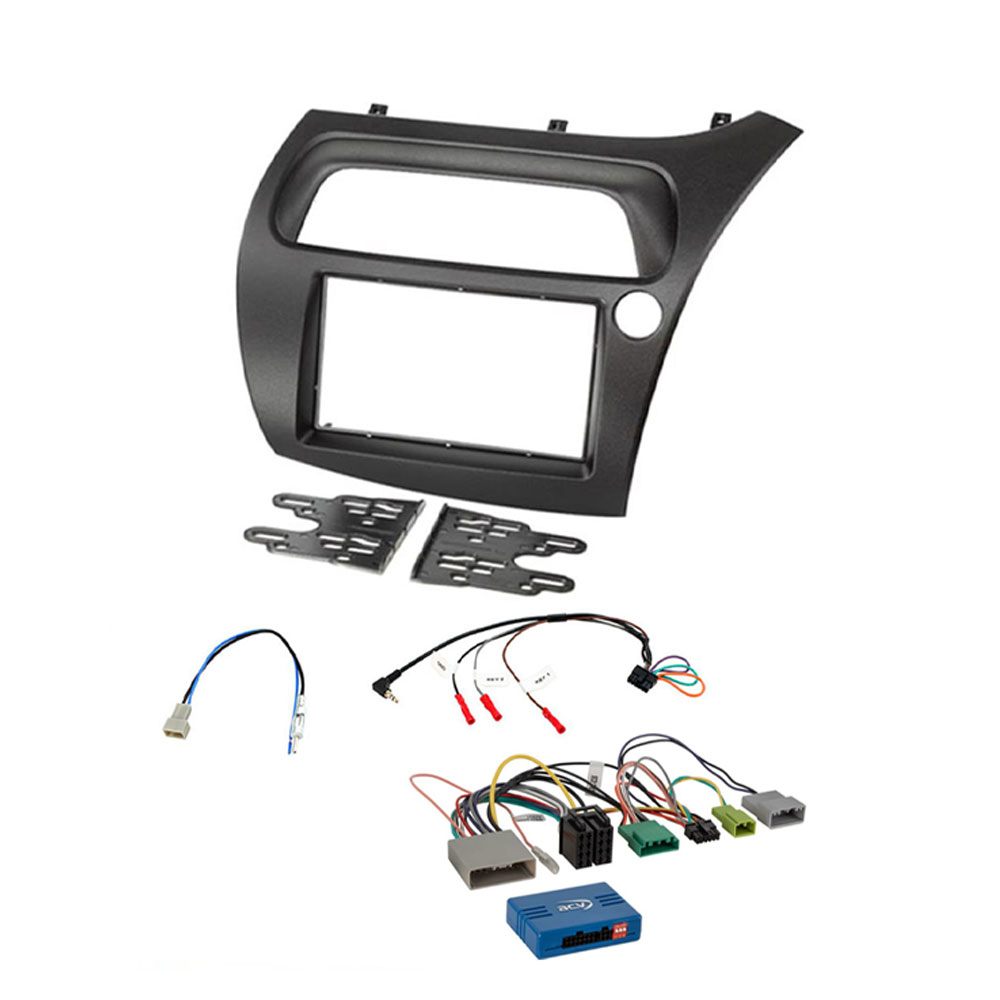

CTKHD01G Includes:
- Double Din Fascia Adaptor (Dark Grey)
- Steering wheel Control Adaptor
- Aerial Adaptor
- Stereo Patch Lead (Free CTMULTILEAD.2 Included)
Product Compatibility Chart
| Make | Model | Years | Notes |
| Honda | Civic | 2006 - 2011 |
Right Hand Drive Vehicles. Not Suitable for Vehicles with the Factory Sat Nav Unit
Steering wheel control interface allows time/date to be set from the steering wheel
This kit is NOT compatible with amplified systems, or systems with in-built navigation as standard.
Colour: Dark Grey, Headunit: Non-Amplified/Non-Navigation, Connection: OEM Specific

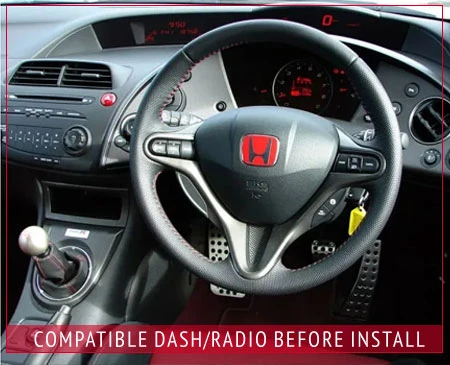

For This Dash Type
When installing your new double din stereo DO NOT USE DOUBLE DIN CAGE OR TRIM supplied with the stereo. The new stereo will mount using the double din side plates within the kit. The stereo will mount from behind the fascia and is held in place by these side brackets supplied. No modification is required to the fascia, so please do not attempt to cut the front of the fascia to try and fit the cage supplied with the stereo.

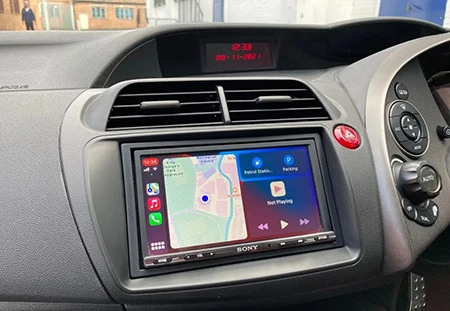

After Install
STEREO IS NOT INCLUDED. PICTURE IS FOR REFERENCE ONLY

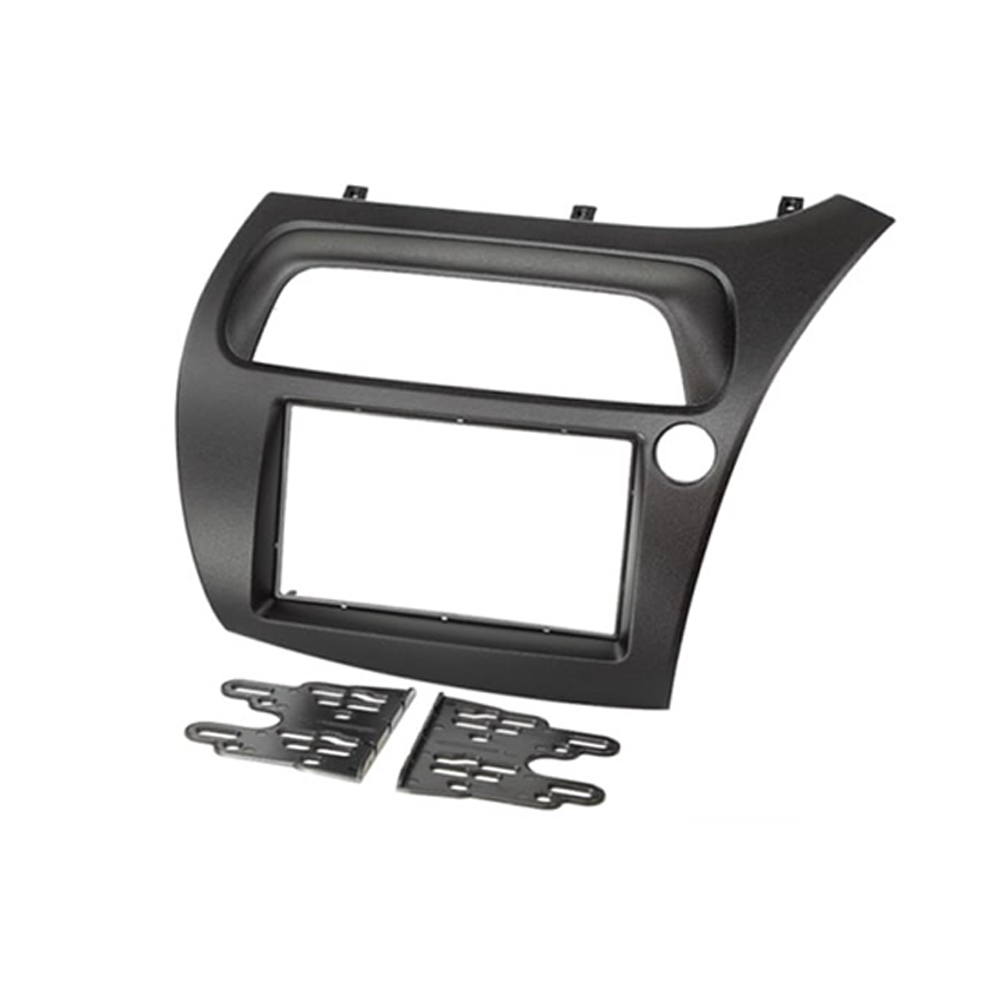

Fascia Adaptor
This adaptor will convert the non din-sized aperture left after removing the factory stereo to a double din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.
Steering Wheel Interface
A stalk/steering wheel control adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.
Aerial Adaptor
An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.
CTMULTILEAD.2 Universal Patch Lead
Patch Lead connects a compatible car stereo with a joystick input (blue line-in mini-jack) or wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.
Compatible aftermarket headunits:
- Alpine (3.5mm jack)
- Beat (single wire connection)
- Chinese / Xtrons / 3 wire unbranded units (3 wire connection)
- Clarion (3.5mm jack)
- JVC (3.5mm or single wire)
- Kenwood (single wire)
- LG (3.5mm jack)
- Nakamichi (single wire connection)
- Panasonic (single wire but NOT AV units)
- Philips (single wire connection)
- Pioneer (3.5mm jack)
- Sony (3.5mm jack)
- Zenec (single wire)
- EONON
- JOYING
- XTRONS
- PUMPKIN
- Other Chinese SWC learning head units
Important Patch lead:
- You can simply cut the loops / wires to select which brand you are fitting.
- Supplied with instruction sheet
- China Branded Headunit, please make sure your unit has 3 wires for connecting the patch lead to the car stereo that you are installing.
Important Fascia:
- The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
- China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
- We do not take any responsibility for China units not fitting as they are not industry standard size.
Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification" may be necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
