Connects2 CTKBM02 Double Din Radio Replacement Kit, allows the fitment of a Double DIN aftermarket headunit to the selected vehicle. This Kit Includes Double DIN Fascia Kit, CAN-Bus Steering Wheel Control Interface, FAKRA Antenna Adaptor & Universal Patch lead.

Product Compatibility Chart

Make	Model	Years	Notes
BMW	Mini	2006 - 2013	R55, R56, R57

For non-amplified vehicles with automatic A/C

Fascia Colour: Black

PLEASE NOTE: How to mount bracket from CTKBM02. Some Trimming of Internal Plastics of The Dash May Be Required For This Bracket For This Bracket to Sit In Its Final Position.

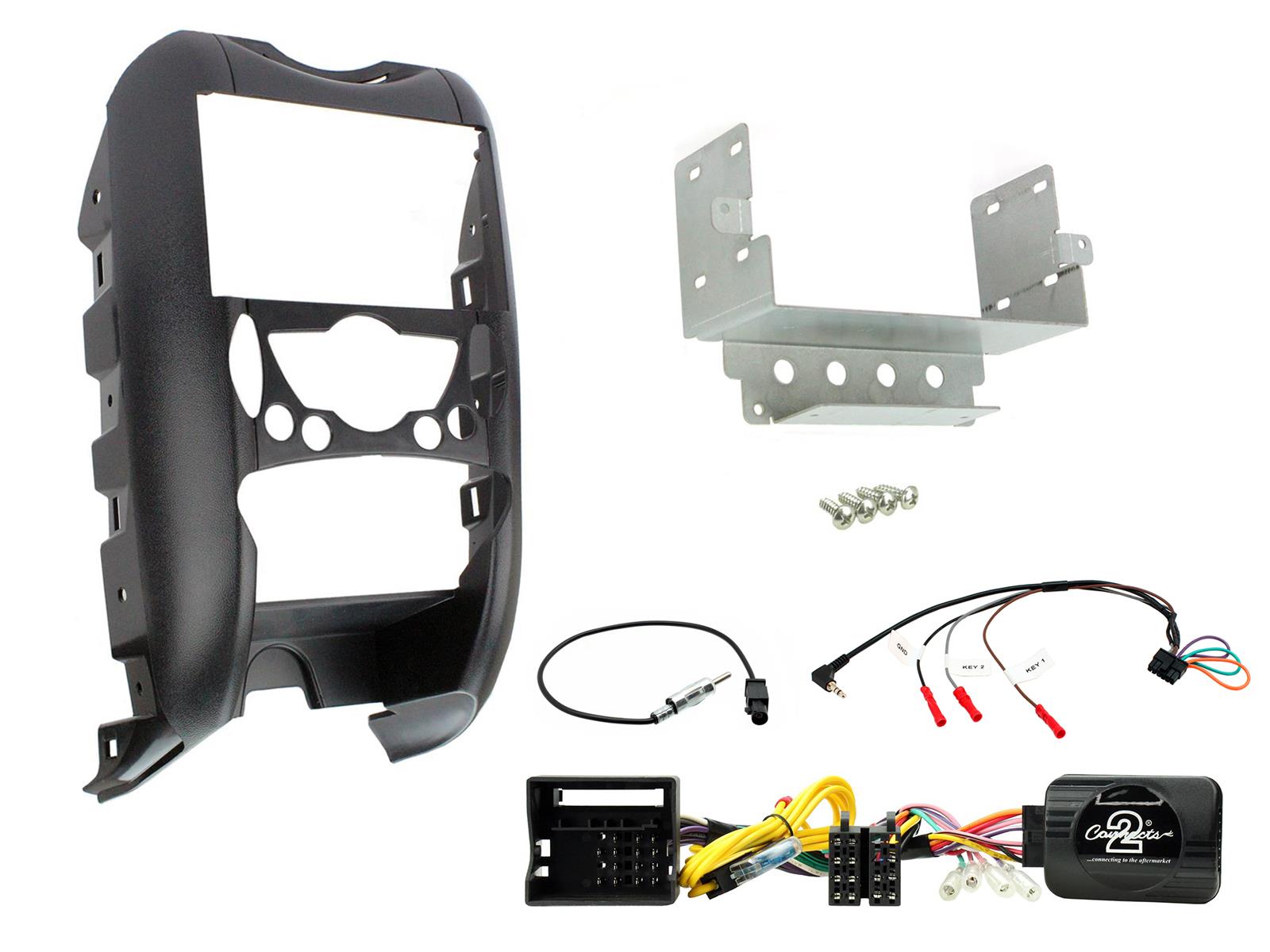

Package Includes:

• Double Din Fascia kit
• CAN-Bus Steering Wheel Control
• Fakra Antenna Adaptor
• Stereo Patch Lead (Free CTMULTILEAD.2 Included)

Fascia Adaptor

This Adaptor will convert the non din-sized aperture left after removing the factory stereo to a double din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

Steering Wheel Interface

A stalk/steering wheel control Adaptor allows you to upgrade to an aftermarket head unit whilst maintaining use of your factory steering wheel controls or fitted on a stalk next to the steering wheel.

CTMULTILEAD.2 Universal Patch Lead

Patch Lead connects a compatible car stereo with a joystick input (blue line-in mini-jack) or wire input on the back of the unit to the existing stalk/steering wheel controls of the vehicle.

Compatible aftermarket headunits:

• Alpine (3.5mm jack)
• Beat (single wire connection)
• Chinese / Xtrons / 3 wire unbranded units (3 wire connection)
• Clarion (3.5mm jack)
• JVC (3.5mm or single wire)
• Kenwood (single wire)
• LG (3.5mm jack)
• Nakamichi (single wire connection)
• Panasonic  (single wire but NOT AV units)
• Philips (single wire connection)
• Pioneer (3.5mm jack)
• Sony (3.5mm jack)
• Zenec  (single wire)
• EONON
• JOYING
• XTRONS
• PUMPKIN
• Other Chinese SWC learning head units

Important Patch lead:

• You can simply cut the loops / wires to select which brand you are fitting.
• Supplied with instruction sheet
• China Branded Headunit, please make sure your unit has 3 wires for connecting the patch lead to the car stereo that you are installing.

Important Fascia:

• The fascias are made to suit industry standard sized stereos such as Alpine, JVC, Kenwood, Pioneer, Sony etc, NOT INCLUDING China units or unbranded units.
• China units have a reputation to be over sized and may require modification to the fascia to allow it to fit.
• We do not take any responsibility for China units not fitting as they are not industry standard size.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
