Connects2 CAM-VW7 Reversing Camera

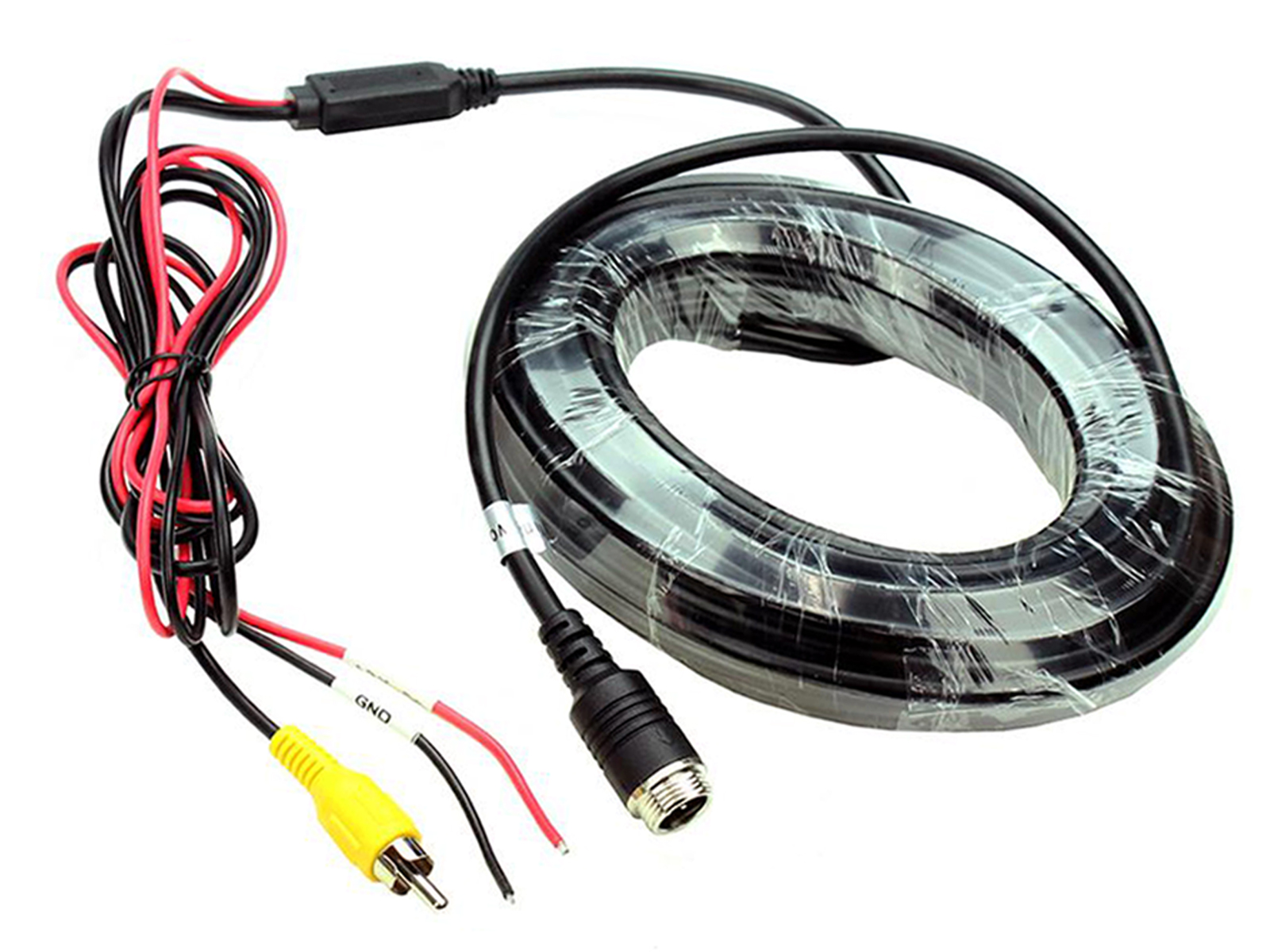

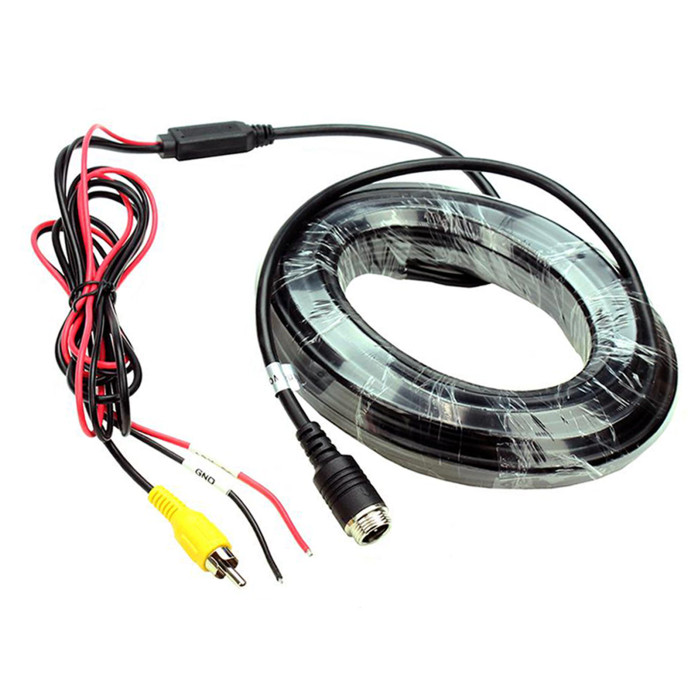

**Please purchase CAM-RCA1 to complete the installation**

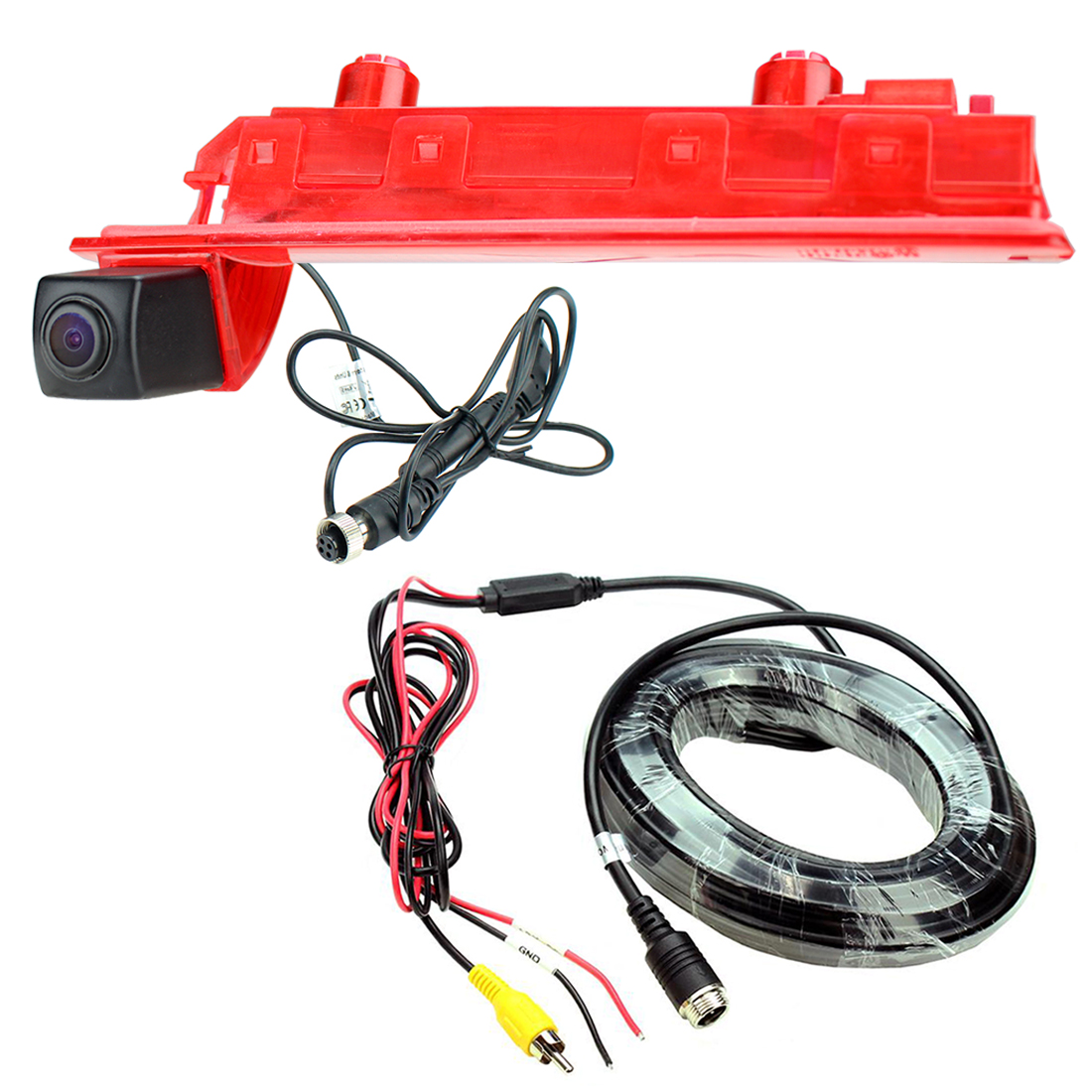

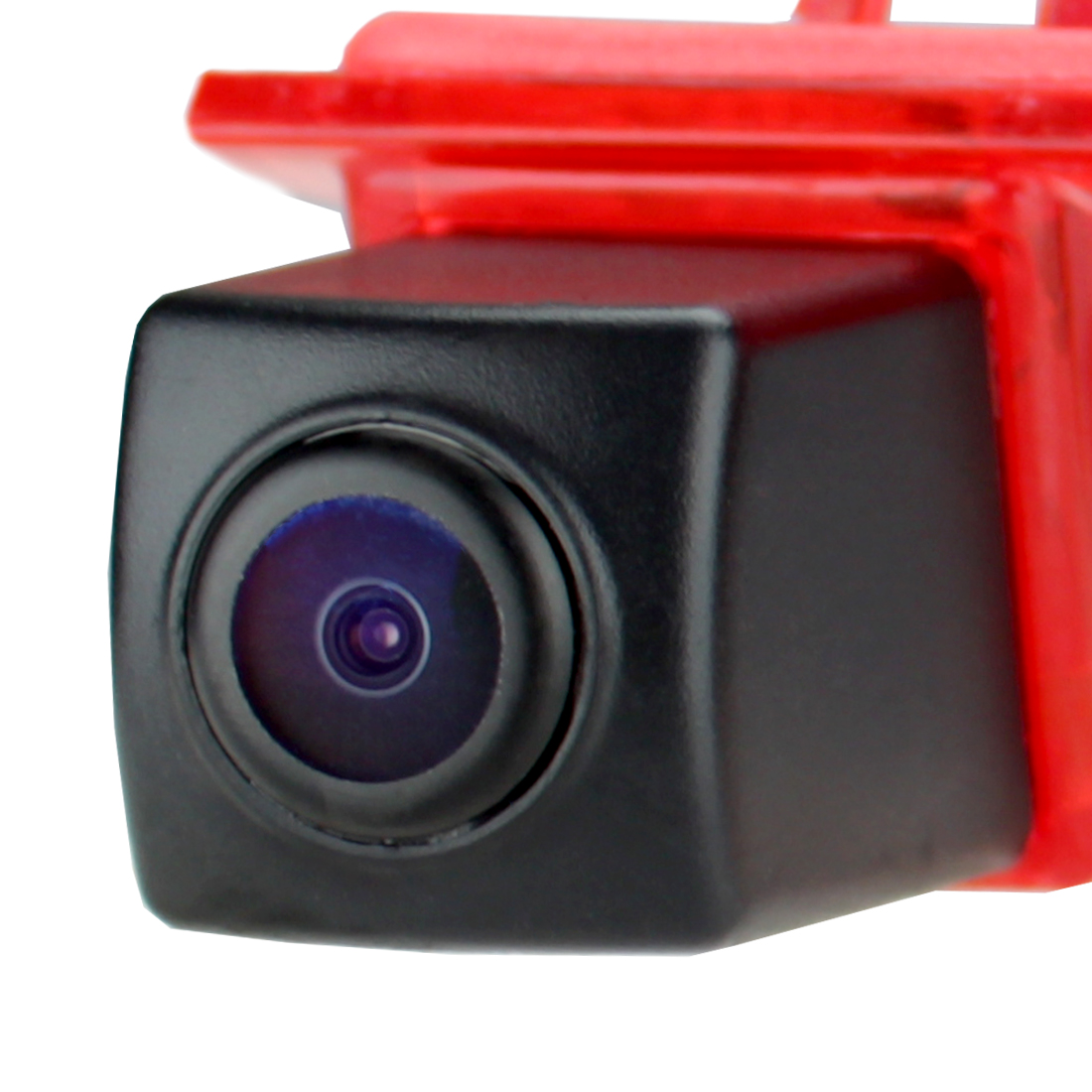

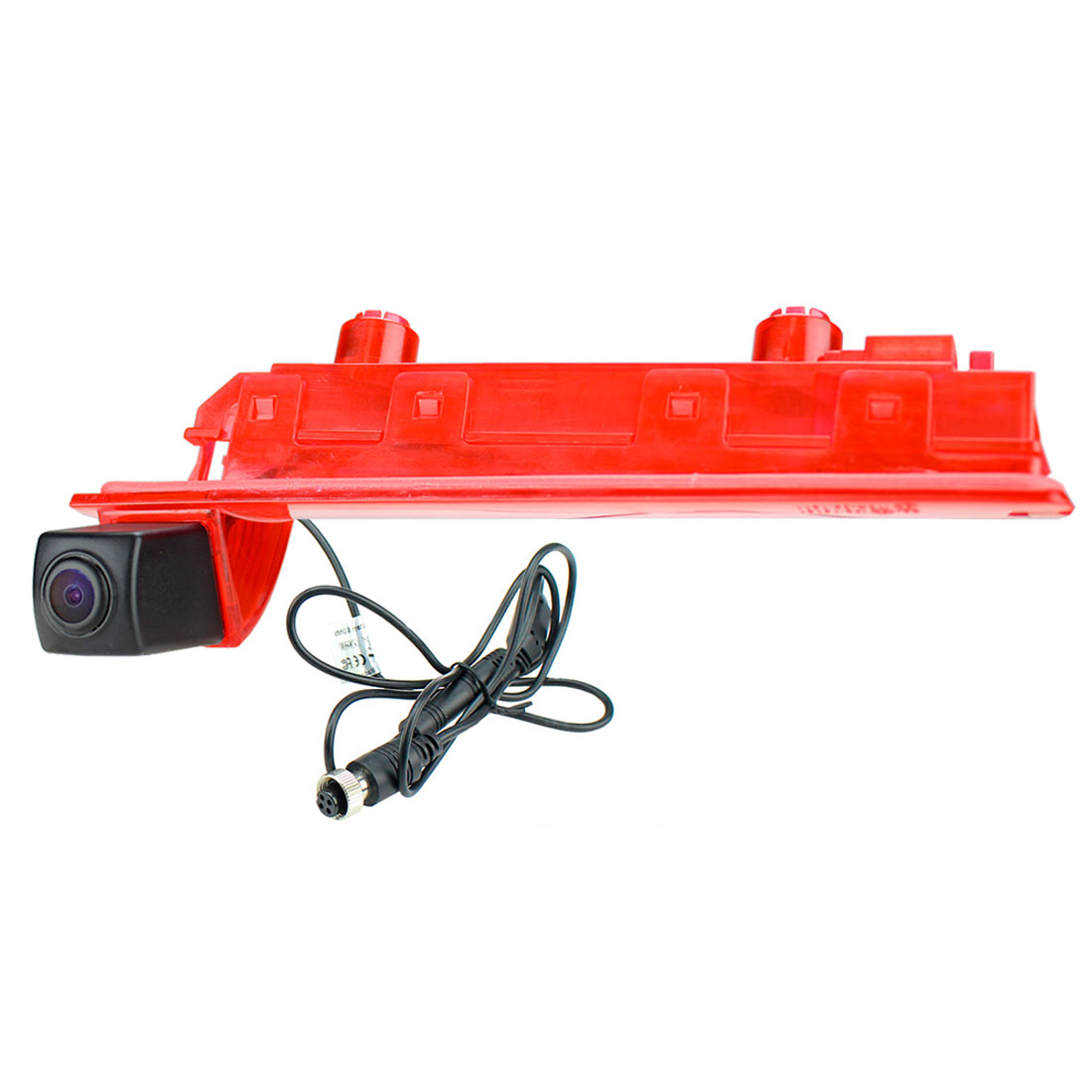

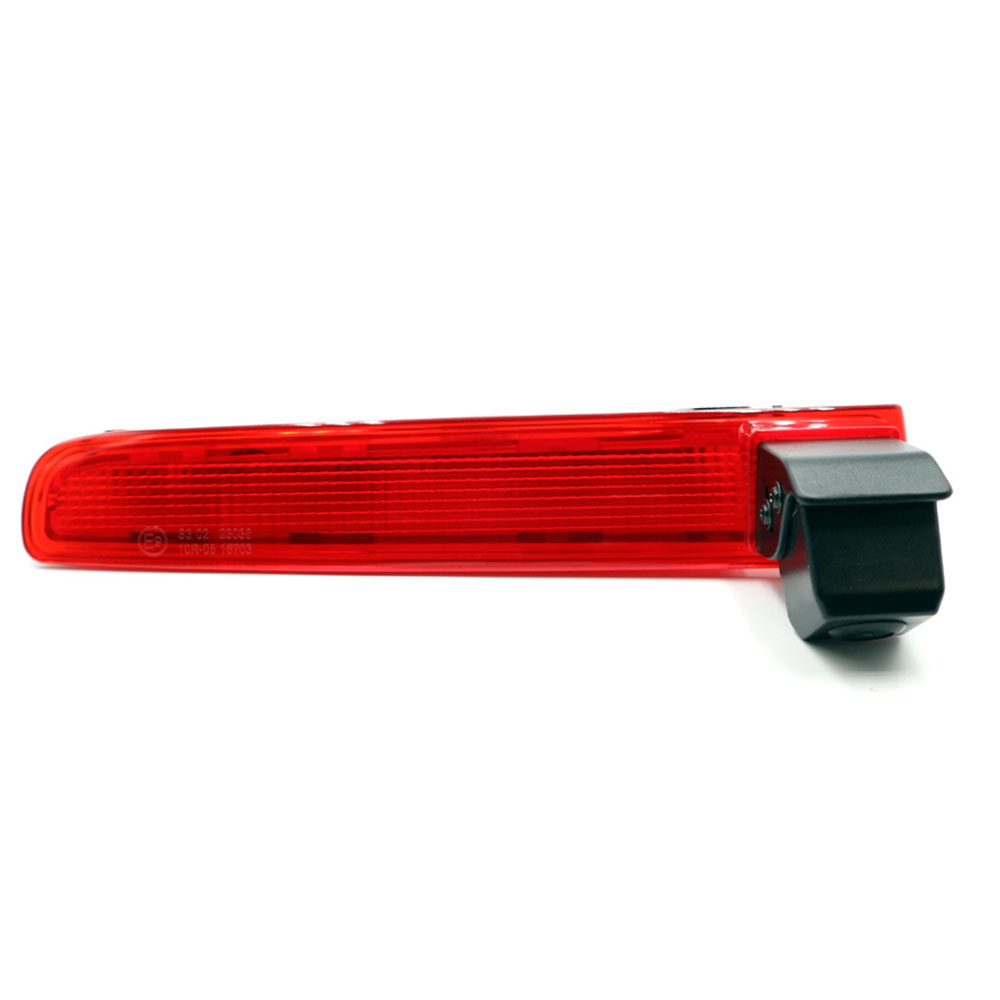

The CAM-VW7 is a Replacement Brake Light Reversing Camera for the Volkswagen Transporter T5 and T6 with twin rear door only. The Brake light camera replaces the vehicles original third brake light and connects to the Vehicles MFD1 (4:3) Navigation for T5 and MFD2 unit for T6 head units. The CAM-VW7 boasts an impressive IP69K weatherproof rating meaning it can withstand almost anything the world can throw at it. The camera and brake light combination not only adds visual safety to the rear of the vehicle but also keeps the original aesthetics.

Specifications

• Image Sensor: 1/3” CMOS
• Cam Signal: CVBS
• TV Lines: 700
• Resolution: NTSC 510 x 492 PAL 500 x 582
• Image: Mirror
• Viewing Angle: 170 Degrees
• Operating Voltage: 12V DC (Negative Ground)
• Current Consumption: 37mA @ 13.8V
• Enhanced Performance In Low Light: Yes
• Waterproof Rating: IP69K
• Operating Temperature: -40 Degrees C to +80 Degrees C
