CAM-KIT16

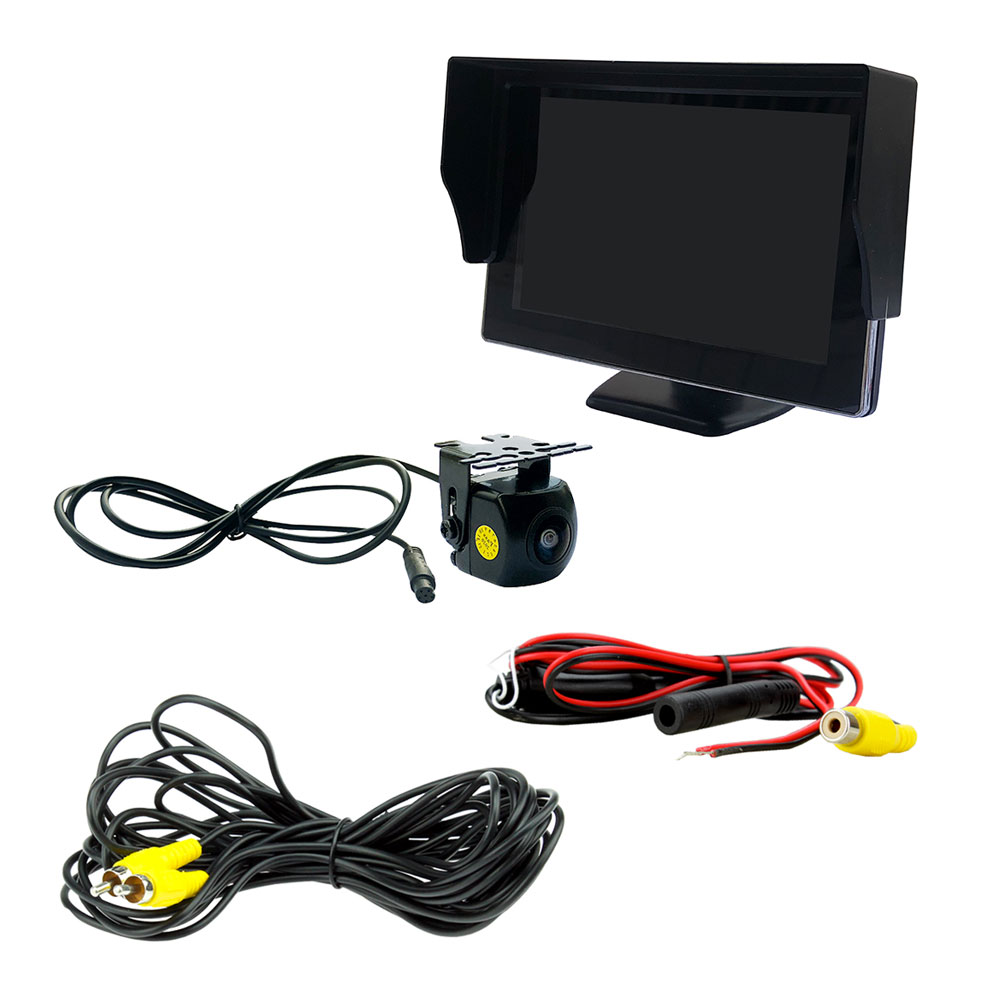

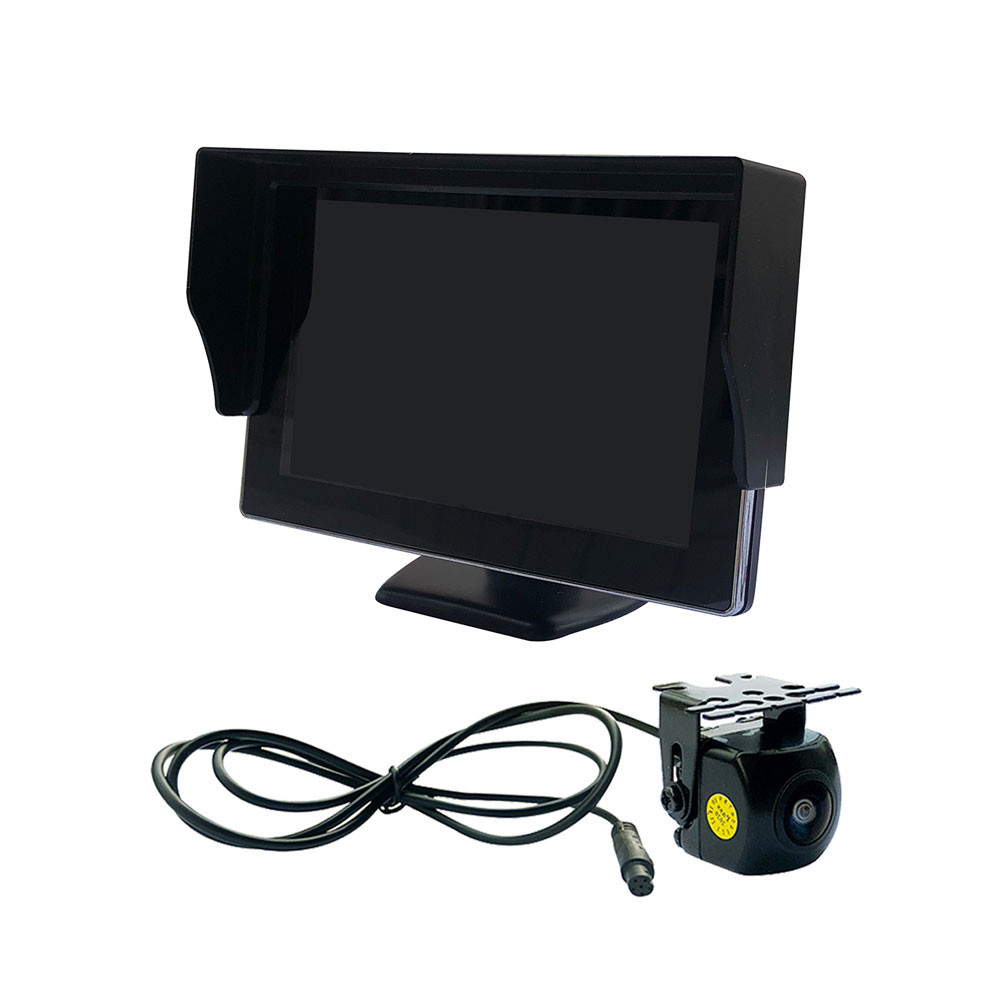

The CAM-KIT16 is a full universal AHD camera kit and monitor for use in a wide range of vehicles. The kit includes a 5” high quality screen which displays in 16:9. The camera in the kit features a 1080P image sensor, 1280 x 720 resolution and has an impressive IP68 weatherproof rating. The camera also comes with removable parking lines to aid in reversing manoeuvres.

Specifications

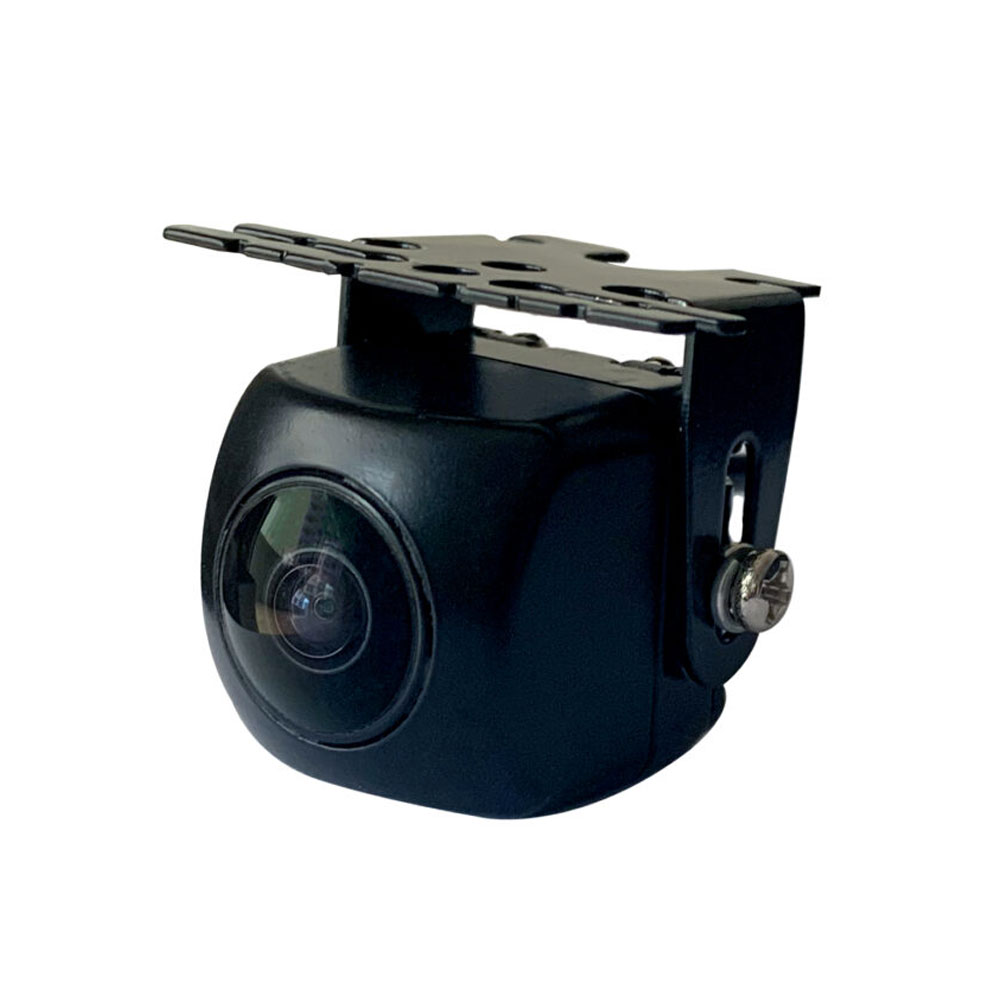

Camera

• Image Sensor: 536 AHD
• Cam Signal: AHD
• TV Lines: 800
• Resolution: 1280 x 720
• Minimum Illumination: 0.1 Lux
• TV System: NTSC
• Waterproof Rating: IP68
• Horizontal Angle: 120 Degrees
• Vertical Angle: 100 Degrees
• Parking Lines: Yes (Removable)
• Enhanced Performance In Low Light: Yes
• Video Output: 1.0V p-p 75ohm
• Operating Voltage: 12V DC (Negative Ground)
• Operating Temperature: -20 to +70 Degrees C

Monitor

• Digital TFT LCD
• Display size: 5-inch
• Display format: 16:9
• Contrast: 350:1
• Operating Voltage: 12V DC

Vehicle Application:

• Universal
