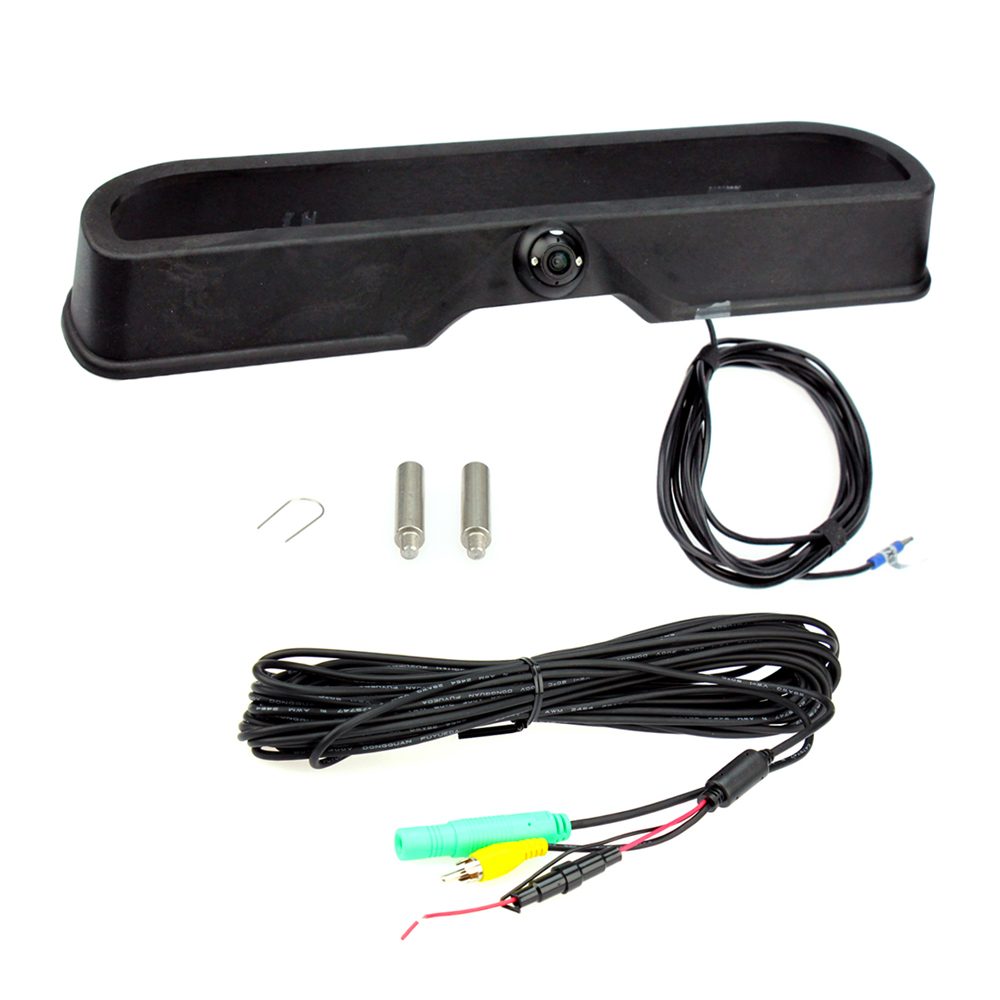

CAM-FT2 Replacement Brake Light Reversing Camera

The CAM-FT2 allows you to add a reverse camera to the vehicle while retaining your original third brake light for use on 2006 to the current 8 Series Fiat Ducato.

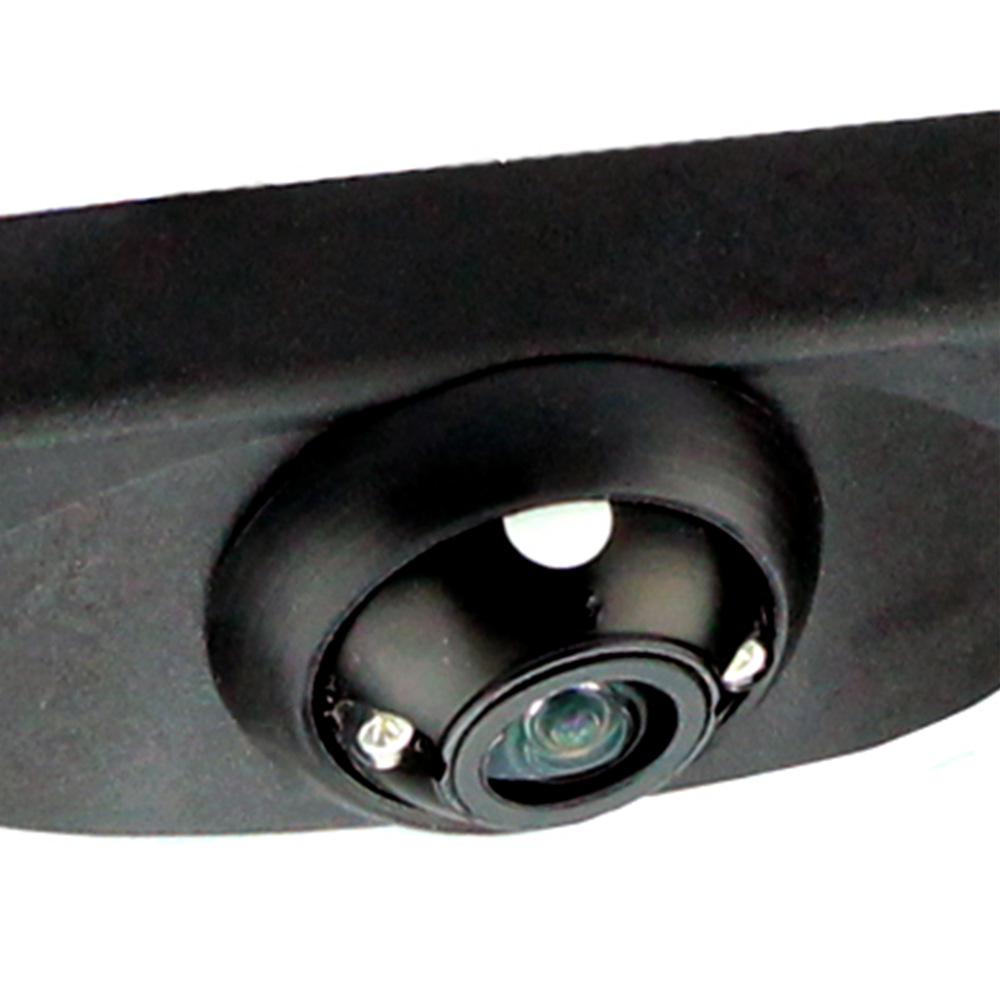

The camera features a ¼” Aptina-ASX340 image sensor, 6G Lens Element, 420 TV Lines and 170 degree viewing angle. The CAM-FT2 camera collar sits between the original brake light and body of the vehicle maintaining the vehicle’s aesthetic look while adding safety.

Specifications

• Image Sensor: 1/4” Aptina – ASX340
• TV Lines: 420
• Resolution: 720 x 480
• Minimum Illumination: 0 Lux
• TV System: NTSC
• Waterproof Rating: IP68
• Viewing Angle: 170 (D) 140 (H) 85 (V) Degrees
• Image: Mirror
• Electronic Shutter: 30fps
• Gamma Correction: 0.45
• Enhanced Performance In Low Light: Yes
• Video Output: 1.0V p-p 75ohm
• Operating Voltage: 12V DC (Negative Ground)
• Current Consumption: 43mA @ 13.8V
• Operating Temperature: -30 Degrees C to +75 Degrees C
