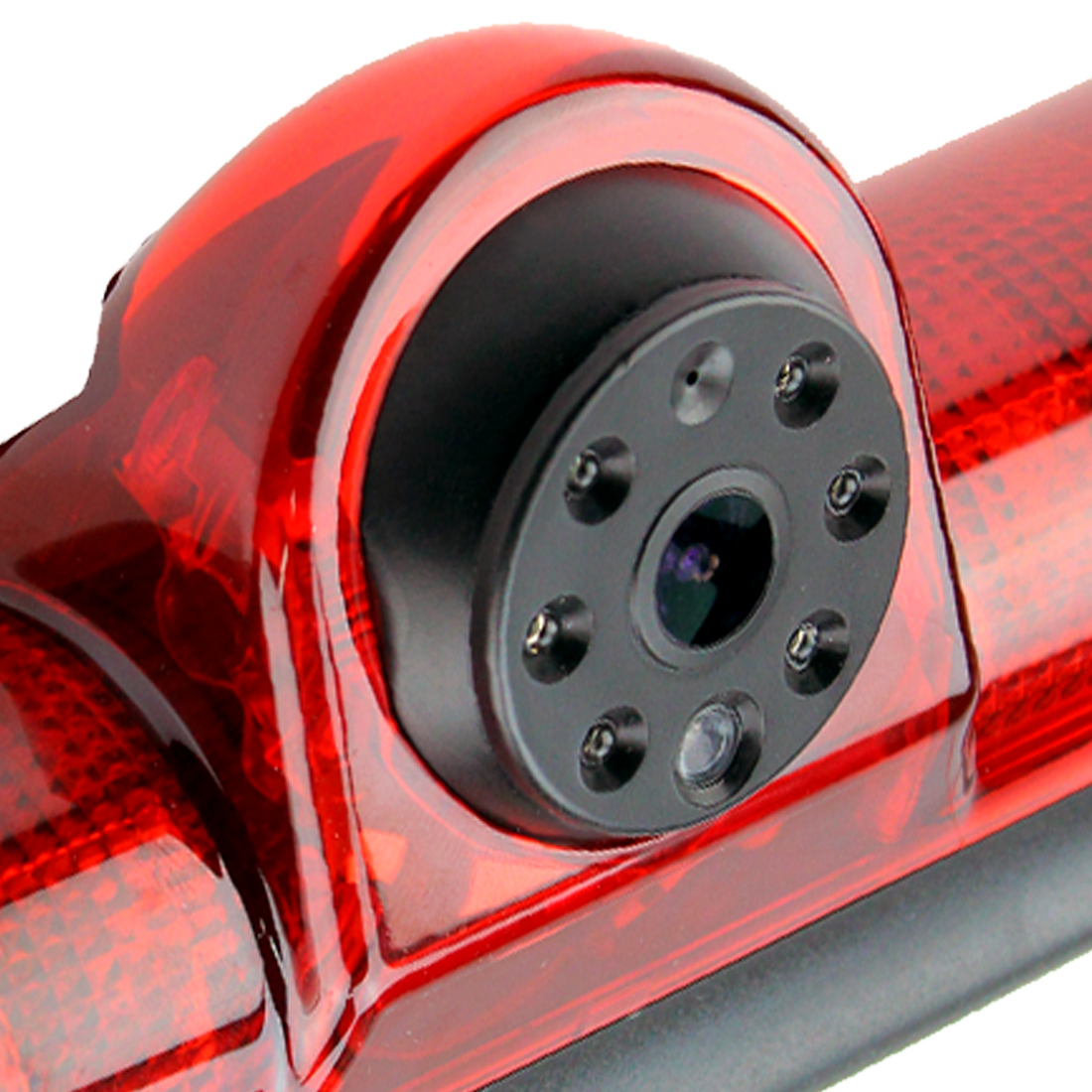

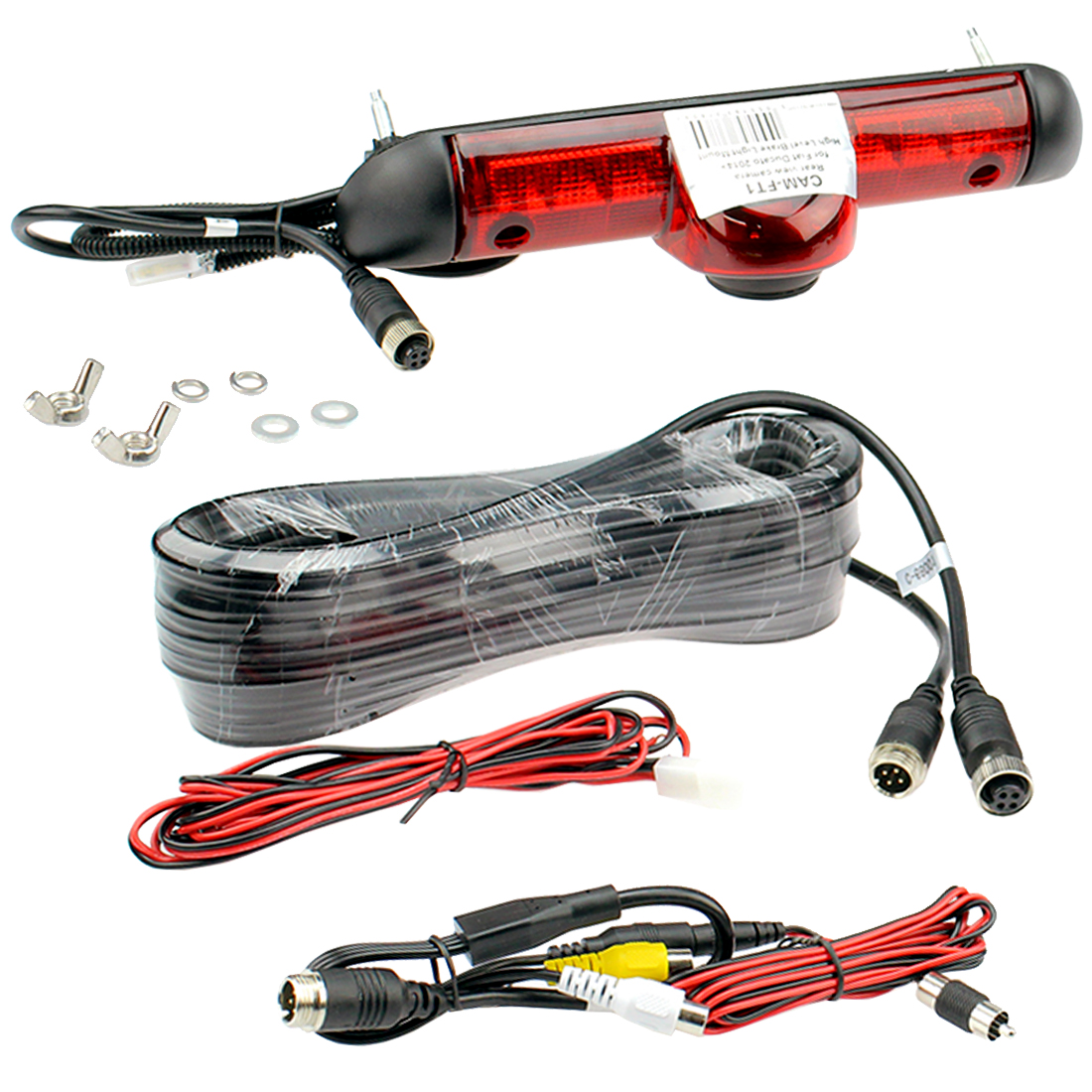

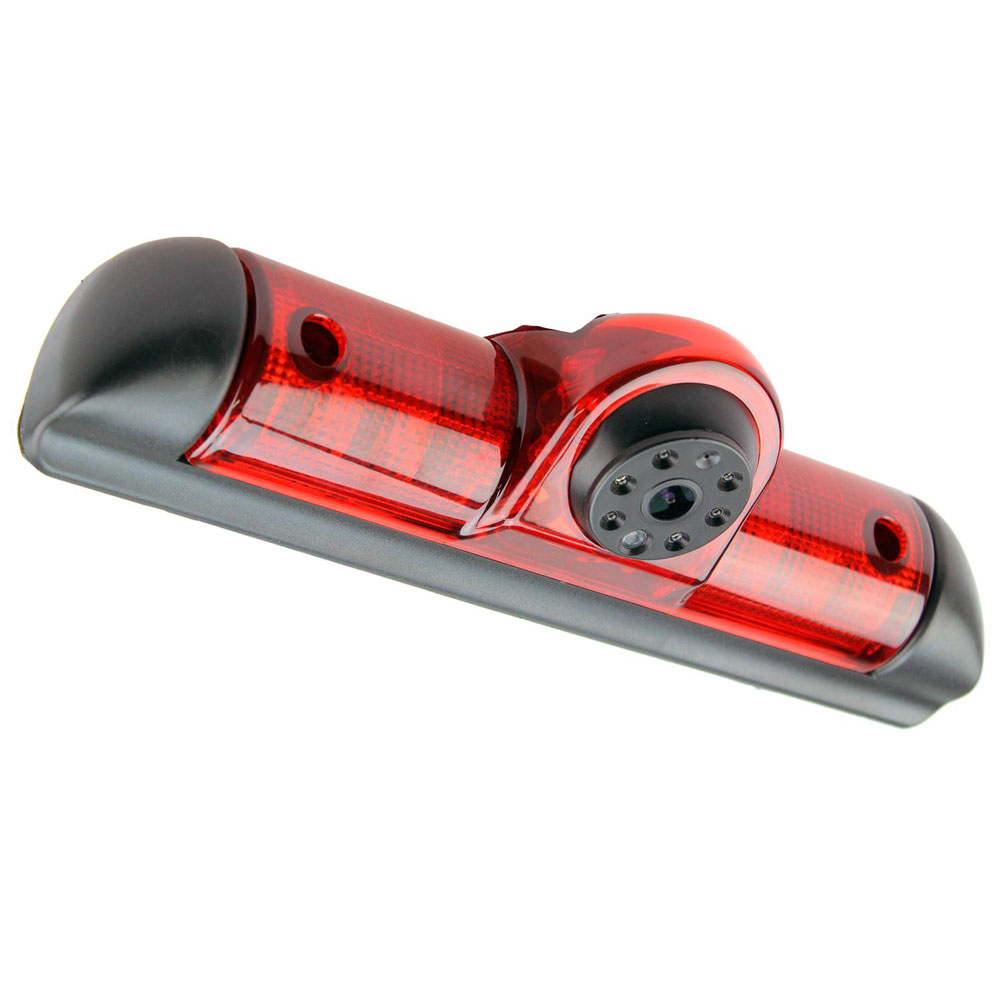

The CAM-FT1 is a Replacement Brake Light Reversing Camera with infra-red LEDs to aid night vision capabilities for the 2015 to 2021 Fiat Ducato. The camera unit replaces the vehicles original third brake light. Featuring a 1/3” CCD image sensor, 580 TV lines and 35ft night vision distance, the CAM-FT1 camera and brake light combination not only adds visual safety to the rear of the vehicle but also keeps the original aesthetics.

Specifications

• Image Sensor: 1/3” CCD
• Resolution: 976 x 494
• TV System: NTSC
• TV Lines: 580
• Lens: 1.7mm
• Minimum Illumination: 0 Lux (LED’s on)
• Infra-Red LED’s: Yes
• Night Vision Distance: 35ft
• Waterproof Rating: IP68
• Viewing Angle: 170 Degrees
• Audio: Yes
• Mirror Image: Yes
• Operating Voltage: 12V DC (Negative Ground)
• Current Consumption: 230-270mA @ 13.8V
• Operating Temperature: -20 Degrees C to +70 Degrees C
• Operating Voltage: 12V DC
