Citroen Jumpy Dual Lens Reverse / Driving Camera

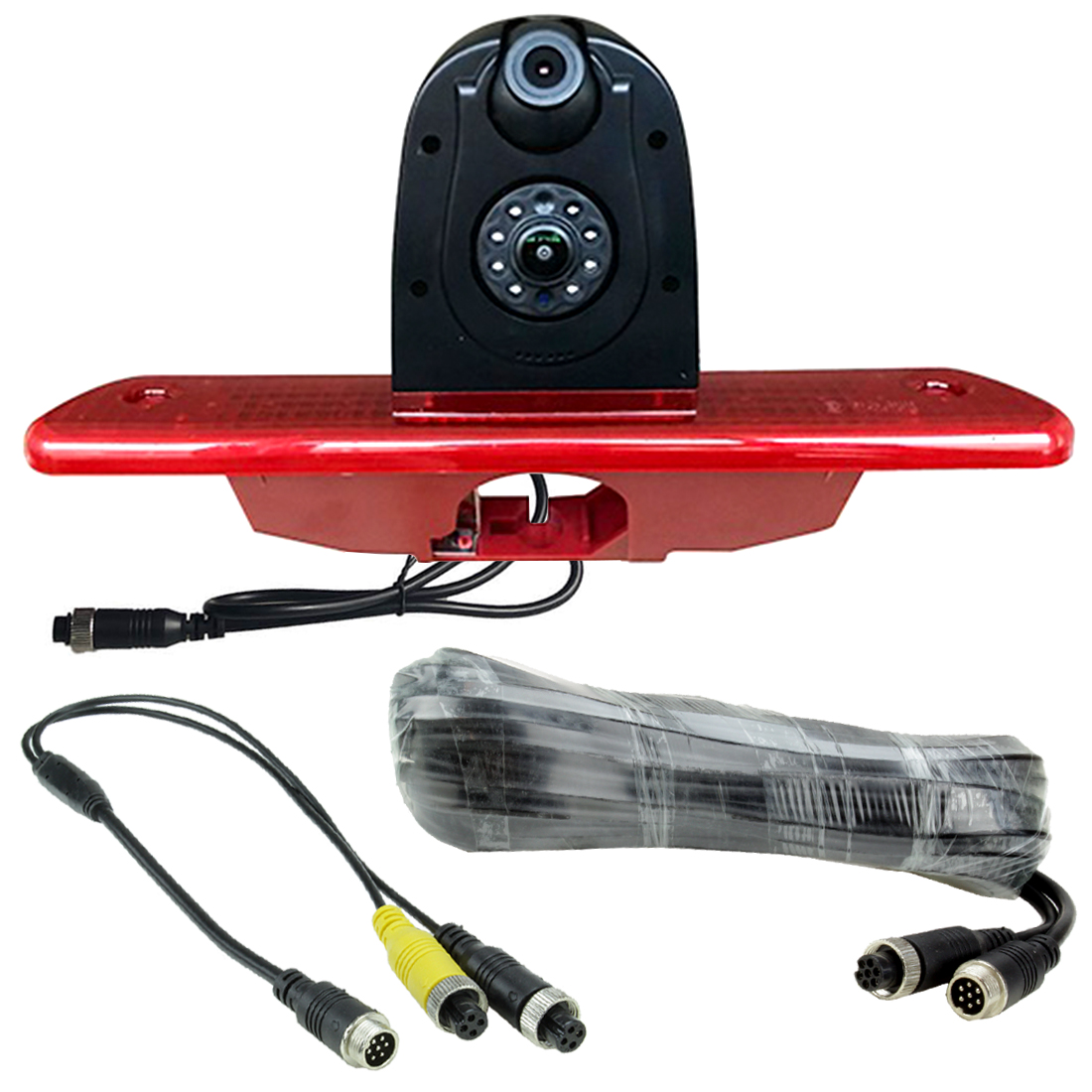

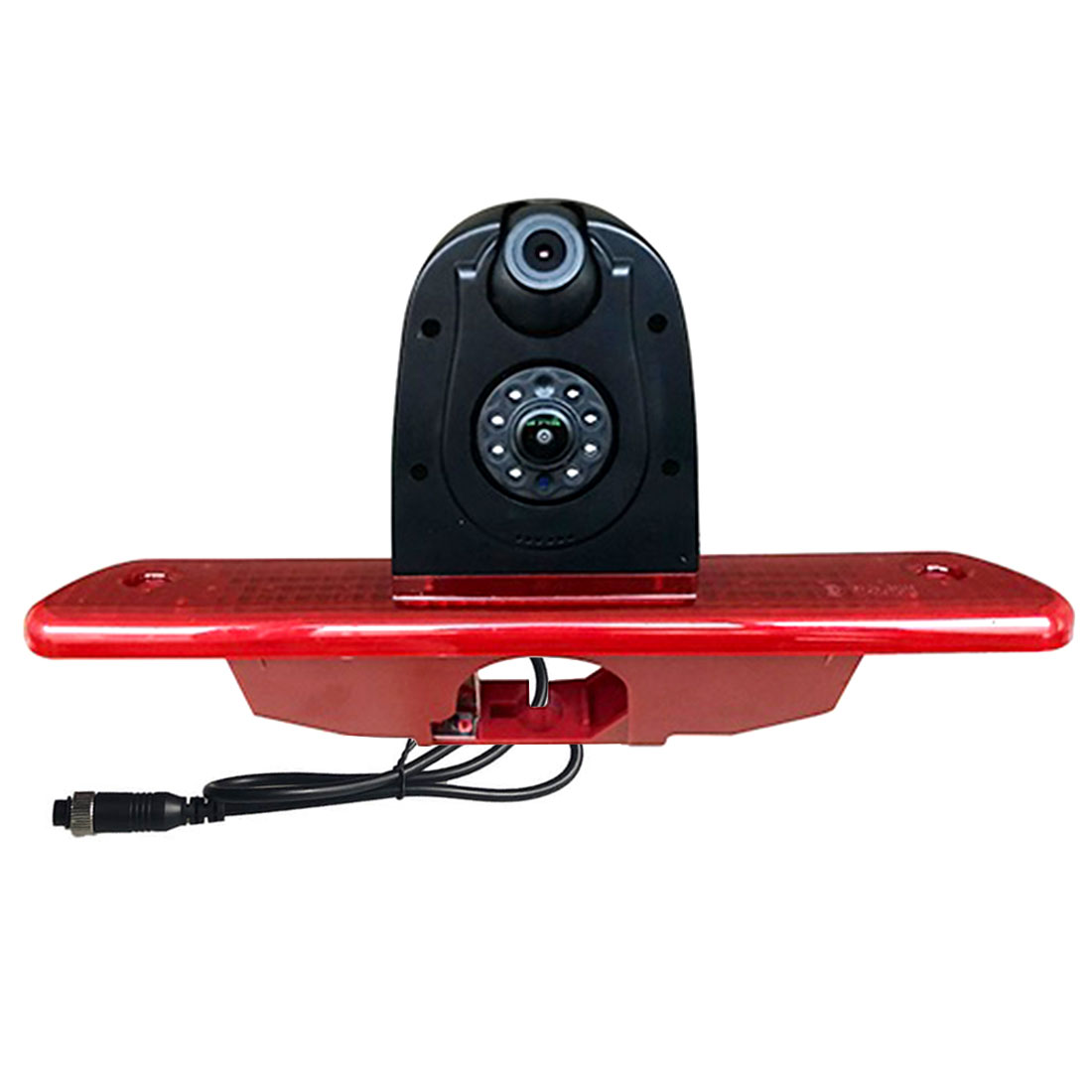

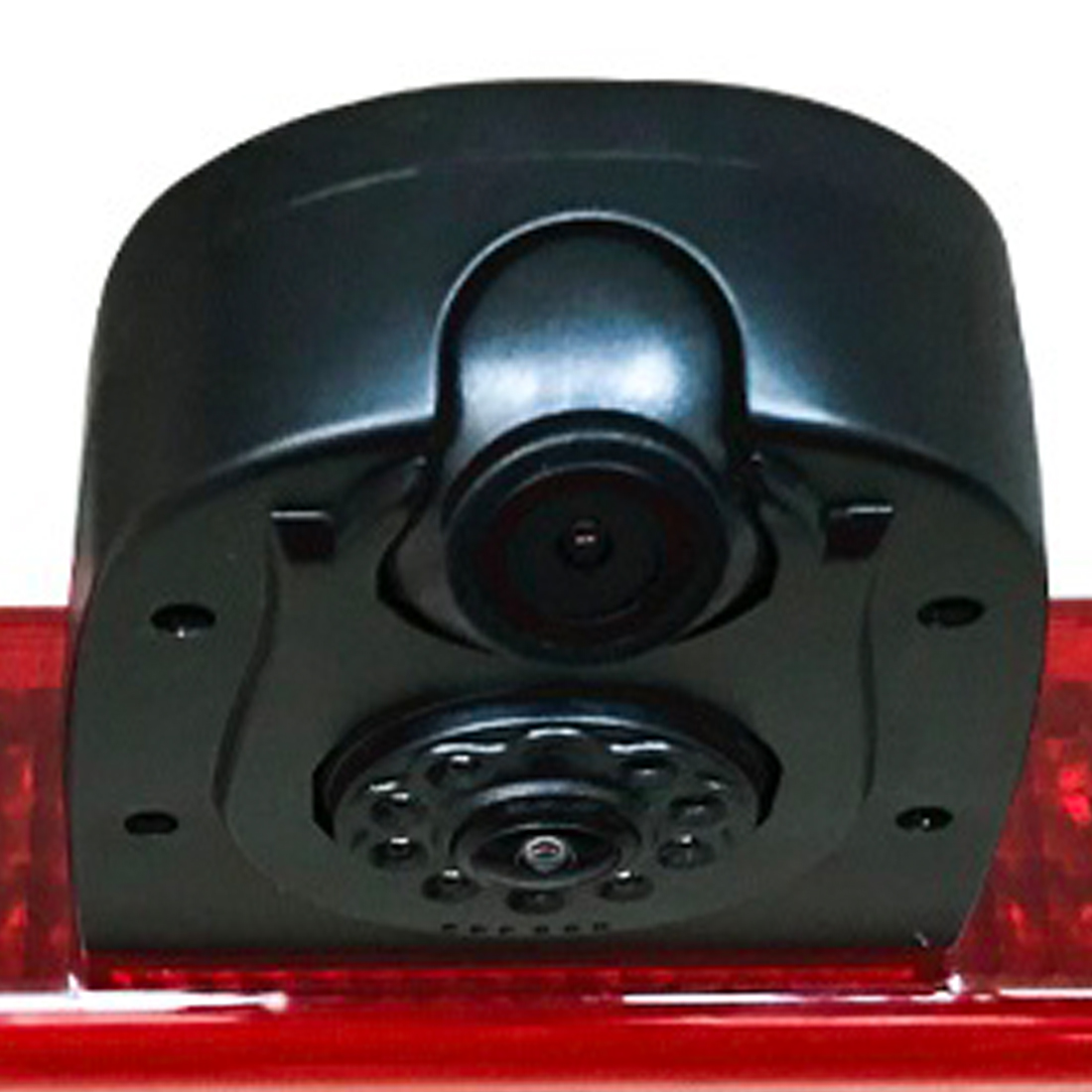

The CAM-CT4 is a dual lens reverse/driving camera solution for the 2007 to 2016 Citroen Jumpy with solid rear doors/bulkheads. With the addition of this dual camera, the driver can view the rear of the vehicle via a livestream and can additionally reverse in comfort with the aid of a reverse camera feed. Both cameras feature a 1/3” CMOS image sensor, 648 X 488 resolution and are weatherproof rated at IP68. The CAM-CT4 dual camera and brake light combination not only adds visual safety to the rear of the vehicle but also keeps the original aesthetics.

Product Specifications

• Reversing Camera
• Resolution: 580 TV Lines
• Total Pixels: 648 x 488 pixels
• Lens size:1.8mm
• Image Sensor: Colour 1/3” CMOS
• Night Vision Distance: 35ft
• Waterproof Rating: IP68
• Viewing Angle: Vertical: 80° Horizontal: 145° Diagonal: 175°
• Lens Adjust: 20° (Vertical movement only)
• Video Output: 1.0 Vp-p/75 Ohm
• Power Rating:12V

Driving Camera

• Resolution: 580 TV Lines
• Total Pixels:648 x 488 pixels
• Lens size: 3.6mm
• Image Sensor: Colour 1/3” CMOS
• Night Vision Distance: N/A
• Waterproof Rating: IP68
• Viewing Angle: Vertical: 55° Horizontal: 80° Diagonal: 110°
• Lens Adjust: 30° (Vertical movement only)
• Video Output: 1.0 Vp-p/75 Ohm
• Power Rating: 12V

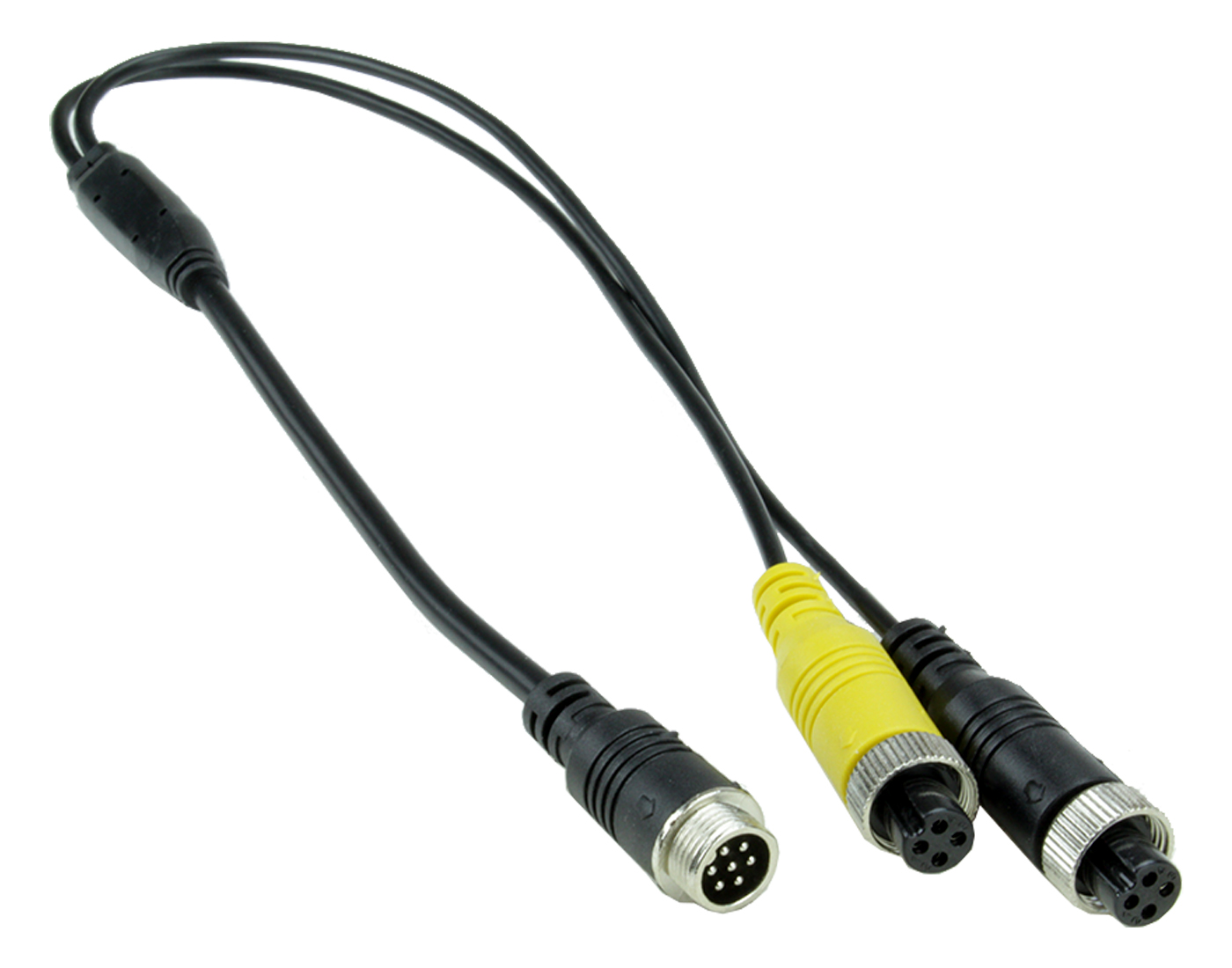

2x CAM-RCA1 needed for installation. Sold separately.
