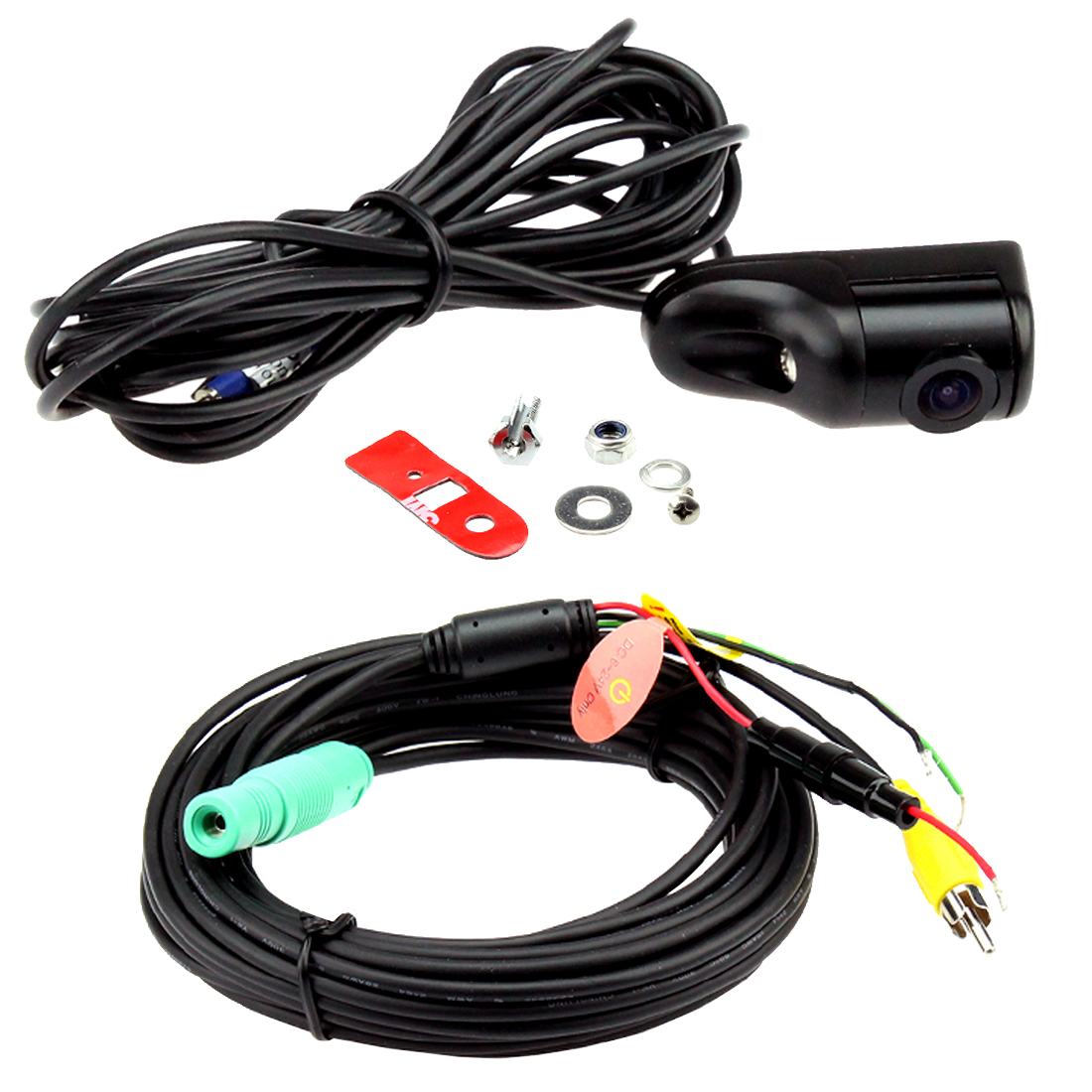

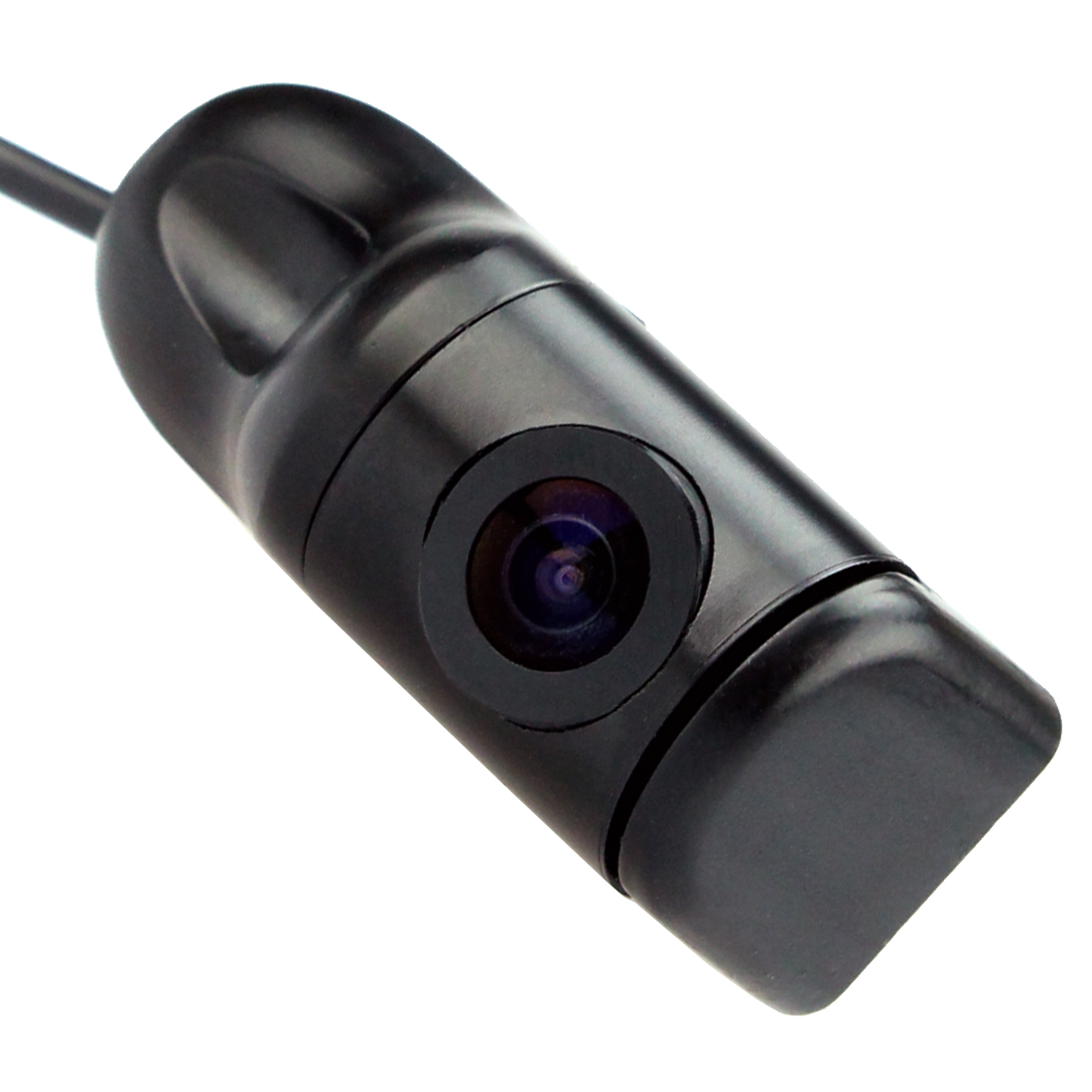

The CAM-30 is a universal surface mounted horizontal reversing camera, compatible with most cars and vans. Featuring a ¼”DSC image sensor, 720x480pix and 420 TV Lines this camera can provide full colour high-res images and enhanced performance in low light conditions, the 50/60 fps electronic shutter also provides a smooth video feed to the driver. The horizontal mounting position for the camera allows more versatility in the camera placement.

Specifications:

• Image Sensor: 1/4” DSC
• TV System: PAL
• Resolution: 720 x 480
• TV Lines: 420
• Viewing (H): 180 degrees
• Illumination: 0.3 Lux
• Electronic Shutter: 50/60 fps
• Gamma Correction: 0.45
• Video Output: 1.0V p-p 75ohm
• Enhanced Performance In Low Light: Yes
• Operating Temperature: -30 Degrees C to +75 Degrees C
• Operating Voltage: 6-24V DC (Negative Ground)
• Current Consumption: 37mA @ 13.8V
• Camera Mounting Orientation: Horizontal

Vehicle Application:

• Universal, (cars and vans)
