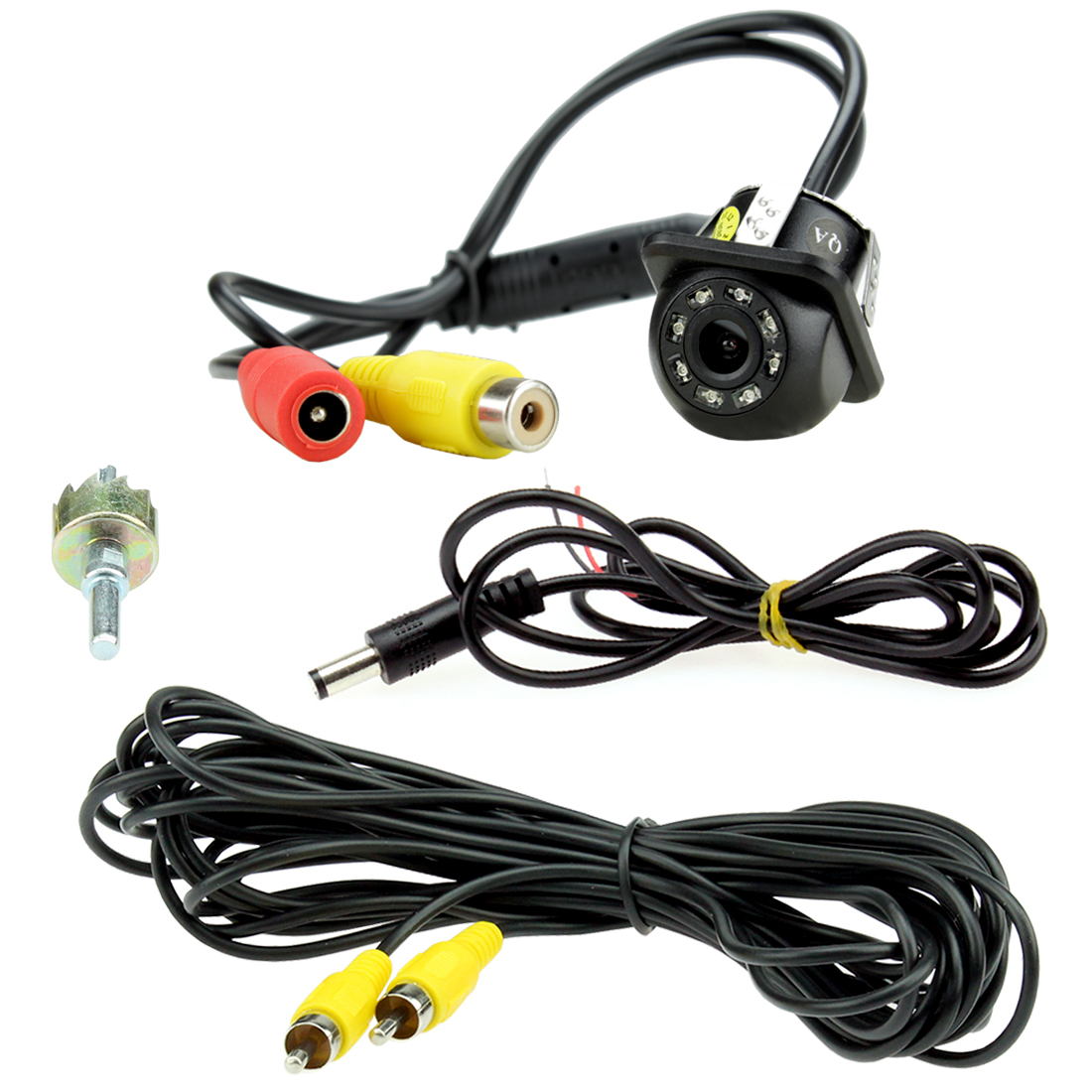

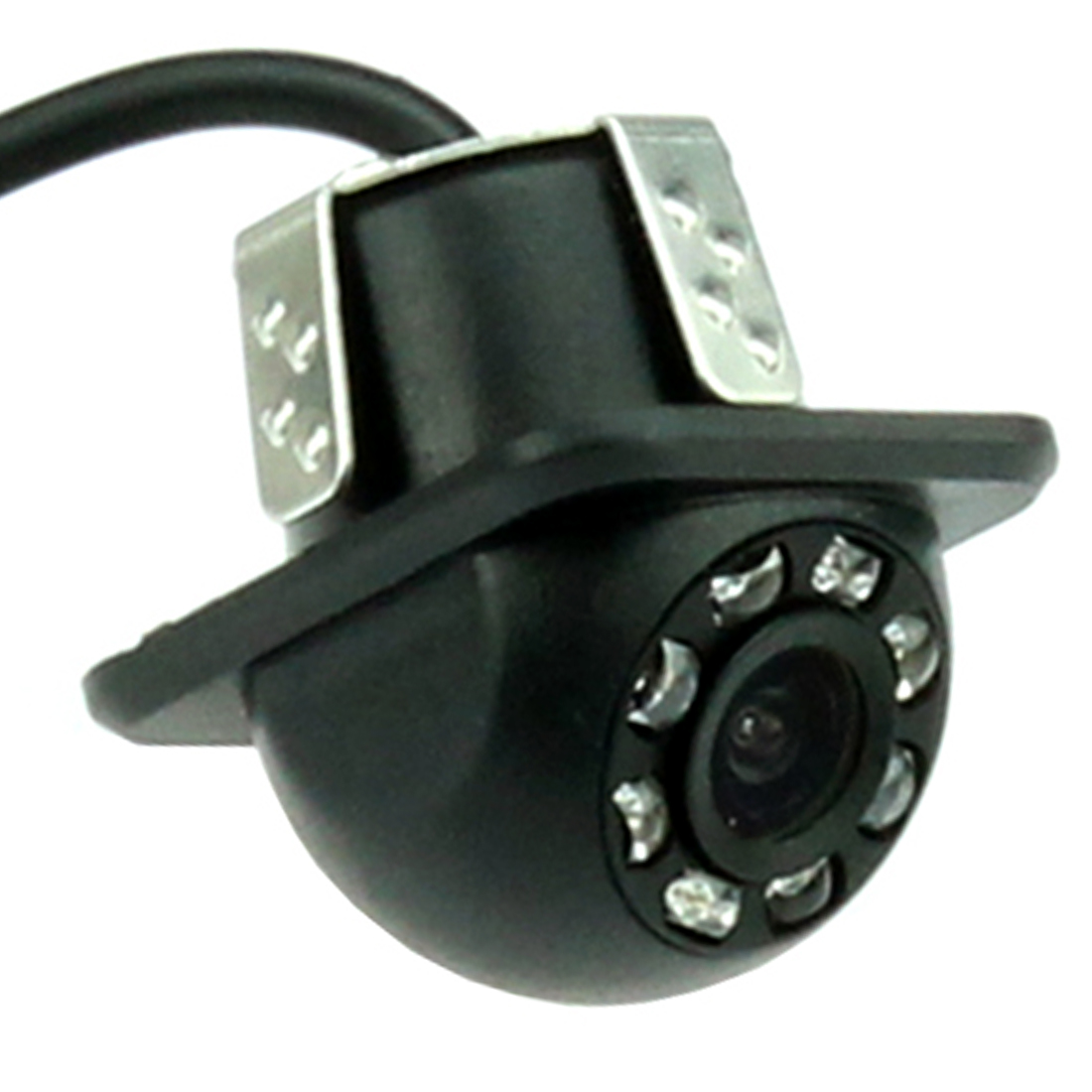

Connects2 CAM-26 Universal IR Reverse Camera HD CCD Sensor With Infra-Red LEDs

The CAM-26 is a universal surface mounted IR reversing camera, compatible with most cars and vans. Featuring Infra-Red LEDs, a 170-degree viewing angle and parking line assistance the CAM-26 allows drivers added visibility when parking. This camera’s 7080 sensor allows for full colour high-res images. The CAM-26 is also IP68 rated, meaning it is protected against all standard weather conditions and will continue to operate in temperatures ranging from -20 degrees C to +70 degrees C.

Specifications:

• Image Sensor: 7080
• TV Lines: 480
• Minimum Illumination: 0.1 Lux
• Horizontal Angle: 170 Degrees
• Vertical Angle: 120 Degrees
• TV System: NTSC
• Video Output: 1.0V p-p 75ohm
• Operating Voltage: 12V DC (Negative Ground)
• Current Consumption: 114mA @ 13.8V
• Waterproof Rating: IP68
• Operating Temperature: -20 Degrees C to +70 Degrees C
• Parking Lines: Yes
• Infra-Red LEDs: Yes

Vehicle Application:

• Universal (cars and vans)
