Universal, Surface Mounted Reverse Camera with 1089 HD CCD Sensor and 800 x 533 Resolution. Mirror/Normal Image Adjustment. Minimum Illumination: 0.05 Lux. Video Output: 1.0V p-p 75ohm. Operating Voltage: 12V DC.

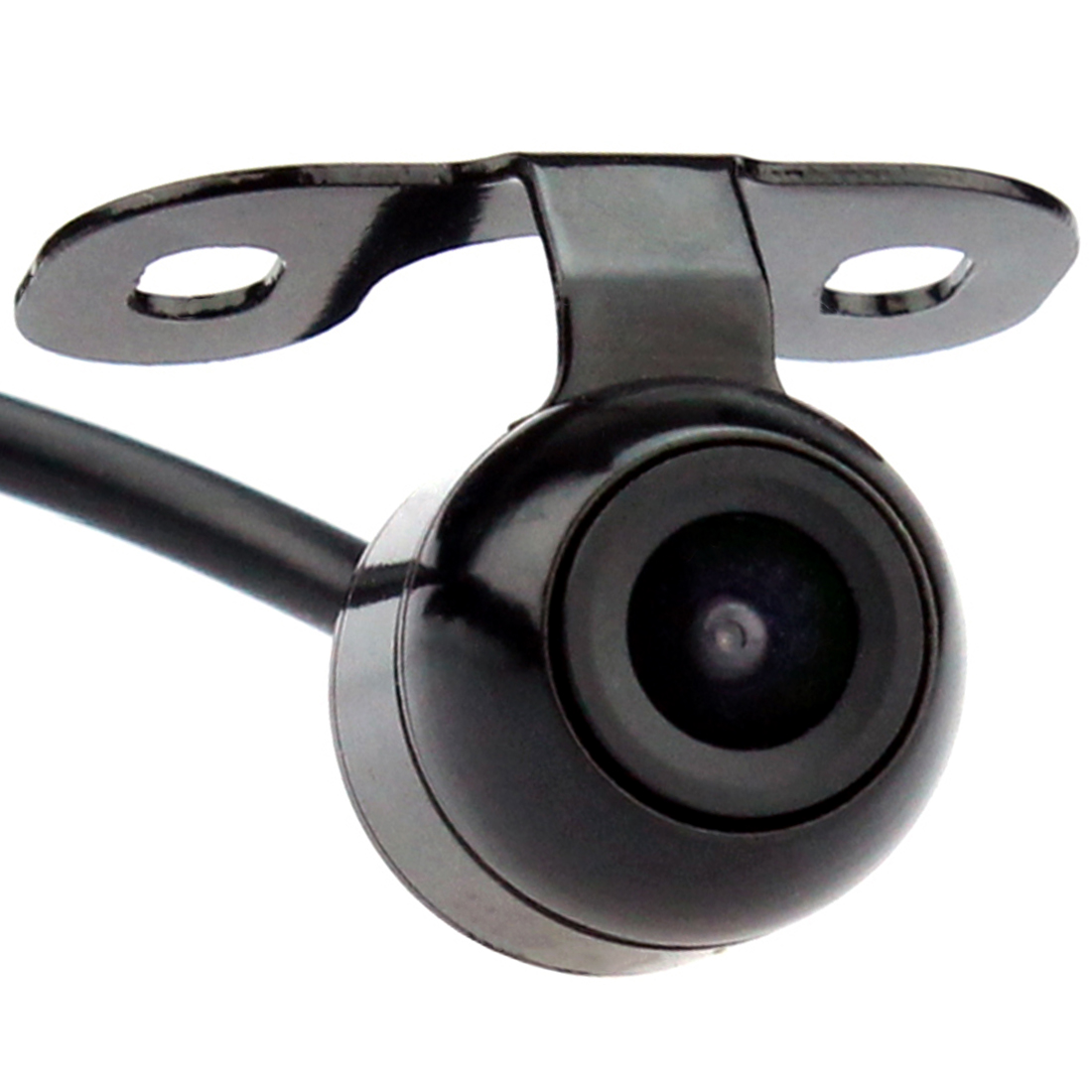

The CAM-20 is a universal surface mounted reversing camera which is compatible with most vehicles (cars and vans). This easy-fit camera can be attached externally or flush mounted to the vehicle, the camera’s 1089 HD CCD and 800x533pix resolution allow for a full-colour high res image display. The CAM-20’s removable parking lines assist in parking the vehicle. The camera is also IP68 rated, meaning it is protected against all standard weather conditions and will continue to operate in temperatures ranging from -20 degrees C to +60 degrees C.

Specifications:

• Image Sensor: 1089 HD CCD
• TV Type: NTSC/PAL
• Resolution: 800 x 533
• Minimum Illumination: 0.05 Lux
• Video Output: 1.0V p-p 75 ohm
• Waterproof Rating: IP68
• Operating Voltage: 12V DC (Negative Ground)
• Operating Temperature: -20 Degrees C to +60 Degrees C
• Current Consumption: 94mA @ 13.8V
• Enhanced Performance in Low Light: Yes
• Removable Parking Lines: Yes

Vehicle Application:

• Universal, fits on cars and vans
