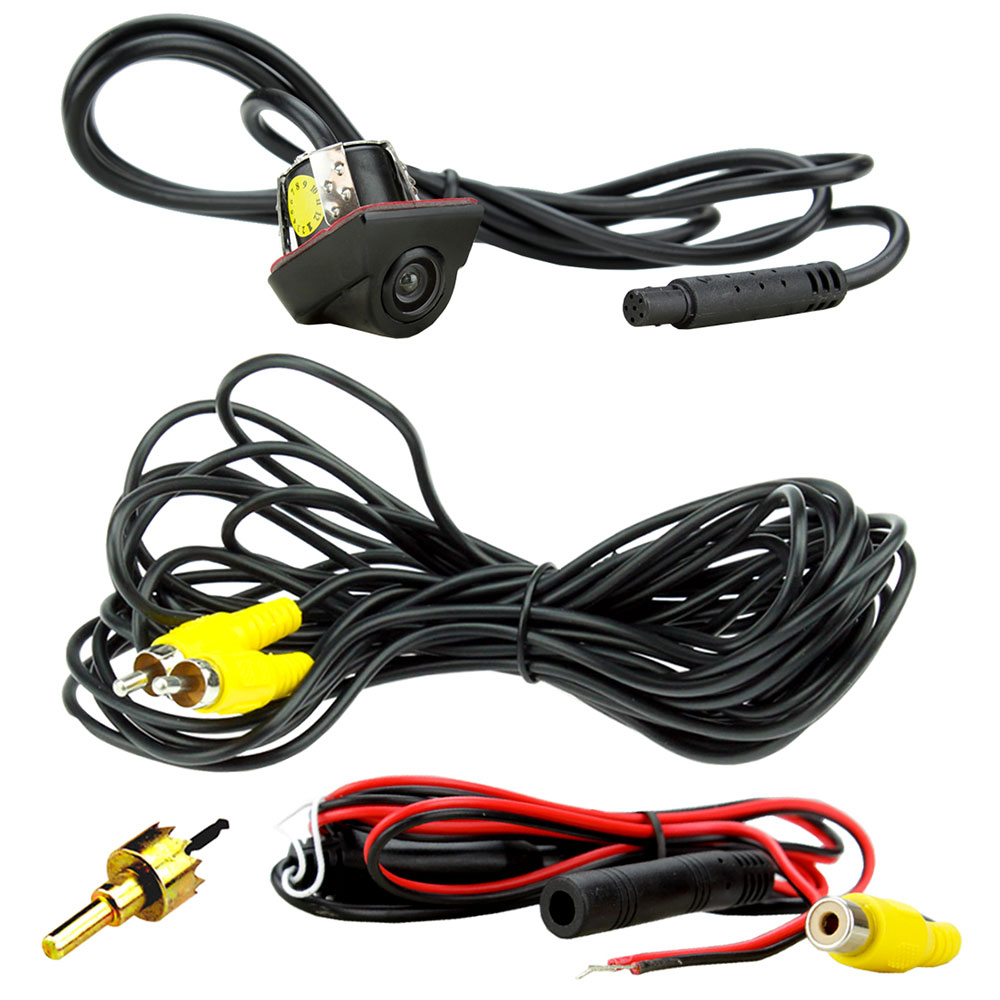

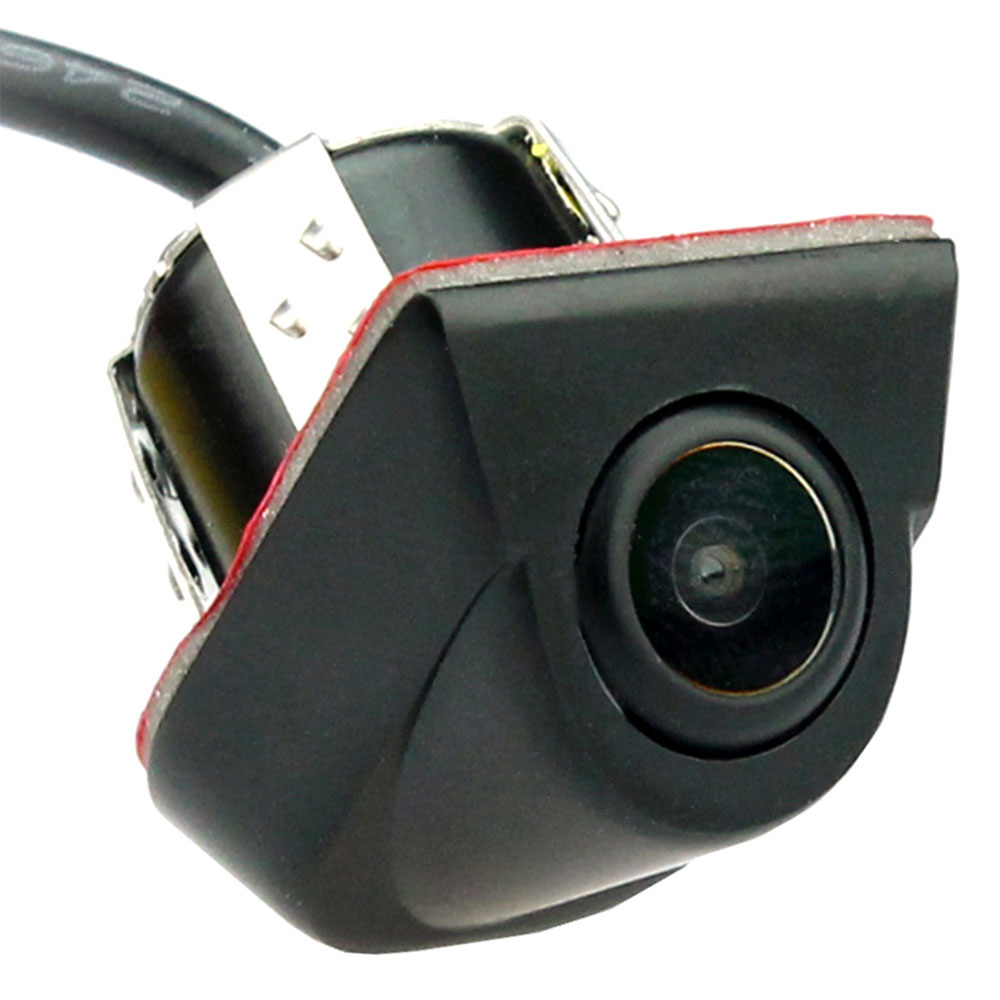

The CAM-17 is a universal, fixed angle surface mounted, reversing camera, compatible with most vehicles (cars and vans), it requires minimal illumination to operate and comes with a 170-degree viewing angle. This easy-fit rear-view camera’s 1099 HD CCD, 480 TV Lines and 976x496pix resolution allow for a full-colour high-res image display. The CAM-17 is also IP68 rated, meaning it is protected against all standard weather conditions and will continue to operate in temperatures ranging from -20 degrees C to +70 degrees C.

Specifications

• Image Sensor: 1099 HD CCD
• TV Lines: 560
• Resolution: 976 x 496
• Minimum Illumination: 0.1 Lux
• TV System: NTSC
• Waterproof Rating: IP68
• Horizontal Angle: 170 Degrees
• Vertical Angle: 120 Degrees
• Parking Lines: Yes (Removable)
• Image Adjustment: Yes (Mirror/Normal)
• Enhanced Performance In Low Light: Yes
• Video Output: 1.0V p-p 75ohm
• Operating Voltage: 12V DC (Negative Ground)
• Current Consumption: 120mA @ 13.8V
• Operating Temperature: -20 Degrees C to +70 Degrees C
