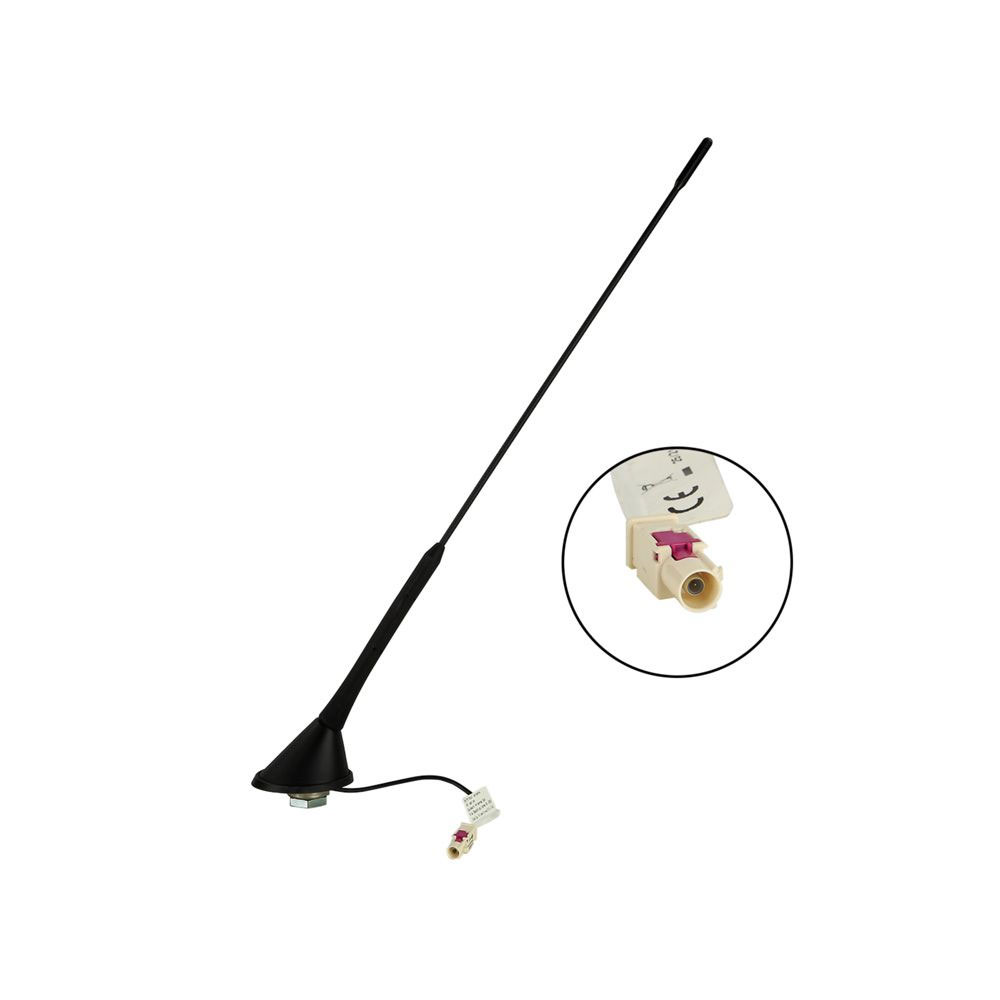

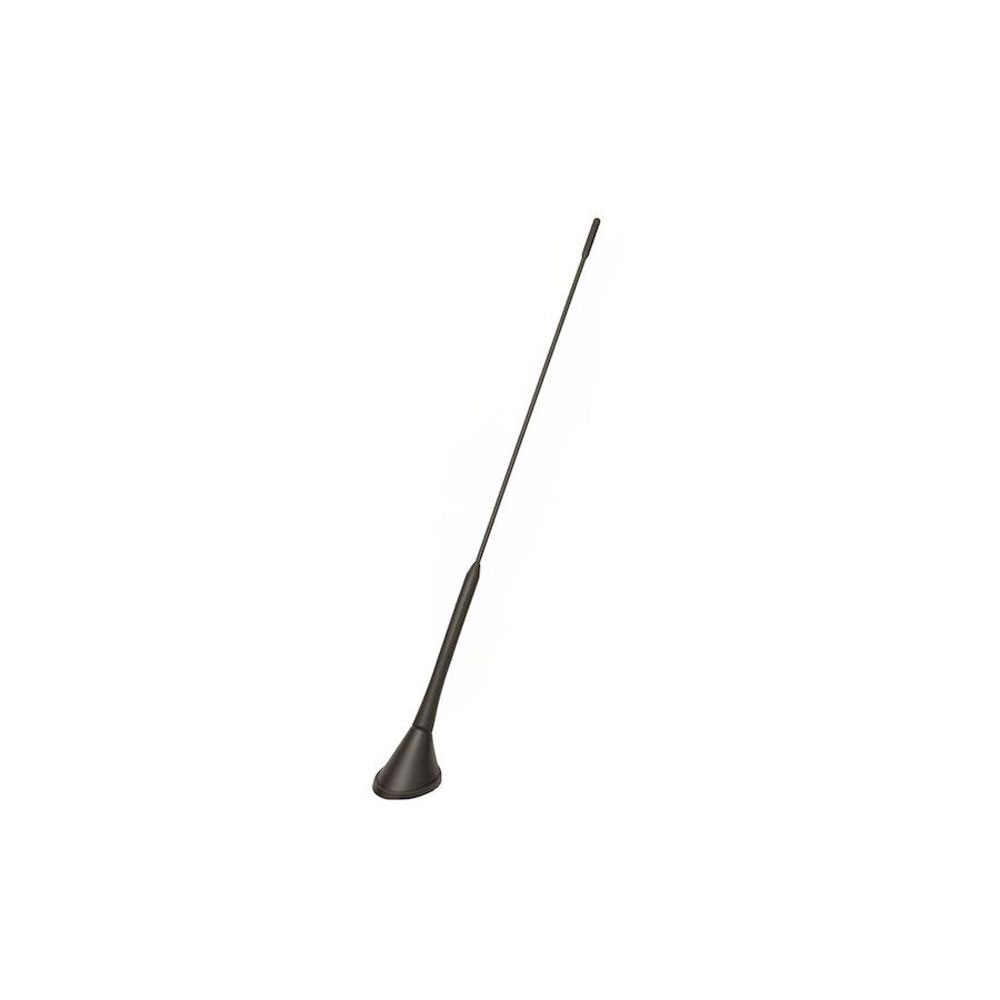

Calearo roof mount antennas retain the factory styling of your vehicle whilst greatly increasing radio reception. This particular model is a 16V style antenna designed for AM/FM use.

• Whip length: 40.5cm
• Angle: 60° fixed
• Total length including base: 44cm
• This antenna requires a 12v phantom feed. Phantom feed is where 12v power is sent up the center core of the coax cable

The AM/FM connector on this antenna is a white male Fakra. Extension cable ANC7581185 is available to extend this by 5 metres and convert it to a male DIN connection.

Specifications

• Purpose AM/FM
• Install Location Roof
• Active
• Phantom Feed
• Mast Angle 60°
• Mounting Hole Diameter (cm) 1.9
• Connection Fakra
• Cable Length (m) 0.18
• Cable Type Coaxial
• Waterproof Rating IP68
• Height (cm) 44.0
• Width (cm) 4.3
• Depth (cm) 6.0
