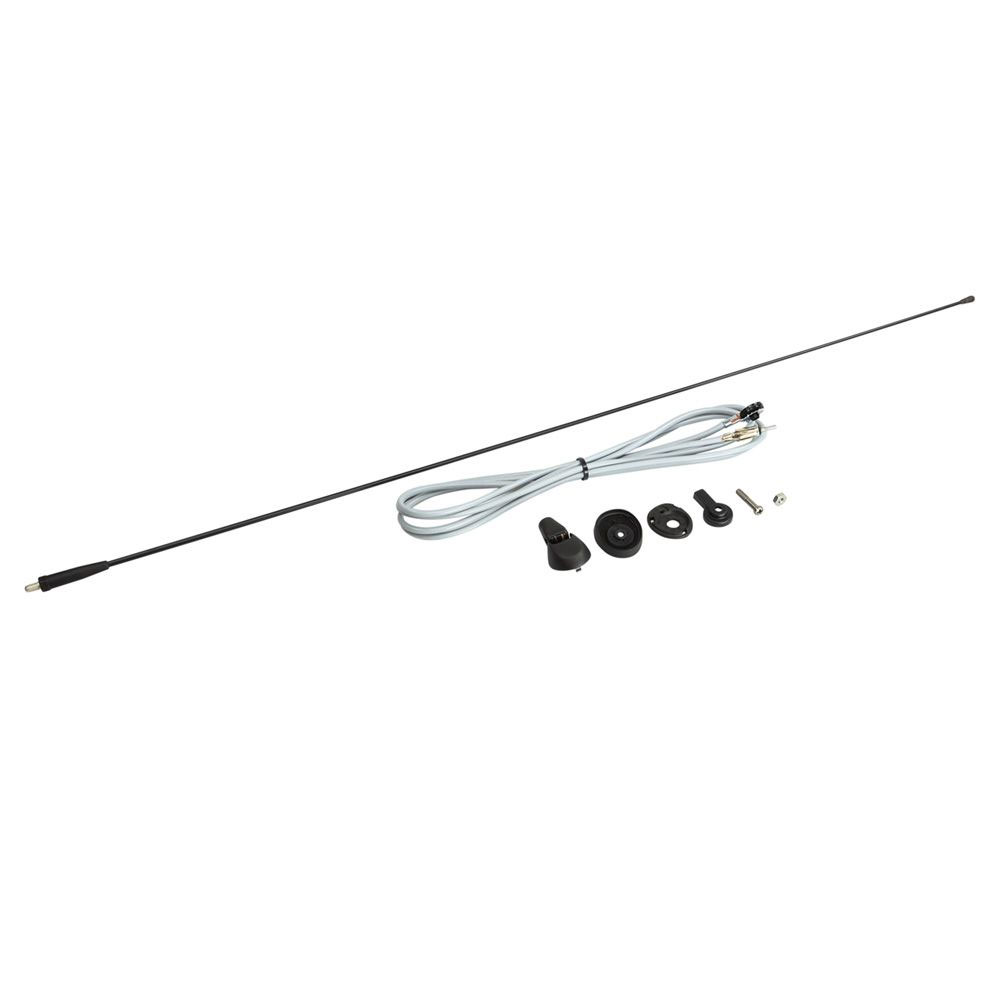

If reception is key then the universal ANC7651006 is a good choice. It is roof mounted to ensure an obstruction free signal path, and includes an 84cm fibreglass whip, far exceeding the length of standard antennas. The result is an AM/FM antenna optimized to function flawlessly.

The antenna hinges allowing for 90 degrees of mast adjustment and comes complete with a 2.45m cable terminated in a male DIN connector. It requires 2 coachwork holes for installation, please see the Technical Tip tab for further information.

• Whip length: 84cm

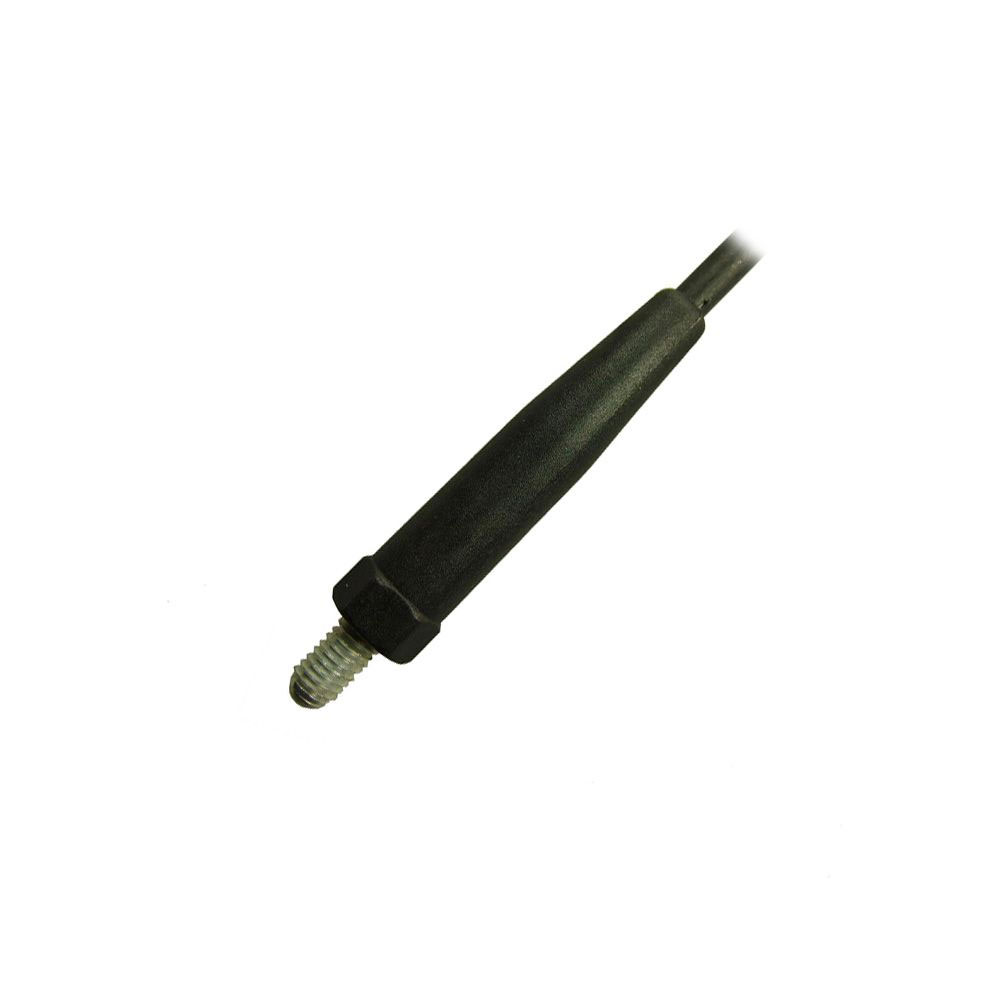

• Whip thread: 6mm
• Inclination: 0° - 90°

Specifications

• Purpose AM/FM
• Install Location Roof
• Mast Angle Adjustable 0-90
• Connection DIN
• Cable Length (m) 2.45
• Cable Type Coaxial
• Waterproof Rating IP68
• Width (cm) 3.7
• Depth (cm) 4.2

Technical Tip

The ANC7651006 antenna requires 2 mounting holes. One for the mounting bolt and another, toward the rear of the vehicle, for a plastic locating pin. The front bolt hole (A) should be 8mm in diameter. The rear locating pin hole (B) should be 4.7mm in diameter. The 2 holes should be spaced 14mm apart, centre to centre.

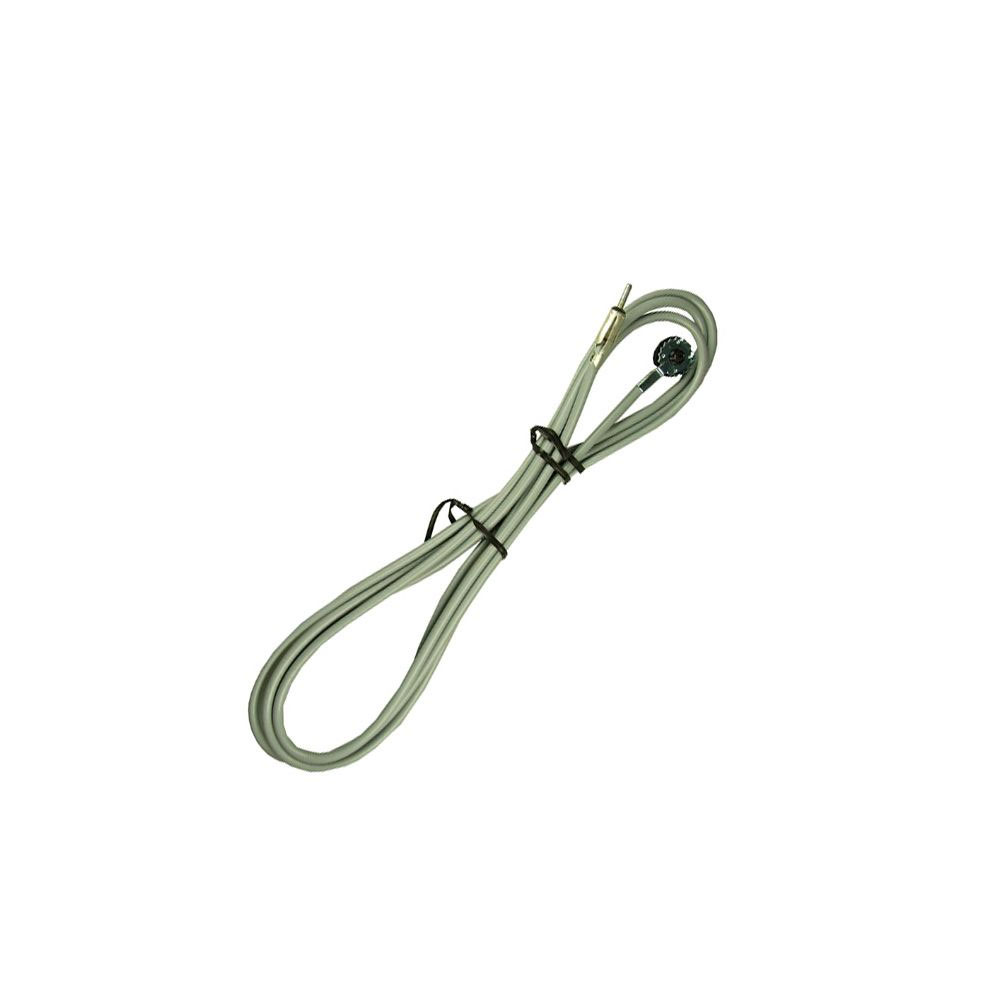

To securely fasten to the coachwork the ANC7651006 must use an AM/FM cable with washer style connector, similar to the below. This antenna comes complete with a 2.45m cable with this connector.
