BMW 3 Series 9 Inch Perfect Fit Stereo Fitting Kit – Non iDrive with PDC Retention

Upgrade your BMW 3 Series with a modern 9-inch touchscreen multimedia receiver whilst retaining factory steering wheel controls, parking sensor warning tones and a clean OEM-style dashboard appearance. Designed specifically for BMW E90 Saloon, E91 Touring, E92 Coupe and E93 Convertible models from 2006 to 2011 without factory iDrive navigation, this complete fitting kit provides everything required for a professional stereo installation.

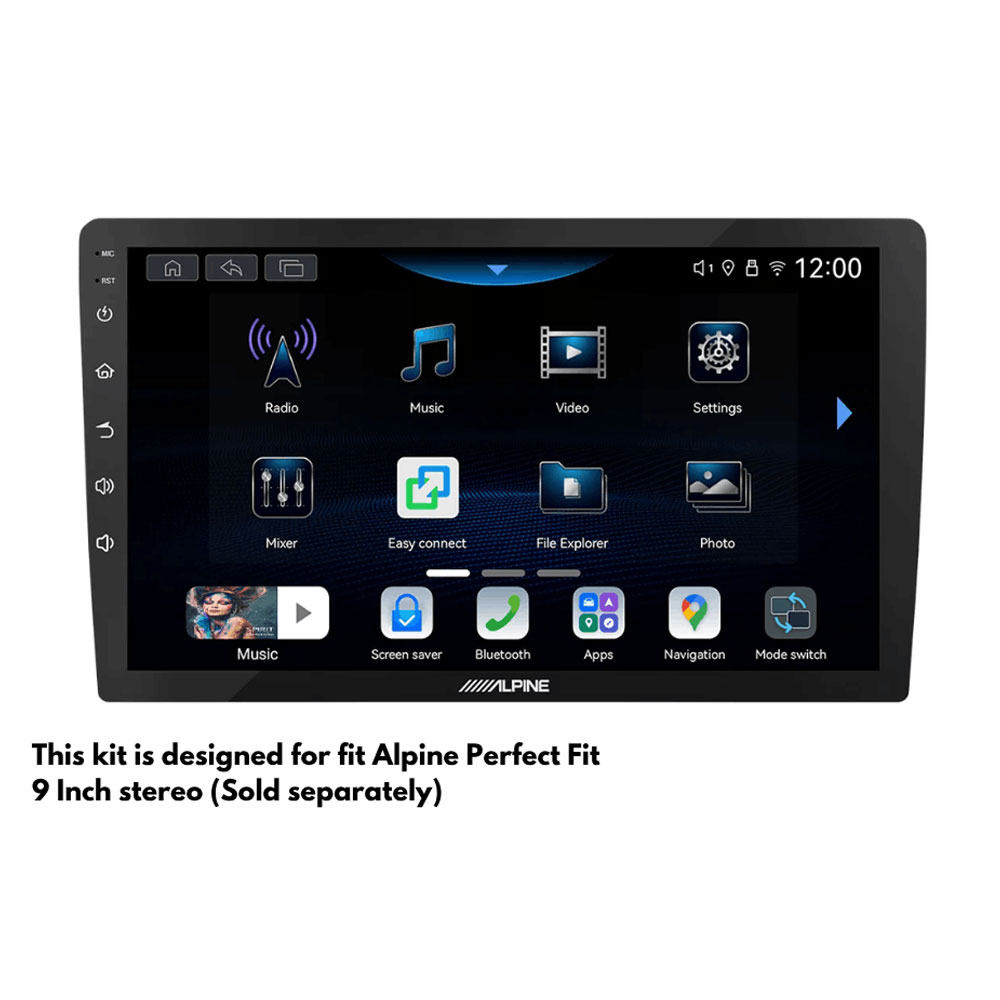

Originally developed for the Pioneer SPH-PF97BT, this fitting kit is also compatible with selected 9-inch Perfect Fit stereos that utilise the same mounting platform, including the Pioneer SPH-PF97BT, Alpine INE-AX809 and Kenwood DMX80AXS.

The supplied CAN-Bus steering wheel control interface allows compatible aftermarket stereos to retain factory steering wheel audio controls and important vehicle integration features. The included PDC retention module preserves factory parking sensor warning tones, ensuring convenience and safety functions remain fully operational after the stereo upgrade. A Fakra aerial adapter maintains radio reception whilst the vehicle-specific fascia panel creates a seamless factory-style dashboard finish.

For vehicles equipped with heated seats or start/stop buttons, the additional 50-746-ASH switch relocation panel must be purchased separately to relocate these controls into the ash tray position.

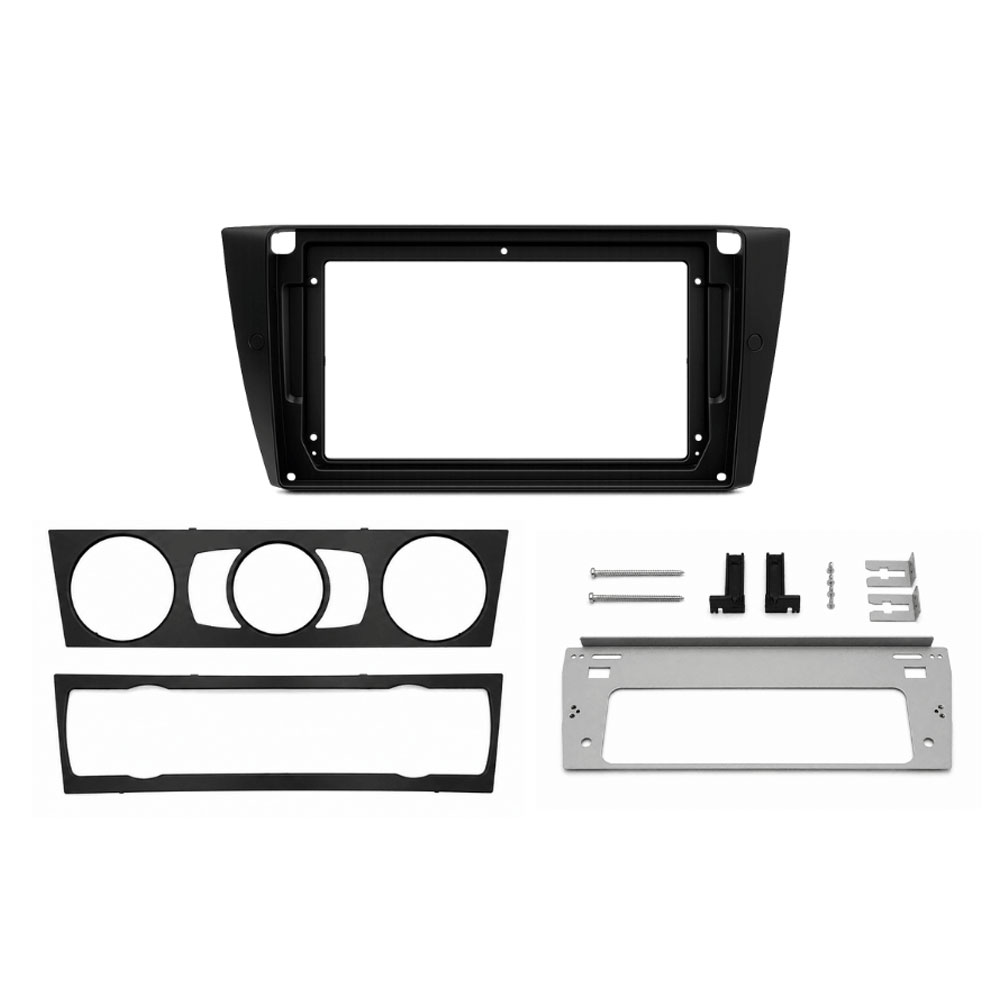

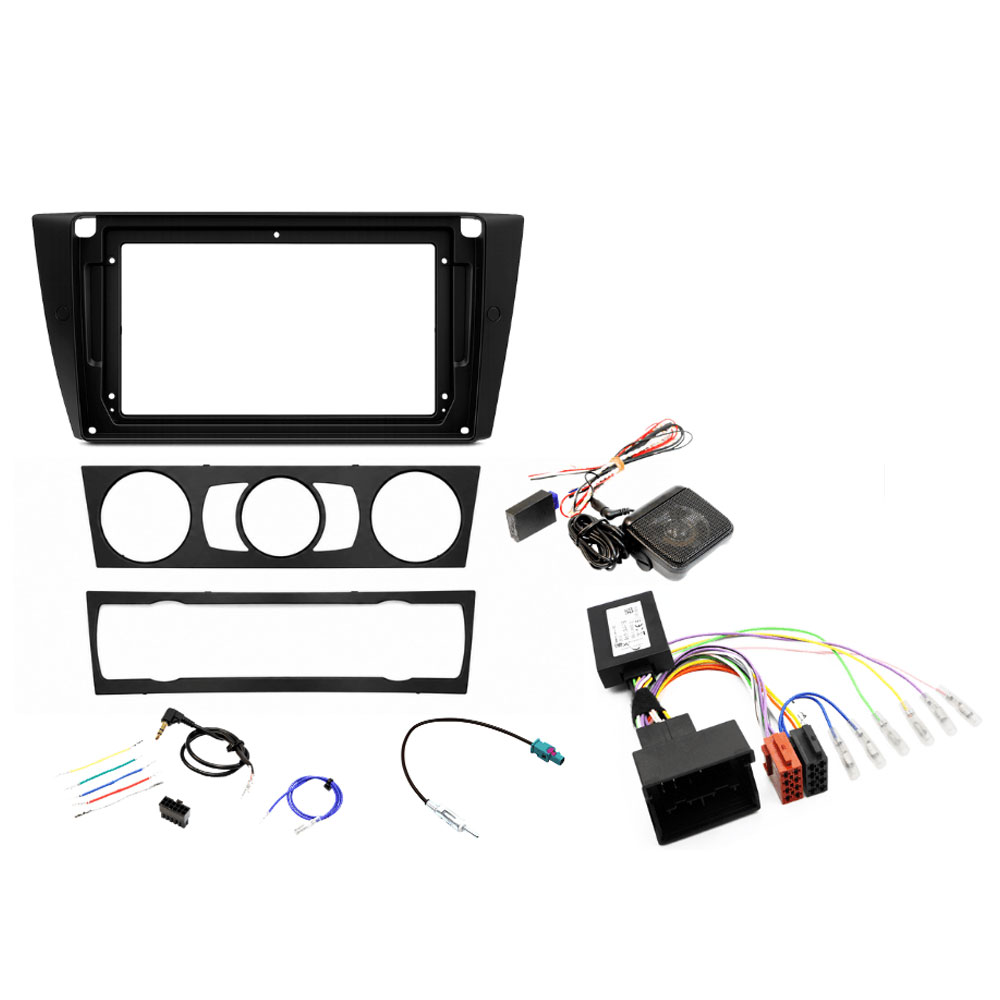

Package Includes

• 9" fascia adapter (MATT BLACK)
• Steering wheel control interface
• Fakra to DIN antenna adapter cable
• Parking sensor retention interface
• Universal Patch Lead

PF-115-PDC Compatibility

This kit is suitable for BMW 3 Series (E90/E91/E92/E93) 2006–2011 vehicles without OEM navigation and without iDrive. If your vehicle has heated seats or start/stop buttons, you will also need to purchase 50-746-ASH to relocate the switches in place of the ash tray.

Some cars with start/stop technology may require an additional voltage stabiliser to prevent the radio turning off when the engine restarts.

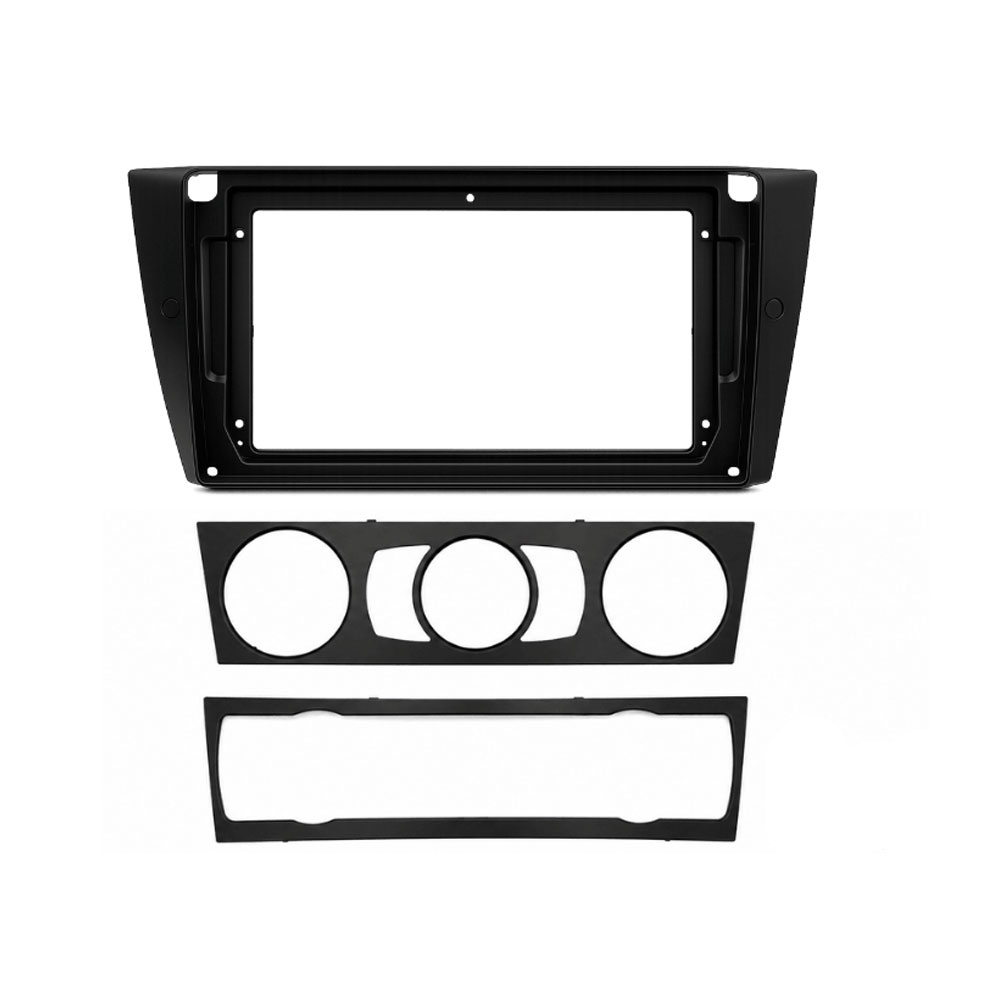

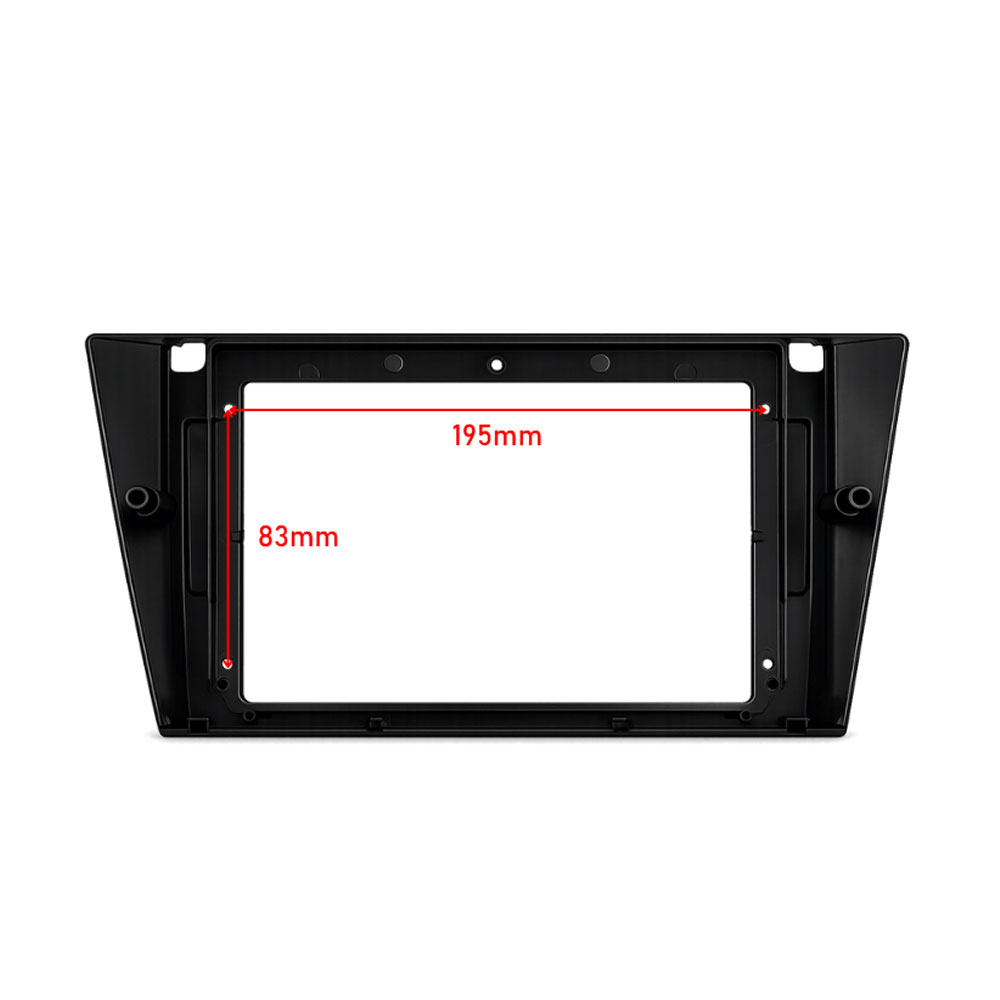

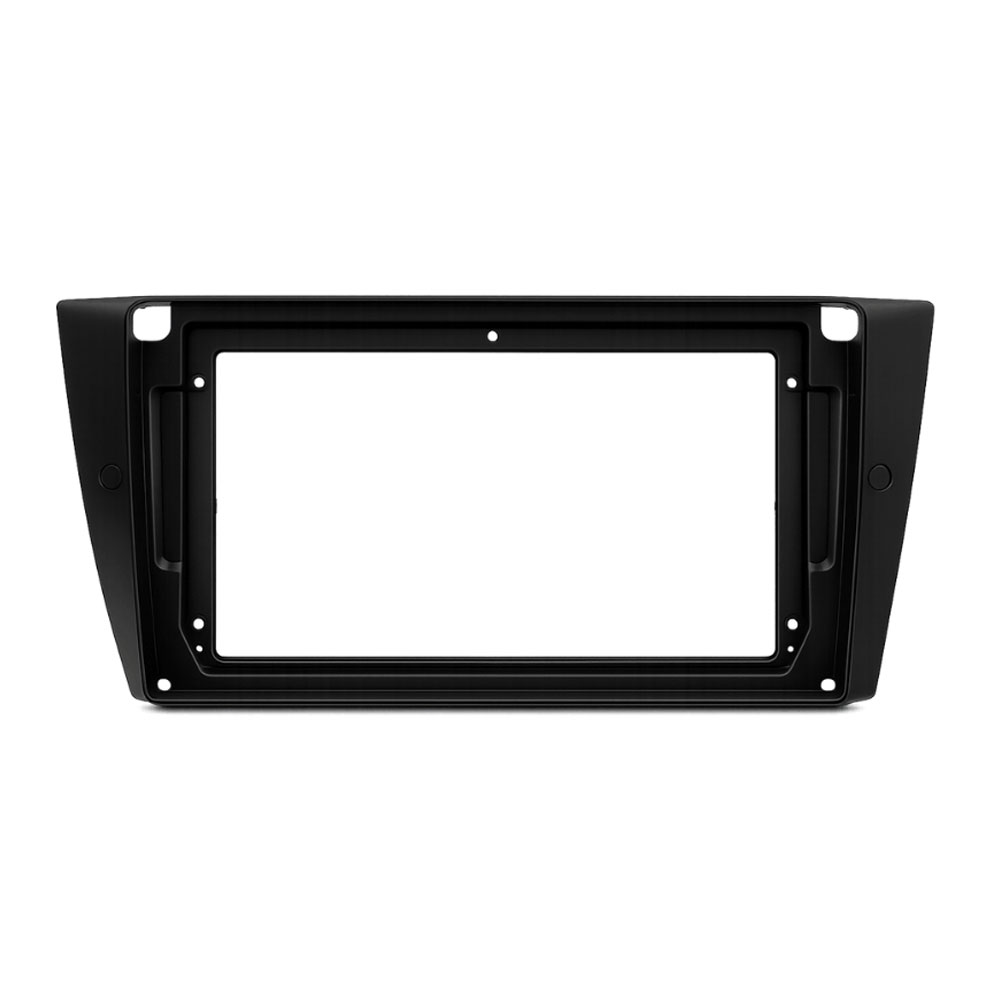

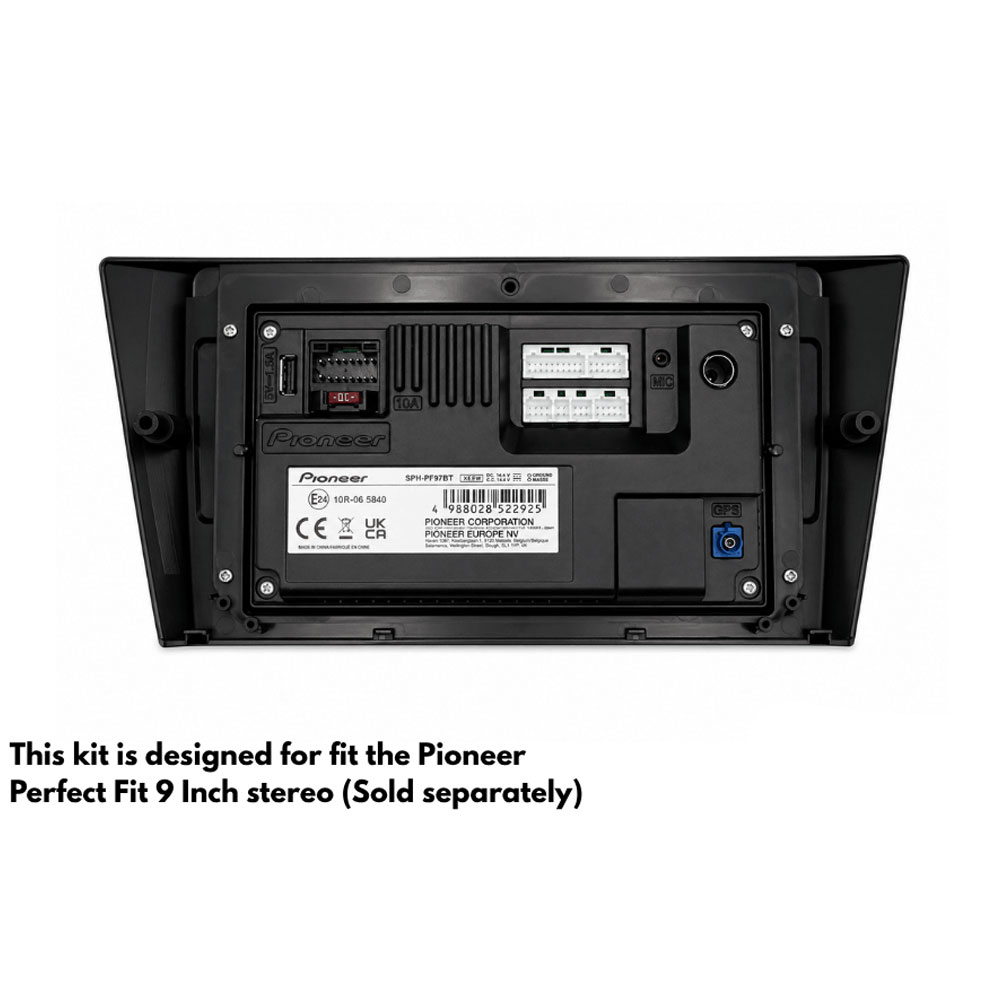

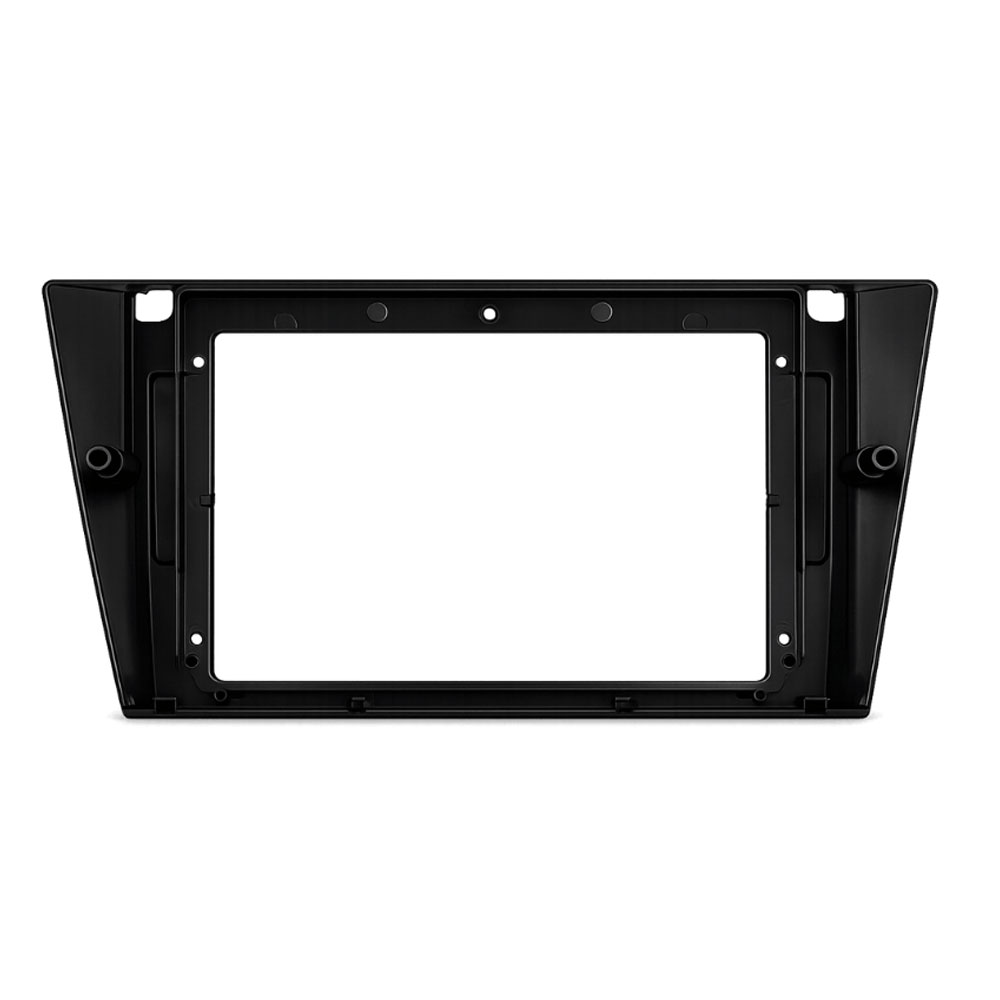

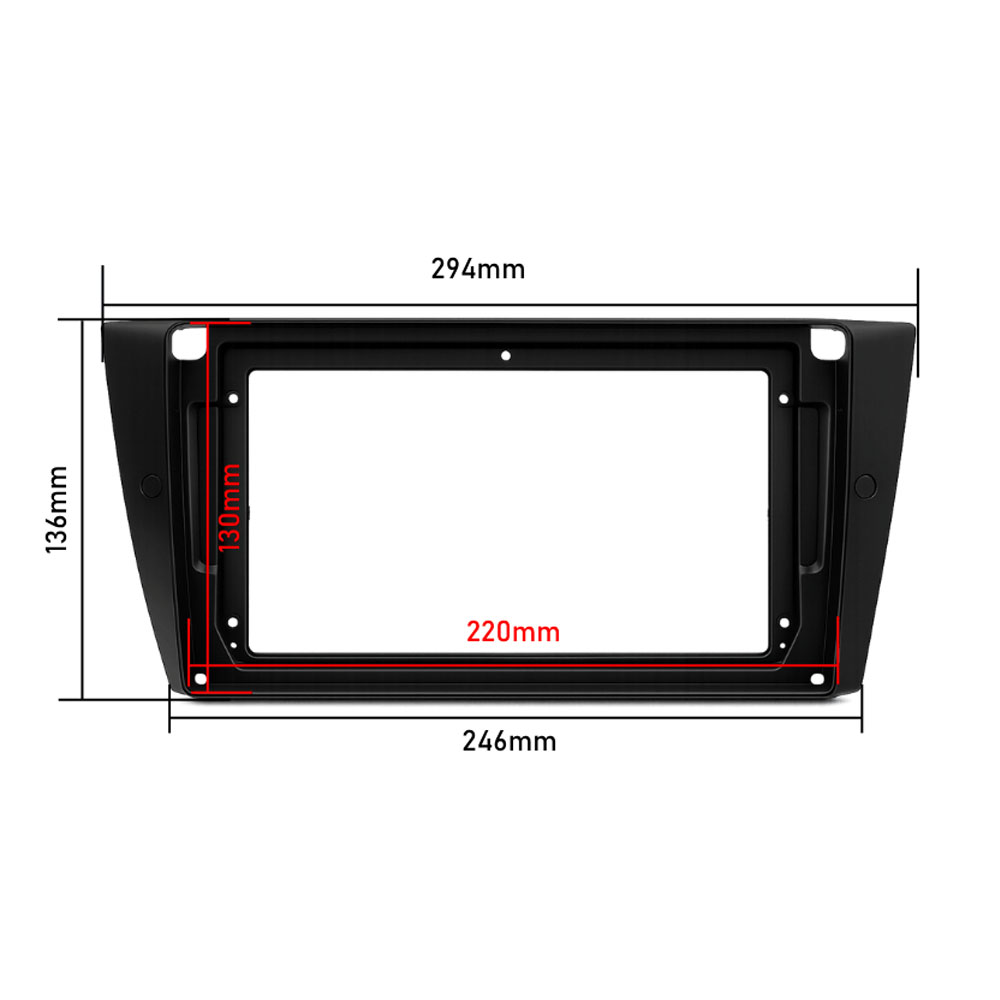

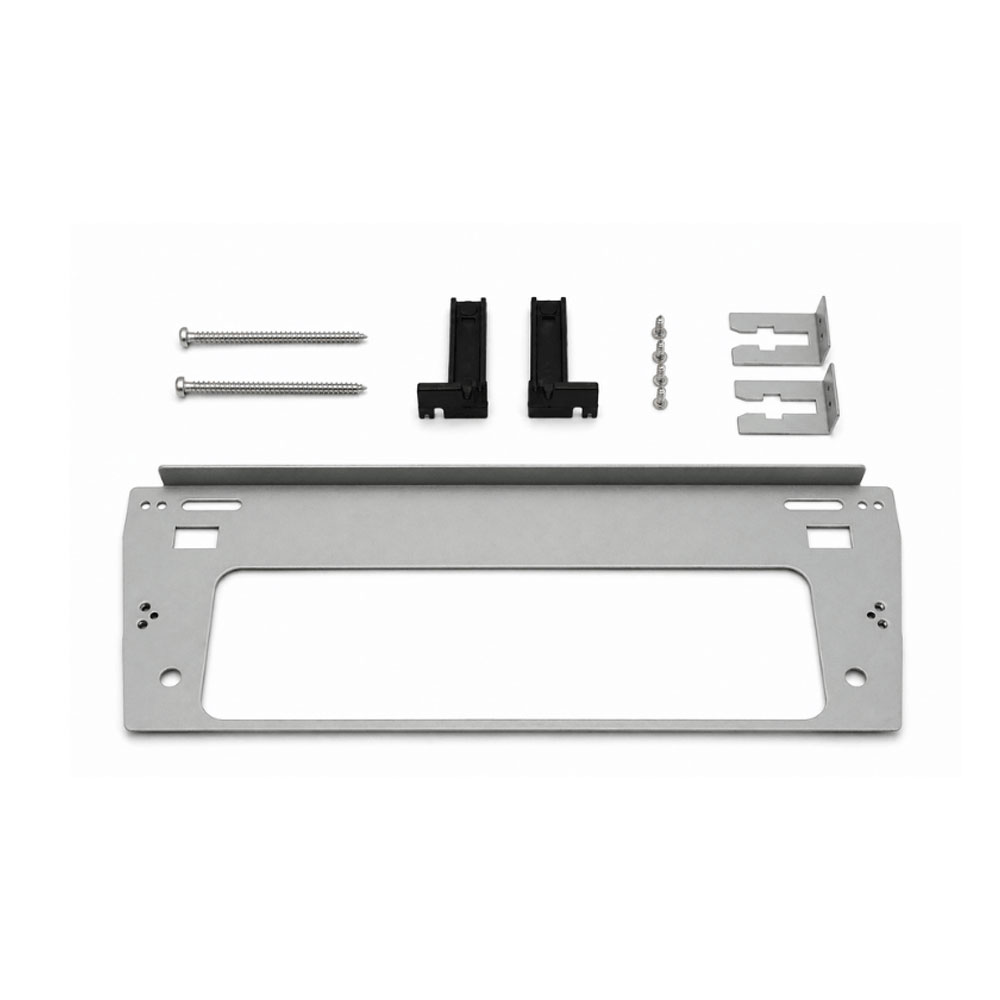

9" Fascia Adaptor

Designed specifically for BMW 3 Series (E90/E91/E92/E93) 2006–2011 vehicles without OEM navigation and without iDrive, this fascia is designed for installation of the Pioneer 9” stereo. Built as a bespoke fit for vehicles in the application list, it adapts the dashboard aperture after removing the factory stereo to accept a universally mounted 4-screw head unit. This ensures compatibility with the Pioneer 9 inch system while retaining the original OEM-style appearance of the dashboard.

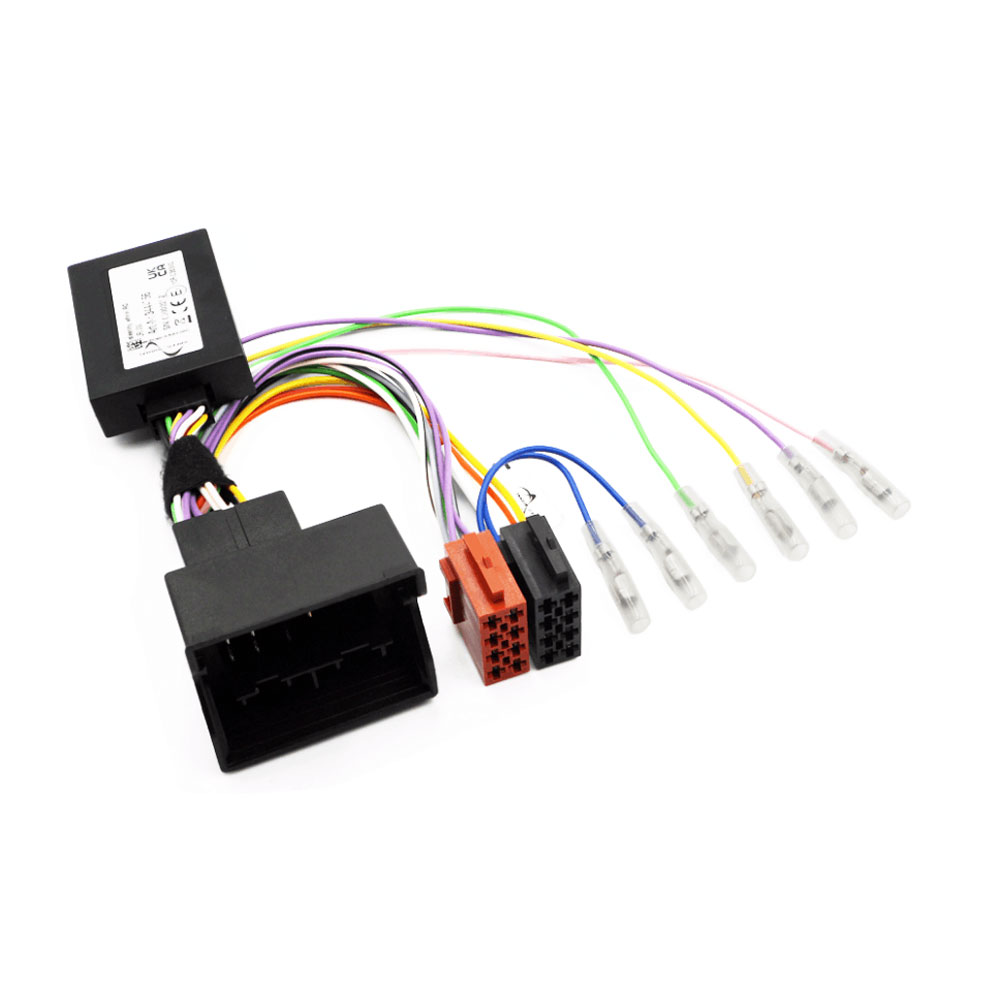

Steering wheel control interface

Steering wheel control interface and adapter cable for various BMW and Mini cars to fit an aftermarket radio upgrade. The cable adapts from the Quadlock connector in the car to standard ISO aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable. The CANbus steering wheel control interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip, source and phone buttons. The CANbus interface will also provide CANbus key present ignition, illumination, speed pulse, reverse gear and handbrake outputs. A key present ignition means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel.

Some BMW cars go into Eco mode and the +12V supply to the radio drops causing the memory of the new radio to be lost, these cars will need a power supply directly from the battery to be supplied.

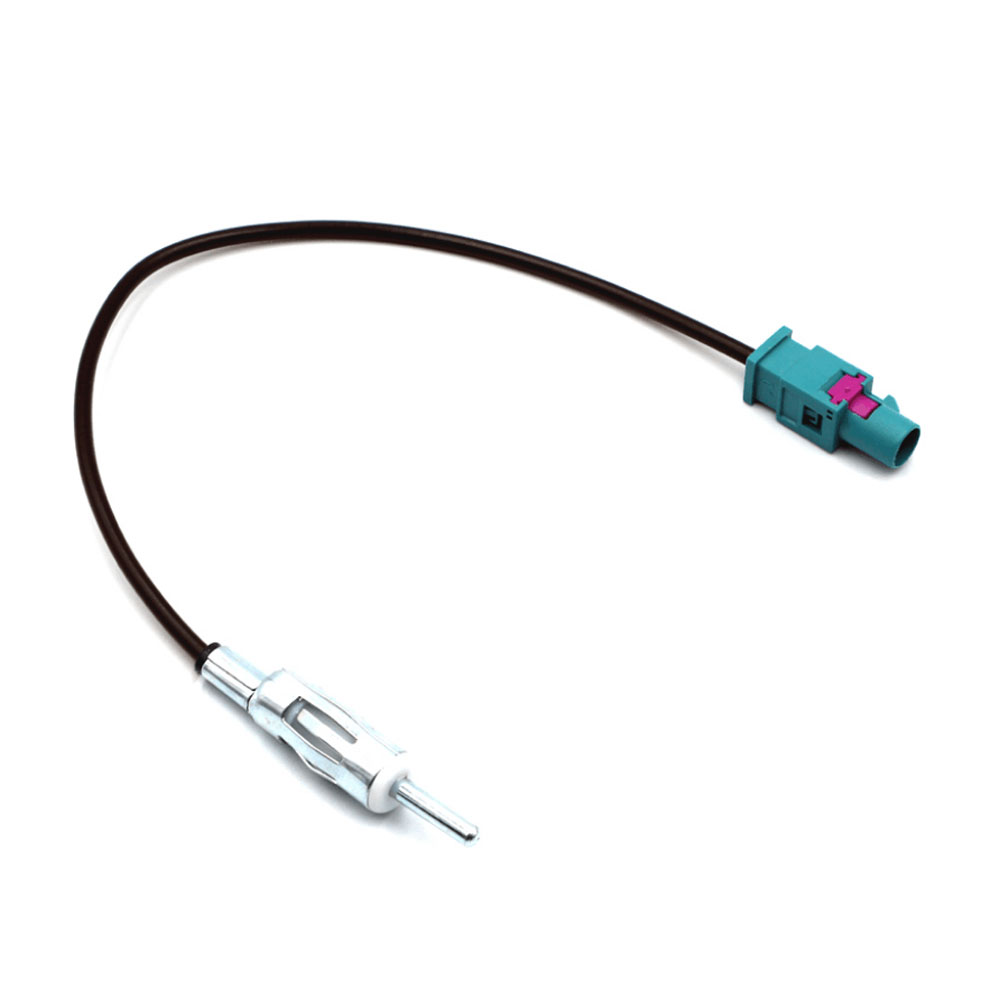

Fakra to DIN antenna adapter cable

Male Fakra to Male DIN antenna adapter cable. This cable adapts from a Farka antenna connection at the back of the cars original radio to a standard aftermarket DIN antenna connection to allow the fitting of an aftermarket radio upgrade. This is a passive adapter cable, not suitable for cars that need a phantom power supply to turn on the antenna amplifier.

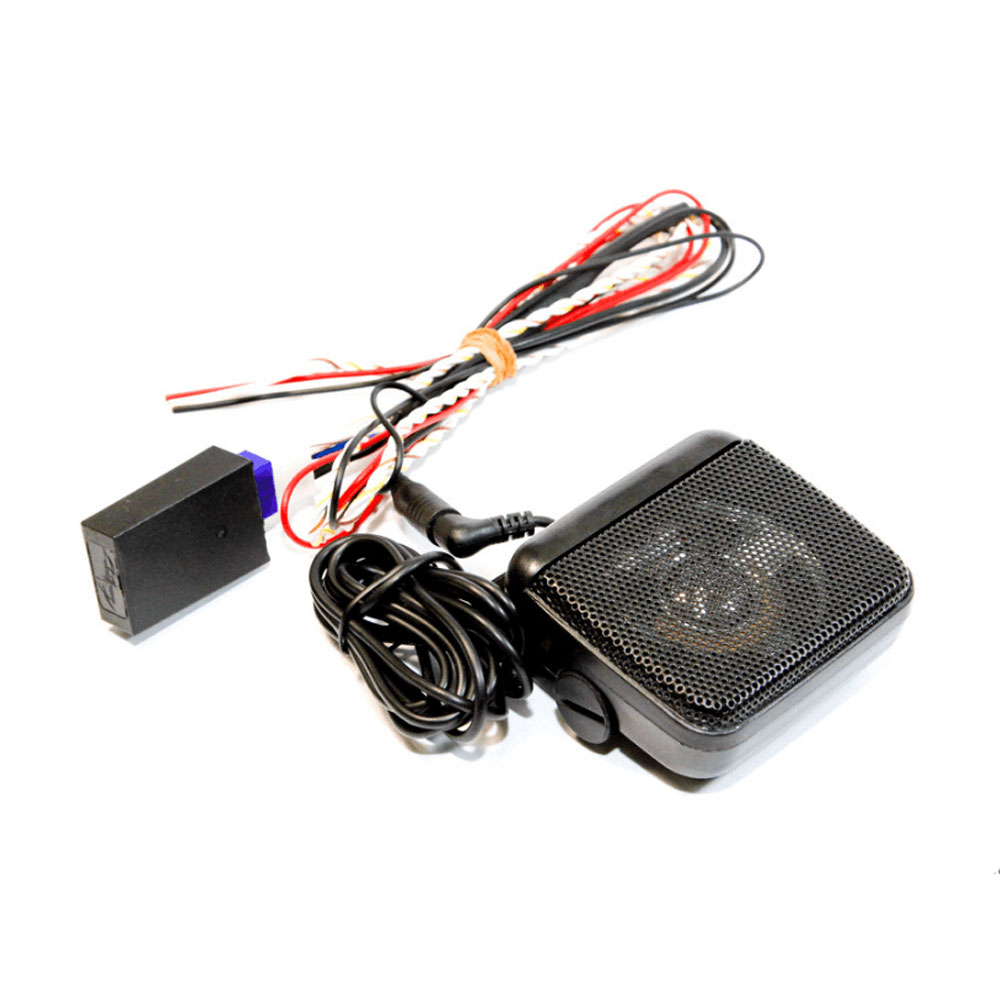

Parking sensor retention interface

CANbus interface to retain the original parking distance control (PDC) tones and other vehicle warning chimes that are lost when replacing the radio in various BMW, Citroen, Peugeot, Volvo and Ford cars. The original parking tones and warning chimes in many cars are produced by the original radio and when an aftermarket radio is fitted these tones are lost. This CANbus interface reads the data in the car and reproduces the parking tones and warning chimes through an additional speaker. The interface has a universal adapter cable, this needs to be hardwired to the power, ground and CANbus wires in the car. Fitting instructions are included.

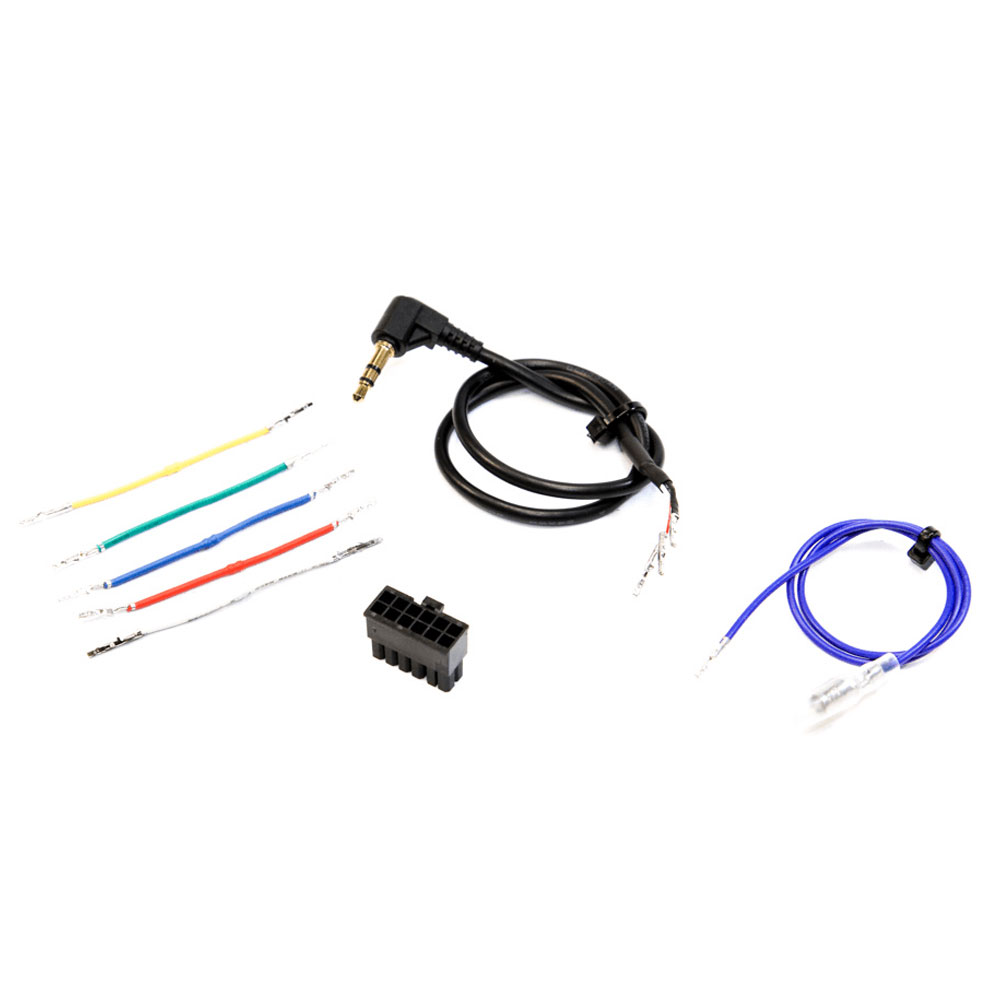

Universal Patch Lead

This cable plugs into the ICT control box and connects to the 3.5mm socket or single wire on the back of the new head-unit. This item has loose wires and leads so it can be configured to suit the brand of radio being fitted.

Important Fascia:

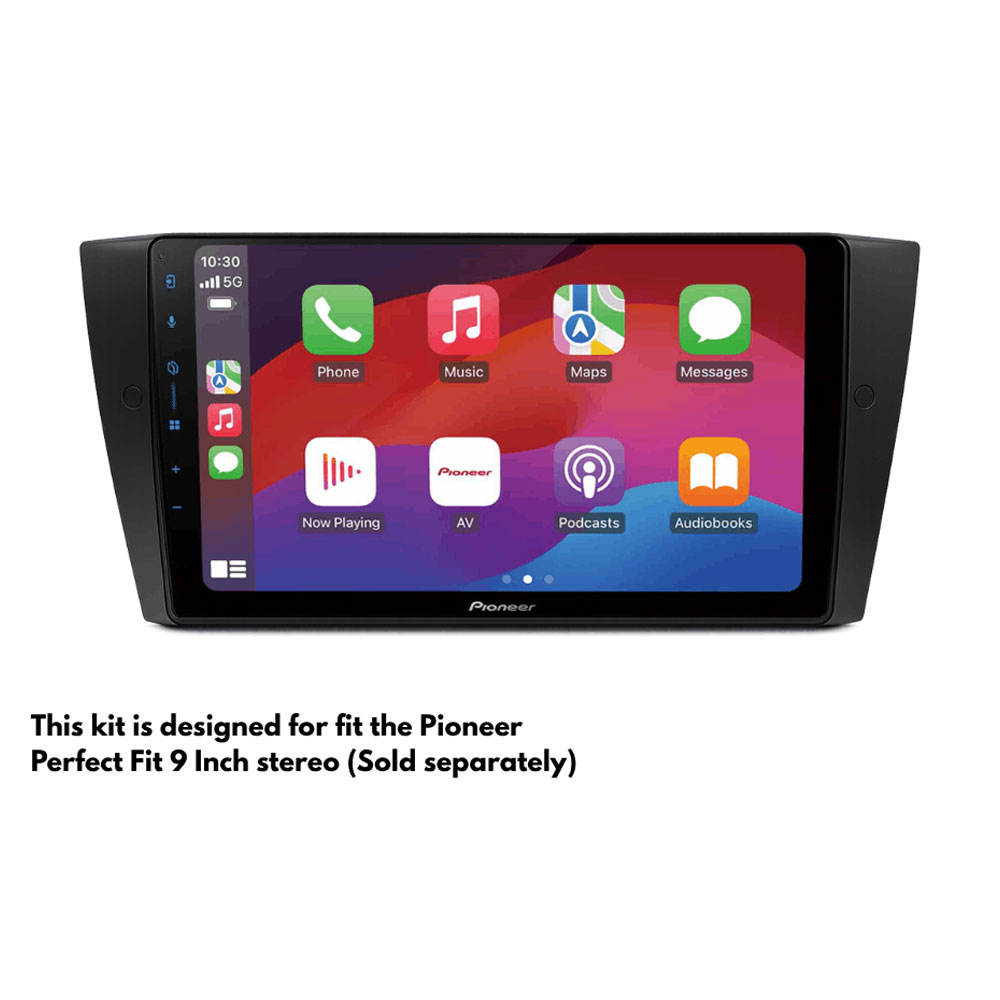

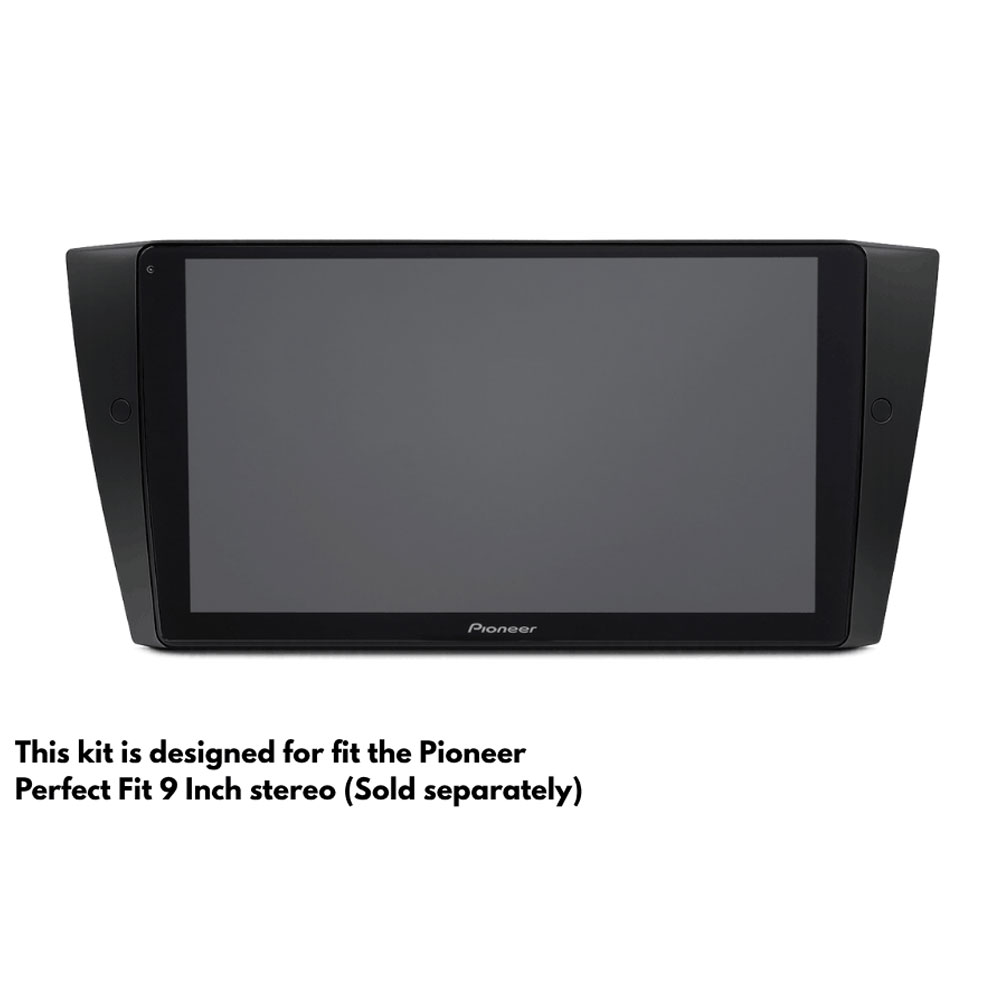

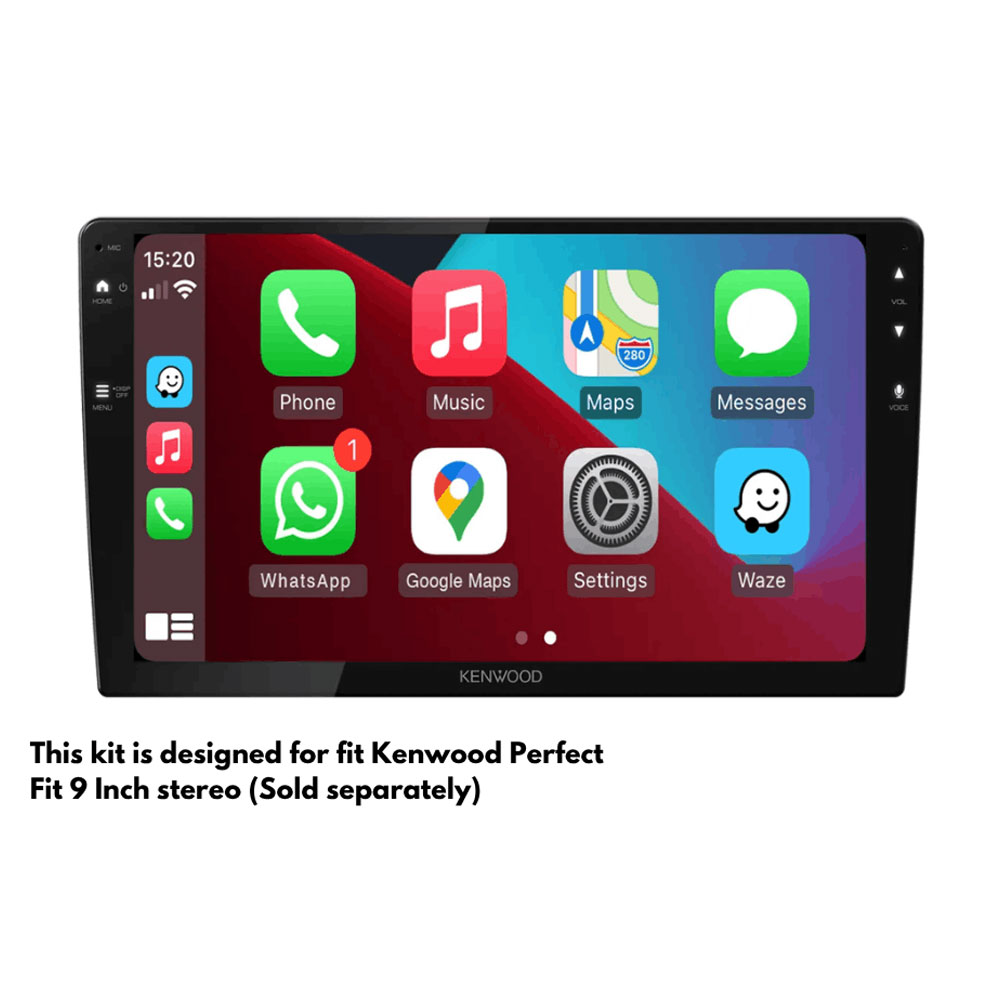

• This fascia is designed to fit only Kenwood and Pioneer Perfect Fit 9" stereos.
• No other stereo brand is suitable.

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
