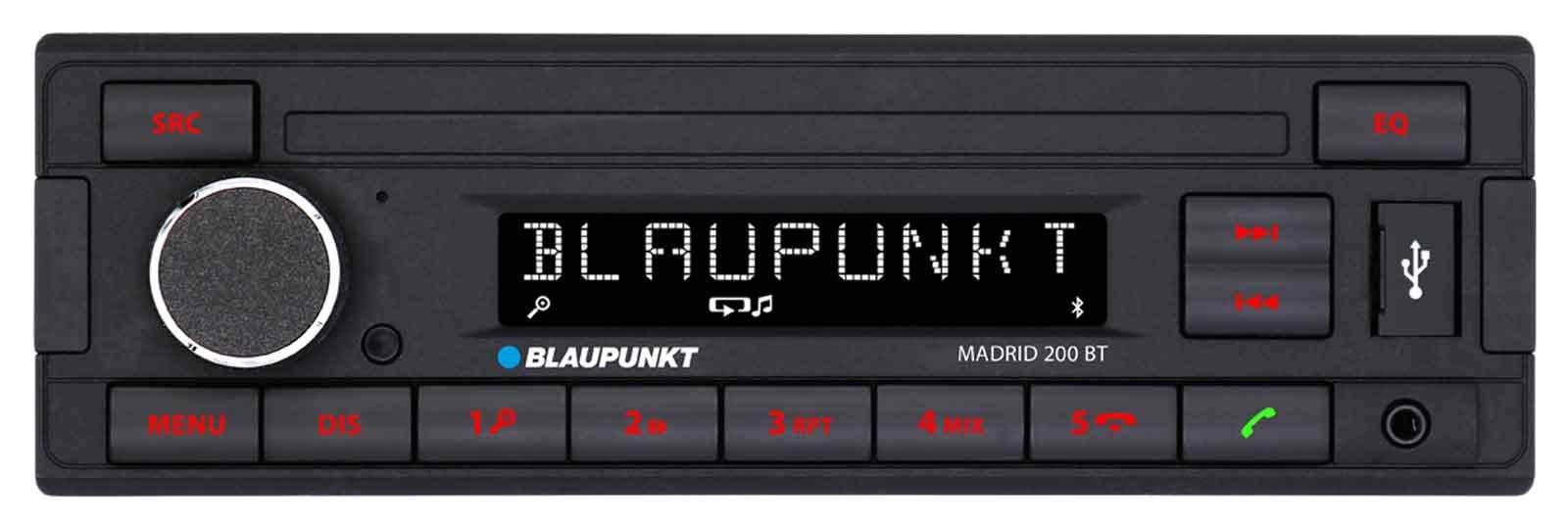

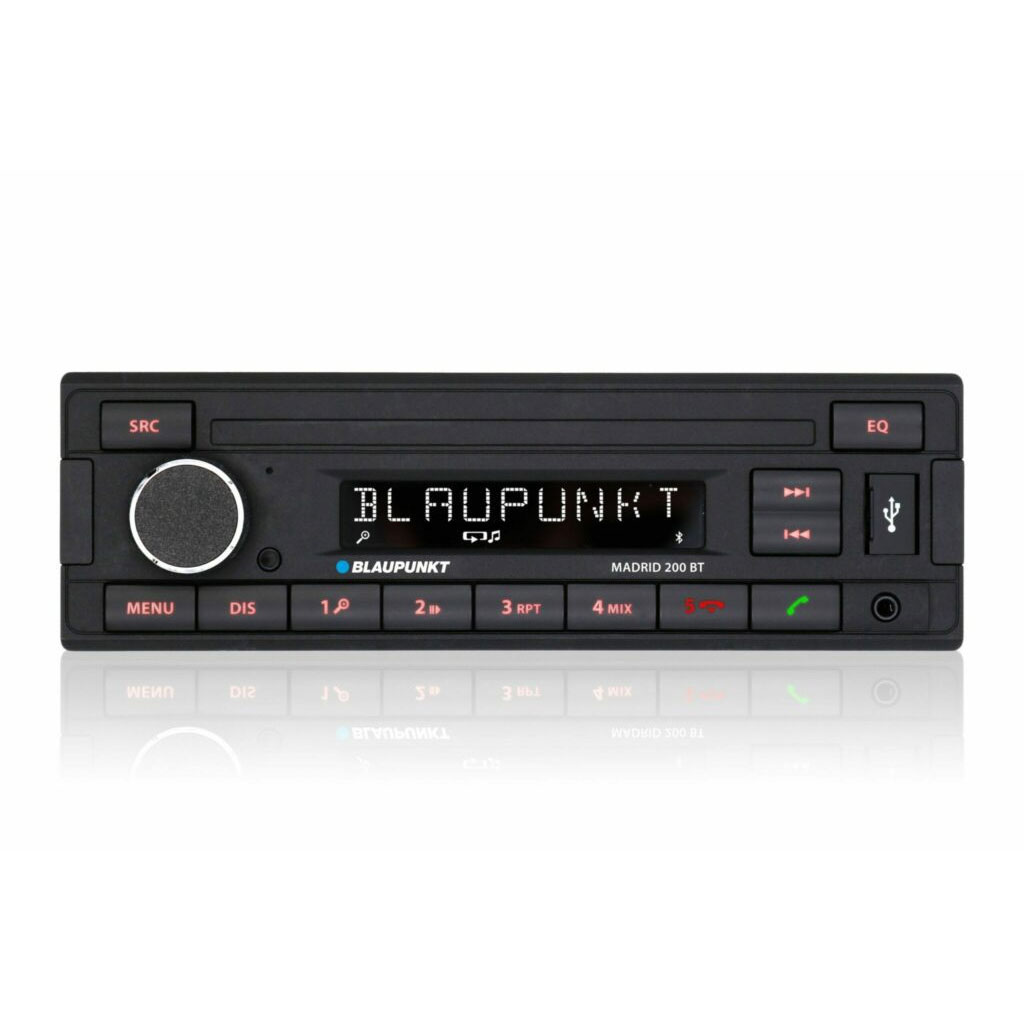

BLAUPUNKT Madrid 200 BT

1-DIN car radio in stylish Blaupunkt design with RDS tuner, Bluetooth with hands-free function, USB and AUX input.

Highlights

• RDS Tuner
• FM (RDS), AM
• Playback formats: MP3, WMA
• Fast playback from USB
• Selectable display modes (file, folder, title, artist, album & playtime)
• Data carrier: USB
• 9-digit display

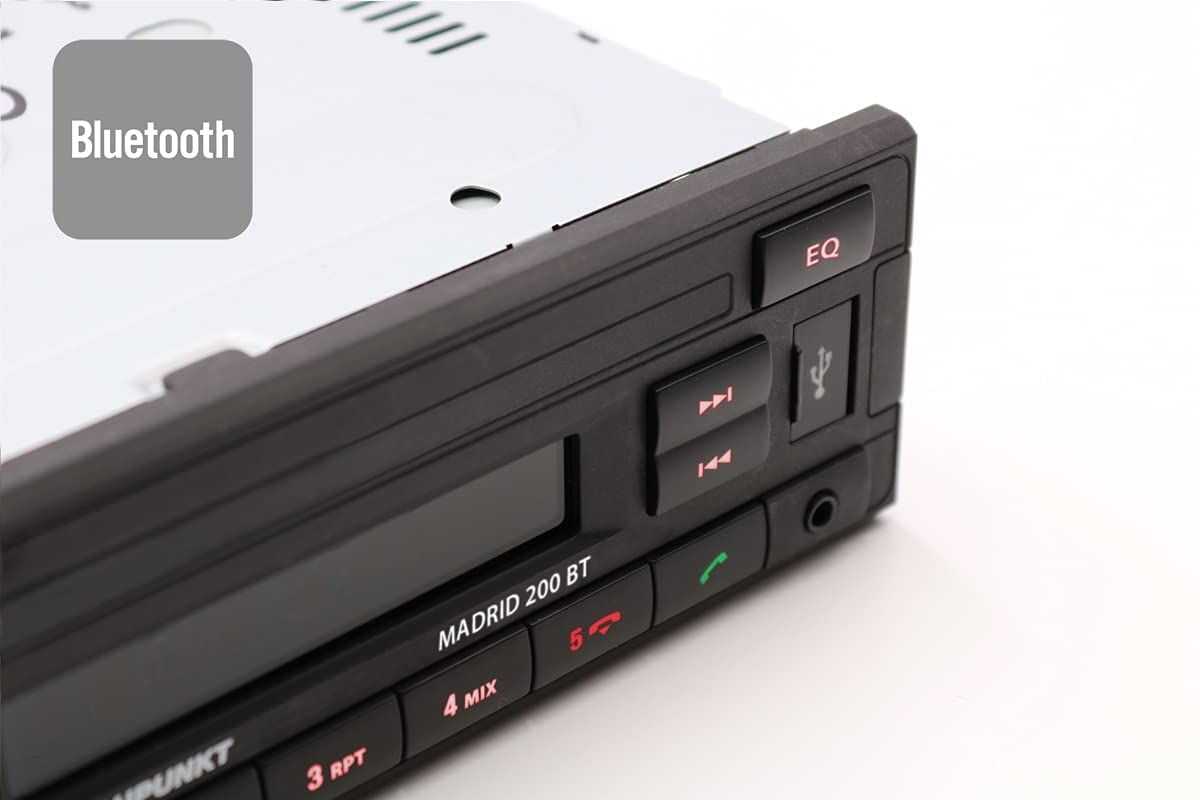

• Built-in Bluetooth (HFP, A2DP)
• Built-in microphone

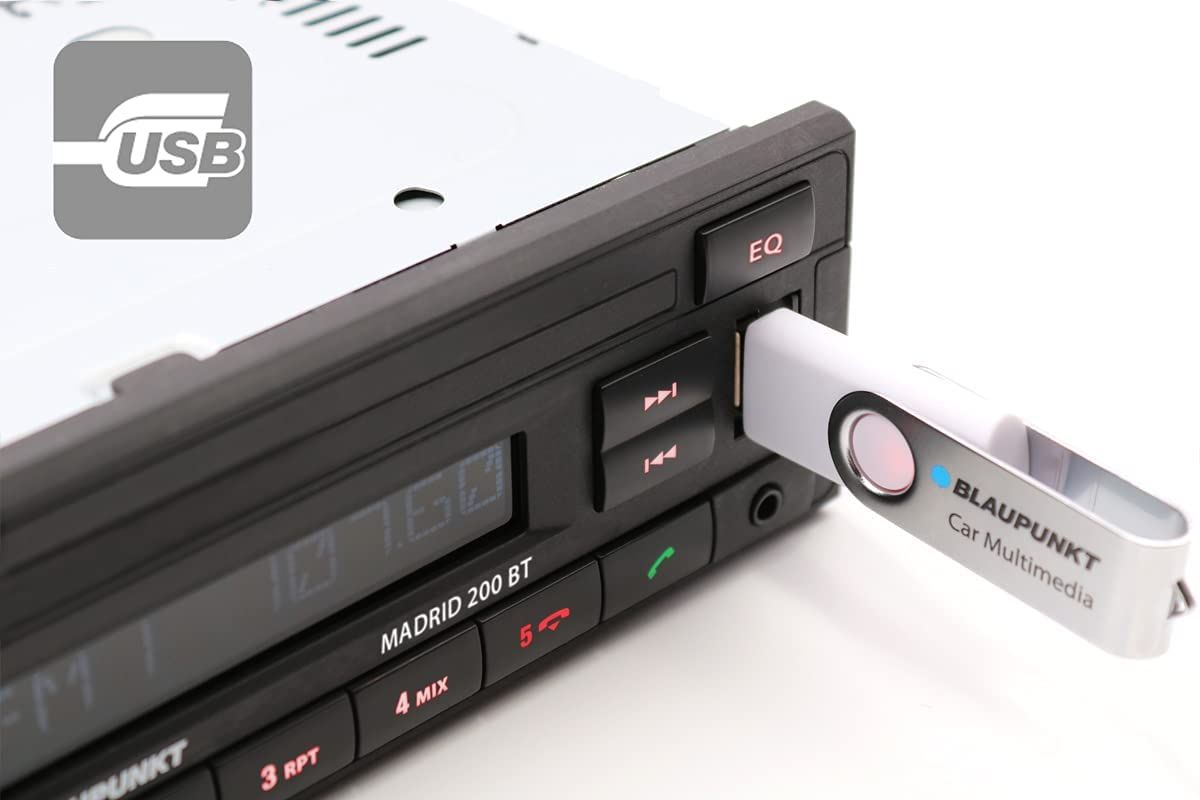

• Front USB
• Front-Aux-in
• 4x 40 Watt max. power
• 2-channel Preamp-out
• Sound presets (Flat, Rock,Pop, Classic)
• X-Bass
• Red key illumination

Specifications

Analog Radio

• Type of tuner: RDS Tuner
• Wave bands: 3x FM / 2x AM
• Radio Data System (RDS): Alternative Frequency (AF), Clock Time (CT), Programme Service Name (PS), Regional Programme (REG), Traffic Announcement (TA), Traffic Program (TP)
• Travelstore: (FMT)
• Band Scan
• Station memory: 15 FM / 15 AM
• Sensitivity: lo / dx
• Interference suppression
• Frequency response (Hz) -3 dB: 20 – 18.000

Bluetooth

• Supported profiles: HFP, A2DP
• Audio streaming
• Pairing (number of devices): 1
• Hands-free calling
• Microphone: built-in
• Key functions: accept / hang-up / reject call / redail
• Phone book access: (up to 100 entries by phone)

Media Player

• Playback format: MP3, WMA
• Title display: ID tag, file folder
• Display modes (file, folder, title, artist, album, playtime)
• Mix (random play) / Repeat / Scan
• Bitrate (kBit/s): 32 -320

Audio / Equalizer

• Bass / treble: (+/- 7 steps)
• Balance / fader: (+/- 9 steps)
• X-Bass
• Sound presets: Flat, Rock, Pop, Classic

Amplifier

• Number of channels: 4
• Max. power: 4 x 40 Watt
• Sinus power at 14.4 V: 4 x 20 Watt

Display

• Type / Digits: 1-line / 9
• Colour: negative, black and white
• Clock display: 24 / 12 hrs

Inputs

• Antenna (number of): 1 (FM ISO)
• USB (number of / type): 1 (front)
• Aux-In (number of, type): 1 front (3,5 mm jack)

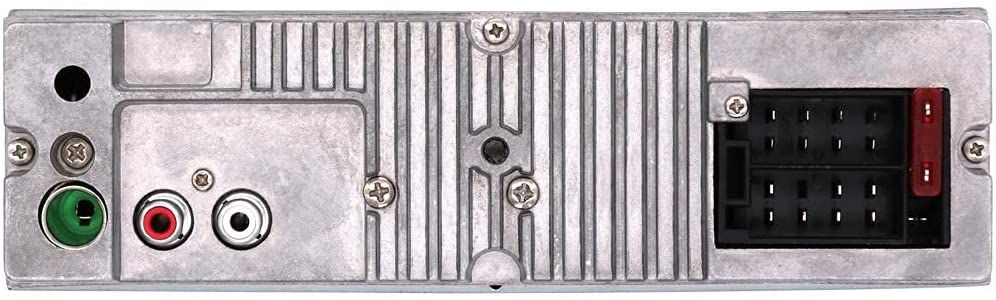

Outputs

• Loudspeaker (number of): 4
• Pre-amplifier channel: 2-channels (RCA)
• Pre-amplifier voltage: 1.5 V (rms)

General

• Software update: via USB
• Confirmation beep: yes
• Menu language: English
• Front panel: Fix panel
• Panel illumination: Red
• Permanent preset /& setting storage: yes
• Ignition logic: yes
• Weight (kg): ca. 0,7
• Dimensions (mm): 188 x 58 x 110
• ISO connector cable set: no
• User manual: yes
• 4-color gift box: yes
• Antenna adapter: yes

Whats in the Box

• Blaupunkt Madrid 200 BT
• Head Unit: The main radio unit with a fixed front panel and red key illumination.

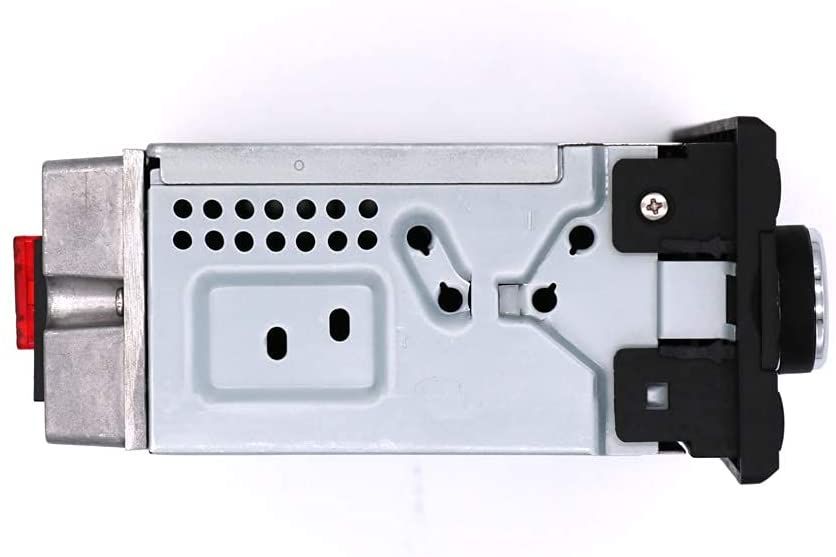

• Security Cage/Mounting Housing: Metal cage for securing the unit in the dashboard.
• Removal Keys/Release Tools: Two keys used to remove the unit from the cage.
• Wiring Harness/Connector: No
• Antenna Adapter: ISO to DIN antenna adapter.

User Manual/Instruction Manual: Documentation in English.
