Blaupunkt BPA 1124 DAB BT DAB+ Single Din Car Mechless Stereo

Digital Radio Reception For Beginners With Class

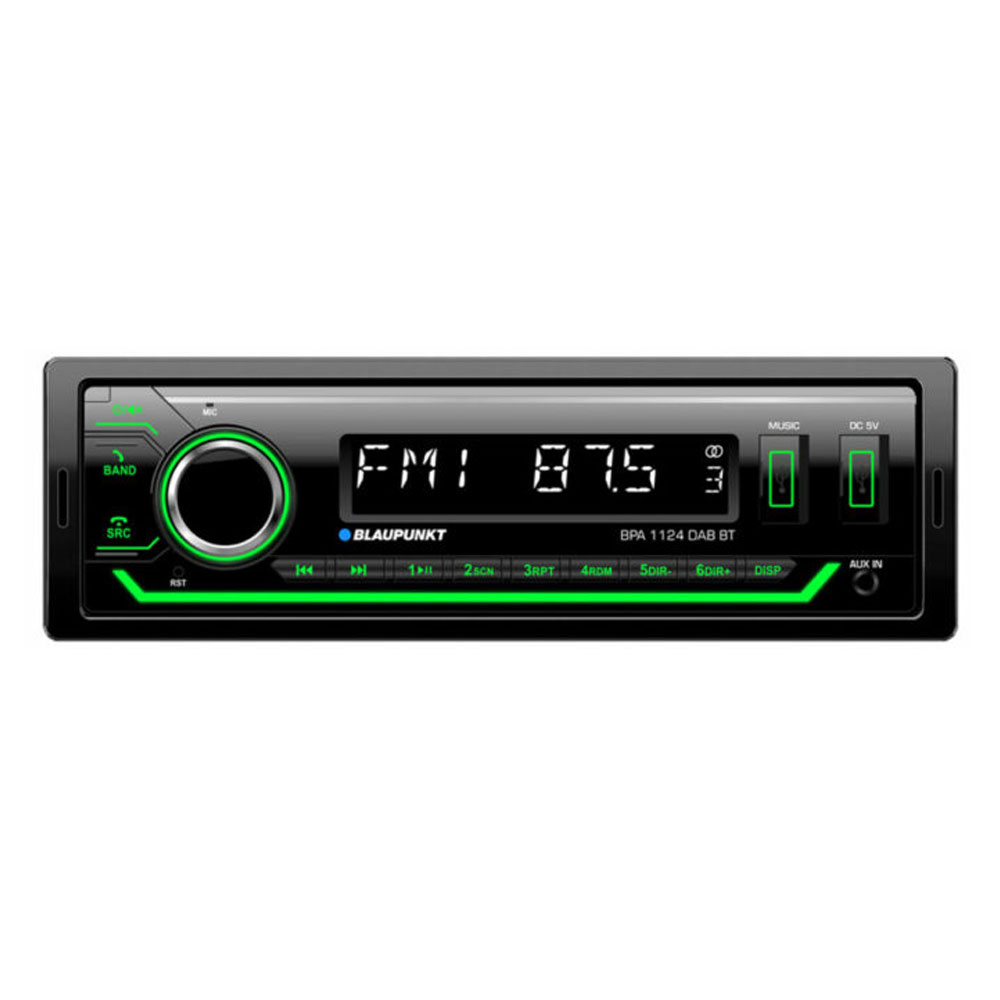

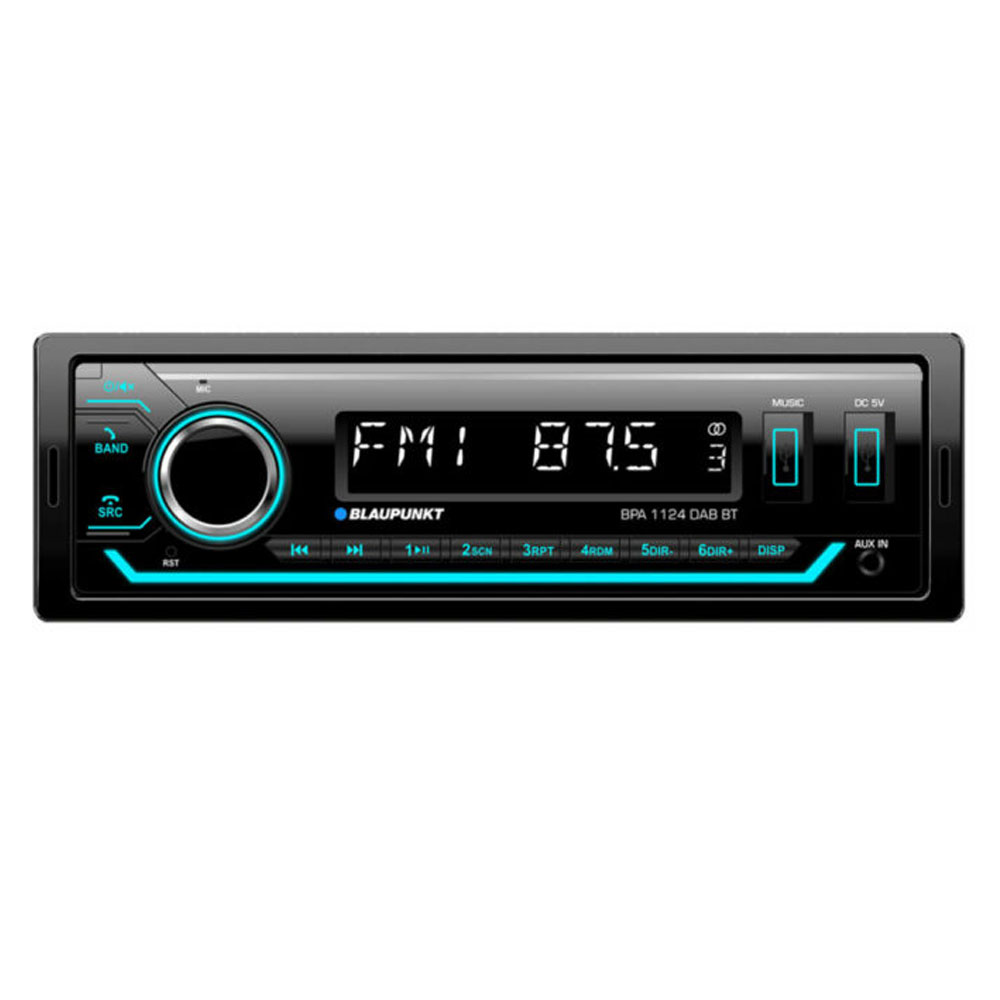

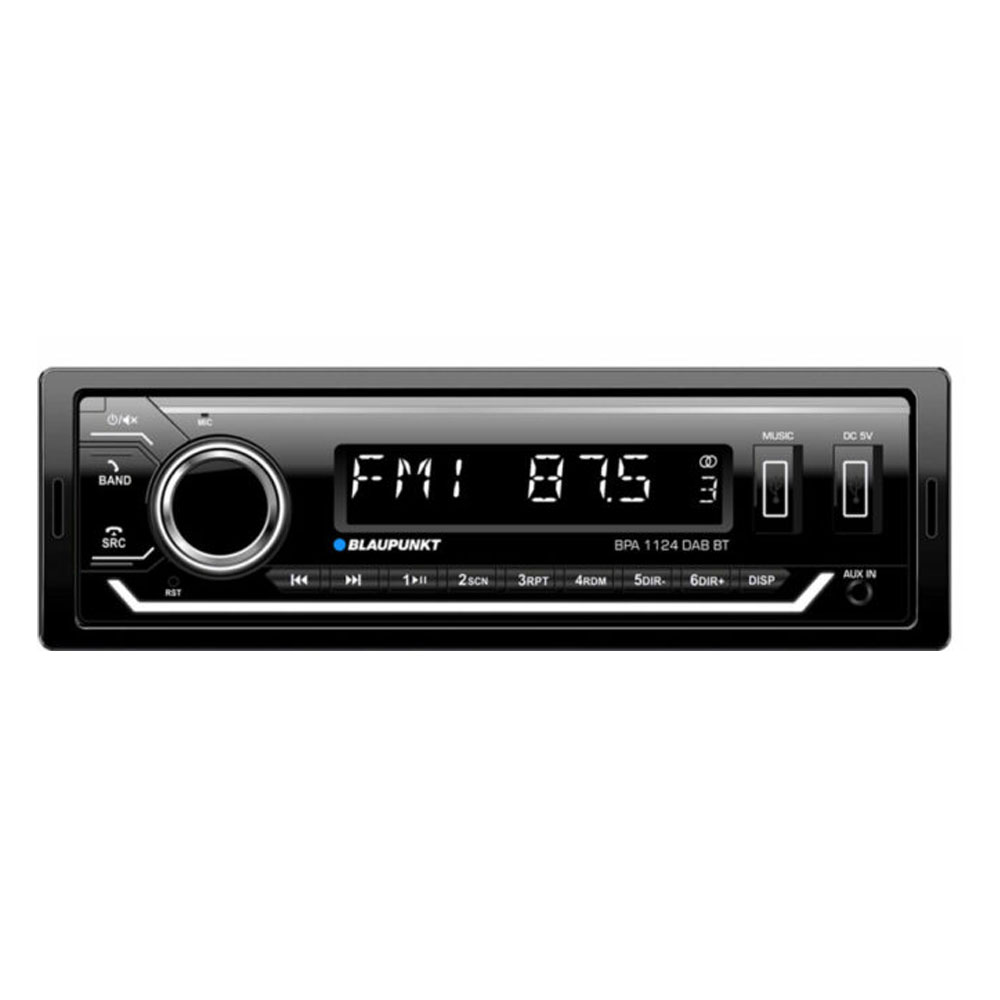

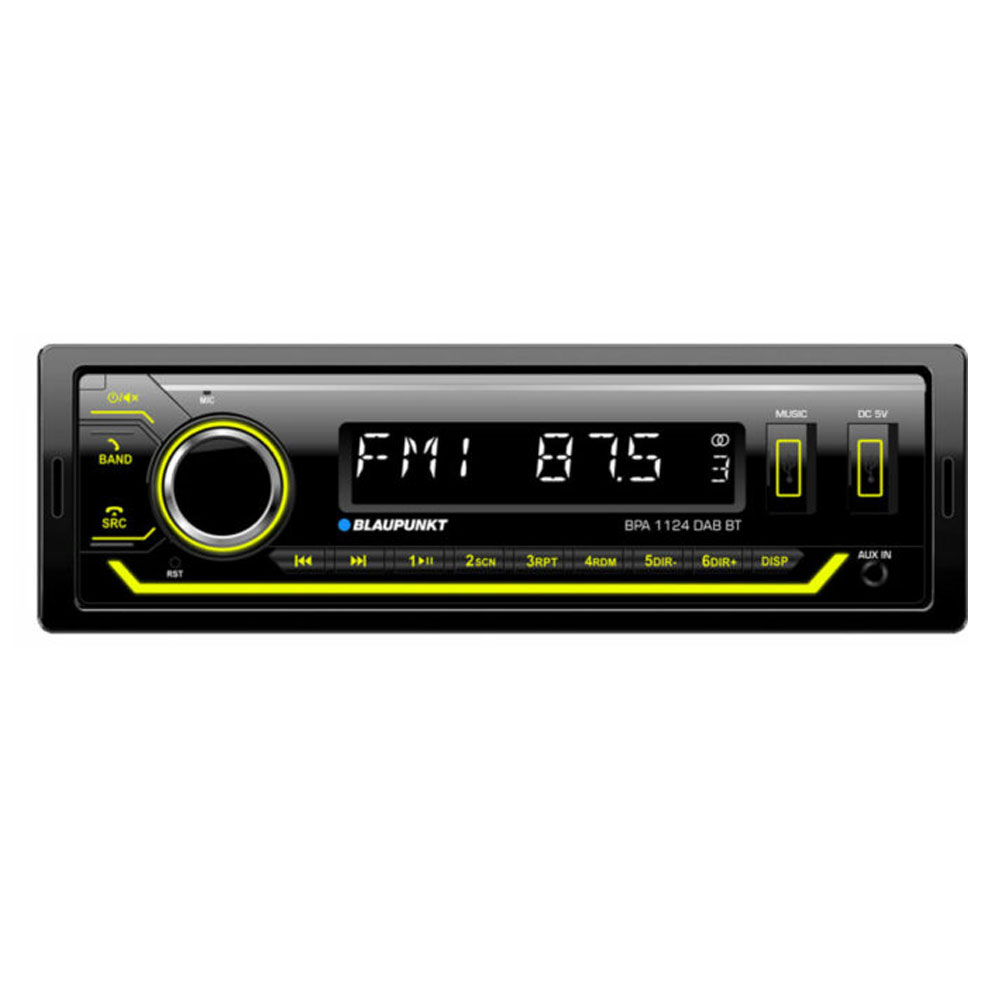

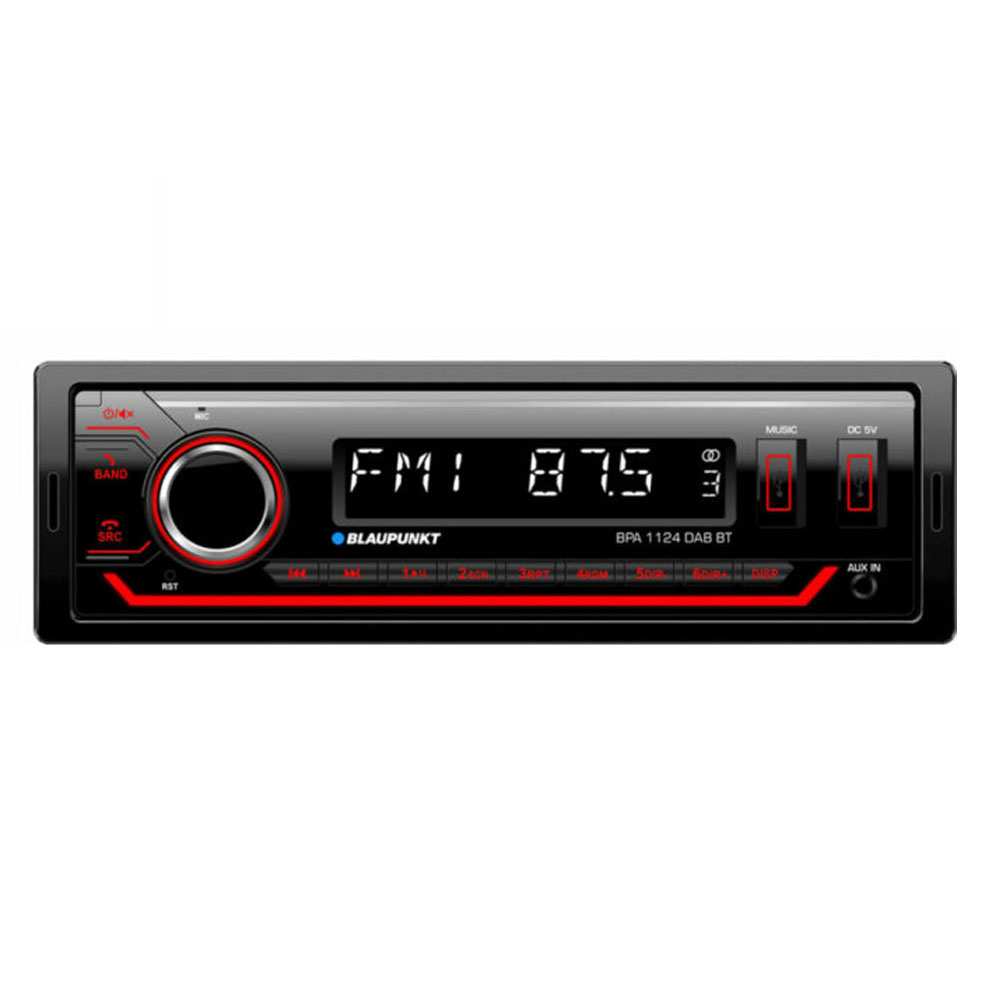

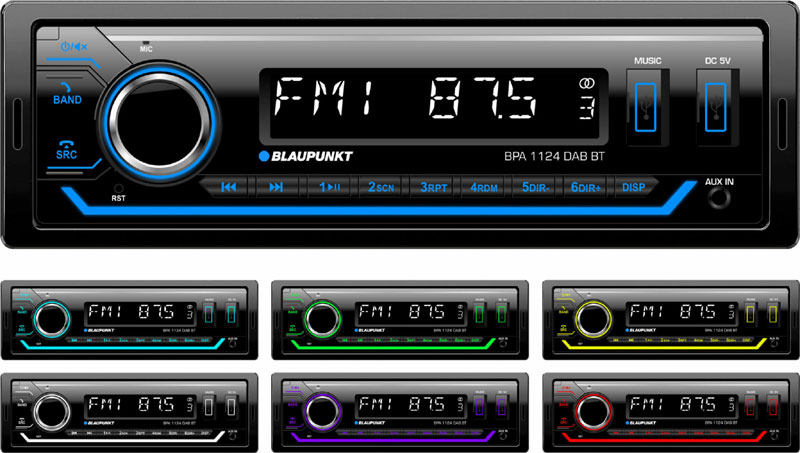

The Blaupunkt DAB car radio “1124 DAB BT” in 1-DIN format offers digital radio reception in a new and modern design with Multicolour lighting. With 2x USB (1x for charging your smartphone), Aux-In and Bluetooth streaming, playing digital media is easy. And the radio reception? Digital, of course.

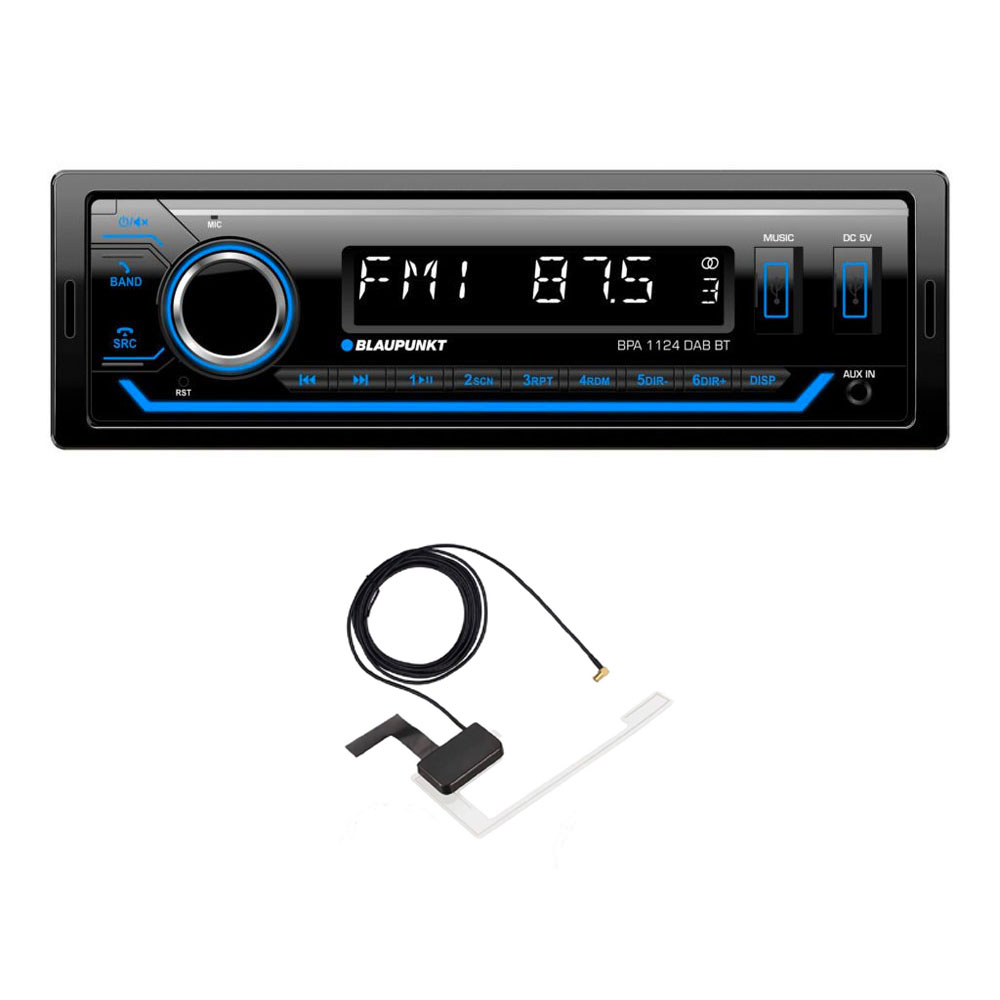

DAB AERIAL INCLUDED

Specification

Radio

• RDS Tuner
• FM, AM Tuner
• DAB, DAB+ Tuner
• Traffic function (FM)

Mediaplayer

• USB (front)
• MP3, WMA playback

Bluetooth

• Phone calls with internal or external Microphone
• Audio streaming with track display

Sound

• Sound Presets
• Loudness
• 4-channel pre-amp output + Sub-Out
• 4 x 50 Watts

General

• Multicolour (7 colors)
• Permanent memory
• Short installation depth
• Second USB Port for charging mobile devices with max. 2A

Technical Specification

Radio Analog / Digital

• Tuner Type: RDS Tuner
• World Tuner (switchable): EU, USA
• Frequency bands: FM, AM, DAB, DAB+
• Frequency band FM: 87.5 – 108 MHz
• Frequency band MW: 531- 1602/ 530- 1710 kHz
• Channels (frequency band) DAB/ DAB+: 5A- 13F (174,928- 239,200 MHz)
• Station memory: 18x FM, 12x AM, 18x DAB
• Station memory levels deactivatable
• Station display (PS)
• Radiotext/ Radiotext Plus (RT/ RT+)
• Display DLS/ ENSEMBLE/ SERVICE
• Alternate frequency function (AF)
• Traffic Radio (TA) FM/ DAB
• RDS Time (CT) FM/ DAB
• Regional function (REG)
• Travelstore/ Number of Presets for Travelstore (FM) / 18
• Sensitivity (FM): Two levels (lo / dx)
• Noise suppression (FM)
• Hi-Cut (FM): Yes (automatically)
• Ensemble/ Service selection
• Frequency response FM (Hz) -3dB: 30 – 15.000 Hz +/- 3 dB
• Frequency response DAB (Hz) +/- 3dB: 20 – 20.000 Hz +/- 3 dB

Mediaplayer

• AUX Front (3.5 mm jack)
• USB front: yes (1x type A “MUSIC” max. 0.7A, 1x type A “DC 5V” max. 2A*)
• Concealed front inputs (USB)
• Compatible file system (USB, memory cards): FAT16, FAT32, exFAT
• Maximum storage size (USB, memory cards): > 64 GB
• Maximum file/folder count (USB, memory cards): > 9.999
• Playback formats: MP3, WMA
• Display options: ID3V2
• Change Track / Folder/ FF, REW/ CUE, REWIEW: Yes/ Yes/ Yes/ No
• Shuffle folder/ media
• Repeat track/ folder/ all
• Scan (5 seconds)

Bluetooth*

• Phone call
• Internal microphone
• Connectivity ext. microphone
• Answer/ reject call
• Audio streaming
• Audio streaming ID3 track display (Title, Artist)
• Fast pairing without PIN
• Automatic reconnection
• Bluetooth version: 5.0
• Number of paired devices: 1
• No. of devices connected at the same time: 1
• Supported profiles: A2DP, AVRCP, HFP, SPP
• Audio Codecs: SBC
• *Availability/ support of functions depend on the phone/ app/ accessory used!

Sound

• Bass/ treble adjustment (+/- 7 steps)
• Balance/ fader (+/- 7 steps)
• Loudness
• Sound Presets: Rock, Pop, Classical, Jazz, Flat
• Speaker Outputs (Channels): 4
• Preamp Outputs (Channels, Voltage): 4 (RCA, 1V)
• Max. Power: 4 x 50 watts
• Sine power at 14.4 V: 4 x 24 watts (according to DIN 45324)
• Sub-Out: 2 (RCA)

General

• Display: LCD, negative, anti-reflective, wide angle, Alphanumeric/ Symbols
• Illumination color display/ keys: Multicolour (auto, red, green, blue, yellow, cyan, violet, white)
• Brightness: Fixed
• Time display
• HMI languages: English
• Low standby current (< 3.5 mA )

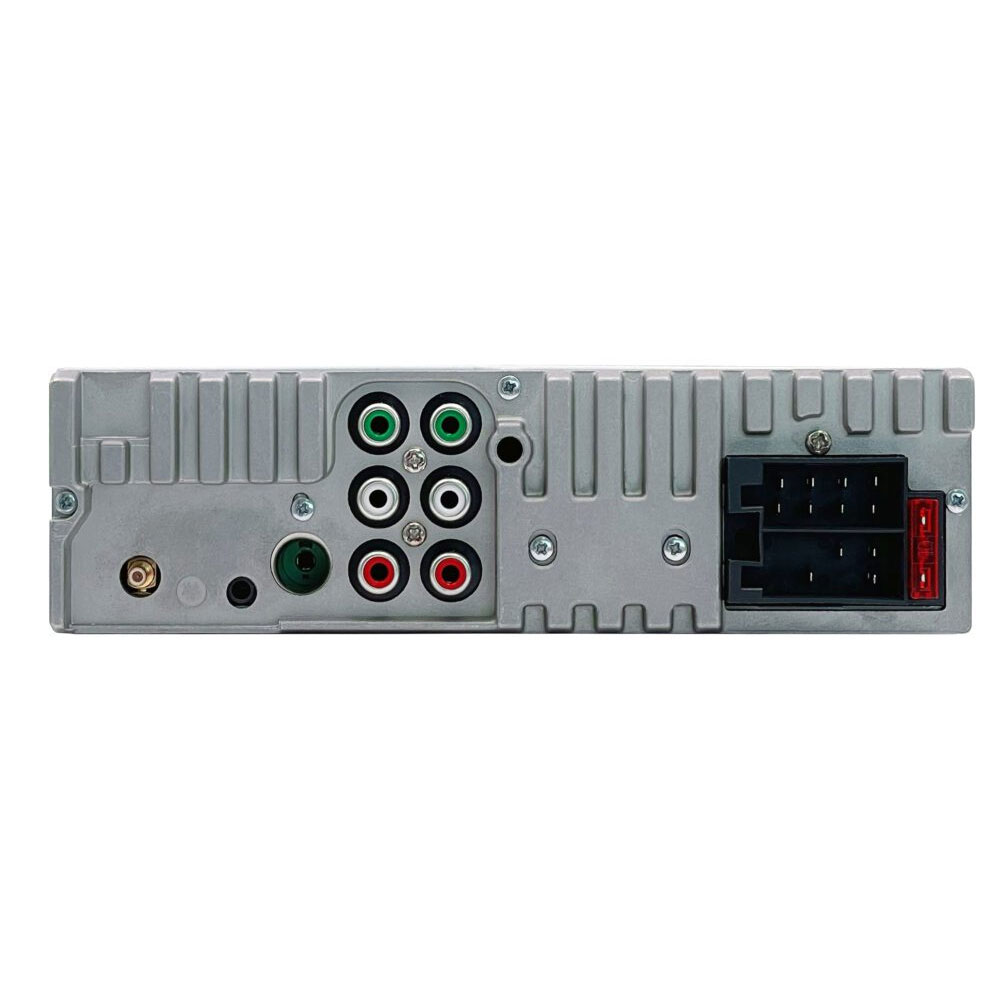

• Antenna inputs: FM DIN/ ISO, DAB SMB (with 12 V phantom power)
• Ext. handsfree microphone connector
• Confirmation beep: Yes (can be deactivated)
• Control panel type: Fixed panel
• Color panel/ decor ring: Black matte
• Software Update: via USB
• Permanent Memory: Yes (Settings & Presets)
• Weight: approx. 0.44 kg

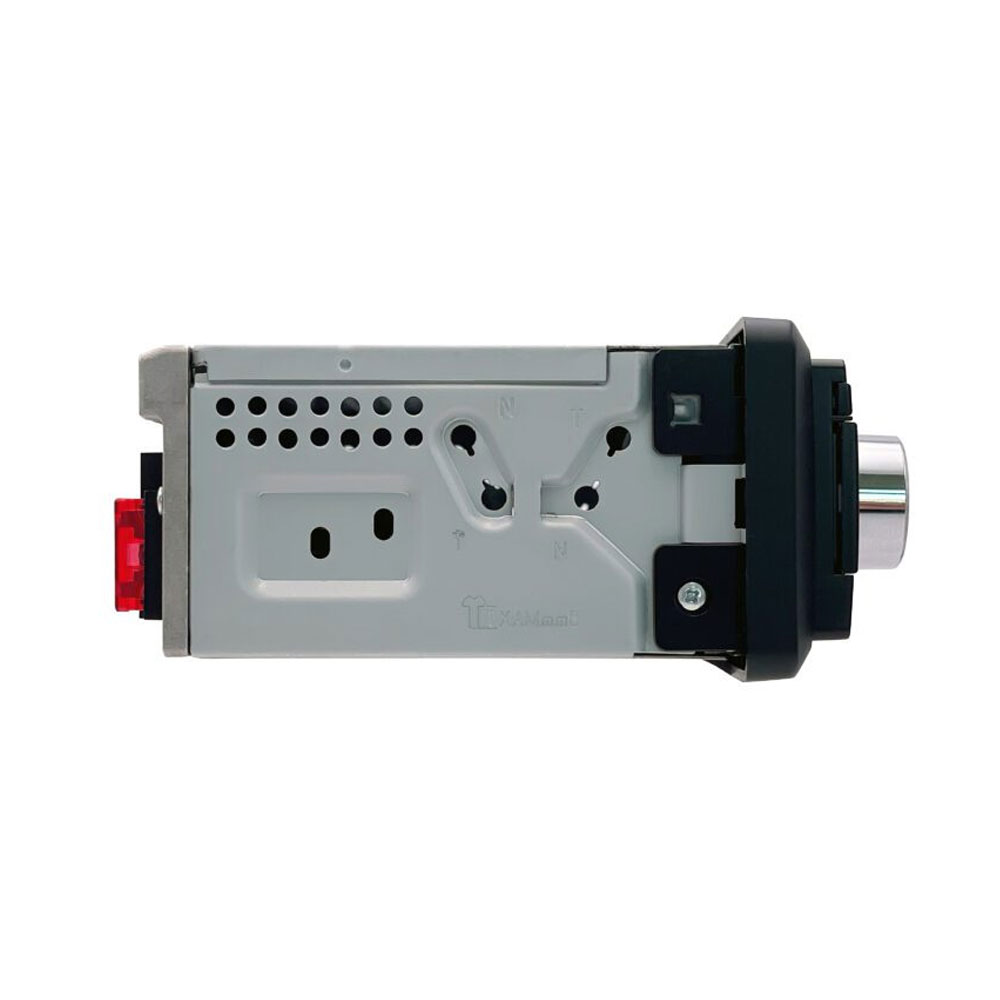

• Dimensions: 50mm x 178mm x 102mm (H x W x D, housing only),   58mm x 187m x 113mm (H x B x T , incl. front with keys)
• Operating voltage/ Power consumption: 10.5 – 14.4 V/ in operation: < 10A, 10 sec. after ACC off: < 3.5 mA

Scope of Delivery

• User manual (DE, EN, FR, ES, PT, IT, NL, HU, PL, CS, FI, EL, TR, RO, BG, SL, SK)
• External handsfree microphone
• Mounting frame/ Unlocking tool
• Connectors (ISO A, B)
• Antenna adaptor (DIN/ ISO)
