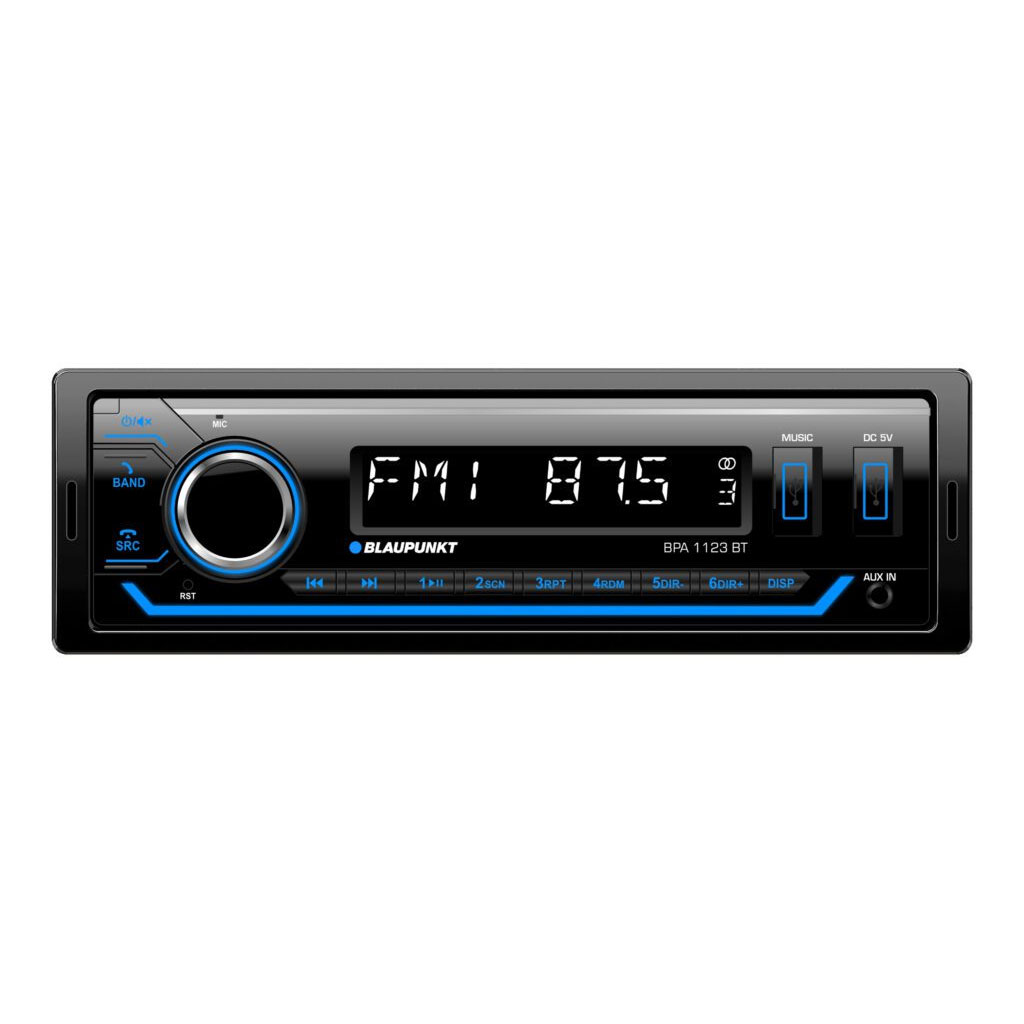

Blaupunkt BPA 1123 BT Single Din Car Mechless Stereo  Front USB RDS/MP3/Bluetooth FM Tuner

Totally On Your Wavelength in Sound and Design

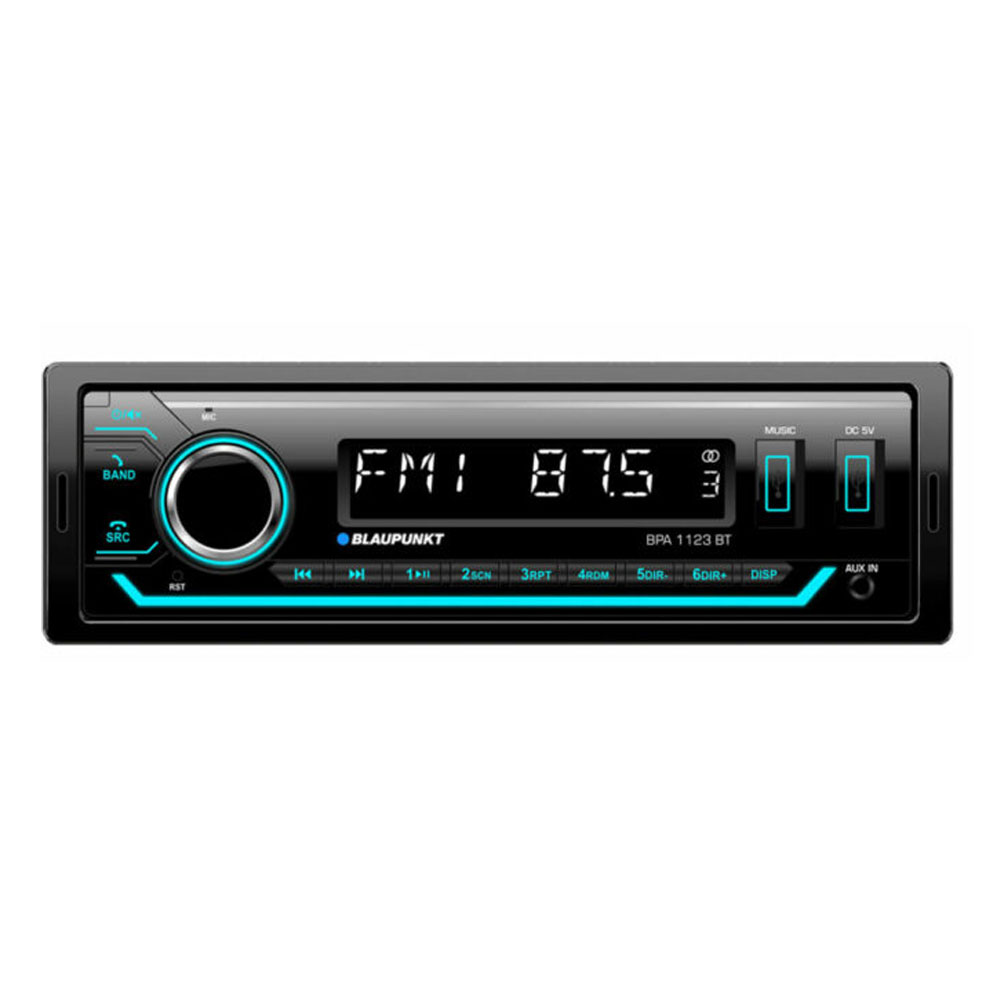

The Blaupunkt RDS/MP3/Bluetooth car radio “BPA 1123 BT” in 1-DIN format offers a new, modern design with Multicolour lighting. It is specially designed to play digital media. There is an extra USB port directly on the device for charging your mobile devices. Thanks to the ergonomic rotary knob, the “BPA 1123 BT” offers optimum ease of use.

Specification

Radio

• RDS Tuner
• FM, AM Tuner
• Traffic function (FM)

Mediaplayer

• USB (front)
• MP3, WMA playback

Bluetooth

• Phone calls with internal or external Microphone
• Audio streaming with track display

Sound

• Sound Presets
• Loudness
• 4-channel pre-amp output + Sub-Out
• 4 x 50 Watts

General

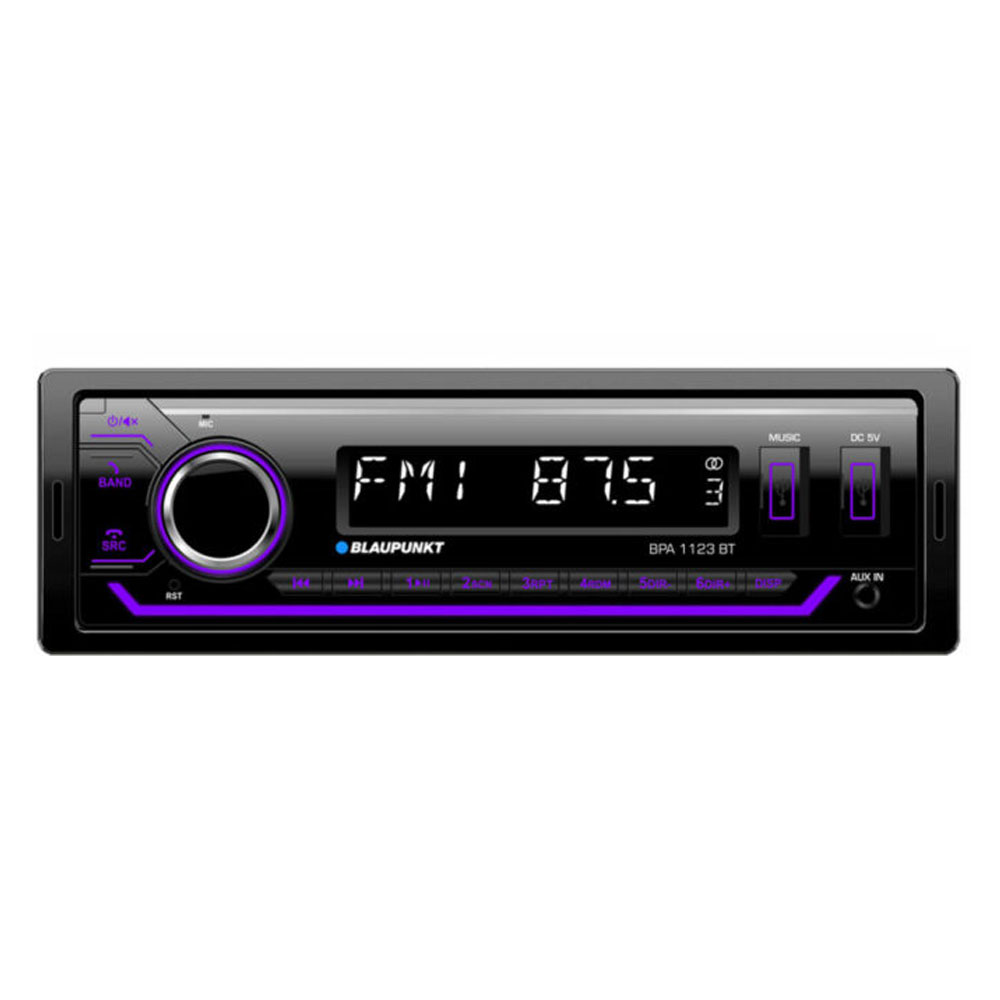

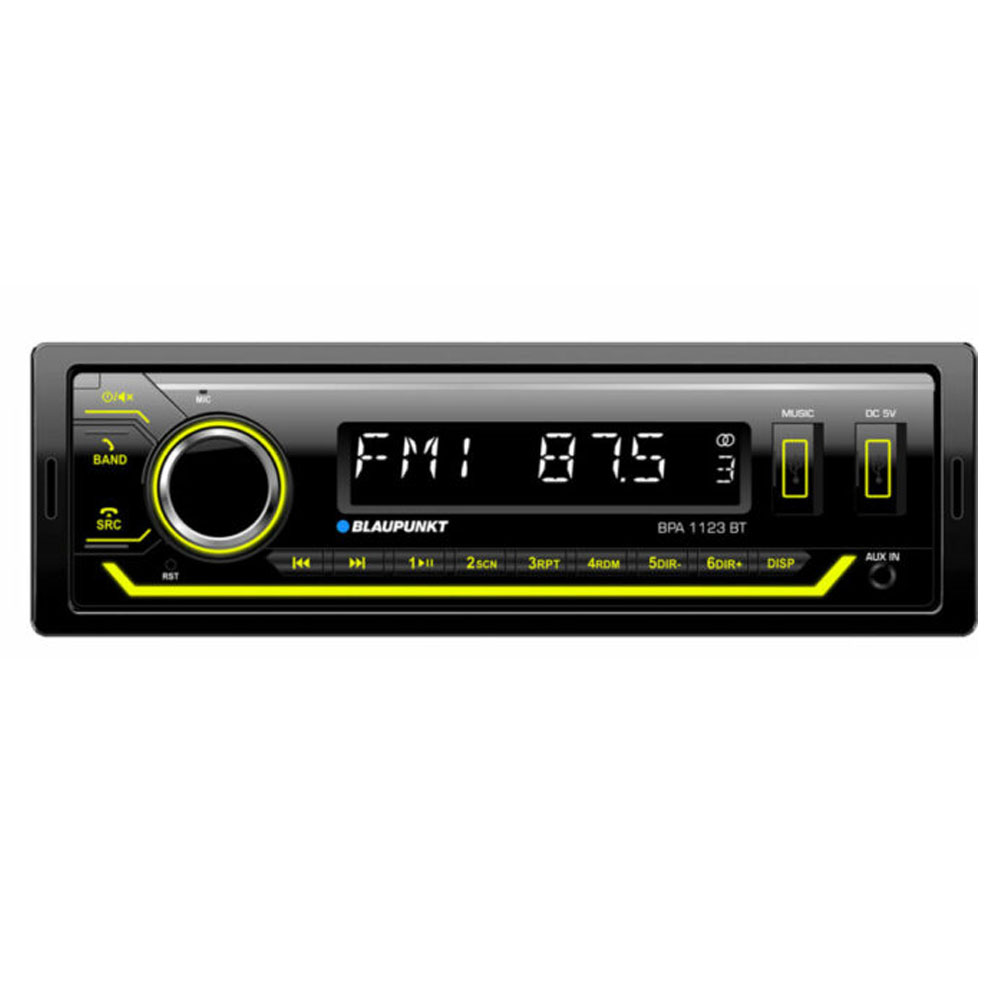

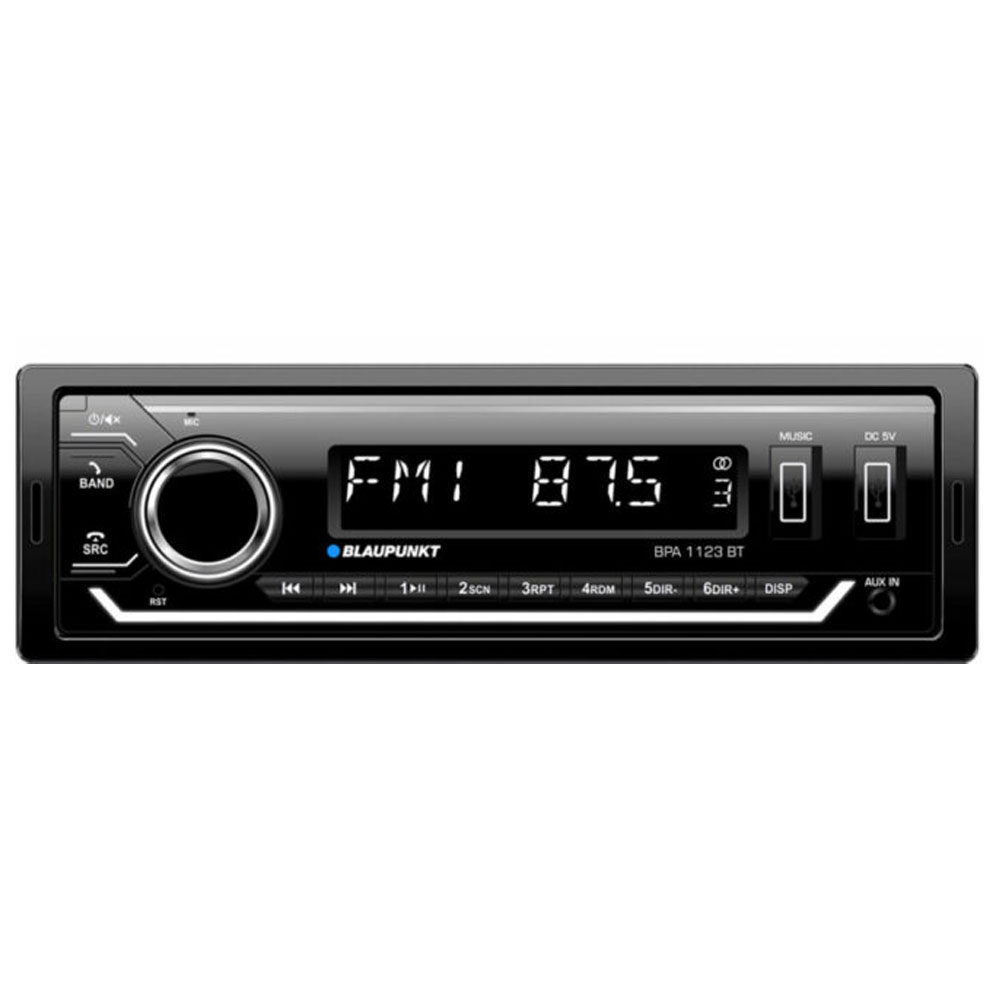

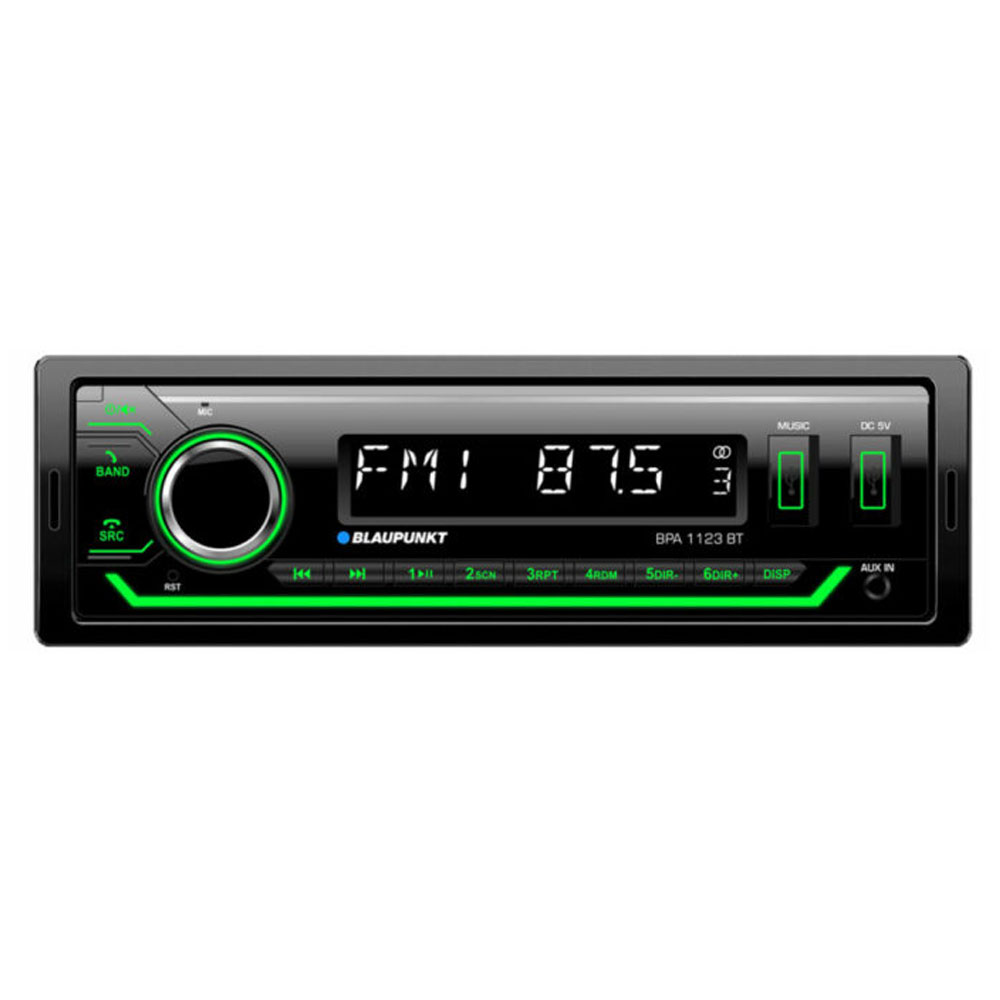

• Multicolour (7 colors)
• Permanent memory
• Short installation depth
• Second USB Port for charging mobile devices with max. 2A

Technical Specification

Radio Analog / Digital

• Tuner Type: RDS Tuner
• World Tuner (switchable): EU, USA
• Frequency bands: FM, AM
• Frequency band FM: 87.5 – 108 MHz
• Frequency band MW: 531- 1602/ 530- 1710 kHz
• Station memory: 18x FM, 12x AM
• Station memory levels deactivatable
• Station display (PS): Yes
• Alternate frequency function (AF)
• Traffic Radio (TA) FM
• RDS Time (CT) FM
• Regional function (REG)
• PTY- Info/ Seek FM
• Travelstore/ Number of Presets for Travelstore (FM) / 18
• Sensitivity (FM): Two levels (lo / dx)
• Noise suppression (FM)
• Hi-Cut (FM): Yes (automatically)
• Frequency response FM (Hz) -3dB: 30 – 15.000 Hz +/- 3 dB

Mediaplayer

• AUX Front: Yes (3.5 mm jack)
• USB front: yes (1x type A “MUSIC” max. 0.7A, 1x type A “DC 5V” max. 2A*)
• Concealed front inputs (USB)
• Compatible file system (USB, memory cards): FAT16, FAT32, exFAT
• Maximum storage size (USB, memory cards): > 64 GB
• Maximum file/folder count (USB, memory cards): > 9.999
• Playback formats: MP3, WMA
• Display options: ID3V2
• Change Track / Folder/ FF, REW/ CUE, REWIEW
• Shuffle folder/ media
• Repeat track/ folder/ all
• Scan: Yes (5 seconds)

Bluetooth*

• Phone call
• Internal microphone
• Connectivity ext. microphone
• Answer/ reject call
• Audio streaming
• Audio streaming ID3 track display (Title, Artist)
• Fast pairing without PIN
• Automatic reconnection
• Bluetooth version: 5.0
• Number of paired devices: 1
• No. of devices connected at the same time: 1
• Supported profiles: A2DP, AVRCP, HFP, SPP
• Audio Codecs: SBC
• *Availability/ support of functions depend on the phone/ app/ accessory used!

Sound

• Bass/ treble adjustment (+/- 7 steps)
• Balance/ fader (+/- 7 steps)
• Loudness
• Sound Presets: Rock, Pop, Classical, Jazz, Flat
• Speaker Outputs (Channels): 4

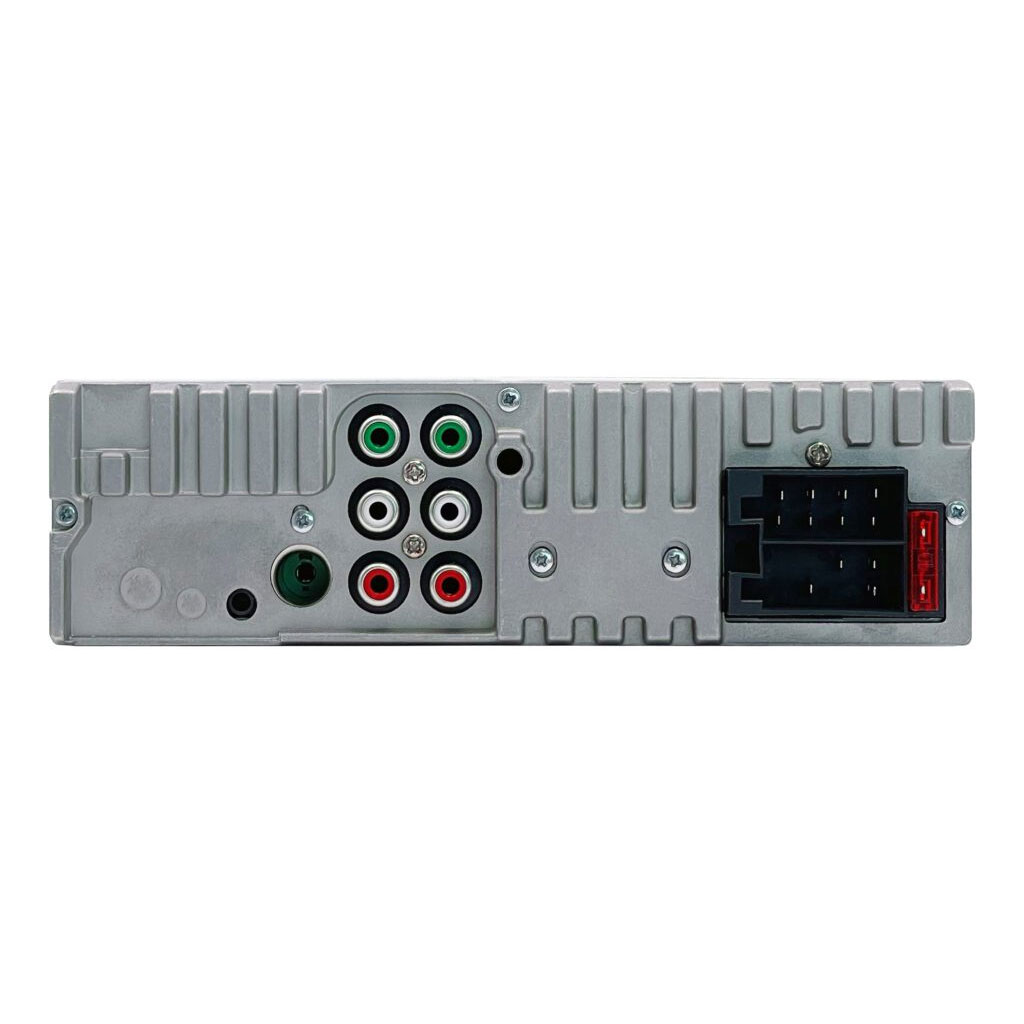

• Preamp Outputs (Channels, Voltage): 4 (RCA, 1V)
• Max. Power: 4 x 50 watts
• Sine power at 14.4 V: 4 x 24 watts (according to DIN 45324)
• Sub-Out: 2 (RCA)

General

• Display: LCD, negative, anti-reflective, wide angle, Alphanumeric/ Symbols

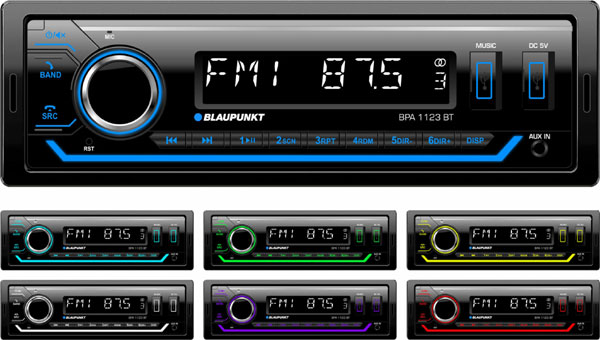

• Illumination color display/ keys: Multicolour (auto, red, green, blue, yellow, cyan, violet, white)
• Brightness: Fixed
• Time display
• HMI languages: English
• Low standby current (< 3.5 mA )
• Antenna inputs: FM DIN/ ISO, DAB SMB (with 12 V phantom power)
• Ext. handsfree microphone connector
• Confirmation beep: Yes (can be deactivated)
• Control panel type: Fixed panel
• Color panel/ decor ring: Black matte
• Software Update: via USB
• Permanent Memory (Settings & Presets)
• Weight: approx. 0.44 kg

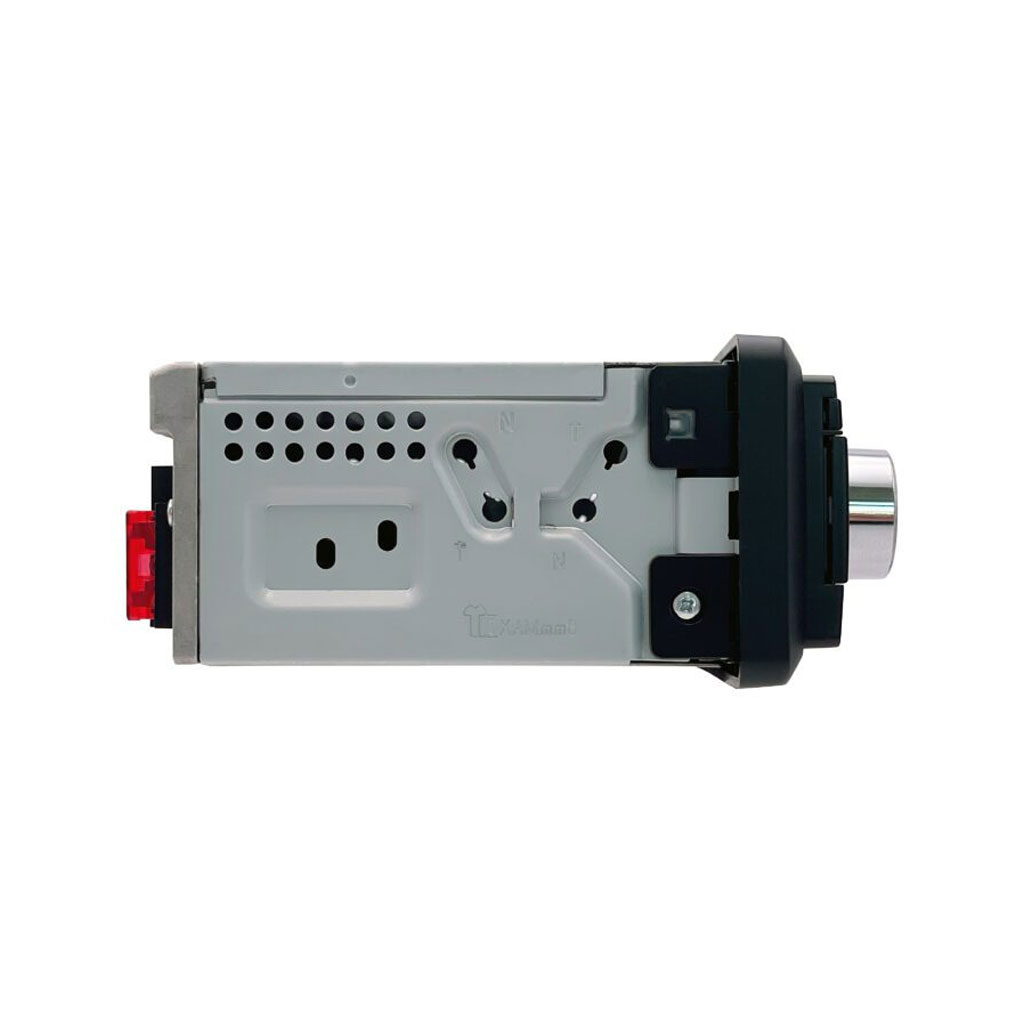

• Dimensions: 50mm x 178mm x 102mm (H x W x D, housing only),   58mm x 187m x 113mm (H x B x T , incl. front with keys)
• Operating voltage/ Power consumption: 10.5 – 14.4 V/ in operation: < 10A, 10 sec. after ACC off: < 3.5 mA

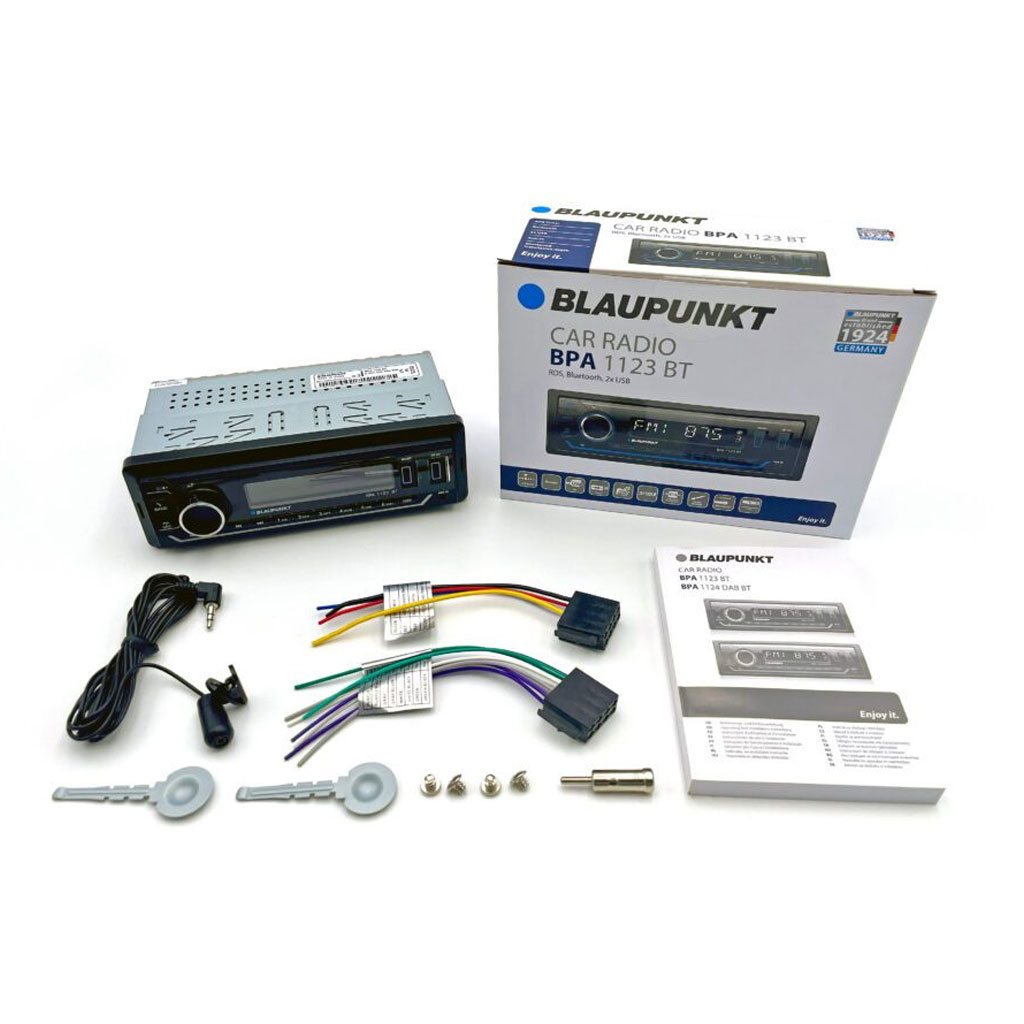

Scope of Delivery

• User manual: Yes (DE, EN, FR, ES, PT, IT, NL, HU, PL, CS, FI, EL, TR, RO, BG, SL, SK)
• External handsfree microphone
• Mounting frame/ Unlocking tool
• Connectors (ISO A, B)
• Antenna adaptor (DIN/ ISO)
