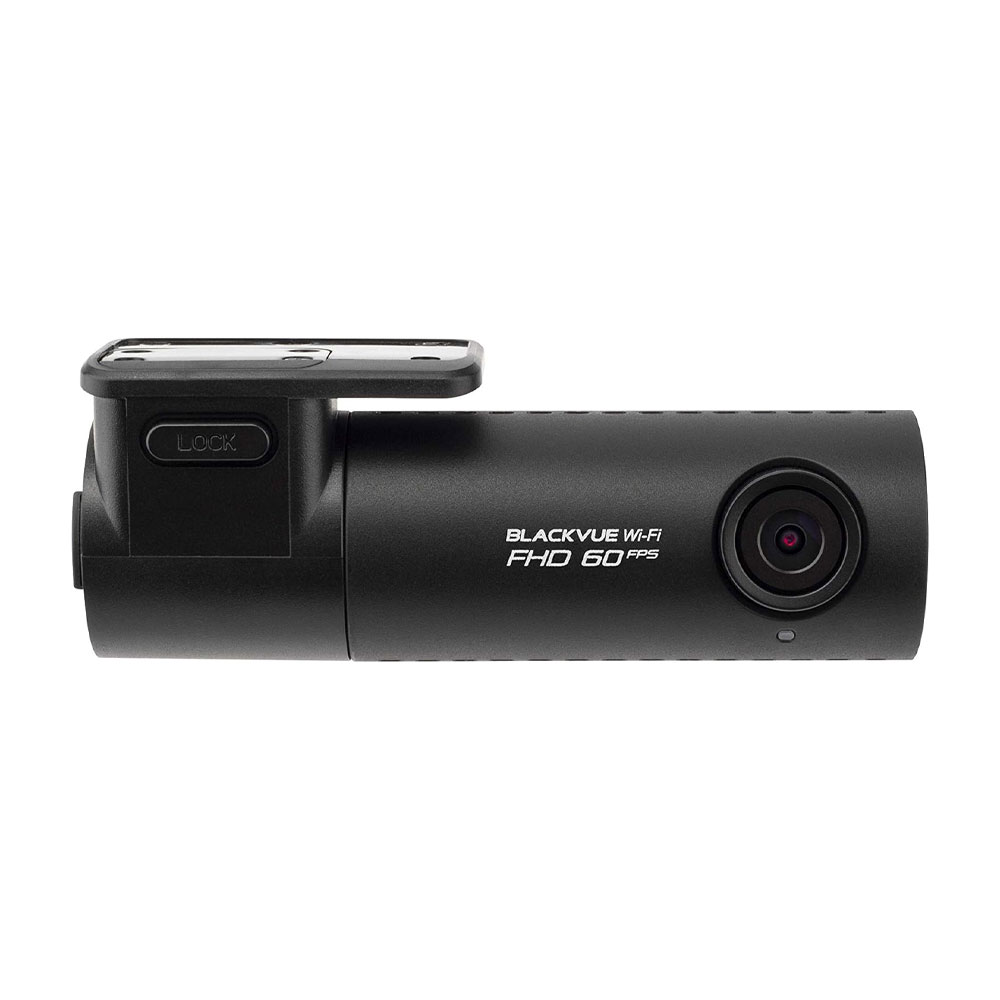

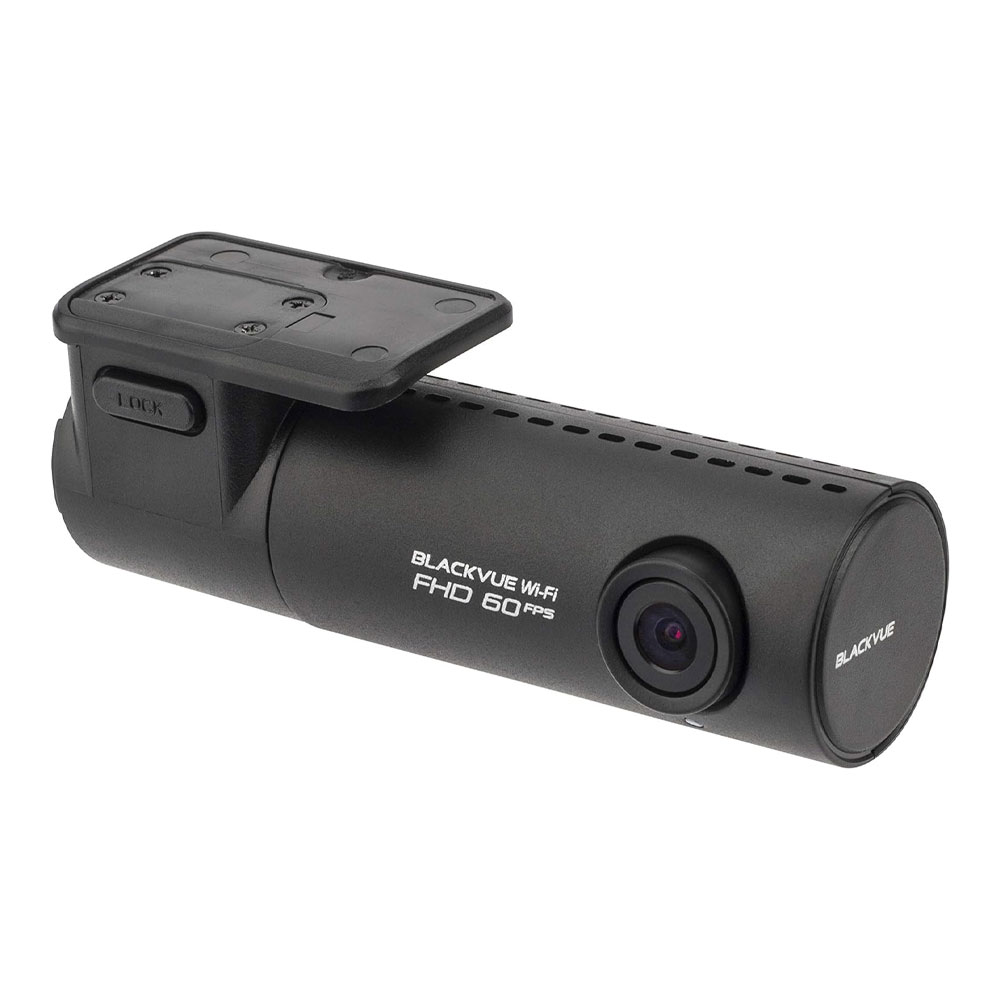

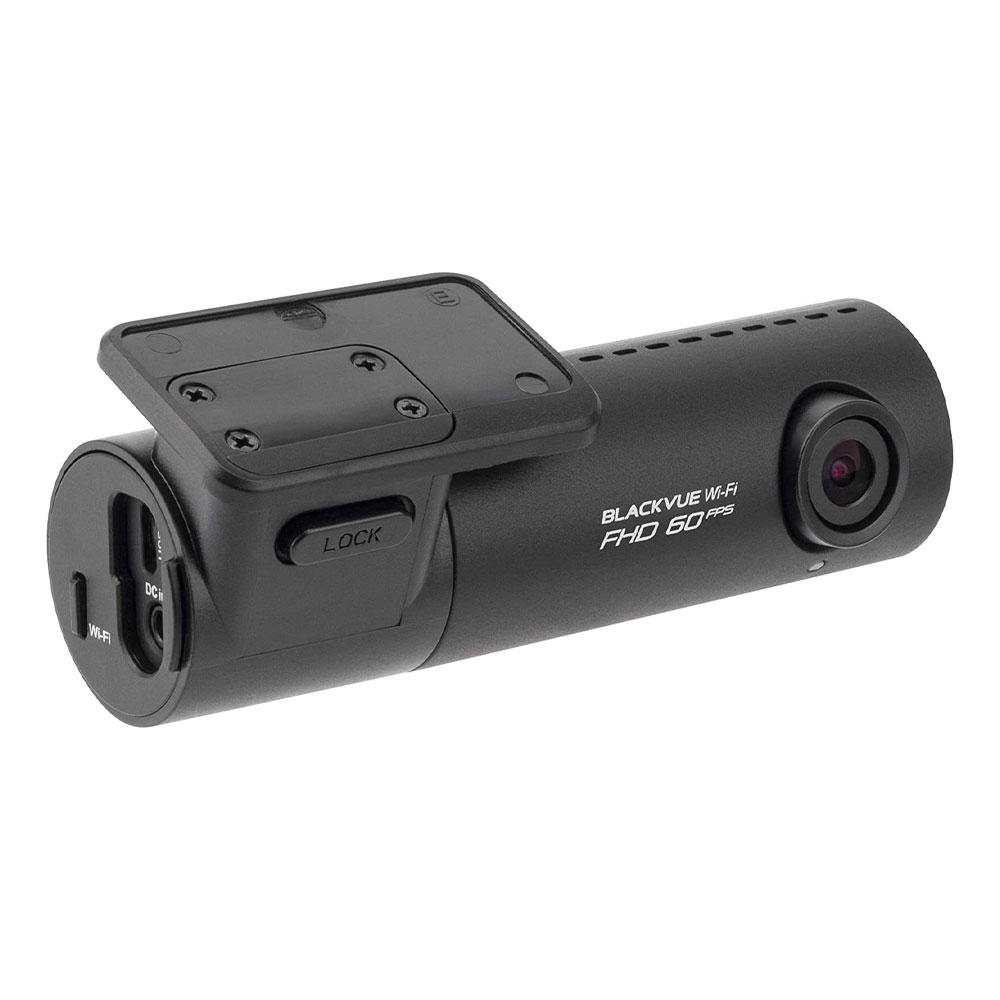

BlackVue DR590X-1CH Single Channel Dashcam

• Full HD 1080p video at 60 frames per second
• Enhanced Night Vision for optimal clarity
• Sony STARVIS image sensor
• Loop Recording & Event Overwrite Protection
• Intelligent Parking Mode for 24/7 recording
• Wi-Fi for wireless connection to smartphone
• iOS/Android App, PC/Mac desktop viewer

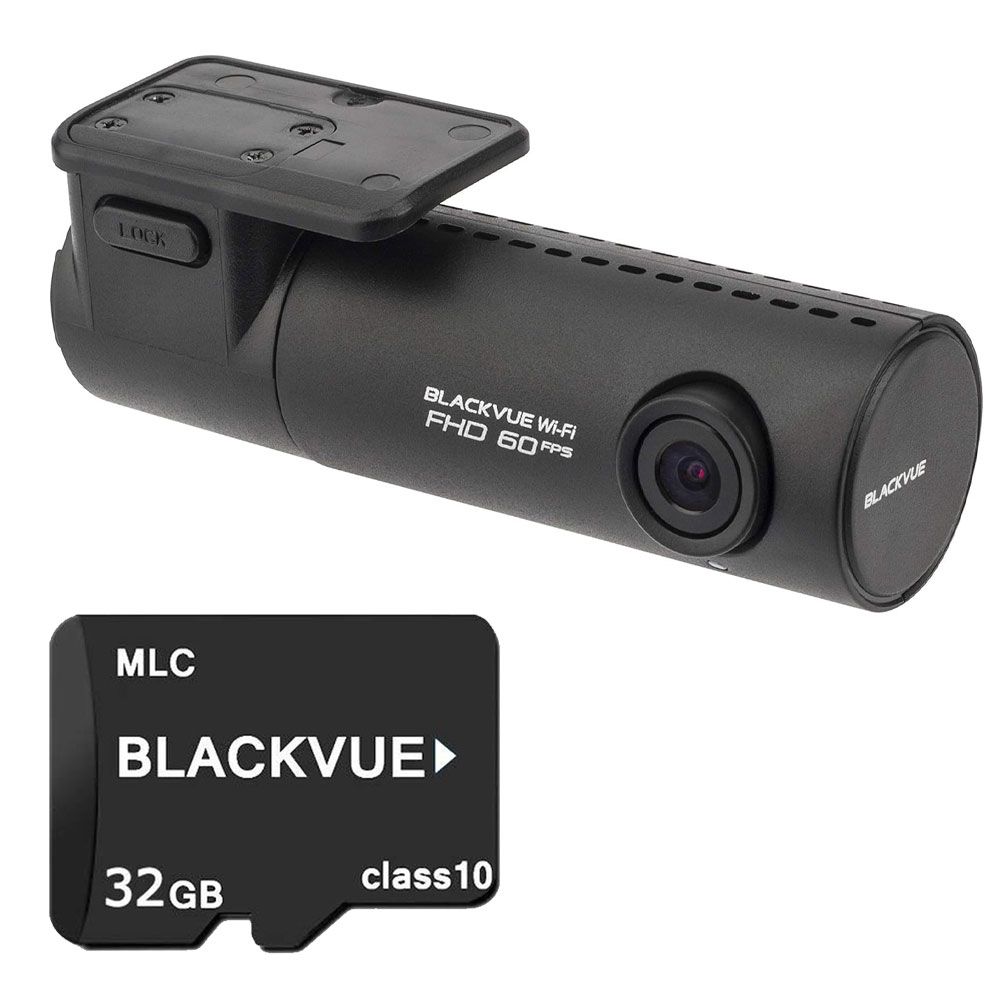

32GB SD CARD INCLUDED

The BlackVue DR590X-1CH is a high performance Full HD dash cam with an ultra-wide 139° viewing angle, Wi-Fi connectivity and excellent low-light performance.

The DR590X-1CH boasts Full HD 1080p resolution and 60 frames per second (fps) video quality and is equipped with Sony’s premium STARVIS image sensor, providing outstanding performance in low-light conditions. Additionally, a Night Vision feature further enhances details in dark environments, where it matters most.

Thanks to the BlackVue app and the inclusion of Wi-Fi functionality, connecting to the DR590X-1CH from a smartphone or tablet is simple, making setup and accessing video files an easy process.

Video footage can also be viewed on any Windows PC or Apple Mac computer using the supplied BlackVue Viewer application. Lastly the DR590X-1CH’s compact form factor, stealth styling and discreet mounting position behind the rear view mirror, mean it’s barely noticeable from outside of the vehicle.

With Full HD 1080p performance, the DR590X-1CH provides class-leading protection for your vehicle by recording fluid 60 frames per second video footage via an ultra-wide lens with a 139° viewing angle. A Sony STARVIS image sensor ensures the best possible image quality under any lighting conditions. GPS logging is available by adding the optional DR590X GPS Antenna.

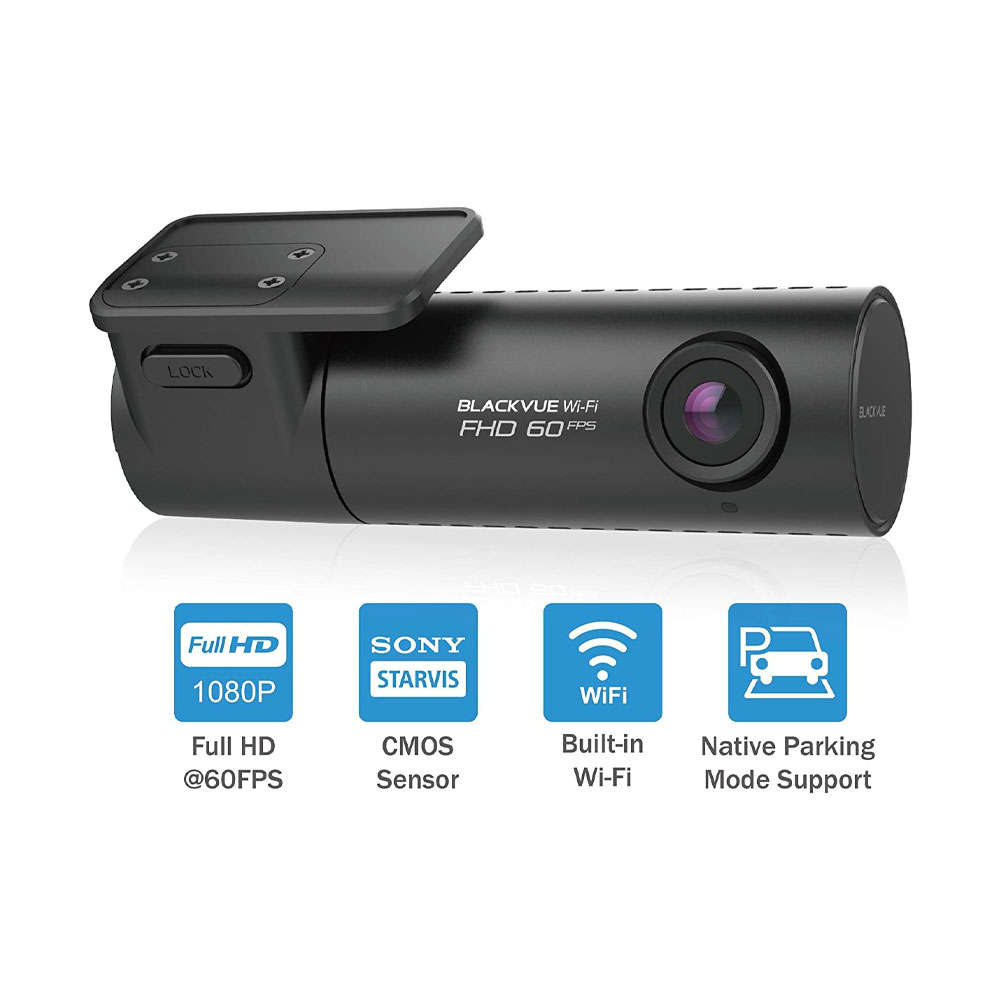

Setting Standards

Full HD 60fps + Sony Starvis

With Full HD 1080p resolution, 60 frames per second footage, ultra-wide lens with a 139° viewing angle, and SONY’S remarkable industry-leading STARVIS image sensor, the DR590X-1CH provides class-leading protection for your vehicle, in any lighting conditions.

Intelligent Parking Mode

Dash cams are designed to record your drive, but did you know that the BlackVue DR590X-1CH can also monitor your vehicle when you’re not around?

BlackVue’s unique Intelligent Parking Mode is ideal if you worry about hit-and-runs, theft or vandalism while your vehicle is parked and left unattended.

The DR590X-1CH automatically switches to Parking Mode when the ignition is switched off, and will continue to monitor your vehicle, recording and storing events for review later.

Video buffering ensures that your camera will also record the seconds leading up to the event, ensuring you have the whole picture.

Thanks to in-built power management circuitry, the DR590X-1CH will ensure that your camera will never deplete your vehicle’s battery when operating overnight, switching-off should the car’s battery level drop below a pre-set level.

For extended recording times simply add a Power Magic Ultra B-130X or B-112 battery.

BlackVue App and Viewer

The BlackVue app for iOS and Android is free to download and use and allows you to conveniently control your dash cam from your smartphone.

Access your camera’s configuration settings, video files and use camera Live View for easy set-up and positioning of the DR590X-1CH in your vehicle.

BlackVue Viewer for Windows and Apple Mac is free to download and allows you to easily configure your camera’s settings and view video clips.

Access recordings on your camera’s microSD card, simultaneously viewing front and rear camera footage, moving maps and GPS data including time, date and speed. All video clips are listed by date, time and recording mode (Normal, Parking, Event, etc.), making it simple to quickly identify and archive important footage.

BlackVue Viewer also provides access to your camera’s settings, as well as the ability to update your dash cam’s firmware when necessary.

Specification

• Channel 1CH
• Highlights Full HD, 60fps, Wi-Fi, External GPS, Sony Sensor
• Product Dimensions W 111.8 mm (4.40″) x H 34 mm (1.34″) / 86.3 g (3.04 oz)
• Memory Support microSD card up to 256GB
• Recording Modes
  • Normal,
  • Event (Impact Detection / Speed Limit),
  • Parking Mode (Motion+Impact Detection)
• Parking Mode (with optional 3-wire hardwiring cable)
• Parking Mode Event Voice Notifications
• Imaging Sensor Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
• Viewing Angle Diagonal 139°, Horizontal 116°, Vertical 61°
• Resolution Frame Rate
  • Full HD @60fps
  • Frame rate may vary during Wi-Fi streaming
• Video Codec  H.264 (AVC)
• Image Quality and Bitrate Front/Rear
  • Highest (Extreme): 25 Mbps
  • Highest: 12 Mbps
  • High: 10 Mbps
  • Normal: 8 Mbps
• Format Free  (Adaptive)
• Event File Overwrite Protection
• SD Card Failure Alert
• Scheduled Reboot
• Video File Extension MP4

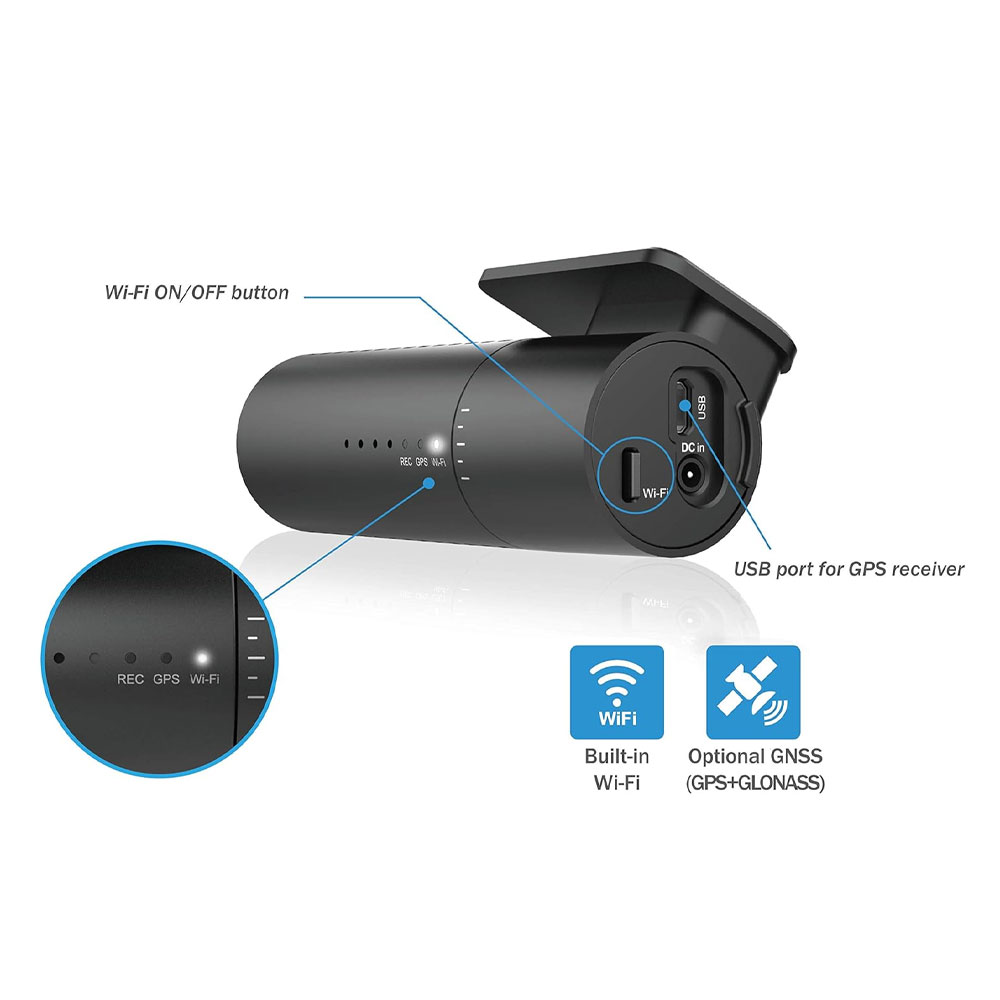

• Wi-Fi Built-in (802.11n (2.4~2.4835 GHz))

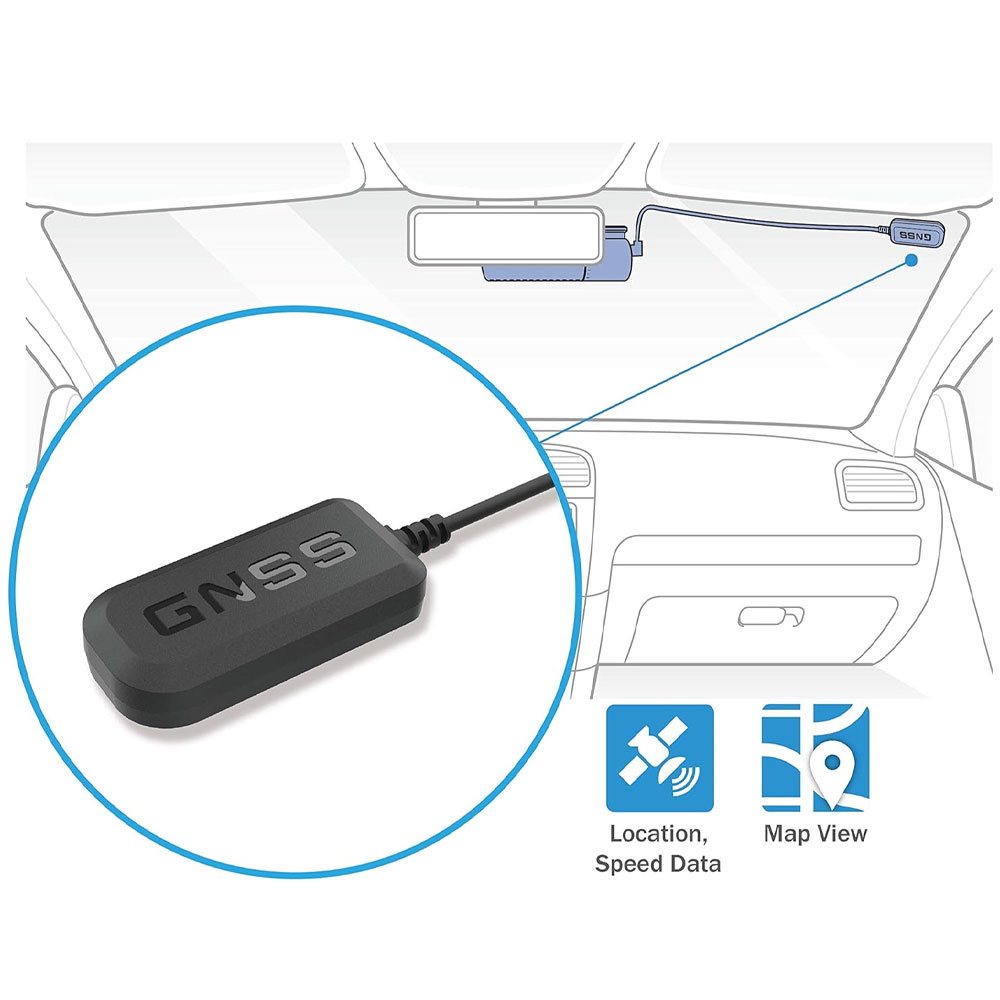

• GPS External (Optional – Dual Band: GPS, GLONASS)
• Microphone Built-in
• Speaker Built-in
• Impact Sensor 3-Axis Acceleration Sensor

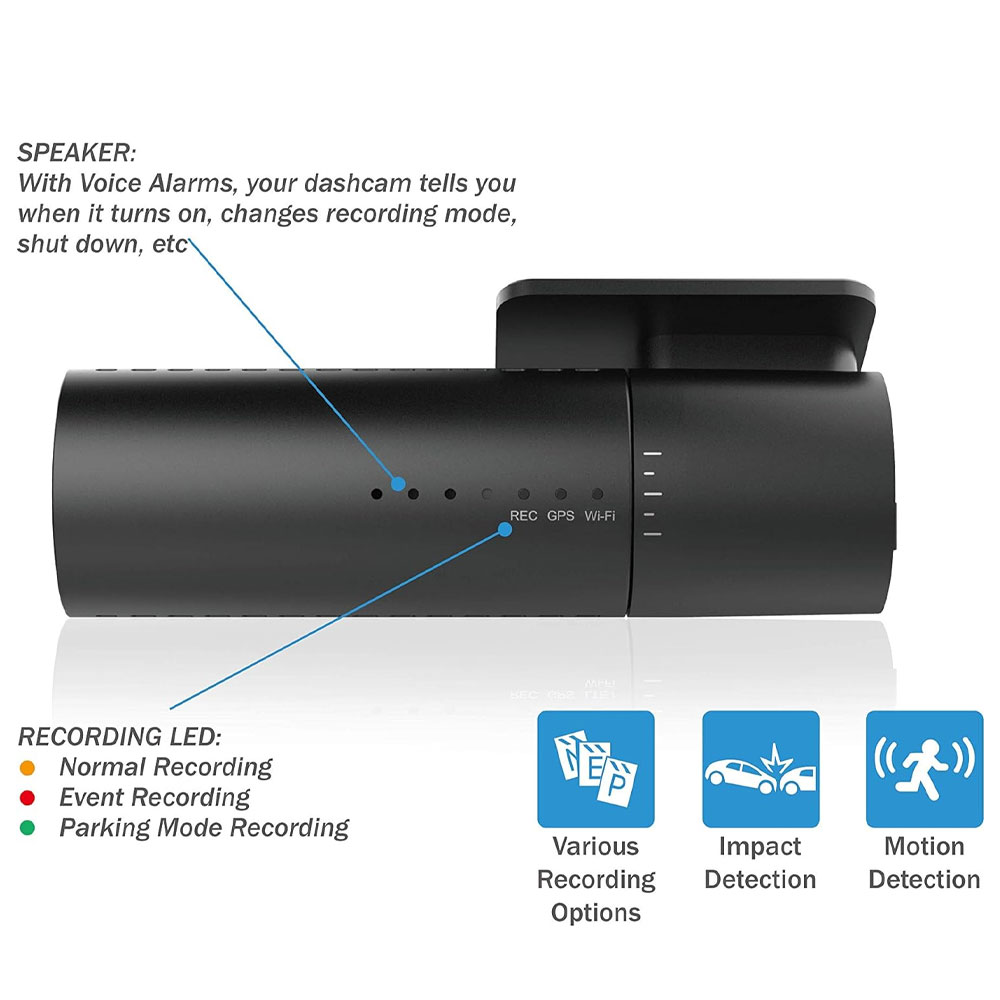

• LED Indicators
  • Front: Recording LED, GPS LED, Front Security LED
  • Rear: Rear Security LED
• Button Wi-Fi ON/OFF
• Operation Temperature -20℃ – 70℃ (-4°F – 158°F)
• Storage Temperature -20℃ – 80℃ (-4°F – 176°F)
• High Temp Cut Off Approx. 70℃ (158°F)
• Backup Battery Built-in supercapacitor
• Input Power DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND/Yellow: B+/Red: ACC)
• Power Consumption Hour
  • Normal Mode (WiFi On/GPS On): 370mA/hour
  • Normal Mode (WiFi Off/GPS On): 330mA/hour
  • Parking Mode (WiFi On/GPS Off): 340mA/hour
  • Parking Mode (WiFi Off/GPS Off): 300mA/hour
  • * Actual power consumption may vary depending on use conditions and environment.
• Certifications FCC, CE, UKCA, RoHS, Telec, WEEE, IC
• Software
  • BlackVue Viewer
  • Windows 7 or higher and Mac Yosemite OS X (10.10) or higher
• Application BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)
• Others Adaptive Format-Free File Management System

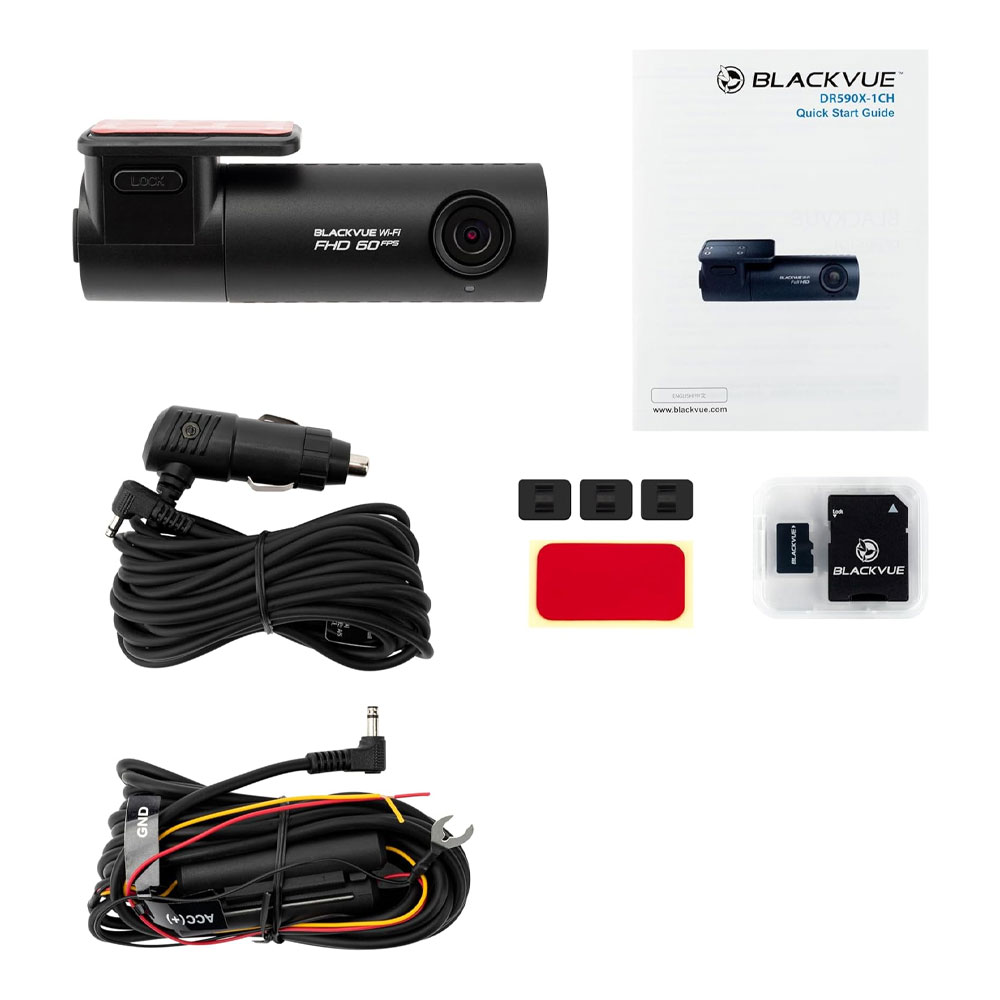

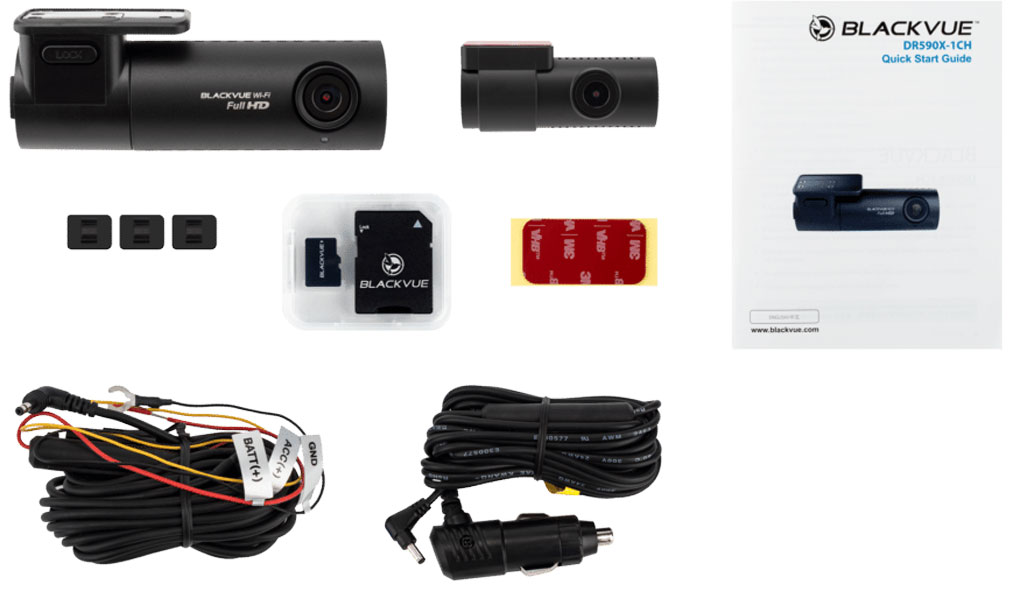

What's Included
