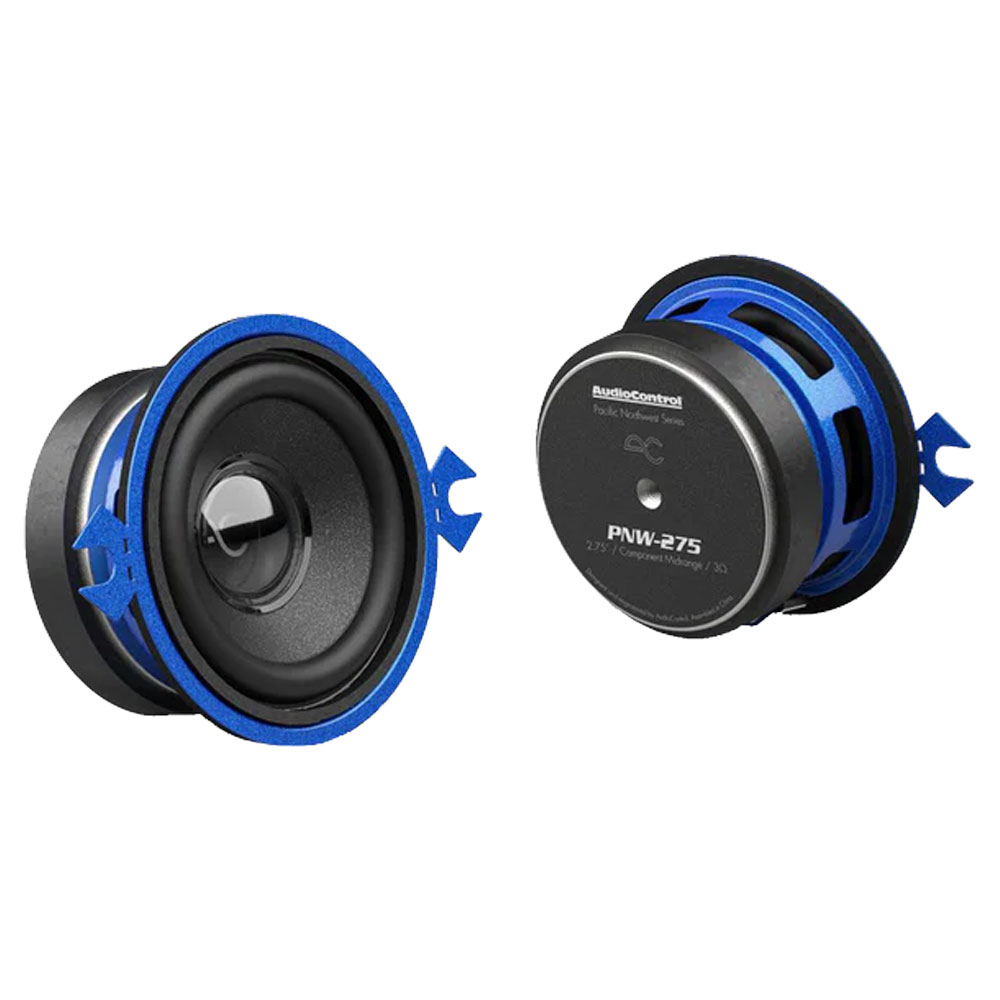

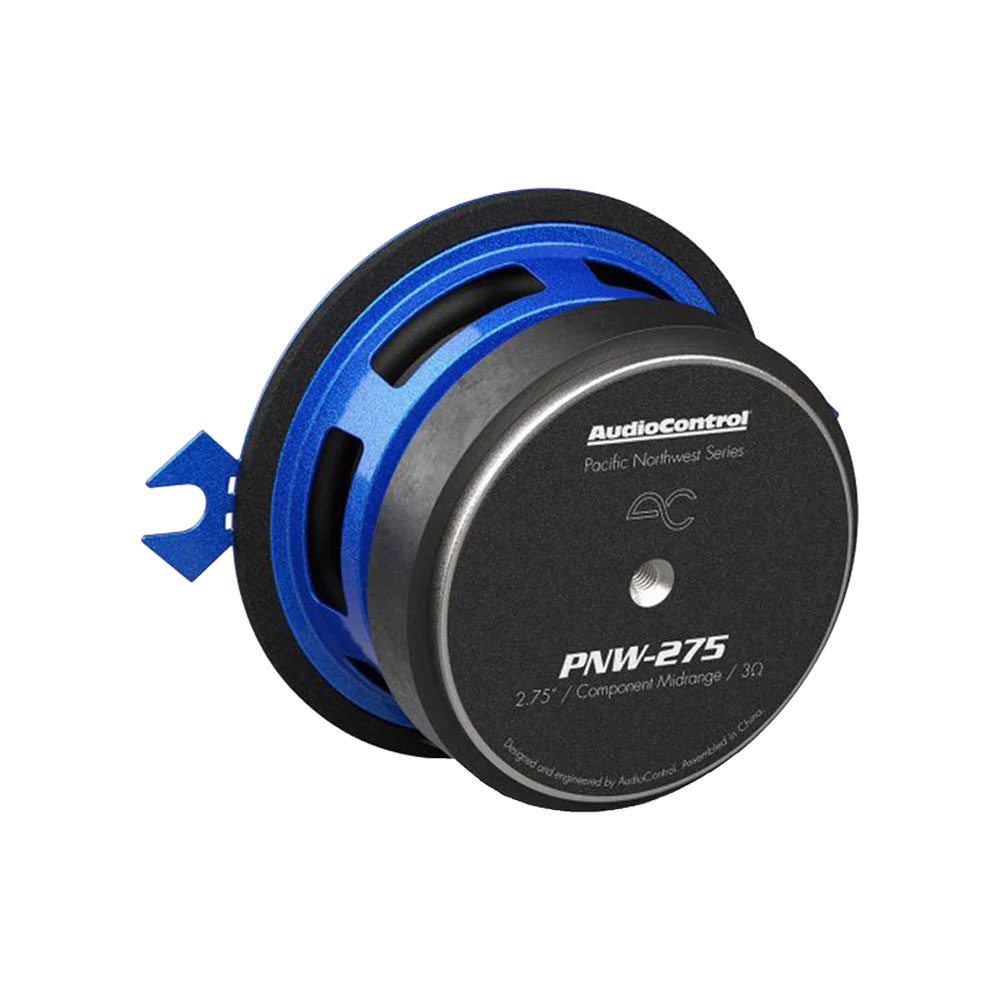

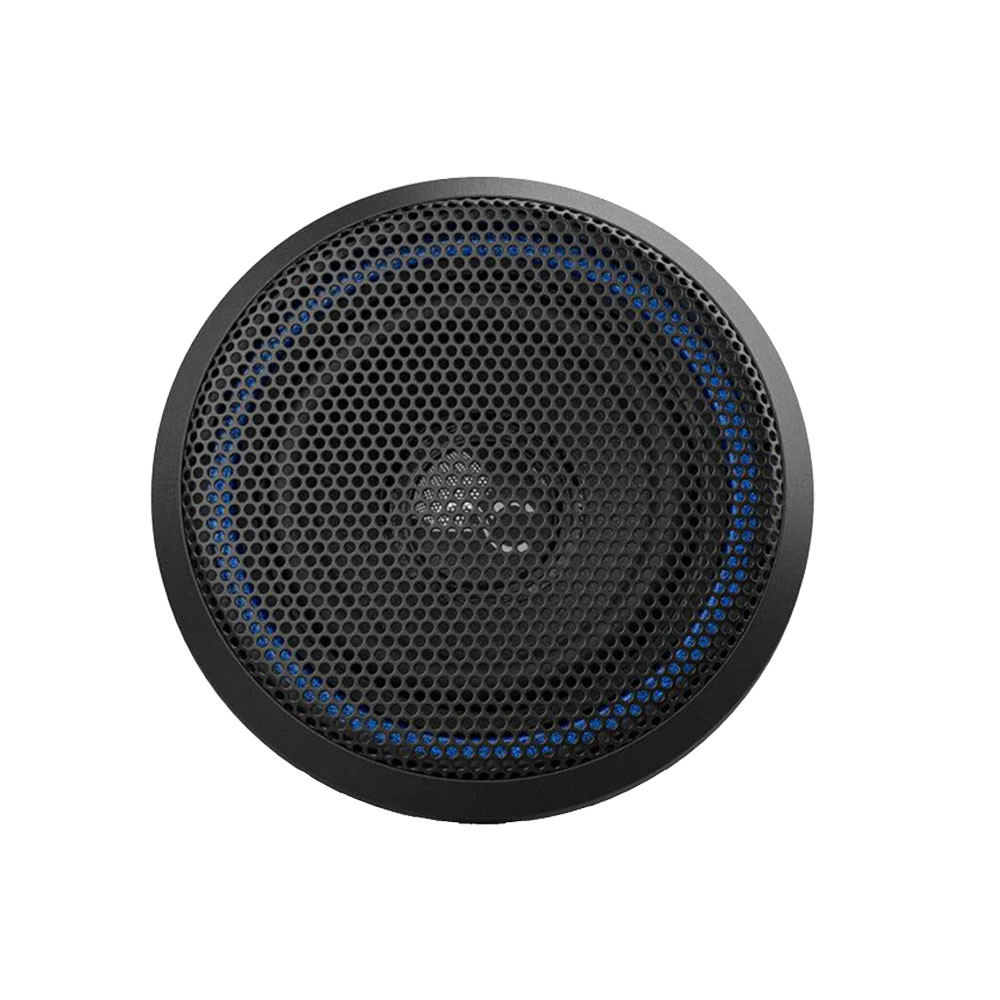

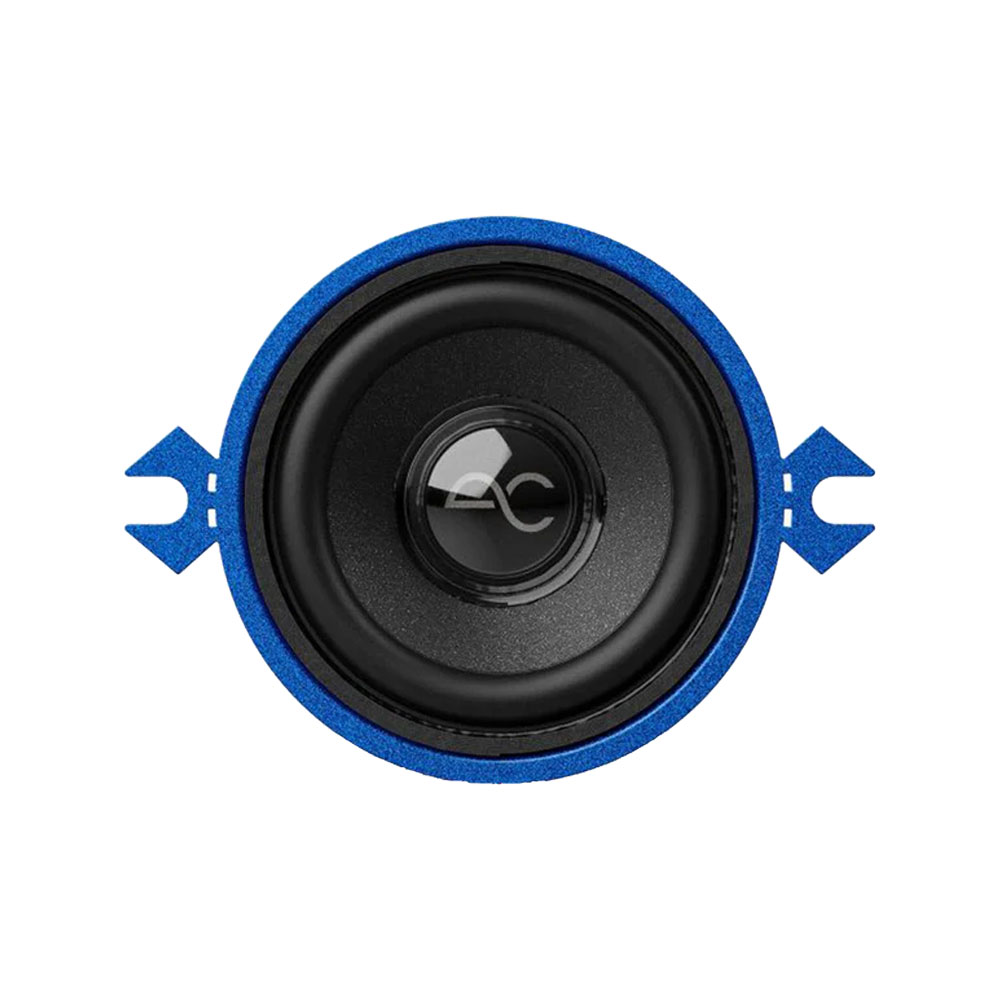

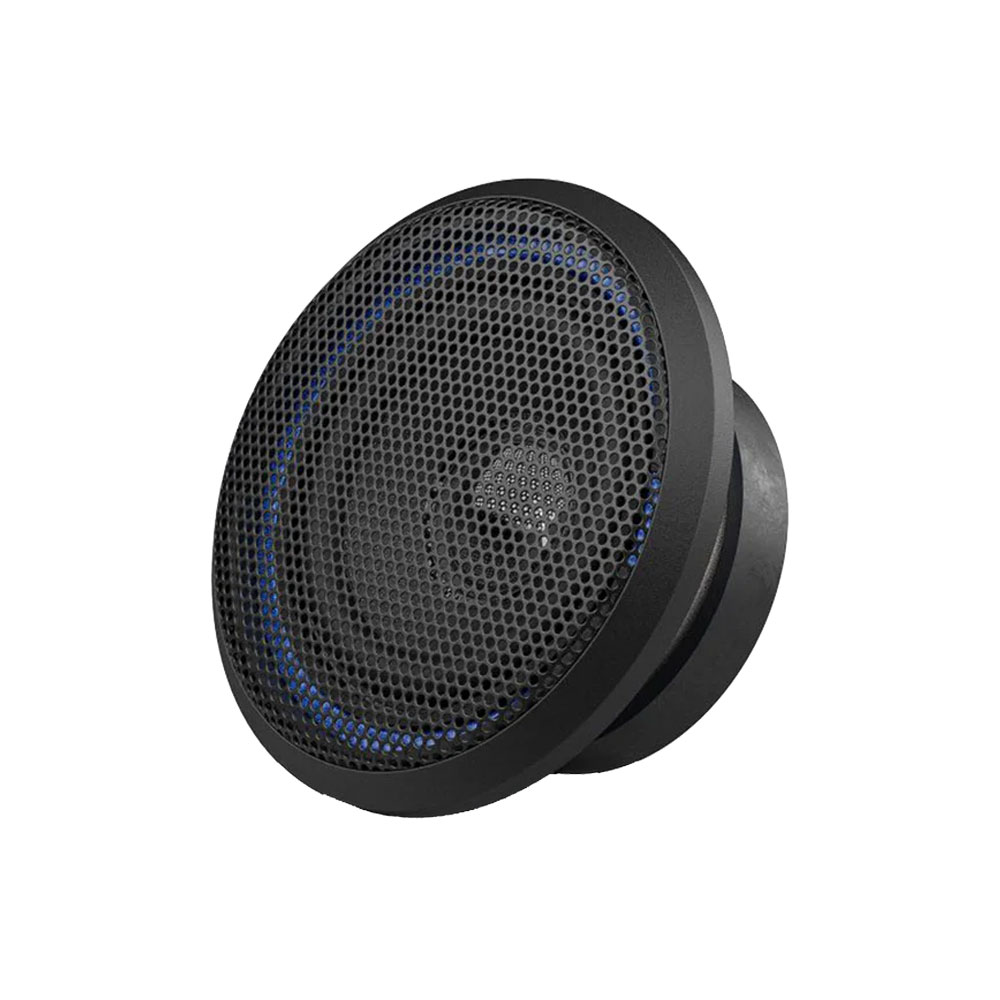

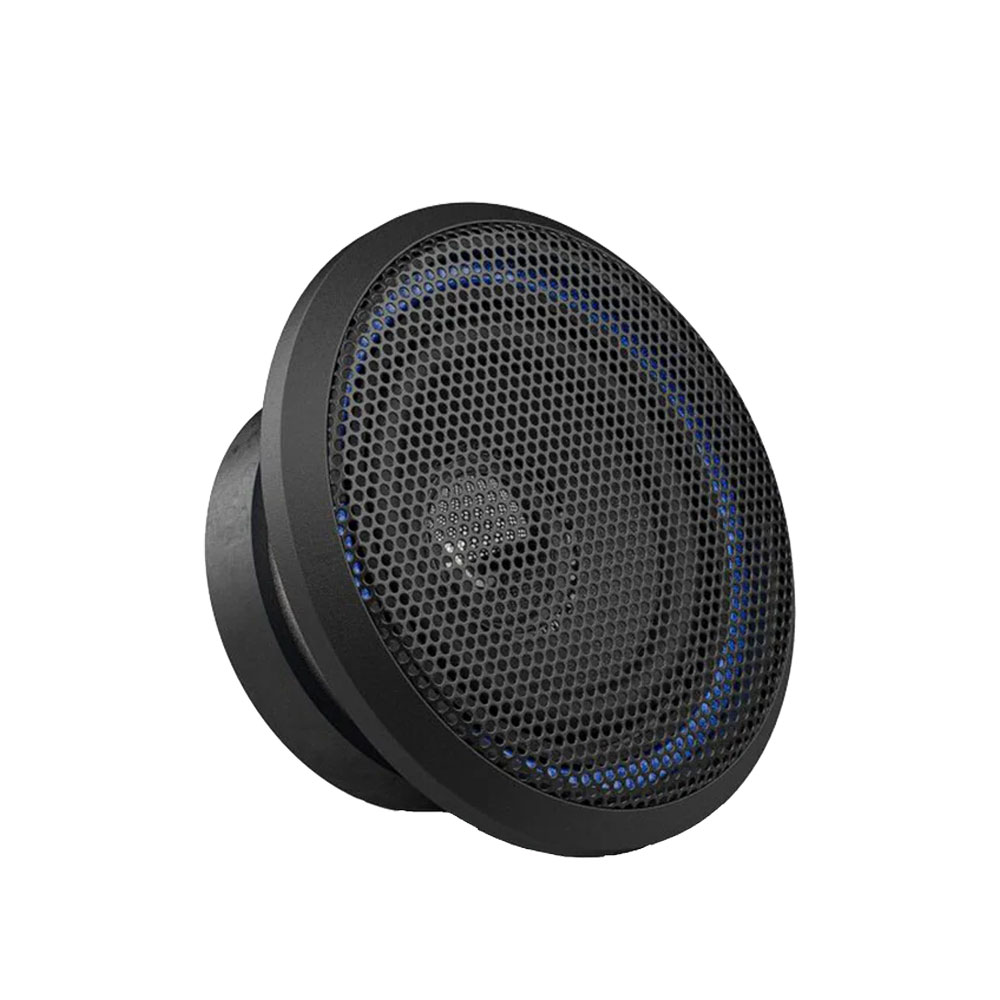

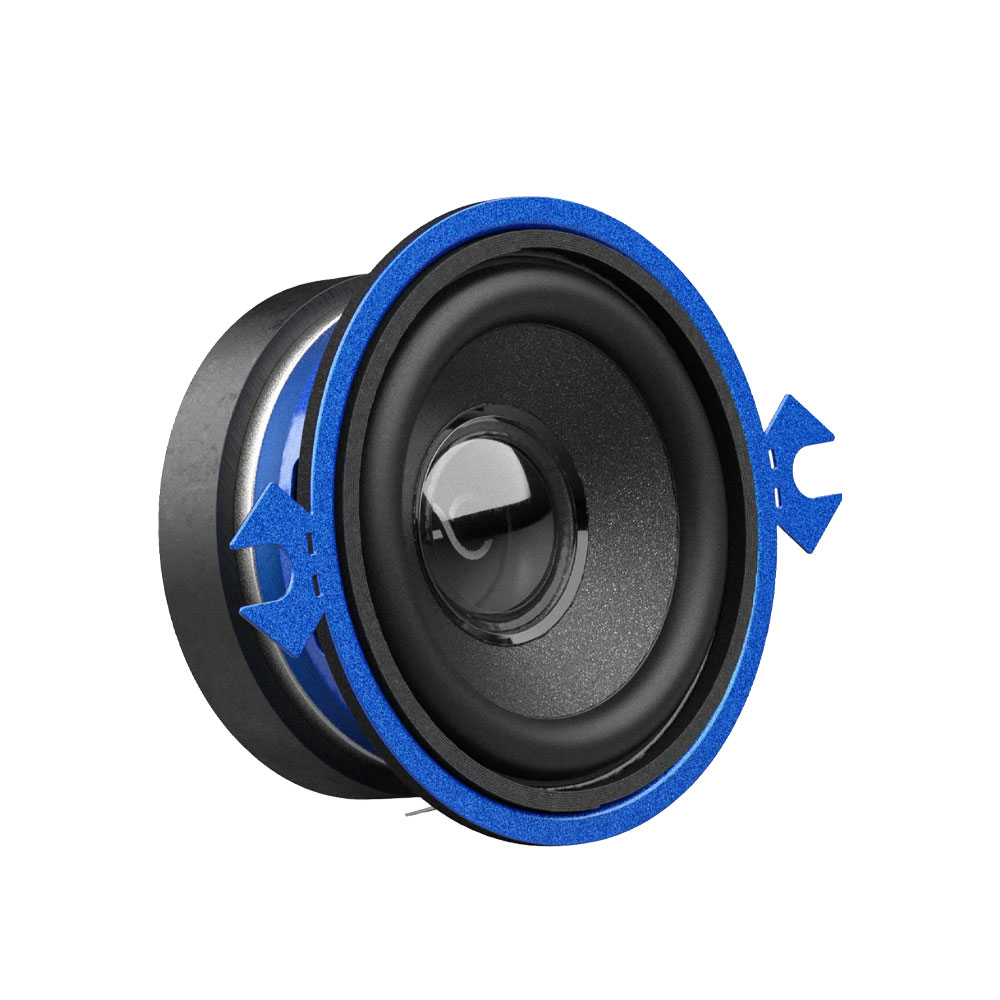

AudioControl PNW-275

AudioControl has over 45 years of experience engineering top-quality audio components. Buckle up and get ready to embark on a wild new auditory adventure with AudioControl’s PNW speakers! Experience the vibrant landscapes of the Pacific Northwest through your music when you combine AudioControl’s legendary amplifiers with the new PNW series of speakers. Trust us, you’ve never heard sound quite like this before. The PNW line features an edge-enhanced steel frame for ultimate structural strength, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement. Plus, the rigid poly mica-coated cone optimizes sound reproduction.

Worried about installation? Don’t be! Our speaker sets come with high-quality mounting hardware, so you can enjoy your new sound system hassle-free. The tweeter’s point source design even aligns the output of both drivers perfectly, resulting in better speaker alignment for amazing sound quality. Looking for the full package? Pair PNW with our Spike or Space series subwoofers for the ultimate in-vehicle listening experience. All of these features add up to a line of speakers that are not only impressive on paper but are sure to impress you with their detail, clarity, and volume every time you drive.

Features

• Edge-enhanced steel frame for added structural strength
• Black anodized voice coil former for superior heat dissipation
• Linear surround for precision cone movement
• Complex FEA-designed high-efficiency motor
• Paper fiber matrix cone with mica coating for optimized sound reproduction
• Transparent thermal-polymer dust cap for superior fidelity
• High-quality mounting hardware included

Specifications

• Crossover Type Butterworth
• Power 25W RMS / 50W Max
• DC Resistance (Re). 2.45 ohms
• Filter Type HP
• Frequency Response 100-20k Hz
• XO Frequency 250 Hz
• BP Frequency Range 200-4k Hz
• Slope (Octave) -6 dB
• Midrange Voice Coil Diameter 20 mm

Dimensions

• Overall Dimensions: 3.74 in/ 95 mm
• Overall Diameter(w/o Metal bracket): 2.83 in / 72 mm
• Cut Out Diameter: 2.63 in/ 67 mm
• Mounting Depth: 1.37 in/ 35 mm
• Mounting Height (w/o Grille): 0.05 in / 1.5 mm
• Mounting Height (w/ Grille): 0.48 in / 12.4 mm
• Motor Diameter (w/ Cover): 2.36 in / 60 mm
• Grille Overall Diameter: 3.42 in / 87 mm

In The Box

• 2 x PNW-275
• Manual
• Warranty

Note: This item/pack is sold as a pair and contains 2 speakers.
