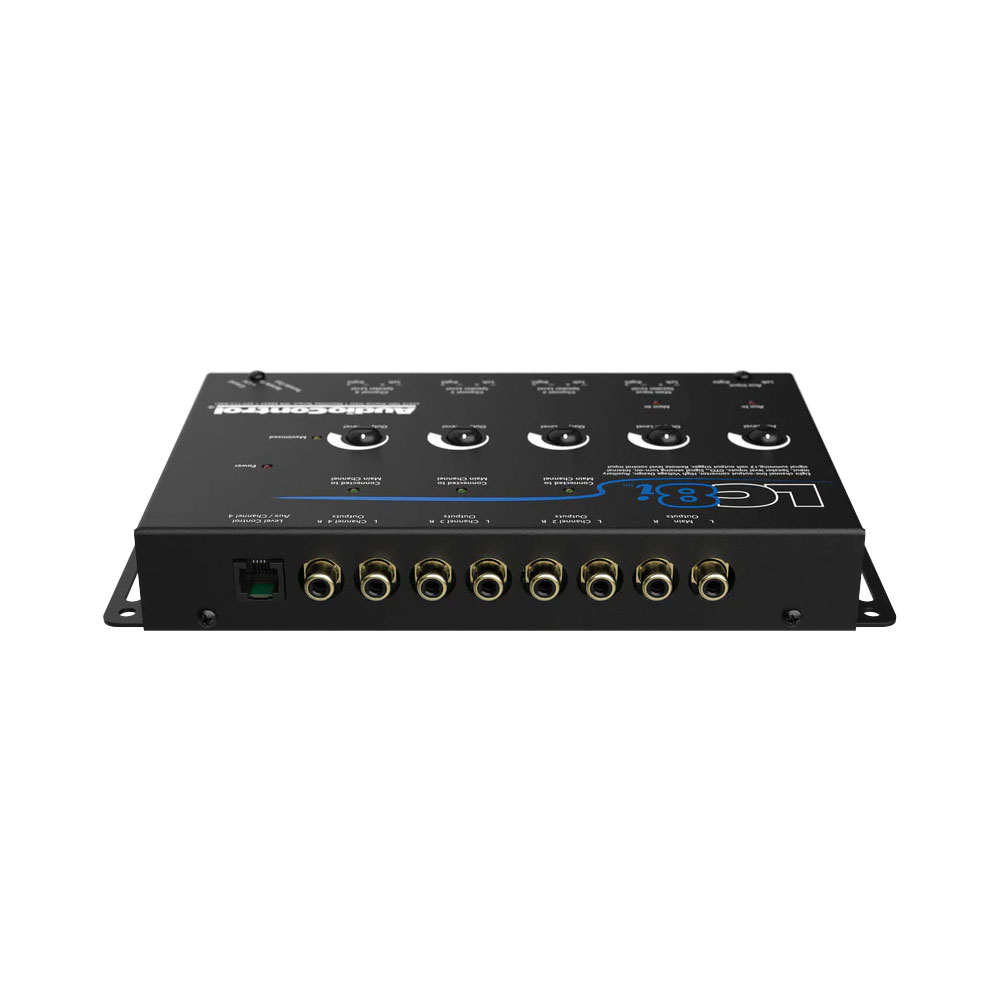

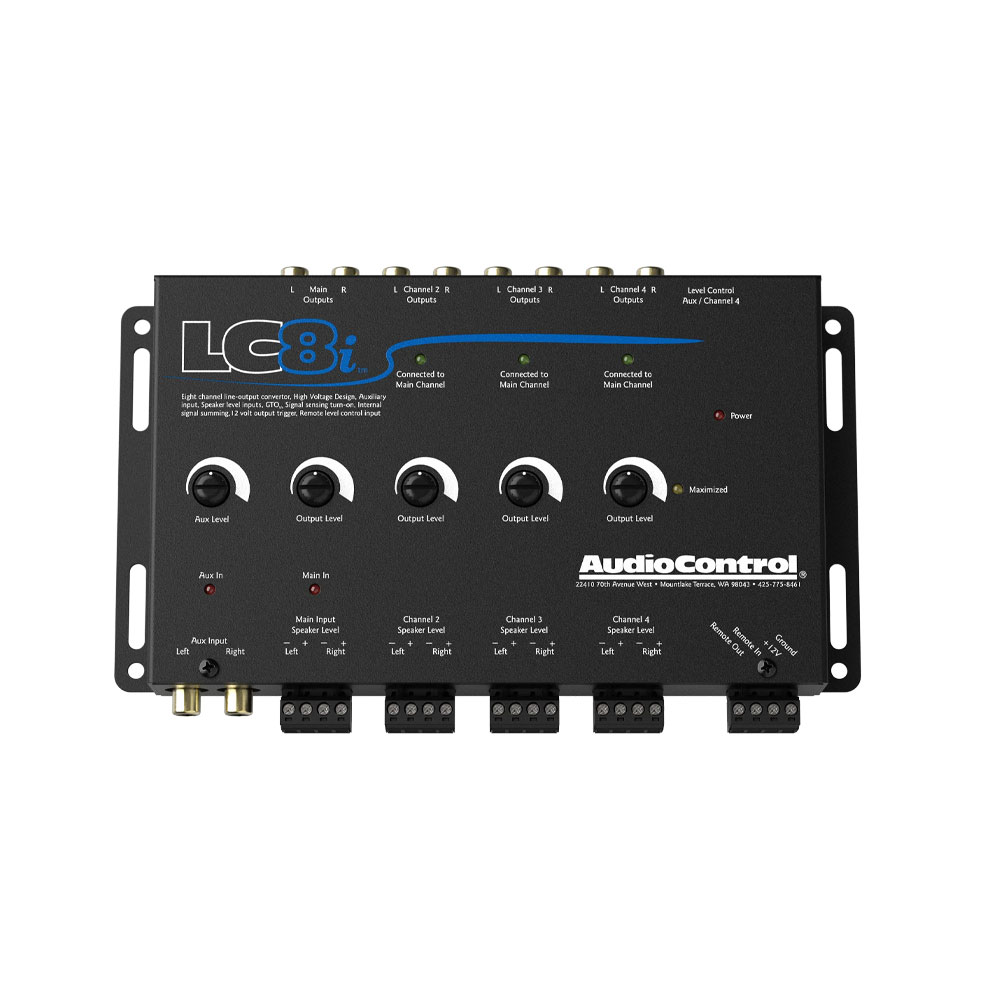

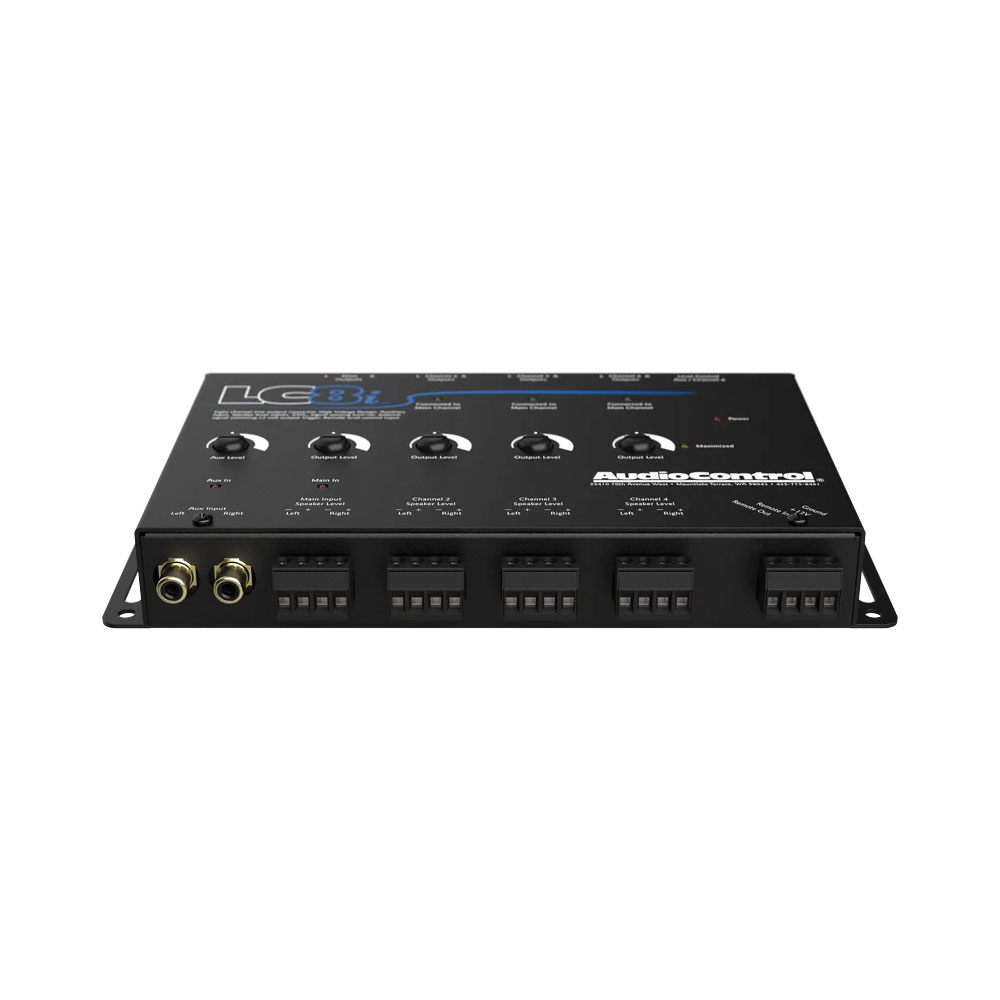

AudioControl LC8i Black

Experience audio excellence from your existing factory audio system with the AudioControl LC8i 8-Channel Line Output Converter. This powerful converter is the ultimate solution for upgrading your car's audio system. It features channel summing for an immersive audio experience and is compatible with almost any factory stereo. With RCA auxiliary input jacks and a wired remote for complete control, connecting external audio sources has never been easier. Built to last and easy to install, this converter ensures you have the best audio quality possible. Upgrade your sound today with the AudioControl LC8i 8-Channel Line Output Converter.

Features

• Speaker Input: Compatible with most factory stereo systems, four pairs of inputs handling up to 400 watts per channel.
• Channel Summing: Sum together multiple input channels (4, 6, or 8) for a high-quality, full-range pre-amp signal without additional cables or hardware.
• AutoMode Inputs: Channel 3 input automatically feeds channel three and channel 4 outputs when there is no signal at the channel four input.
• Auxiliary Input: Pair of RCA auxiliary input jacks for connecting secondary sources like iPod or satellite radio, controlled using the wired remote.
• Output Level: +/- 12 dB adjustment for each RCA output, allowing you to match the level of speaker level inputs. Separate output level control for auxiliary input.
• Auto Turn-on: Signal sensing circuit turns on the unit when there's a speaker-level input signal and turns off when the signal disappears.
• Remote Output: +12 volt DC remote output triggers the amp to turn on when LC8i is on, with a maximum current output of 1 amp.
• Remote: The wired remote allows easy source selection, auxiliary input volume adjustment, and output level control for channel 4/subwoofer.
• Ground Isolation: Switchable power supply ground for eliminating ground loop noise.
• Terminal Blocks: Removable terminal blocks for power/ground/remote connections and speaker level inputs, accommodating wire up to 12 gauge.

Specification

Input

• Maximum Speaker Level Input
• Maximum Output Voltage
• Output Gain
• Frequency response
• THD
• Input Impedance
• Output Impedance
• Dimensions: 8.6”W x 4.75”D x 1.2”H
• Weight: 3.0lbs (1.4kg)

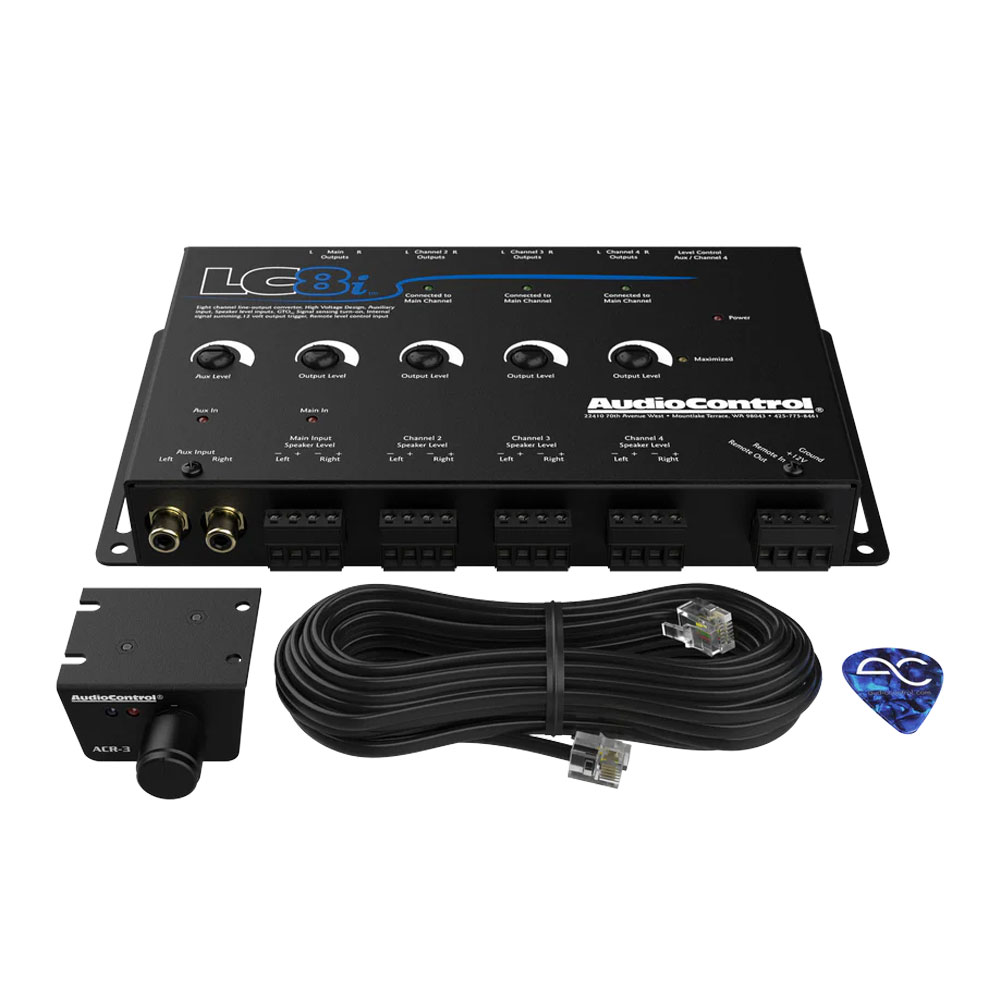

What's Included

• LC8i

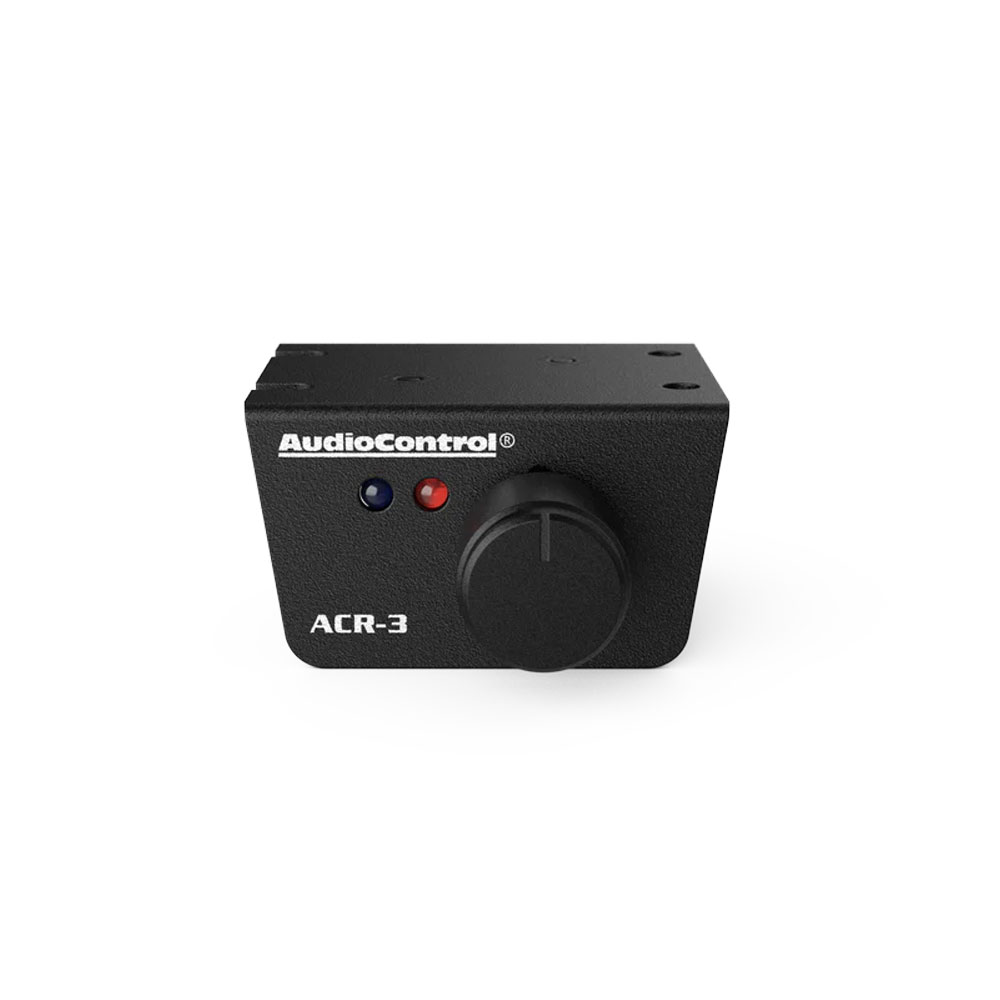

• ACR-3 Remote
• Speaker and Power connectors
• Manual
• Warranty
