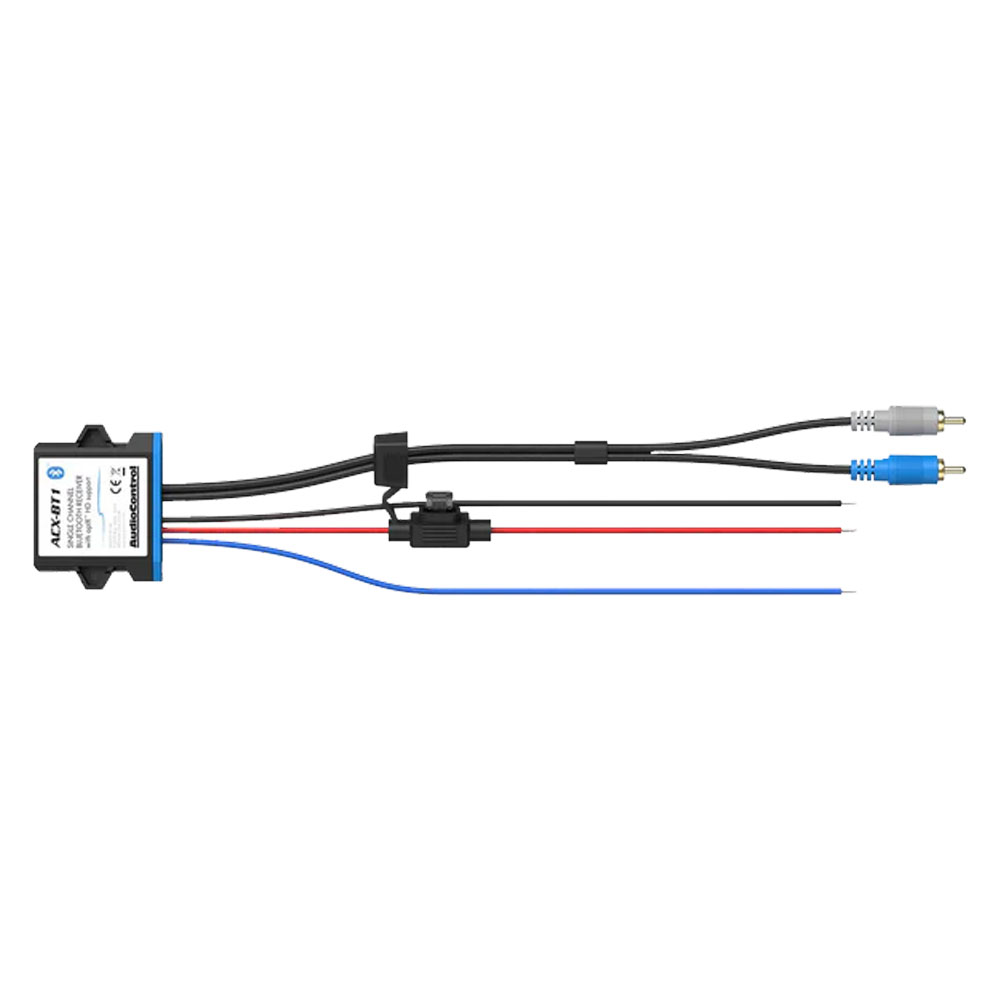

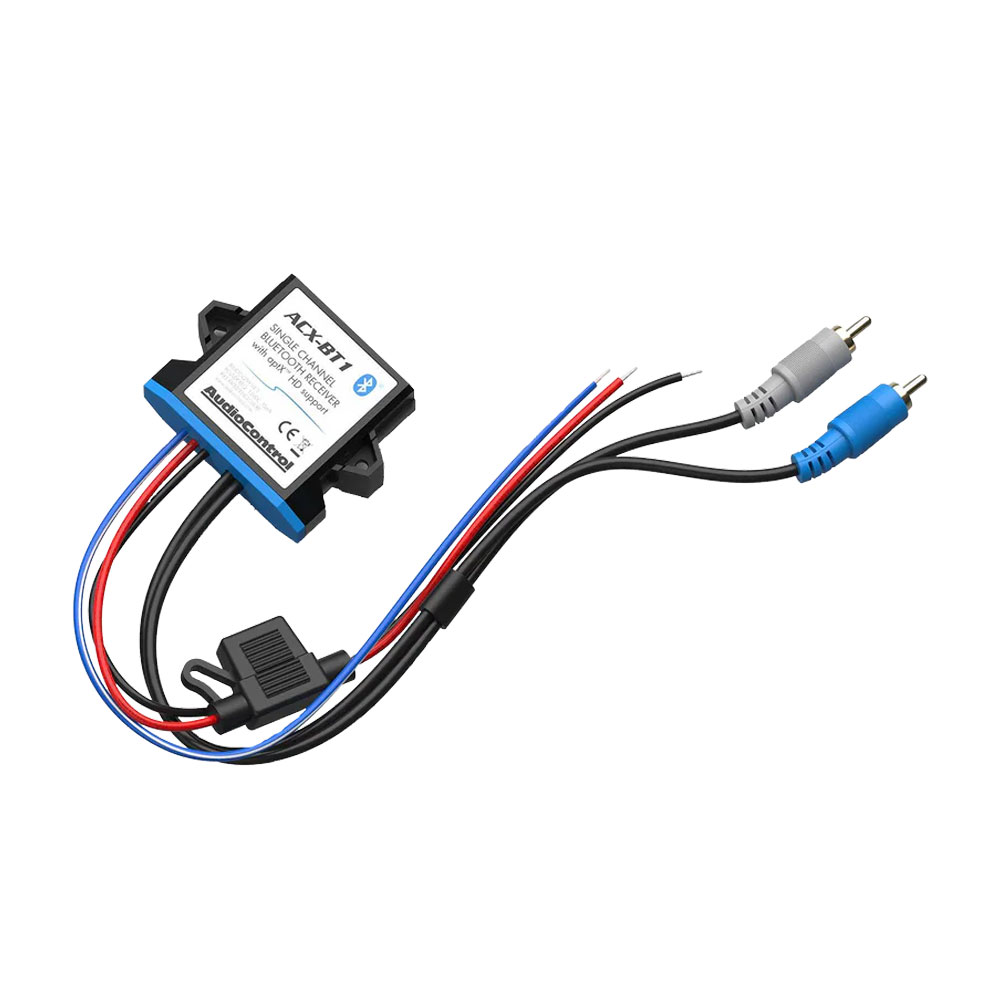

All Weather Bluetooth HD Audio Streamer

The AudioControl ACX-BT1 is the ultimate solution for giving your audio system Bluetooth connectivity. The ACX-BT1 features the latest Bluetooth 4.1 and aptX HD support, delivering 24-bit clarity, lower noise, faster initial connection and more reliable streaming from a greater distance. The ACX-BT1 is IPX5 rated for marine and motorsports applications, so it will withstand the rigors of all-weather conditions, including as a standalone (no head unit) solution common to side-by-sides, jet skis and more. Installers will appreciate the unique remote turn-on output circuit that triggers downstream amplifier(s) only when audio is being played over the Bluetooth connection.

Features

• High Definition Low-Latency Audio Streaming
• aptXTM HD Support
• 24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
• IPX5 rated enclosure
• Built in fuse

Specifications

Bluetooth

• Version: 4.1
• aptX HD Compatible

Output

• Dual Line Level RCA
• Nominal Output Level: 1.5 Vrms

Performance

• Signal to Noise Ratio: 95 dB
• Maximum Data Rate: 3 Mbps (typical 1.6 Mbps)
• Operating Range: 10+ meters (depending on environment)

General

• Current Draw: 35 mA
• Fuse Rating: 2 A

Weight & Dimensions

• Dimensions (enclosure): 2.0”L x 2.5”W x 0.7”H
• Weight: 0.2 lbs. (91 g)

In the Box

• ACX-BT1
• Warranty
• User Manual
