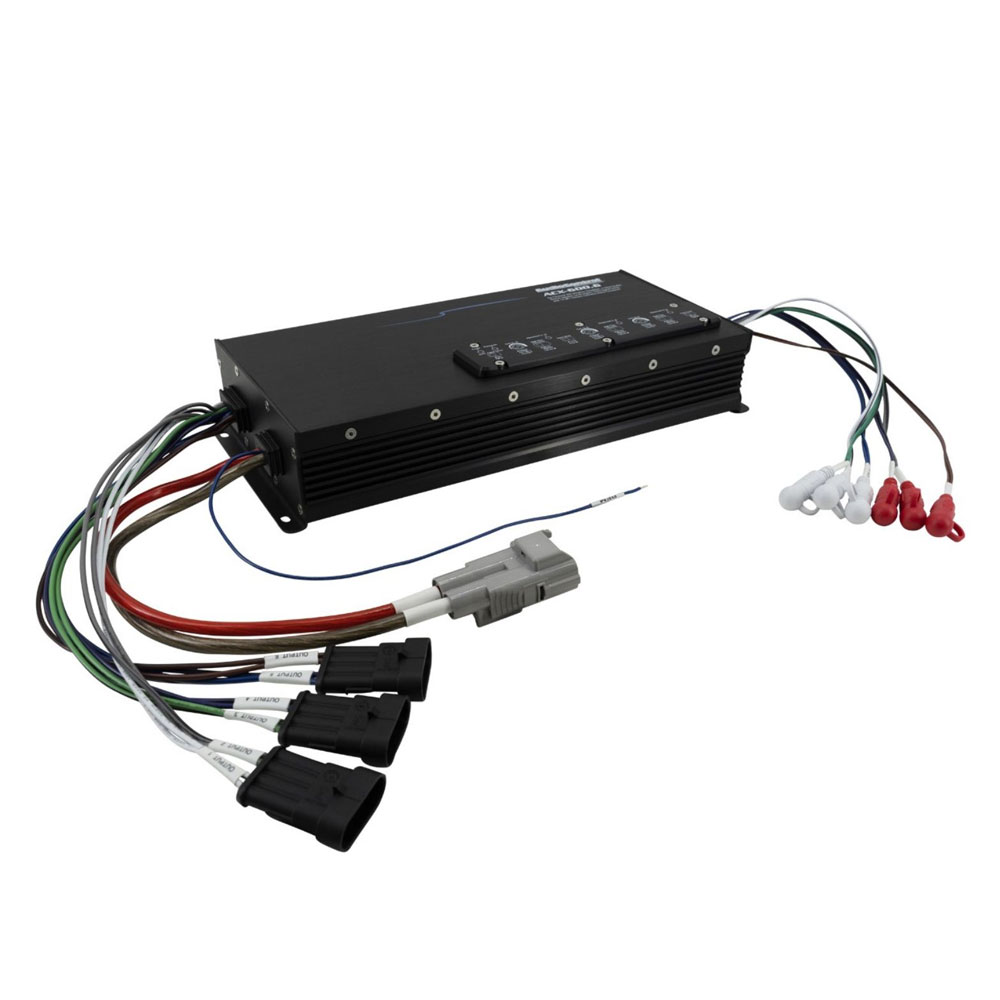

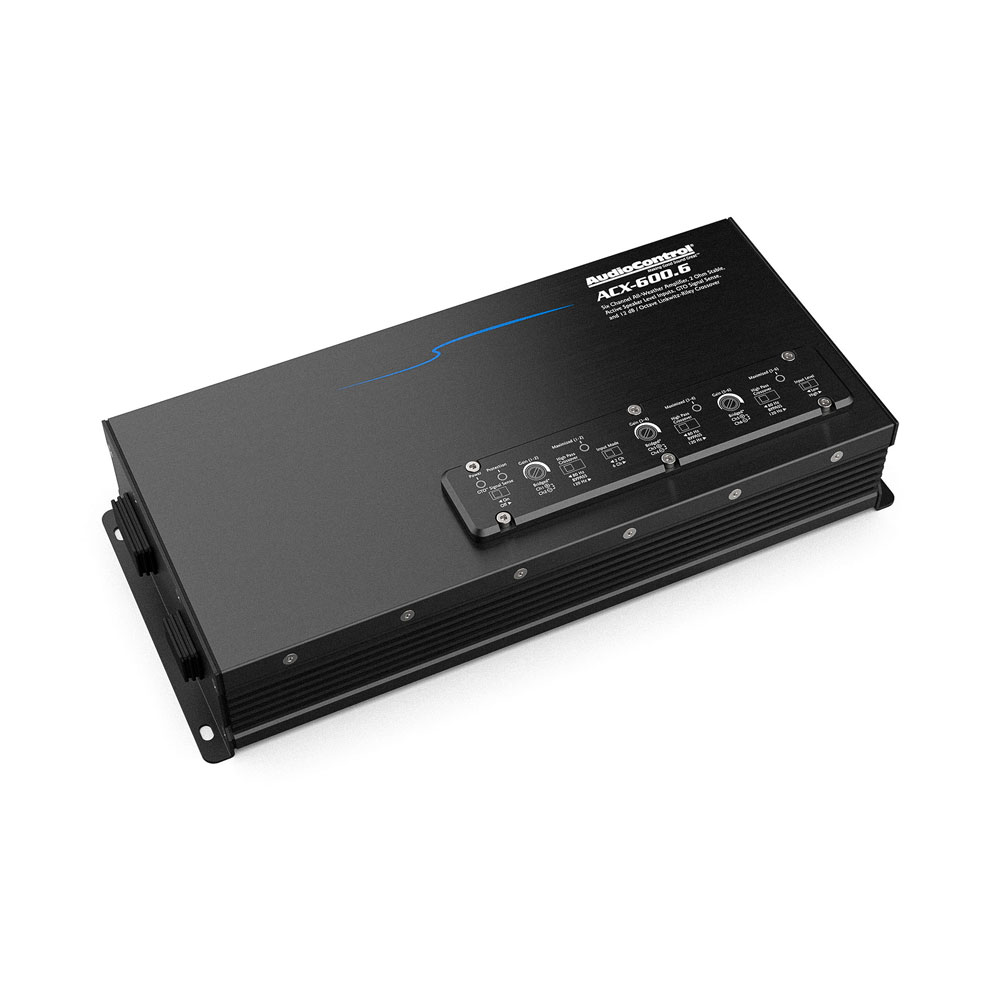

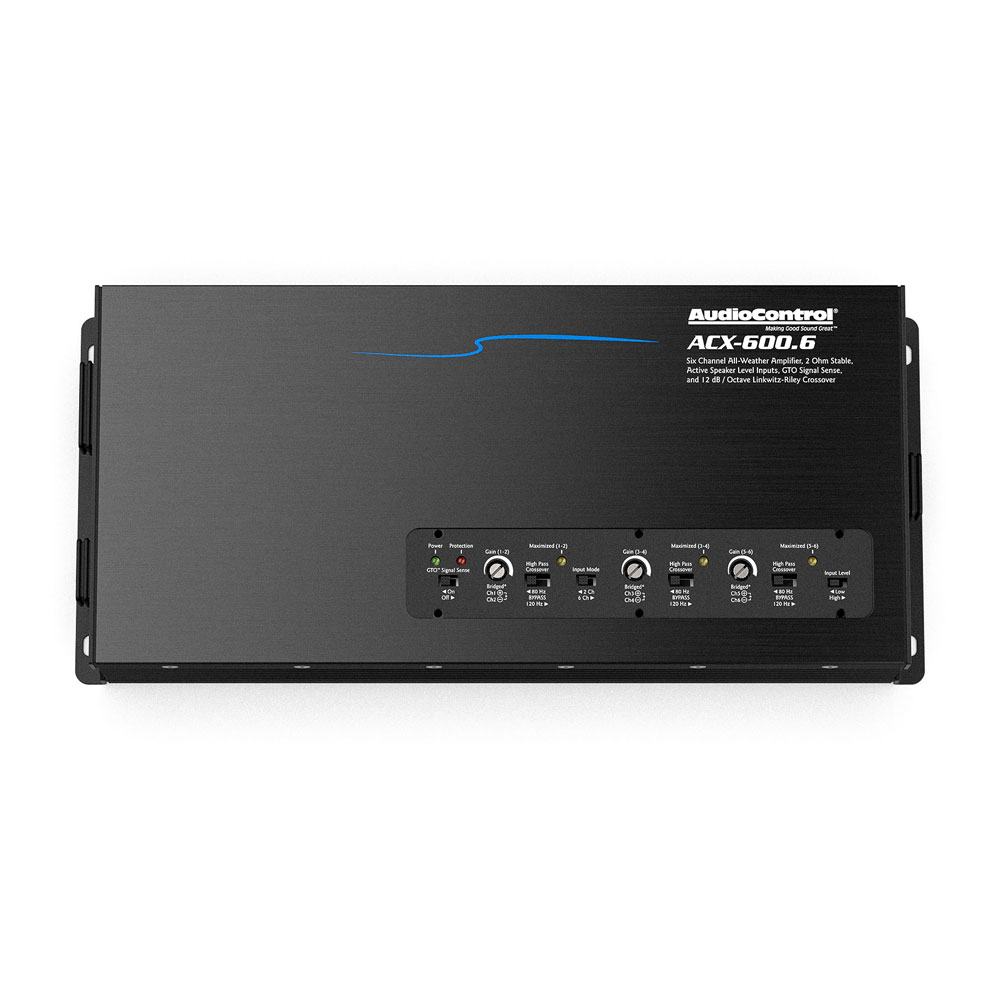

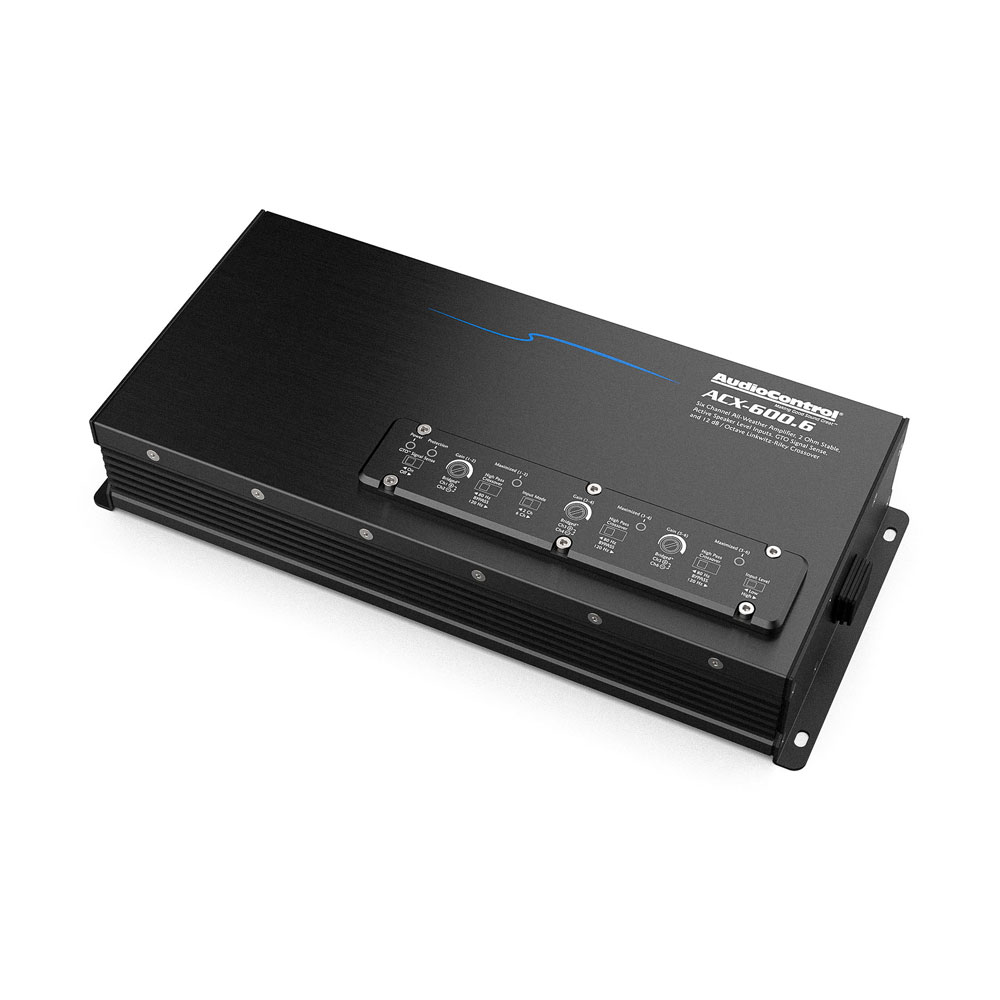

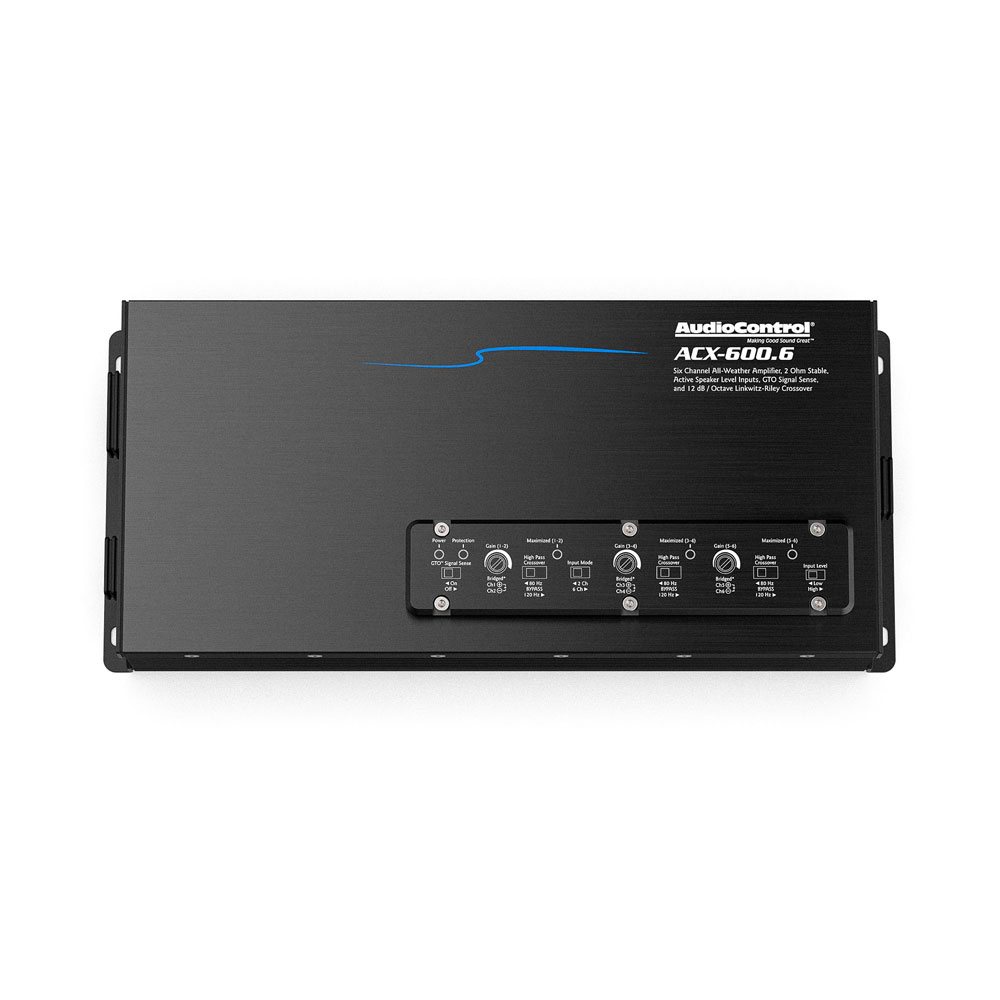

ACX-600.6 All Weather 6 Channel Amplifier

AudioControl’s ACX-600.6 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-600.6 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-600.6 all-weather amplifier the perfect solution for your next adventure.

Features

• 6 x 50 watts @ 4 ohms
• 6 x 100 watts @ 2 ohms
• 3 x 200 watts @ 4 ohms, bridged mono
• IPX6 Rated
• GTOTM Signal Sense
• High and low input modes
• Linkwitz-Riley Crossover

Specifications

Inputs

• Preamp/Speaker Level Inputs: 2
• Input Voltage Low: 500 mV – 6 Vrms
• Input Voltage Range High: 1 Vrms – 12 Vrms

Outputs

• Rated Continuous (RMS) Power at 14.4V:
  • 4 Ω – 50 W x 4
  • 2 Ω – 100 W x 6
  • Bridged 4 Ω – 200 W x 3

Performance

• Frequency Response: 26 Hz – 22 kHz
• Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
• THD+N: < 0.05%
• Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
• IP Rating: IPX6

General

• Recommended Fuse Rating: 30A

Weights & Dimensions

• Dimensions: 11.97″W x 5.31″D x 2.36″H
• Weight: 5.4 lbs. (2.45 kg)

In The Box

• ACX-600.6
• Manual
• Warranty
