ACX-300.4 All Weather Four Channel Amplifier

AudioControl’s ACX-300.4 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. for a two or four channel system, the ACX-300.4 will ensure your open-air speakers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-300.4 all-weather amplifier the perfect solution for your next adventure.

Features

• 4 x 75 watts @ 2 ohms
• 4 x 50 watts @ 4 ohms
• 150 watts @ 4 ohms bridged
• IPX6 Rated

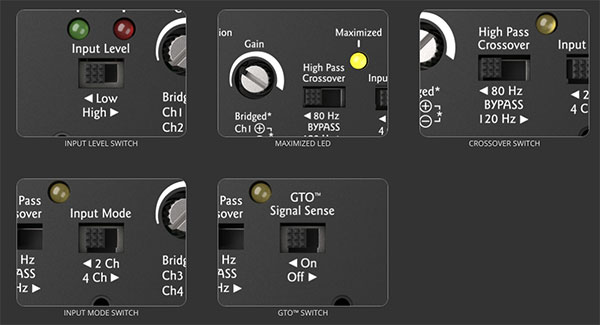

• GTOTM Signal Sense
• High and low input modes
• 4 and 2 channel input modes
• Linkwitz-Riley Crossover

Specifications

Inputs

• Preamp/Speaker Level Inputs: 4
• Input Voltage Low: 500 mV – 6 Vrms
• Input Voltage Range High: 1 Vrms – 12 Vrms

Outputs

• Rated Continuous (RMS) Power at 14.4V:
  • 4 Ω – 50 W x 4 RMS
  • 2 Ω – 75 W x 4 RMS
  • Bridged 4 Ω – 150 W RMS

Performance

• Frequency Response: 26 Hz – 22 kHz
• Signal to Noise: 106 dBA, Ref 50 W @ 4 Ohm
• THD+N: < 0.2%
• Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
• IP Rating: IPX6

General

• Recommended Fuse Rating: 30A

Weights & Dimensions

• Dimensions: 9.0″W x 3.875″D x 2.25″H
• Weight: 7.2 lbs. (3.3 kg)

In The Box

• ACX-300.4
• Manual
• Warranty
