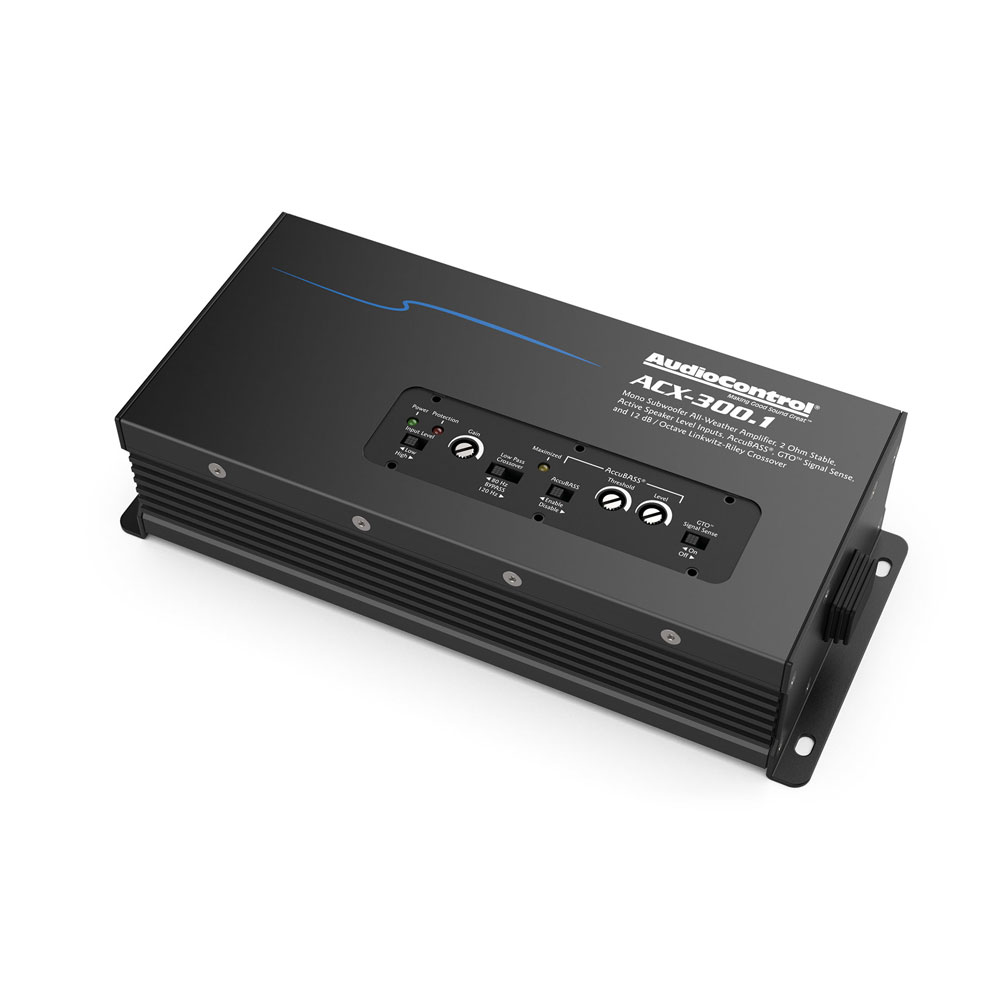

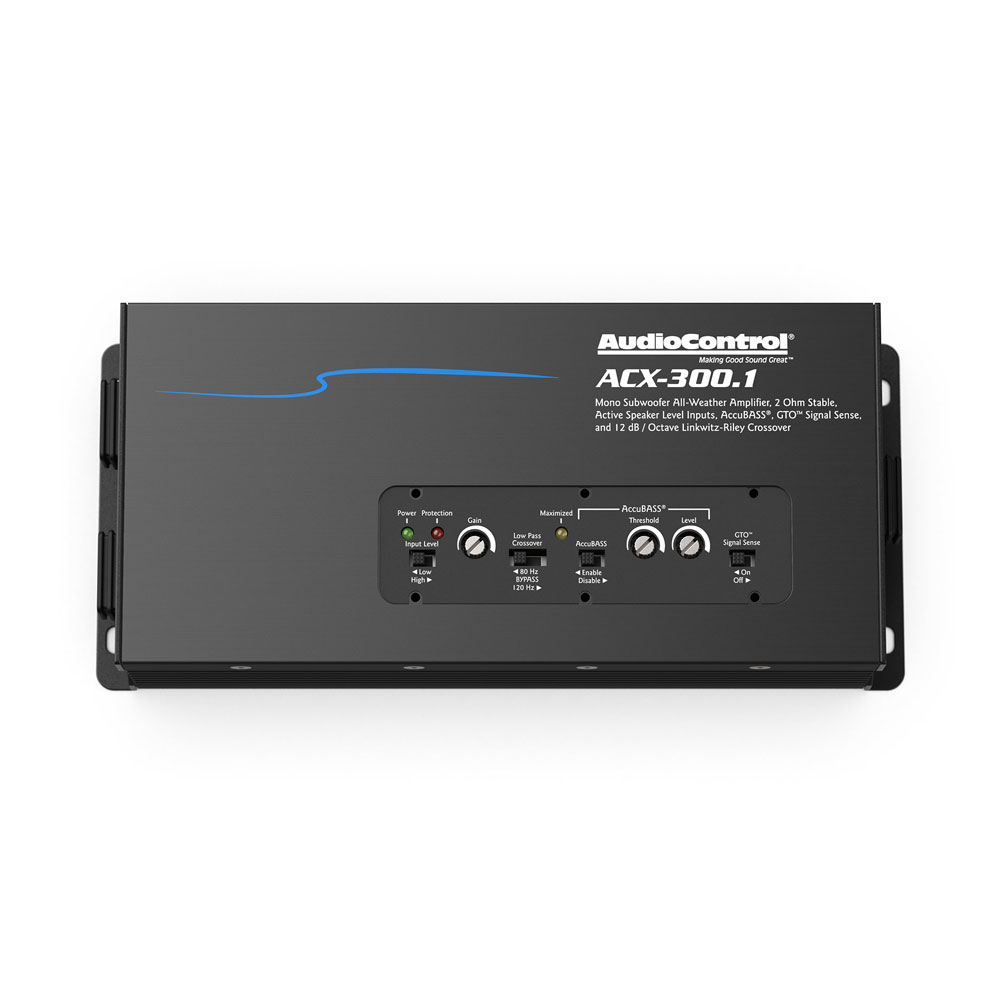

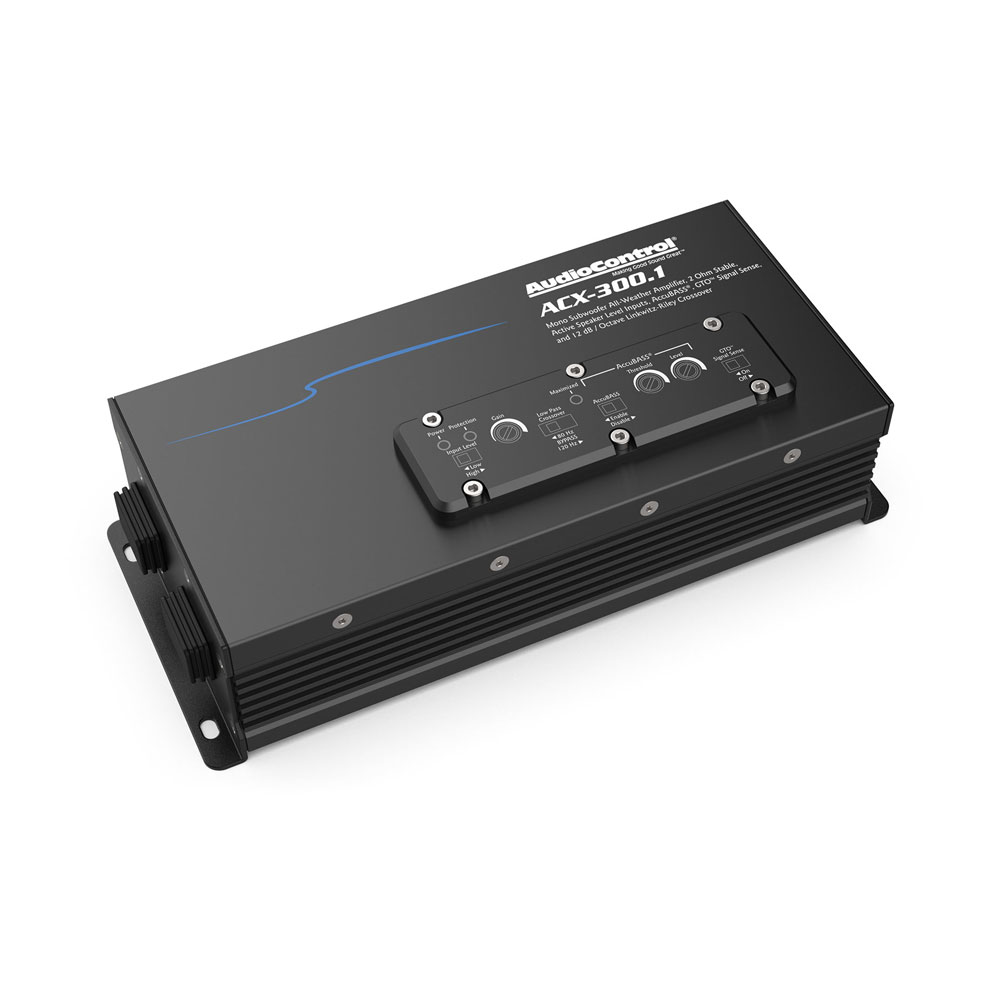

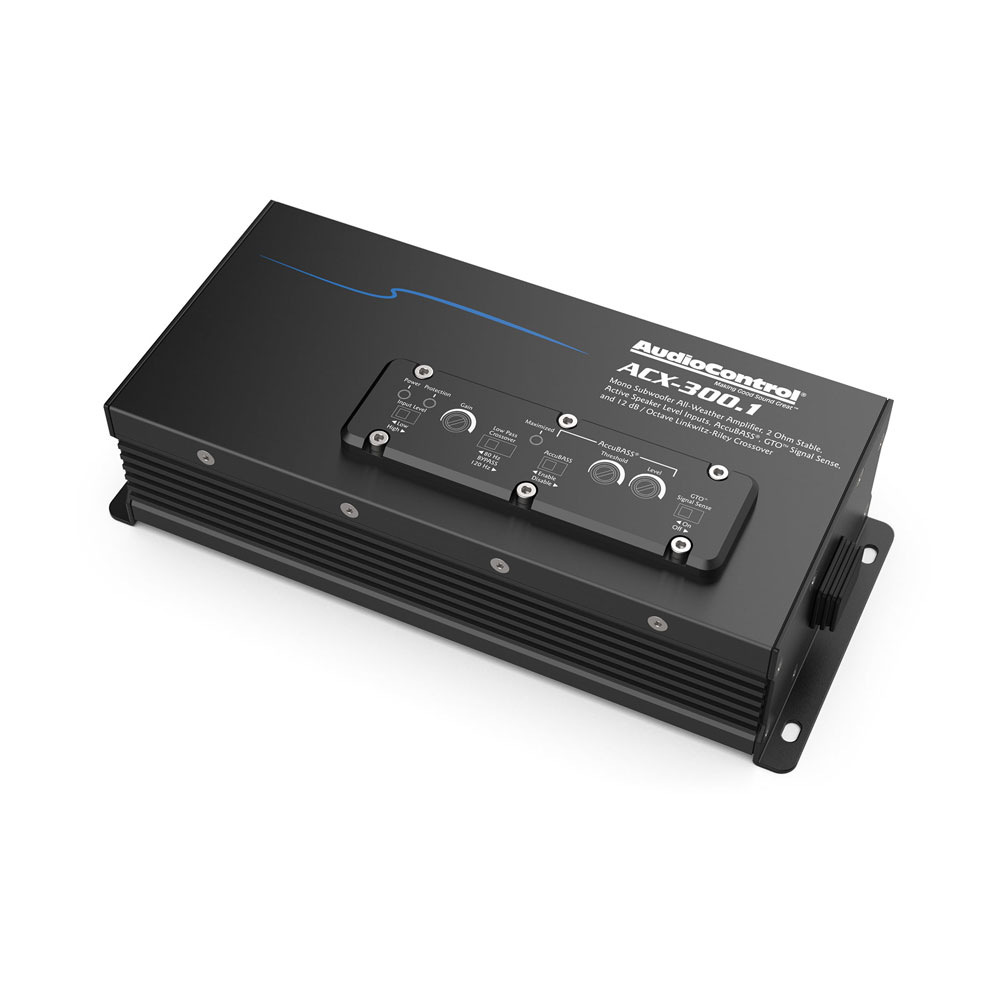

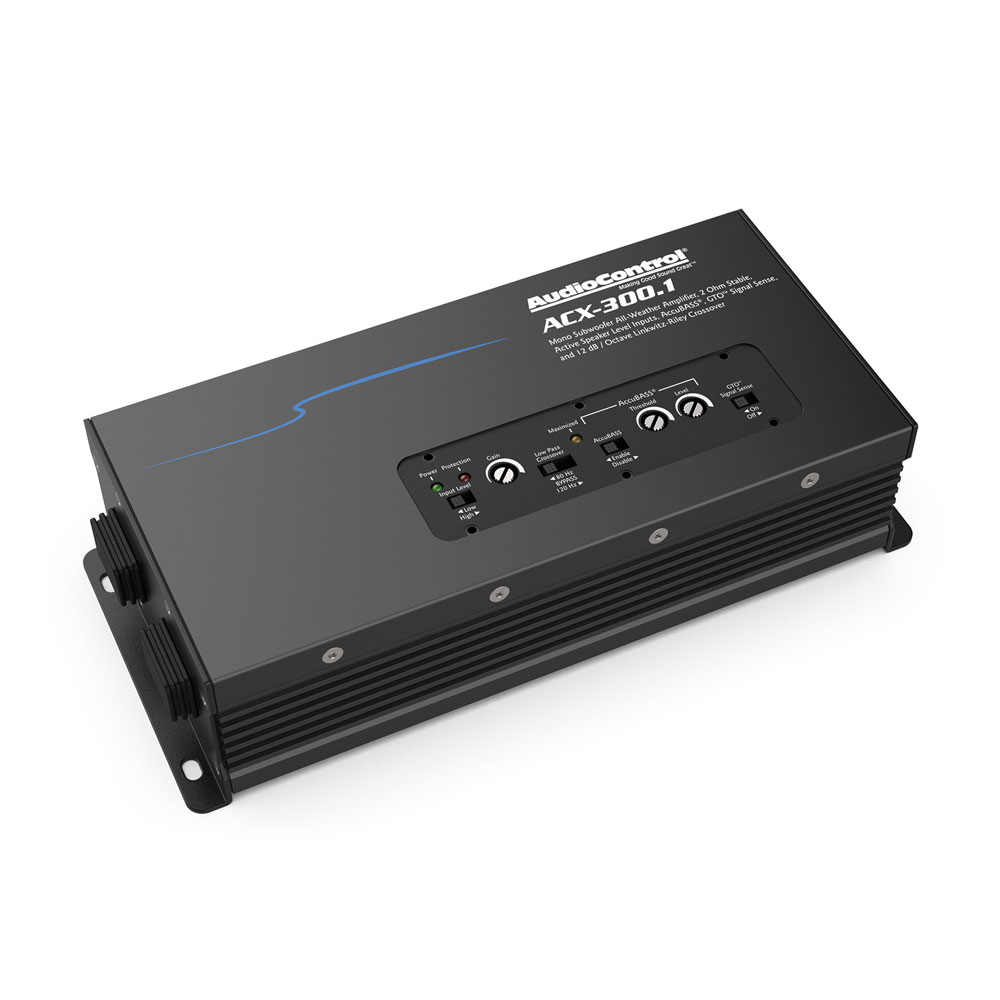

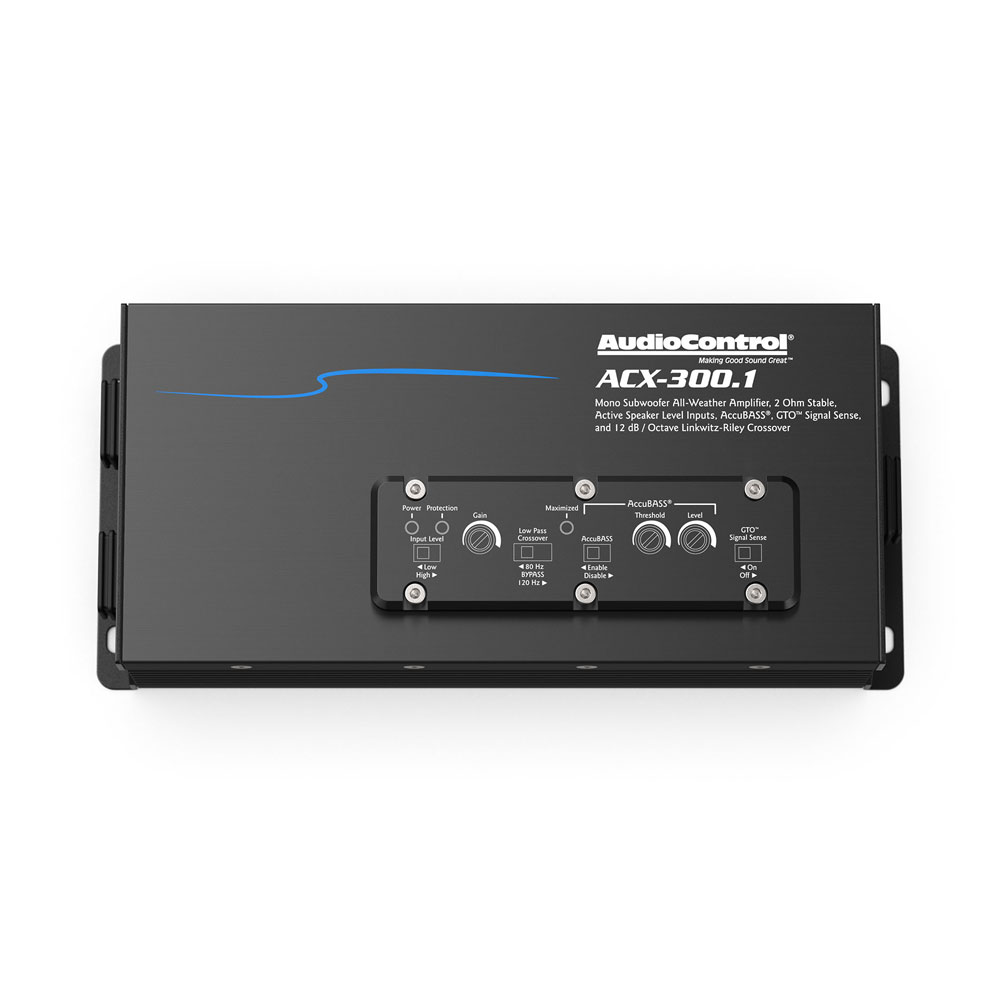

ACX-300.1 All Weather Monoblock Amplifier

AudioControl’s ACX-300.1 all-weather monoblock amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-300.1 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-300.1 all-weather monoblock amplifier the perfect solution for your next adventure.

Features

• 1 x 300 watts @ 2 ohms
• 1 x 175 watts @ 4 ohms
• IPX6 Rated
• AccuBASS® bass management
• GTOTM Signal Sense

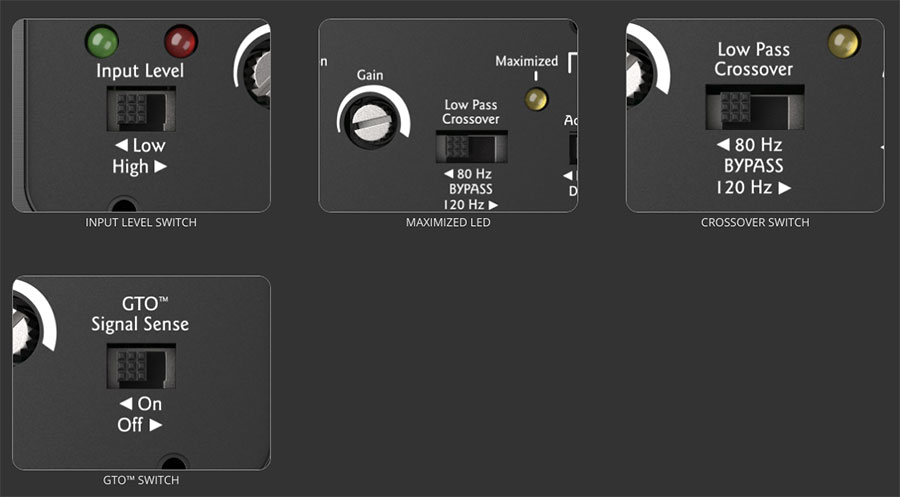

• High and low input modes
• Linkwitz-Riley Crossover

Specifications

Inputs

• Preamp/Speaker Level Inputs: 2
• Input Voltage Low: 500 mV – 6 Vrms
• Input Voltage Range High: 1 Vrms – 12 Vrms

Outputs

• Rated Continuous (RMS) Power at 14.4V:
• 4 Ω – 175 W x 1 RMS
• 2 Ω – 300 W x 1 RMS

Performance

• Frequency Response: 26 Hz – 22 kHz
• Signal to Noise: 102 dBA, Ref 50 W @ 4 Ohm
• THD+N: < 0.05%
• Crossover: 12 dB/octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
• IP Rating: IPX6

General

• Recommended Fuse Rating: 30A

Weights & Dimensions

• Dimensions: 9.0″W x 3.875″D x 2.25″H
• Weight: 7.2 lbs. (3.3 kg)

In The Box

• ACX-300.1
• Manual
