R2-S652

If you play your music loud and want others to know, the R-Series speakers are the match for you. You’ll enjoy a center sound stage with speakers that play loud and clear without distortion. The R-Series speakers are tuned with an emphasis on the high- and low-end frequencies, so they deliver power while naturally producing bright, active sound. They are the perfect power and performance match for the R-Series subwoofers and amplifiers.

The all-new 2022 line-up of R-Series speakers are all Hi-Res Audio certified and feature a frequency response up to 40kHz. For the first time, the R-Series line includes a 3-way system and you can even choose from a Professional and Standard speaker line.

The New 2022 R-Series Speakers

Alpine's Legendary R-Series Speakers enter the 3rd generation and are designed with innovative materials to deliver more output and sound simply amazing. You can choose between a professional and standard speaker line to fit your desired sound quality and budget.

2-Way Component PRO Speaker

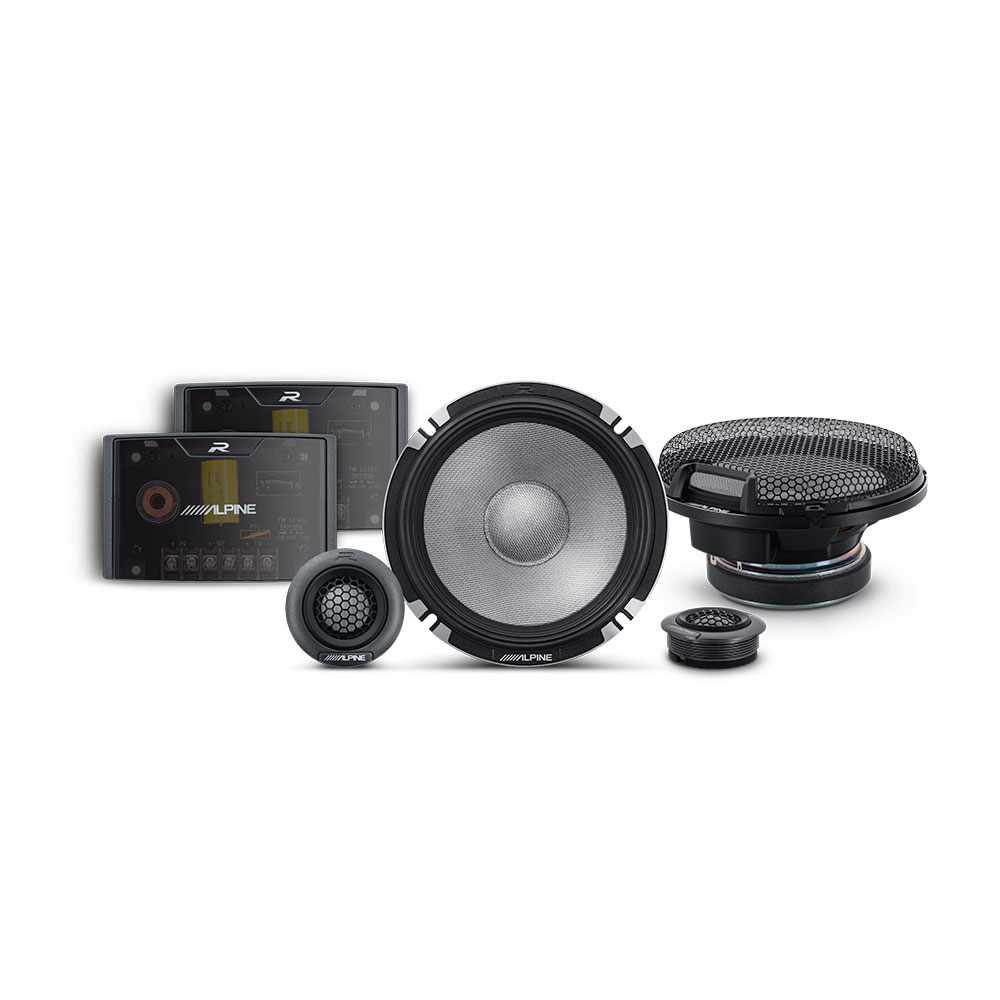

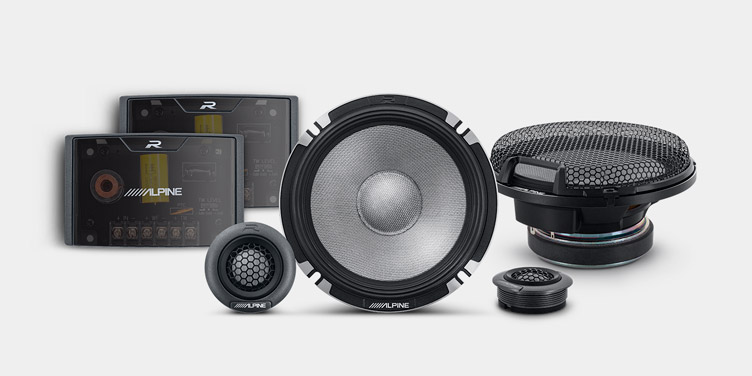

The R2-S652 is the 2-Way PRO model of the new 2022 R-Series speaker line-up. It features a 16,5cm door woofer and a 4,3cm tweeter with up to 40kHz frequency response.

Glass-Fiber Reinforced Cone

The door woofer and the mid-range speaker feature all-new glass-fiber reinforced cones. This material is very stiff and extremely light-weight, resulting in a super-fast response and highly accurate music reproduction.

Die-Cast Aluminum Basket and Large Magnets

The PRO models (R2-S635 and R2-S652) feature high-quality aluminum baskets – resulting in high stiffness and can carry heavier magnets without warping. This allowed our engineers to fit larger magnets than in previous generations (while maintaining the same mounting depth).

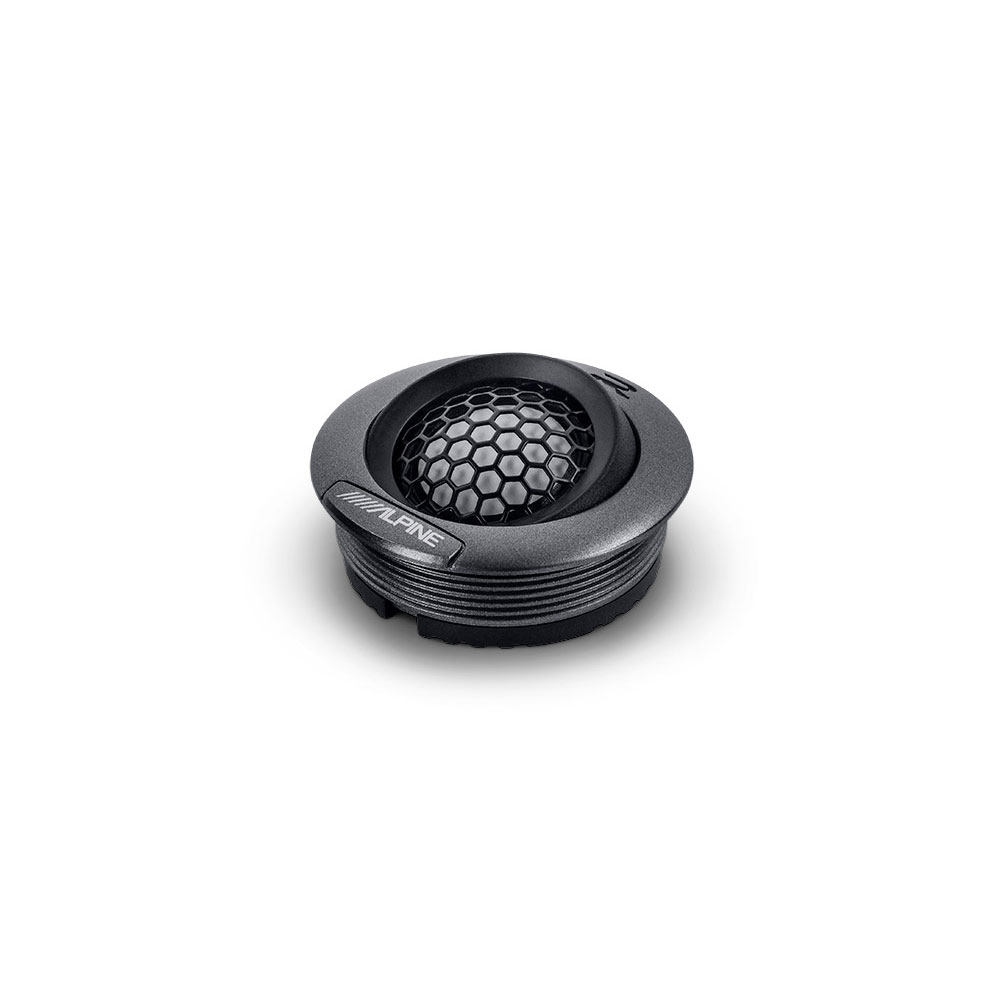

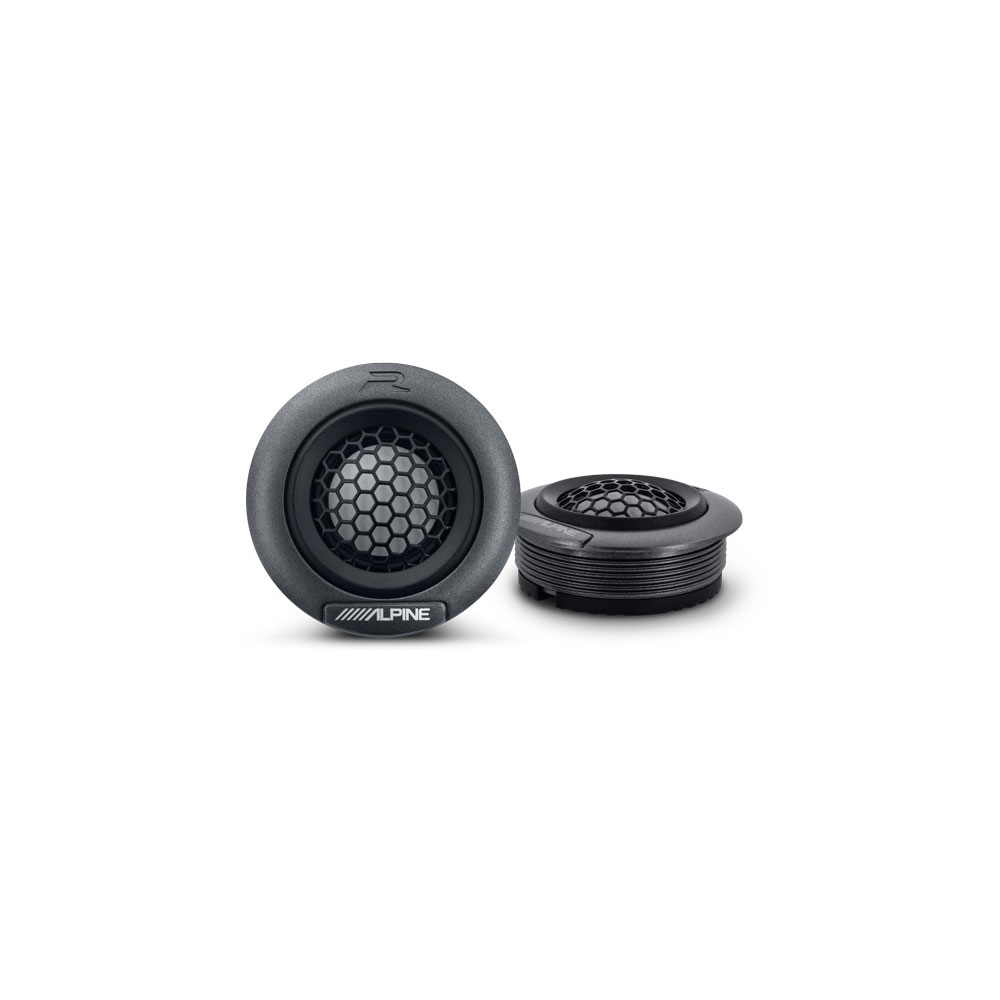

Hi-Res Audio Certified Hard Dome Tweeter

The all-new magnesium hard-dome tweeters deliver clear, detailed music reproduction and play up to 40kHz (Hi-Res Audio). You have the option to flush-mount them in their threaded housing (for example in a door panel) or use the included on-dash mounts. The tweeters can be swiveled in their housing to point them right at the sweet-spot.

Easy-Fit Tweeter in OEM Locations

You can simply remove the installation frame and the trim ring of the R-Series tweeter to minimize its overall size and diameter. The tweeter itself is then small enough to fit it in many OEM tweeter locations (inside A-pillars, mirror triangles or door panels) for a stealthy installation.

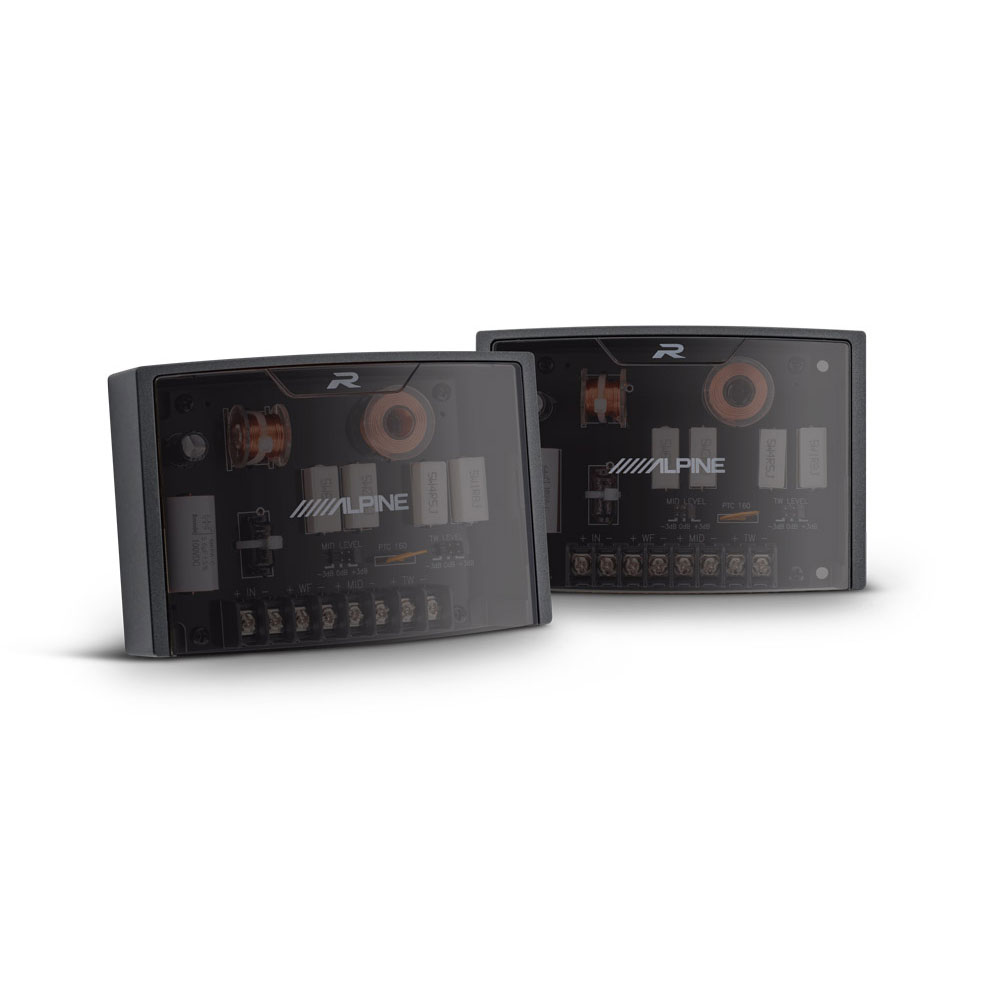

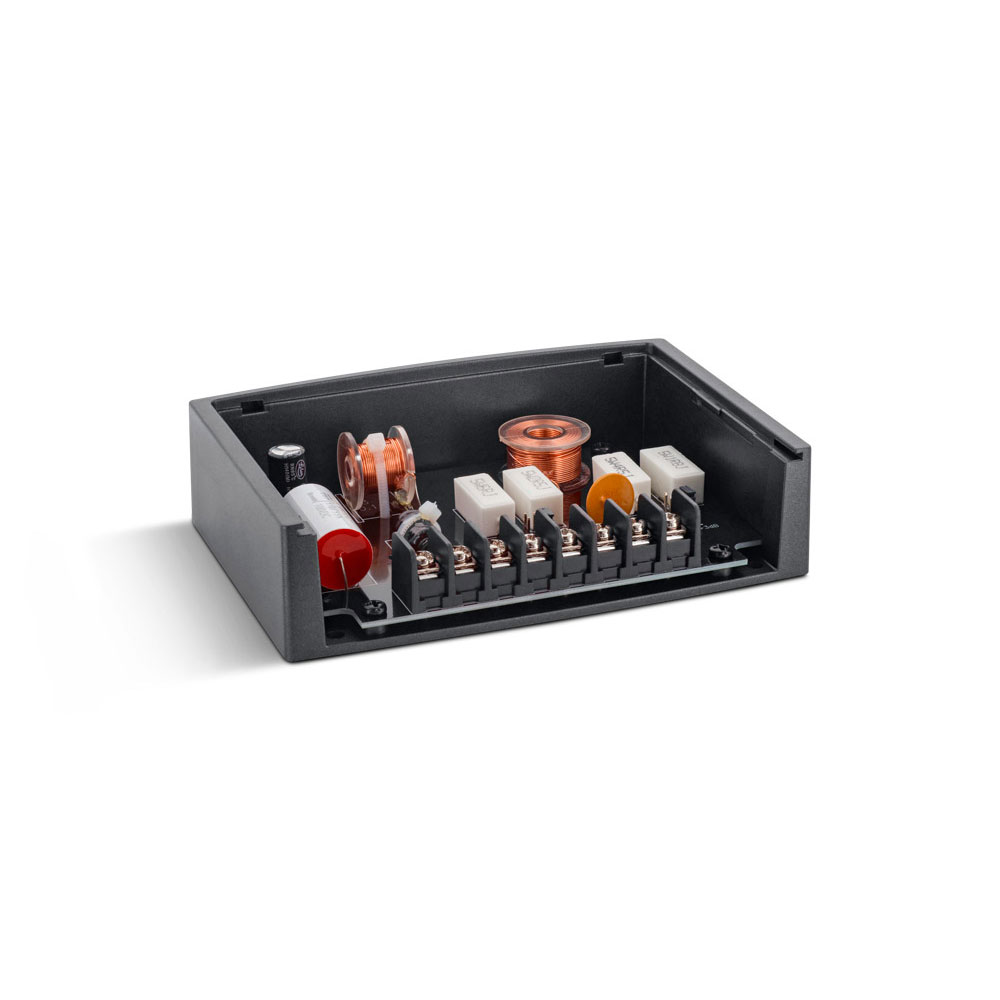

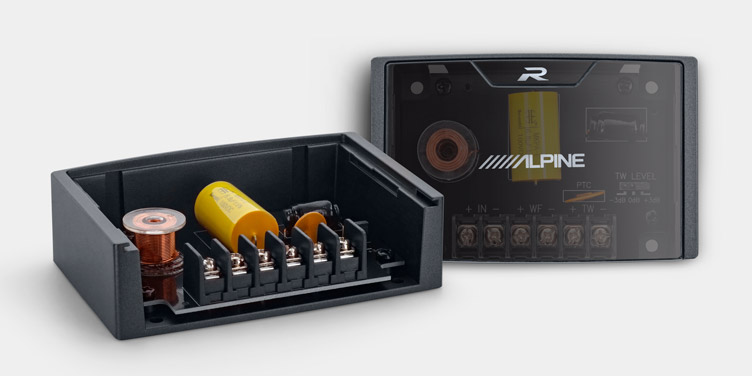

Flexible PRO X-Over Network

This large-size crossover network includes many high-quality components selected for best sound quality. You can adjust the mid-range speaker level by -3dB / 0dB / +3dB and the tweeter level as well by -3dB / 0dB / +3dB.

HAMR Surround

Alpine’s HAMR Surround (High-Amplitude Multi-Roll) allows for a maximum cone excursion, while maintaining excellent control. This results in strong bass at high volumes without distortion.

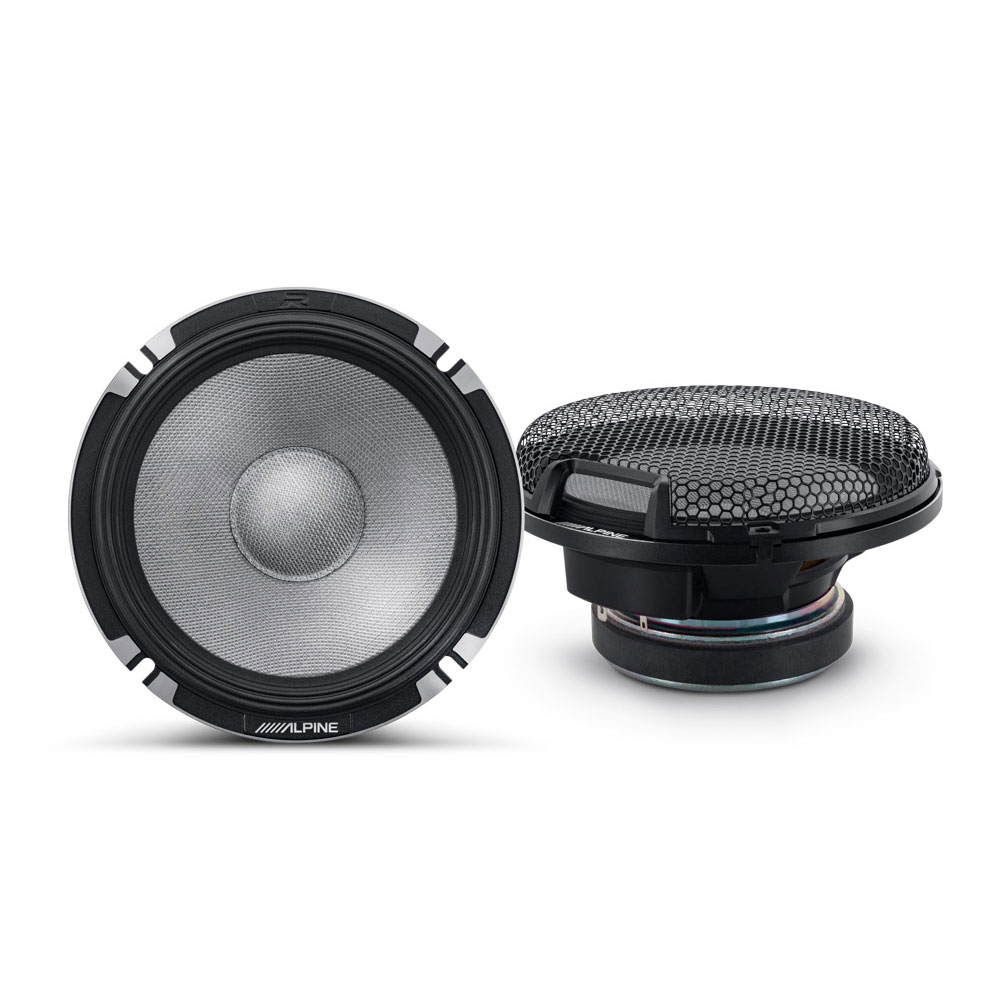

New Speaker Grills

The new speakers grills in hexagon design look very aggressive and do not increase the overall speaker installation diameter.

Features

• 16.5cm Door Woofer (2pcs) / 4,3cm Hard-Dome Tweeter (2pcs)
• Die-Cast Aluminum Baskets (Door Woofer)
• Magnesium Hard-Dome Tweeters (Flush-Mount / On-Dash Mounting Options)
• Glass-Fiber Reinforced Cone (Door Woofer)
• Flexible PRO X-Over Networks
• Included Speaker Grills

Specifications

• Maximum Peak Power: 300 Watts
• Maximum RMS Power: 100 Watts
• Nominal Impedance: 4 Ohm
• Frequency Response: 65Hz-40kHz
• Sensitivity: 88dB SPL (1W @ 1m)

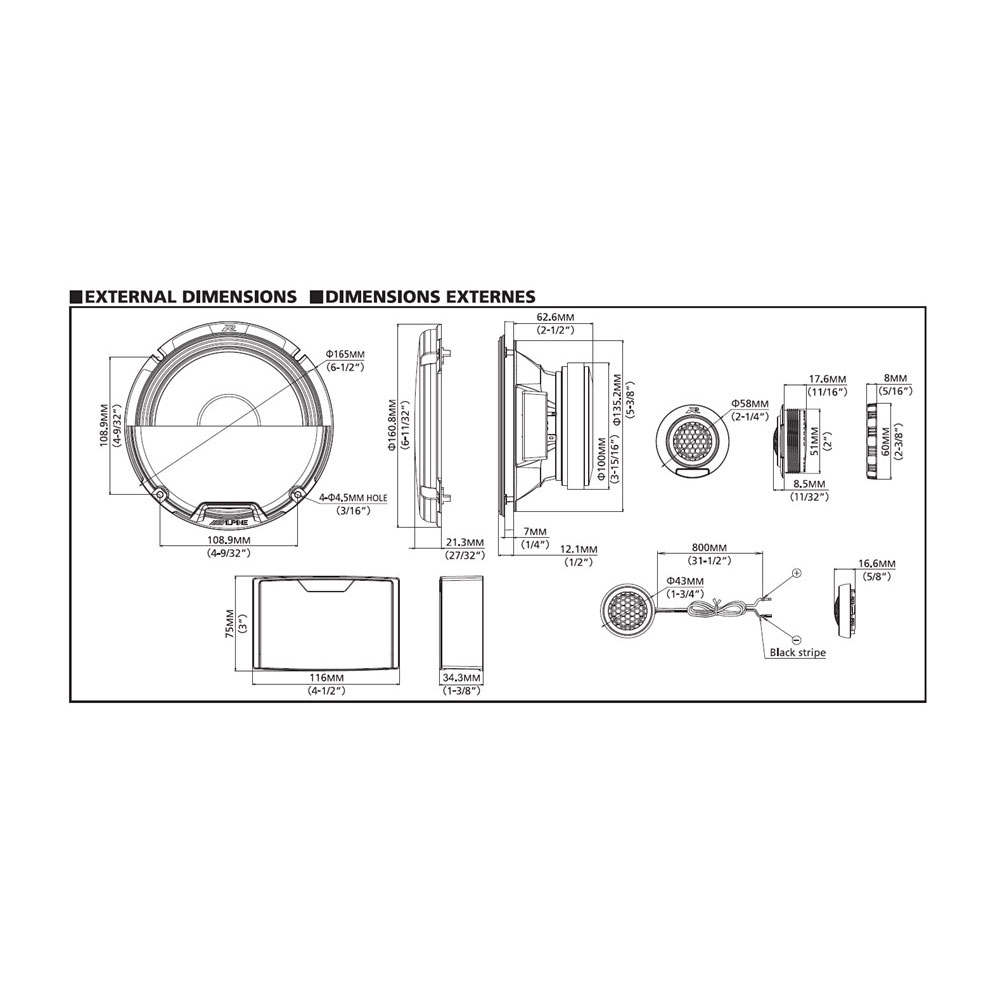

• Woofer Mounting Depth: 6,3cm
• Woofer Cutout Diameter: 13,5cm
