Package includes

• Alpine DVR-F790 Dash Cam with Docking Function 2 Channel Full HD 1080P With 32gb SD Card
• Alpine RVC-E790IR 1080p Full HD Exterior Infra-red Camera

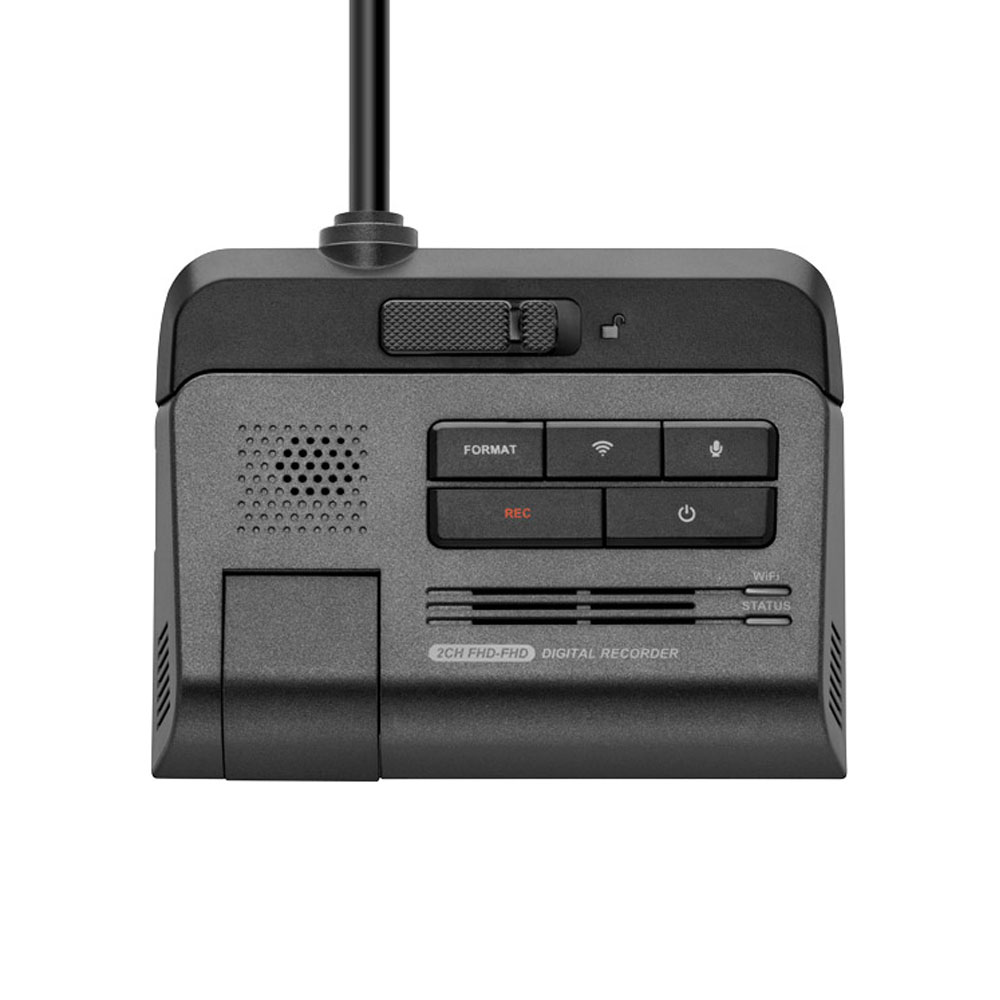

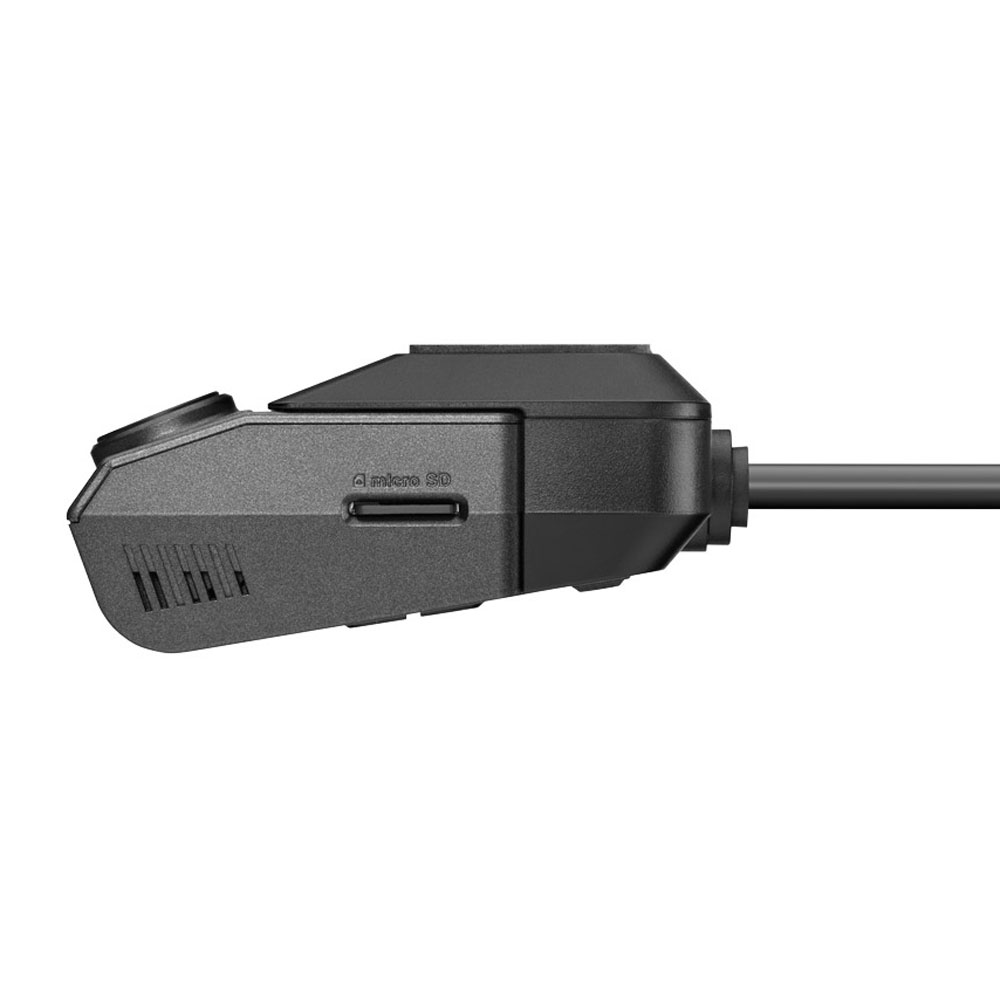

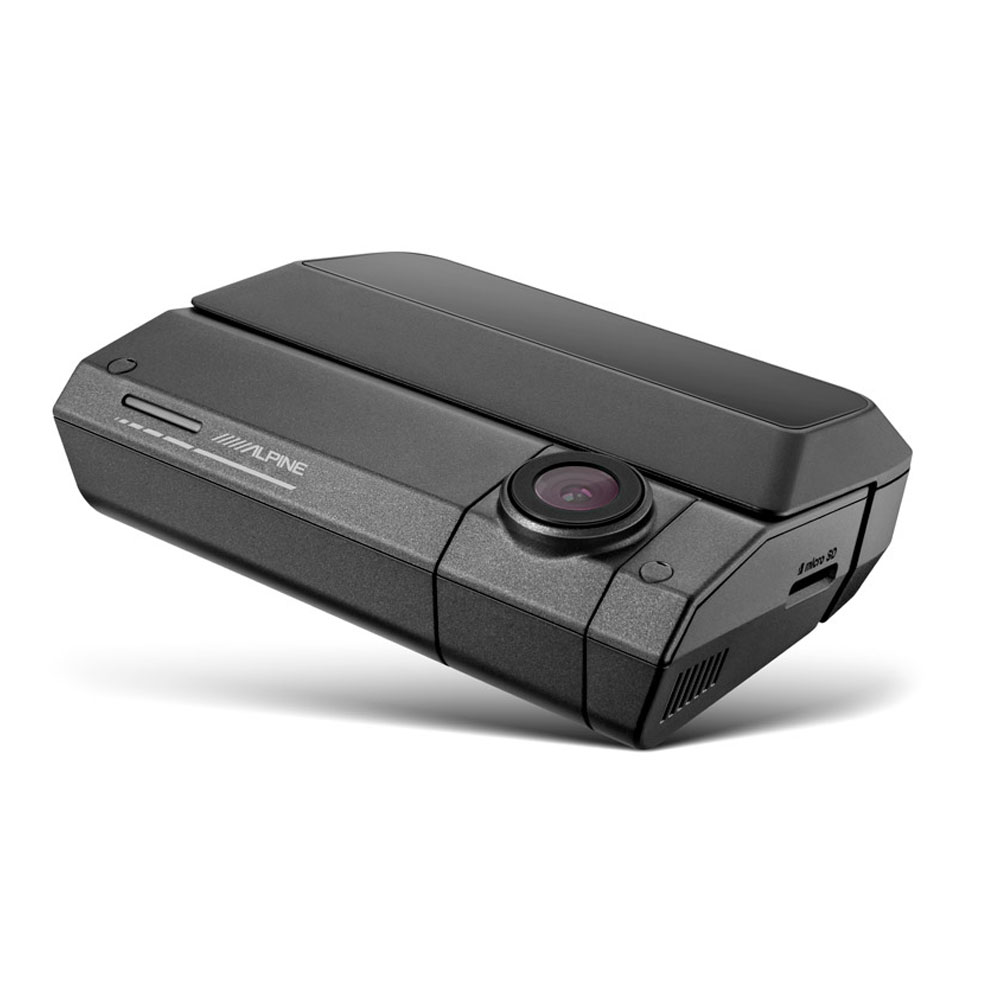

Connected Dash Cam with Docking Function

The Alpine DVR-F790 Connected Dash Cam with docking function is an excellent choice for drivers that value high quality video recordings in 1080p and often cross boarders to countries that do not allow dash cams (for example Austria). The DVR-F790 can be simply detached from its docking station at the push of a button, while the dash dock and its wires stay in place at your windshield.

When connected to an internet device such as your smartphone, vehicle WiFi or pocket WiFi the dash cam can store recorded footage in the cloud, where you can download and review videos at any time from your smartphone. You can even view live footage of the dash cam and see the vehicle’s location on a digital map.

Parking surveillance mode is automatically activated when you turn off your ignition and captures footage when a motion or impact is detected, so you have video evidence of hit-and-runs while you are away from your vehicle. You can even activate push notifications on your smartphone to be notified in case of an impact larger than 3G.

To ensure excellent recordings at day and night, the DVR-F790 is loaded with amazing technologies: for example, Super Night Vision 3.0 paired with HDR ensures recording of important details even at night, while dewarping video technology ensures that all front footage is recorded with minimal distortion.

The DVR-F790 also includes driver assistance functions, such as lane departure warnings, proximity alert and others, as well as fixed speed and red light camera warnings.

You can further expand your DVR-F790 with a wide variety of additional cameras, including a regular rear camera, infra-red exterior and interior cameras or a side camera. The dash-cam includes a 2nd recording channel, but you can even extend it up to 4 additional cameras using the Alpine RVX-100 Camera Extension Hub.

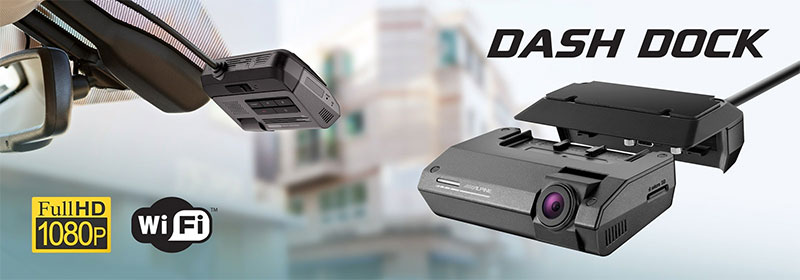

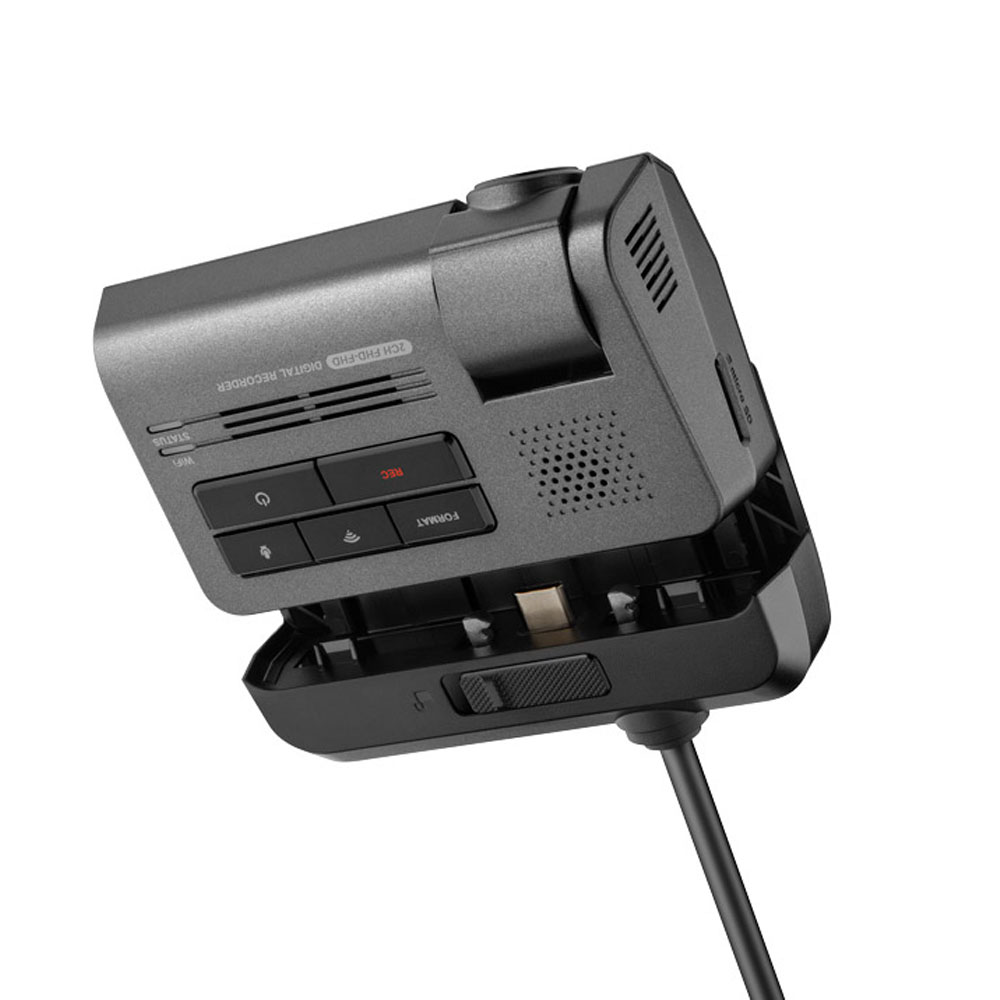

Integrated Docking System

Introducing the DVR-F790 with integrated Dash Dock, allowing for seamless detachment of the camera from the windshield to ensure compliance with local regulations in countries where dash cams are prohibited (e.g., Switzerland and Greece). Potential legal issues can be avoided, providing peace of mind during the journeys on the road.

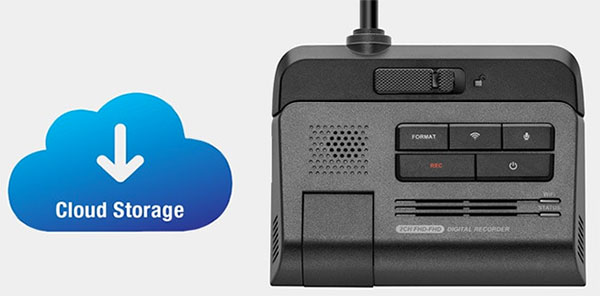

Unlimited Cloud Storage

Recordings can be seamlessly uploaded to the cloud if the DVR-F790 is connected to the internet via a smartphone hotspot or similar. Best of all: there is no limit to upload capacity. The ability to access your videos anytime, anywhere, ensures convenience and flexibility, allows the user to easily share them with insurance companies or authorities as needed. This feature requires a free Thinkware Cloud account and allows 100 times per month to view or download content from the cloud.

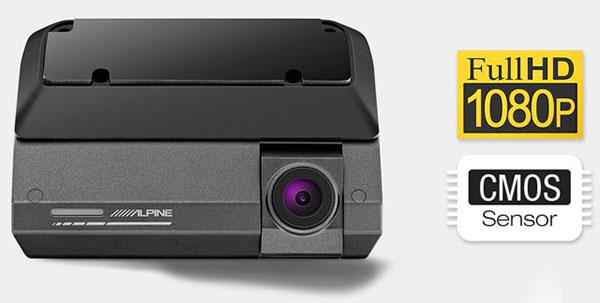

Excellent Recording Quality in Full HD

High Dynamic Range (HDR) technology ensures optimal exposure and vibrant details, even in challenging lighting conditions. Exceptional clarity during night drives is provided by Super Night Vision 3.0, allowing for enhanced night-time visibility. The expansive 140-degree viewing angle allows for a wide perspective, capturing more of the road and surroundings in 1080p Full HD. Dewarping Technology provides an accurate front view with minimal distortion of the vehicle while visual irregularities are eliminated, and the true essence of the scene is preserved.

Advanced Parking Surveillance

With Energy saving Mode 2.0 you can have parking surveillance of your vehicle for up to 17.5 days / 420 hours. If an impact to your vehicle is detected, the dash cam will wake up within 1 second and record the next 20 seconds. You will also receive a push notification to your mobile phone and you can immediately see what happened on your display. With Time Lapse, recording will be reduced to a rate of 2 frames per second, reducing the size of the file significantly.

Built-in Driver Assistance Features

The DVR-F790 comes packed with many driver assistance features such as Lane Departure Warning (when leaving the driver lane at speeds greater than 50km/h), Forward Collision Warning (when in danger of a forward collision) and Forward Vehicle Departure Warning. You can also activate Speed and Red-light Camera Warnings. All warnings can be individually disabled if not needed.

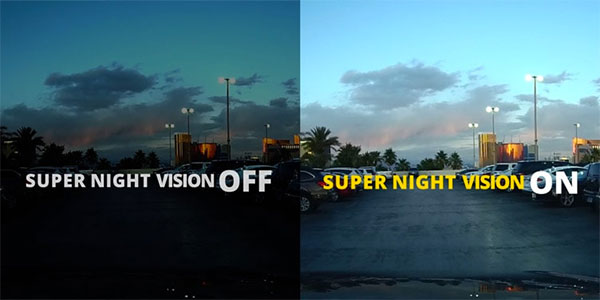

Super Night Vision 3.0

Ideal for late night drivers, the DVR-F790 comes equipped with Super Night Vision 3.0 technology, which boosts exposure levels in low light conditions and enhances video brightness so you don’t miss important details while recording at night.

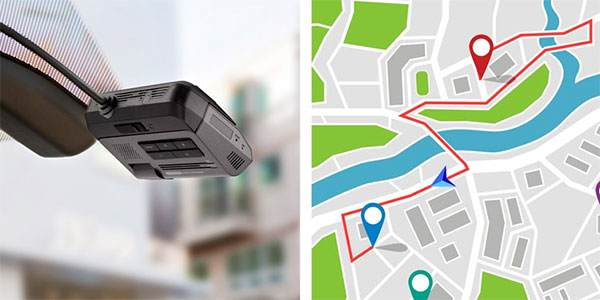

GPS Driving Data

Using GPS data in a dash cam, it can precisely pinpoint the vehicle’s location and routes with its driving speed on the map. GPS helps you accurately assess the status of the accident by providing you with the vehicle speed, the direction of the collision and the severity of impact. The DVR-F790 not only records driving footage but can also be used to track and recall past driving routes.

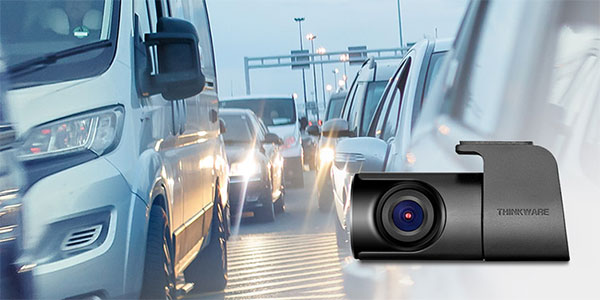

Rear Camera Expansion

Alpine offers a rear-view accessory camera (RVC-R790) that simultaneously records the traffic through your rear window. This gives you an extra layer of security while driving, as well as in parking surveillance mode. When recording in 2-channel mode, you get around 2 hours of recording time in 1080p using the supplied 32GB micro SD card, until non-event footage is overwritten. With an optional 128GB card, this can be extended to 498 minutes.

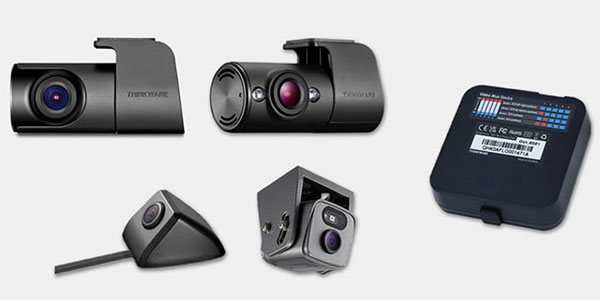

Build a Full Vehicle Surveillance System

If you connect the optionally available RVX-100 Camera Extension Hub to the rear recording channel of the DVR-F790, you can add up to 4 additional cameras to create a full vehicle interior / exterior surveillance system. Check the tab below called “Recommended Accessories” to see the full overview of regular, infra-red and side cameras available to configure a system that is just right for your needs.

Features

Camera

• CMOS 2.1M 30fps HDR
• 2 Channel Full HD 1080P (1920 X 1080)
• 140° (Diagonal) Viewing Angle
• Dewarping Video Technology
• Super Night Vision 3.0

Package Contents

• Main dash-cam unit
• Dash Dock
• Hard-wire cable
• Adhesive cable holder (3ea)
• 32GB Micro SD memory card with adapter (consumable)
• Quick Start Guide / Warranty Card

Specifications

Capacity

• Micro SD Card 32GB (Included)

Recording Modes

• Continuous Recording
• Incident Recording
• Manual Recording
• Parking Recording (parking mode) with Energy Saving Mode 2.0
• Audio Recording

Driver warnings and alerts

• Lane Departure Warning System
• Forward Collision Warning System
• Front Vehicle Departure Alert
• Speed Camera / Red-light Camera Warning

General

• 3-Axis Accelerometer G-Sensor (3D, ±3G)
• Built-in GPS
• Built-in Wi-Fi (2.4 GHz)
• Input Power: DC 12/24V Built-In Super Capacitor
• Interface: GPS Receiver port, DC-In, AV-In, Micro SD Card slot

Dimension

• W x D x H: 92 x 53 x 30 mm, including dash dock 92 x 71 x 34 mm
• Weight: 78g, including dash dock 169g

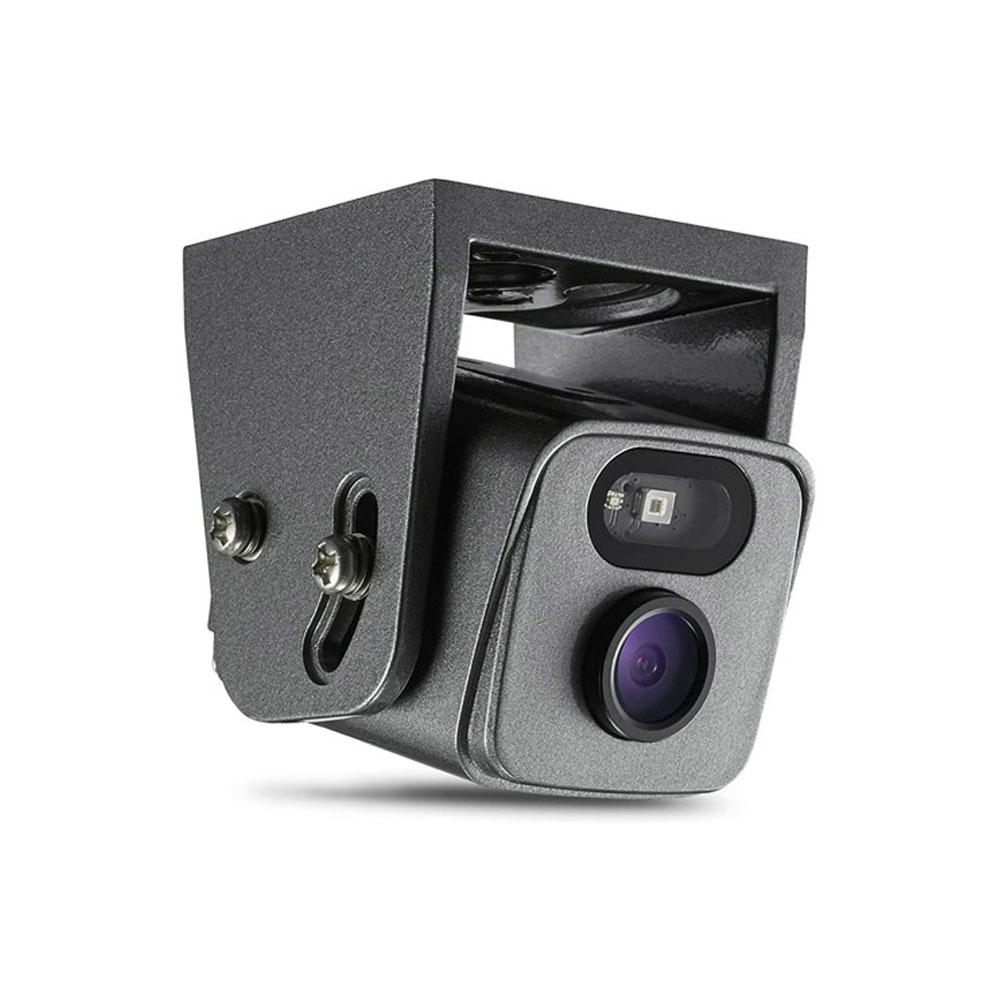

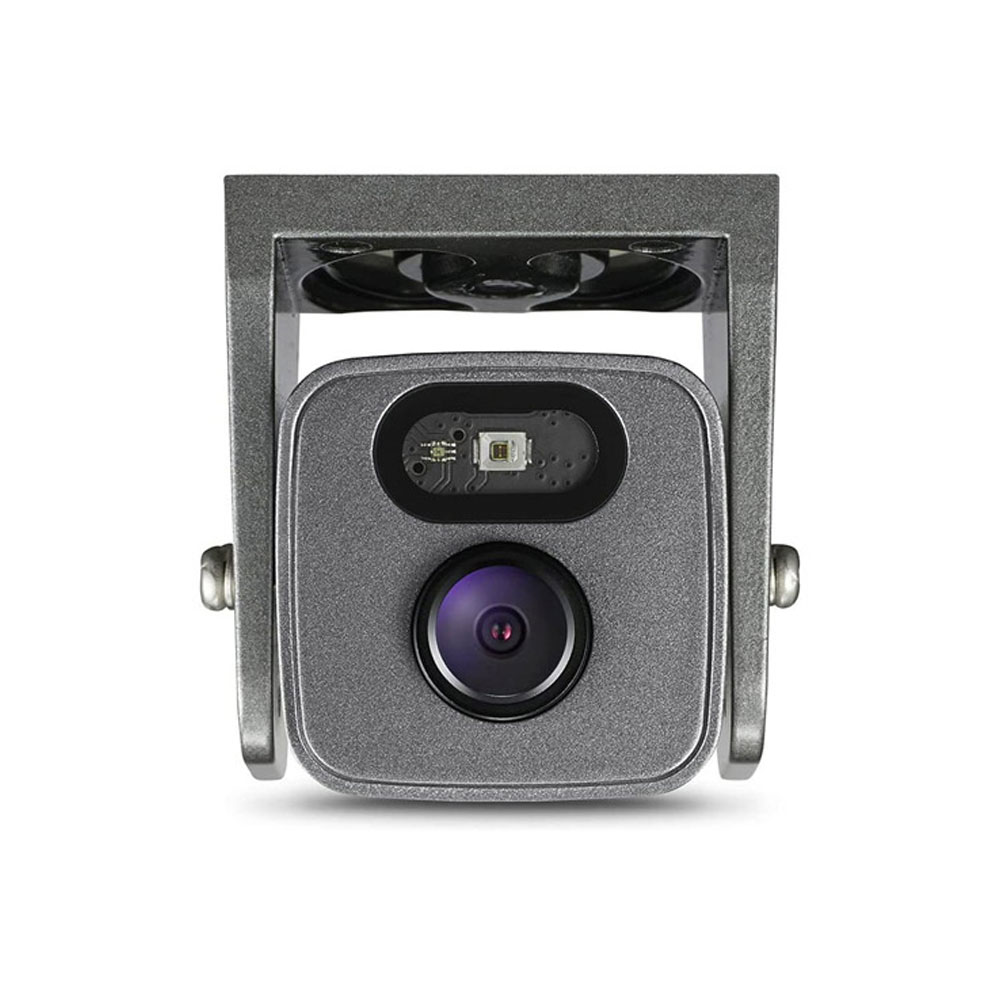

Alpine RVC-E790IR 1080p Full HD Exterior Infra-red Camera

The Alpine RVC-E790IR exterior infrared camera accessory is the perfect addition for motorhome owners or commercial drivers who need an externally mounted recording solution that can not be accomplished with a traditional dash cam. The exterior infrared camera can be paired with the DVR-F790 or the RVX-100 camera extension hub to record an additional angle in clear Full HD video resolution. Its built-in IR light is powerful enough to record footage in extremely low-light conditions, while its IP68-rated body allows it to withstand harsh weather conditions.

Key features:

• Clear video recording: captures footage in high-quality 1080p Full HD video resolution
• Waterproof and dust-proof: rugged IP68-rated body that is both waterproof and dust-proof, allowing it to withstand harsh weather
• Capture clear and detailed footage even at night time: the built-in infrared light (IR wavelength 940nm) illuminates the immediate surrounding and allows the camera to record details that are invisible to the human eye in dark conditions. During daytime, the exterior infrared camera records with accurate color and balance
• Compatible with Alpine RVX-100 camera extension hub: the exterior infra-red camera can be added to the camera hub accessory as part of a multichannel recording system and provide additional coverage where desired

Specifications

General

• Resolution: Full HD (1920 x 1080)
• Camera: 2.12 MP Pixelplus
• IR Wavelength: 940 nm
• IR Intensity:150 mW/sr @700 mA
• Frame Rate: 30 fps
• Viewing Angle: 126° (Diagonal)
• Current Consumption: 208 mA (IR ON), 166 mA (IR OFF)
• Dimensions (WxDxH): 53.2 x 43.1 x 51.3 mm
• Weight: 106.0 g
• Cable Length: 2.0 + 20.0 m
• Operating Temperature:   -10°~ 60°C
