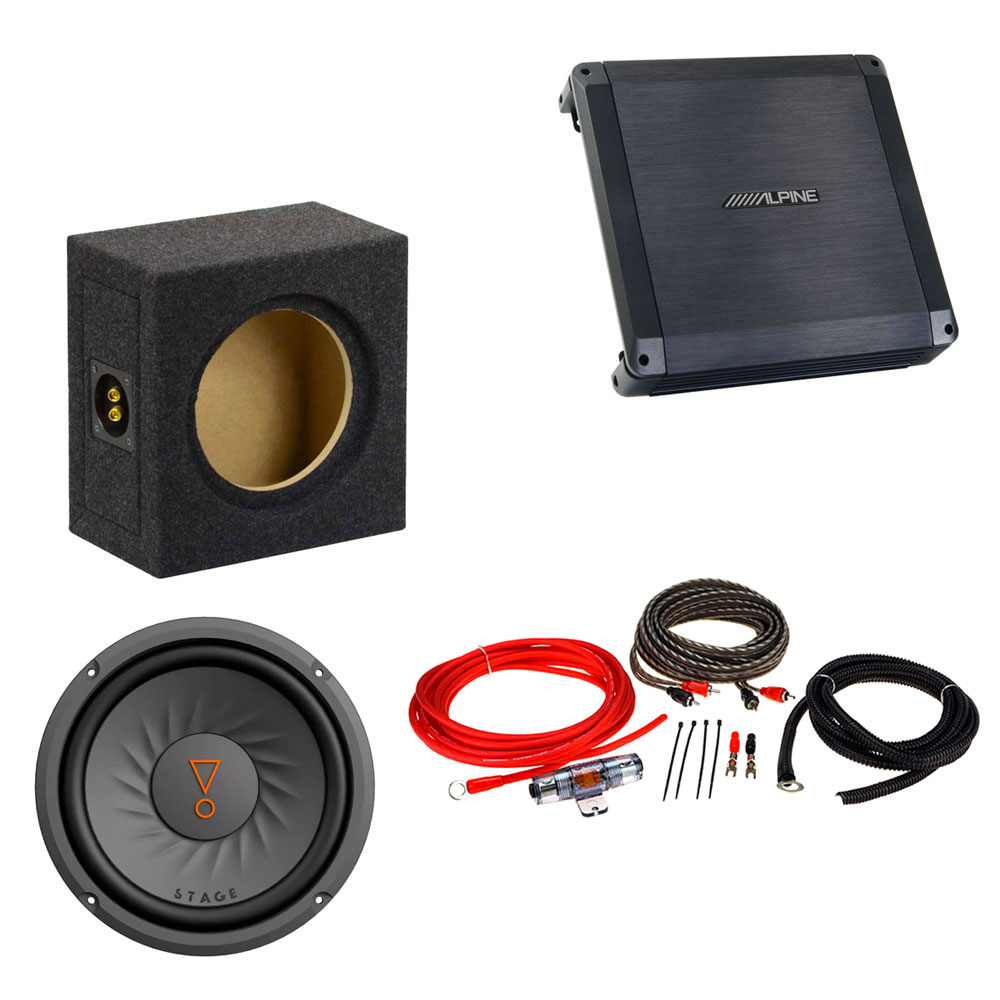

Package Includes

• Alpine BBX-T600 BBX Power Class A/B Amp 2 Channel Car Amplifier 300W
• JBL Stage 82 8" 200mm 800W Single 4 Ohms Subwoofer Bass Car Driver
• Incartec SUBBOX-T5 VW Transporter T5 8 Inch Under Seat Subwoofer Box (MDF)
• Phoenix Gold ZXK10 7AWG 600W 10mm2 CCA Power Amplifier Wiring Kit

Designed for Europe

This new BBX amplifier gives you Alpine power performance at an amazing price. And they’re designed to fit easily in virtually any system.sherlock

High Power, Great Value

This amp delivers high output power and exceptional performance for their class. A great way to expand your sound system on a limited budget.

High Pass and Low Pass Filters

These two filters let you set the frequency points for the high, mid and bass ranges to match your speakers and ensure optimum efficiency.

Bass EQ for Best Bass

Performance With Bass EQ, you can maximise the performance of your system and get even more powerful bass.

Alpine BBX-T600 Features

Install

• Terminal Layout: Two-Sided
• Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals

General

• Amplifier Type: Class-A/B
• Channel Design: 2/1 Channel
• Thermal Control: Thermal Management Control
• Power Supply: DC-DC PWM Power Supply
• Power Supply Design: MOSFET Power
• Current Protection: Over-Current, Over-Voltage and Thermal Protection
• Crossover: Variable Low-Pass / High-Pass
• Green/red Status LED
• 1 pair RCA pre-inputs
• 1 pair RCA pre-outputs

Specifications

Max Power Output Ratings

• Total Max Power: 300W

RMS Power Ratings

• Per Channel into 4ohms (≤1%THD+N): 2 x 50W
• Per Channel into 2ohms (≤1%THD+N): 2 x 70W
• Bridged into 4ohms (≤1%THD+N): 1 x 130W

Sound Tuning

• Crossover Frequency (Variable, OFF/LPF/HPF Selectable)
• 1/2 Ch: LP: 50Hz – 250Hz   HP: 80Hz  – 1.2kHz
• EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain  0dB to +12dB

Dimensions

• Footprint: 250 mm x 52 mm x 240 mm

General

• Power Requirements: 14.4 V DC (11 V to 16 V)
• Input Sensitivity: 0.2 - 8.0 V
• Frequency Response: 5 Hz - 50 kHz (+ 0,-3 dB)
• Speaker Impedance: 4 or 2 Ω
• Signal to Noise: S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB
• Weight: 1.9 Kg

InCarTec SUBBOX-T5 VW Transporter T5 8 Inch Under Seat Subwoofer Box (MDF)

VW T5 8 Inch (8 Litre) Under Seat Subwoofer box (MDF)

MDF carpeted sub woofer box for a 8 inch sub woofer. 8 litre volume. Speaker wire connection port

We recommend to pair this enclosure with our 8 inch Blam subwoofer, BL-R8EL

Product Specifications

• Board MDF
• Fabric Grey Melange
• Speaker size 8"/20cm
• Mounting hole diameter (mm) 182
• Undercut diameter (mm) 222
• Subwoofer depth (mm) 32
• MAX magnet diameter (mm) 182
• Volume closed enclosure (liters) 8
• Weight (kg) 4.70
• Enclosure width (mm) 305
• Enclosure height (mm) 295
• Enclosure depth (mm) 185

Stage 82

Price leading JBL Stage car subwoofers were engineered to deliver high-output, low-distortion bass with power handling capability of up to 1000 watts peak power. (Available in three sizes—8" (200mm), 10" (250mm), 12" (300mm)—for every size vehicle from compact to limo.) These subwoofers feature lightweight yet stiff polypropylene woofer cones with hi-roll rubber surrounds to provide high-efficiency and super durability to best interface with a variety of amplifiers. Finally, our subwoofers and loudspeakers are individually voiced by some of the world's best transducer engineers to ensure we achieve the signature sound that is unmistakably JBL.

General Specifications

• Power Handling 200Wrms, 800W peak
• Sensitivity (@2.83V) 88dB
• Frequency Response 38Hz - 200Hz
• Voice Coil Diameter 1.5 in. (38.8mm)
• Impedance 4 ohms

Whats In The Box

• 1 x Subwoofer
• 1 x Foam gasket
• Owner’s manual
• 2x two-color brand stickers

Phoenix Gold ZXK10 7AWG 600W 10mm2 CCA Power Amplifier Wiring Kit

Phoenix Gold now releases its own cable kits. The ZXK10 series includes CCA (Copper Clad Aluminium) cable. Paired with a twisted pair RCA cable, this ZXK10 kit will be a perfect complement to your Phoenix Gold power amplifiers or any power amplifier for that matter.

Features

• Complete set for audio systems up to 600 watts
• Premium 10mm2 CCA power and ground cable for optimal power transfer
• Nickel-plated connections for maximum corrosion resistance
• Incl. twisted RCA cable 5.2m
• Original Phoenix Gold Accessories

Contains

• 1 x 5.2m 10mm2 CCA Red Power Wire
• 1 x 0.8m 10mm2 CCA Black Ground Wire
• 1 x 5.2m Twisted RCA Cable
• 1 x 1.8m Split Loom Tubing
• 1 x Fuse Holder and Fuse
