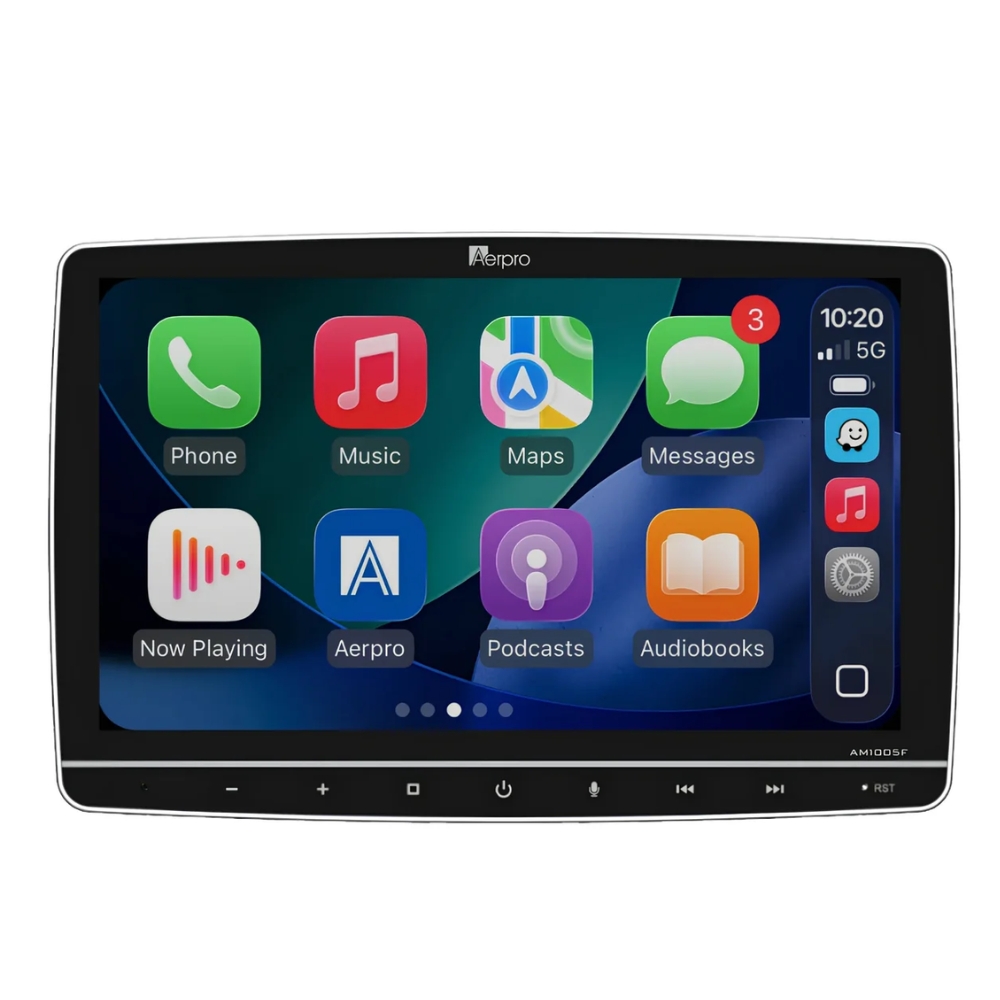

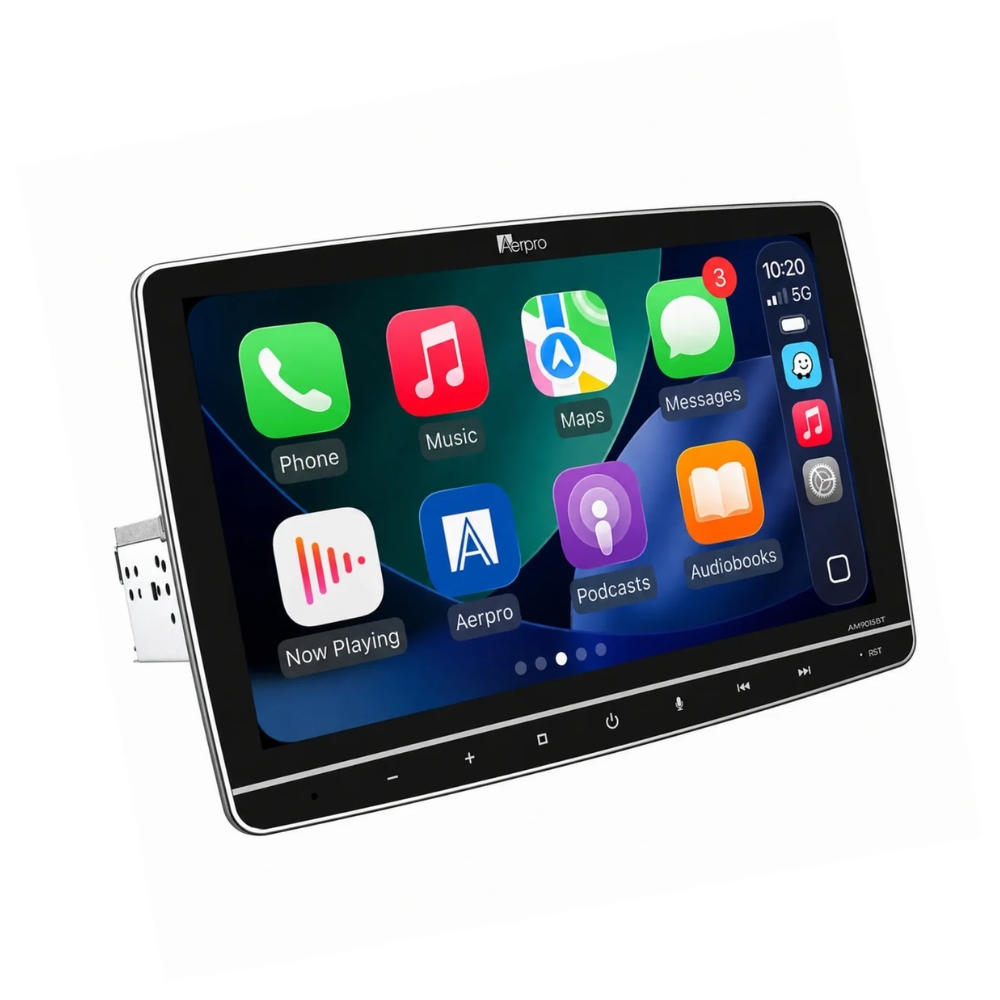

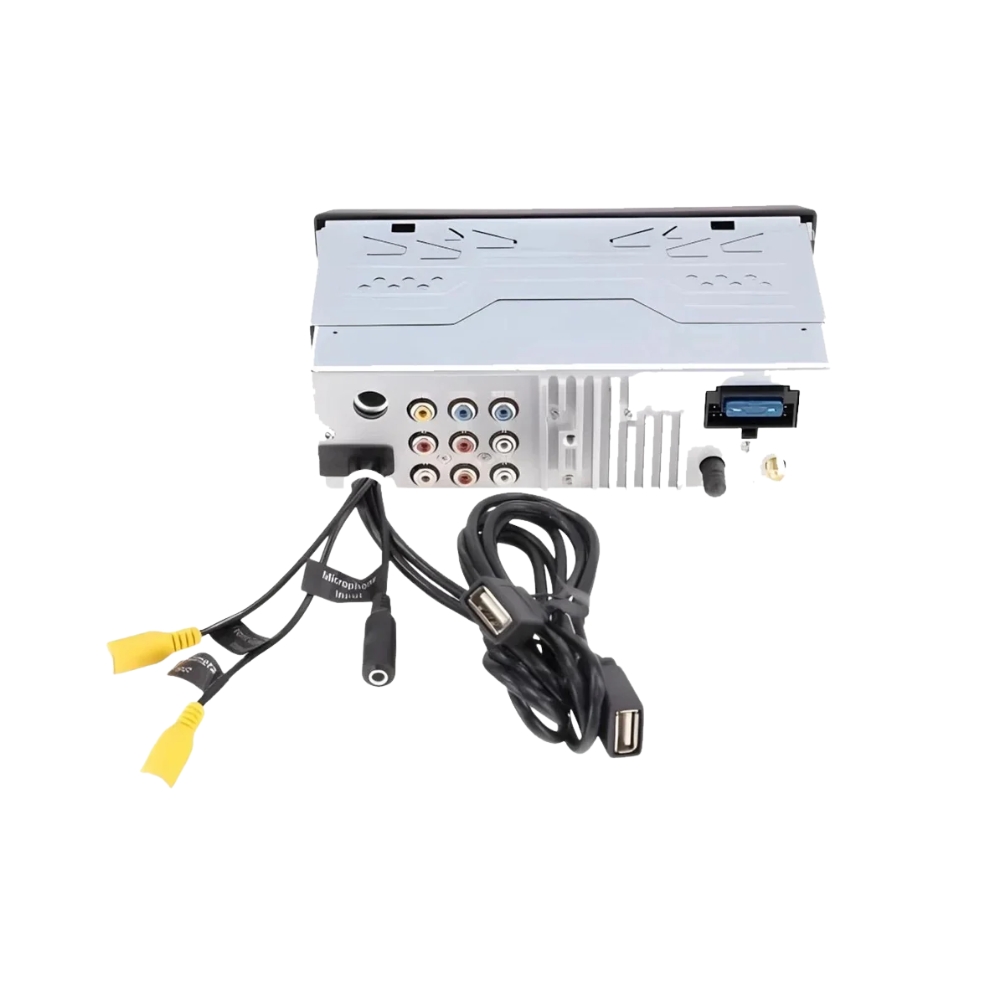

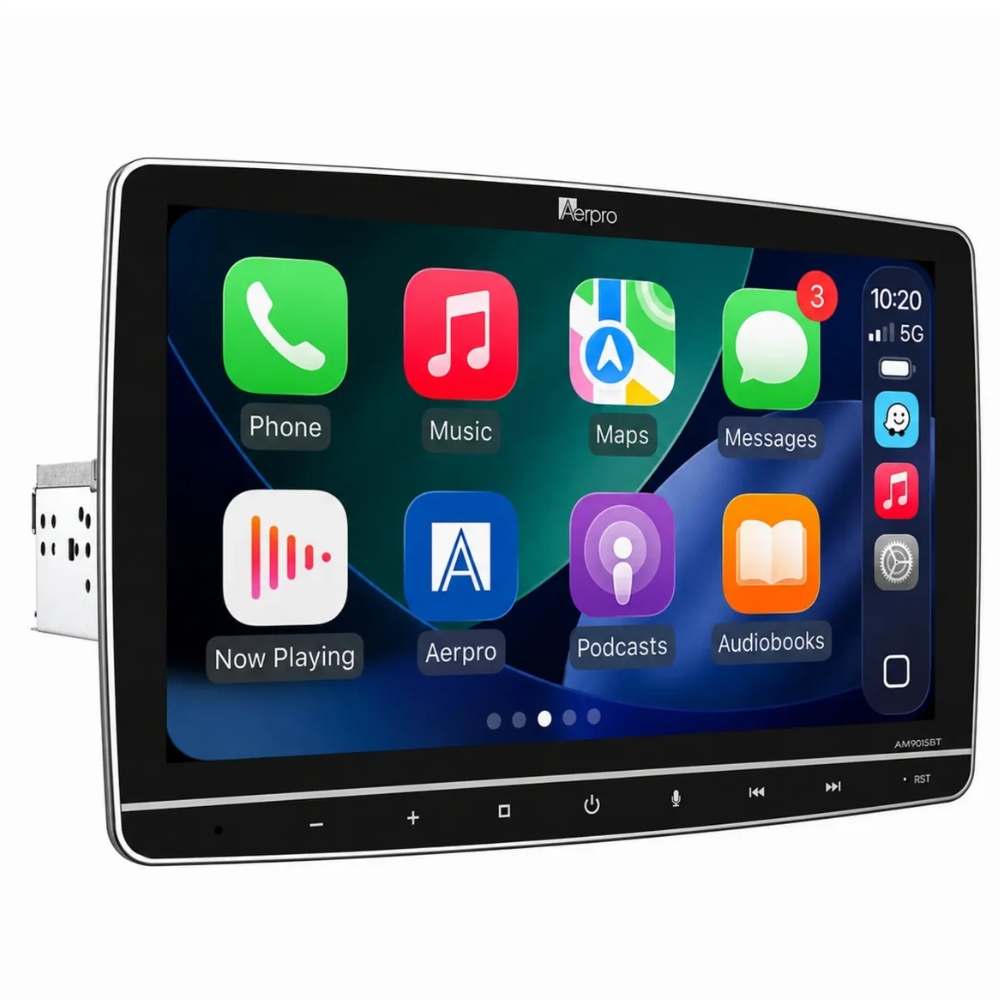

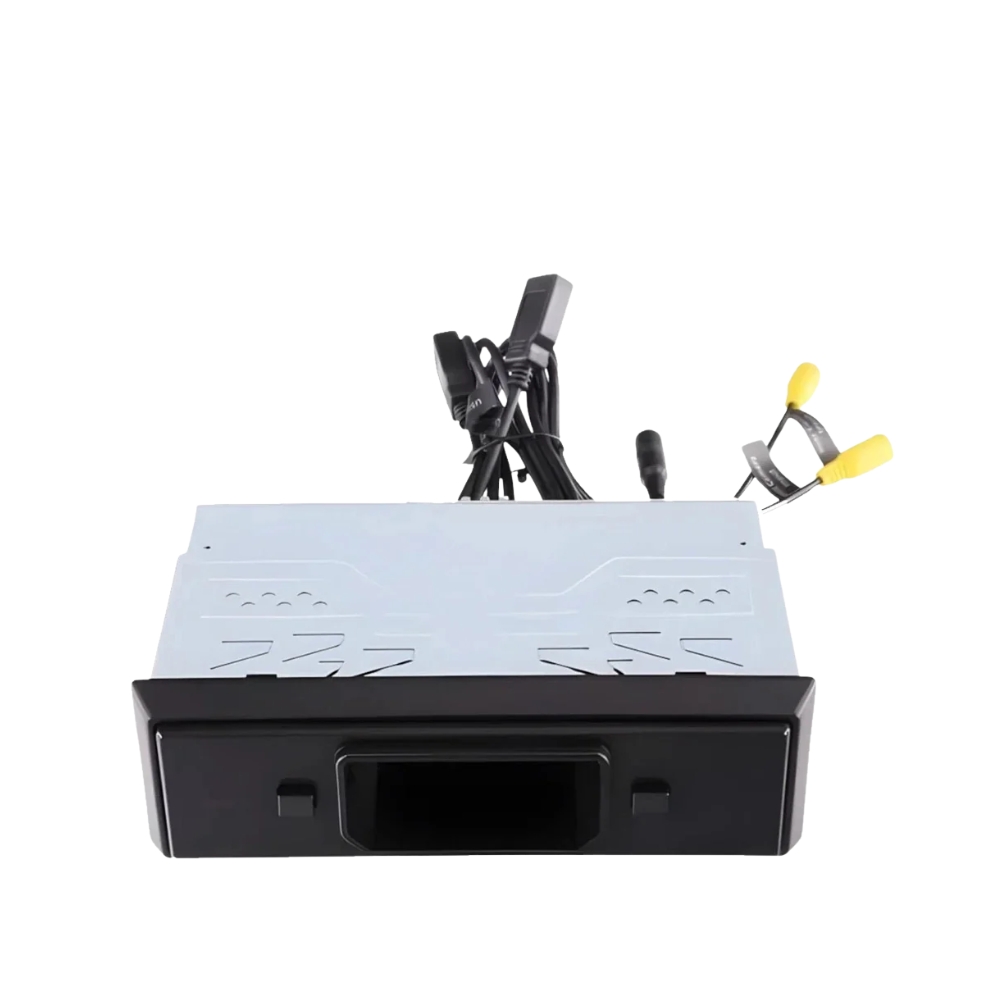

AM1005F 10.1" FLOATING MULTIMEDIA RECEIVER WITH WIRELESS APPLE CARPLAY & ANDROID AUTO

The Aerpro AM1005F 10.1" Floating Multimedia Receiver delivers a powerful combination of style, functionality, and connectivity for modern drivers. With its large 10.1-inch capacitive touchscreen floating display, this unit offers a premium in-car multimedia experience.

Equipped with wireless and wired Apple CarPlay & Android Auto, the AM1005F lets you seamlessly access navigation, calls, messages, and entertainment using voice commands or the responsive touchscreen. Whether you're navigating, streaming your favourite music, or catching up on messages, hands-free operation keeps you focused on the road.

Bluetooth connectivity enables hands-free calling and wireless audio streaming, while dual rear USB inputs support smartphone integration and media playback. The AM1005F also supports dual camera inputs compatible with AHD 720P cameras - ideal for reverse, towing, front, or side views (cameras sold separately).

For audio enthusiasts, the AM1005F delivers powerful performance with 4 x 50W max output, 6-channel 4V RCA preouts, a 10-band graphic EQ, time alignment, and dedicated subwoofer level control - allowing for crystal-clear sound and deep audio customisation.

The adjustable floating screen offers manual tilt (±25°), swivel (±15°), and height adjustment (±45mm) to achieve the perfect viewing angle and minimise glare. Seven control buttons, and six-colour key illumination (with animation effects) enhance both usability and aesthetics.

Designed for versatility, the universal single-DIN chassis makes the AM1005F suitable for a wide range of vehicles. An ISO harness connection and steering wheel control readiness simplify integration (additional vehicle-specific parts required, sold separately). It also includes a GPS receiver to enhance navigation accuracy with CarPlay or Android Auto, and an external microphone for clear voice communication.

Whether you're upgrading for smarter connectivity, safer driving, or premium sound, the Aerpro AM1005F is the ultimate all-in-one solution.

Main Features

• 10.1" Floating Capacitive Touchscreen Display
  • Provides a large, modern interface that's easy to see and intuitive to control.
• Wireless Apple CarPlay & Android Auto
  • Instantly access maps, music, calls, and messages without plugging in your phone.
• Bluetooth Hands-Free Calling & Audio Streaming
  • Keeps you connected and entertained without taking your hands off the wheel.
• Adjustable Display (Tilt / Swivel / Height)
  • Customise the viewing angle to suit your driving position and reduce glare.
• Dual Camera Inputs (AHD 720P Compatible)
  • Add reverse, towing, or front cameras for extra safety and convenience (cameras sold separately).
• High-Power Audio with Advanced Tuning
  • 4 x 50W Max power output
  • 6-channel 4V RCA preouts
  • 10-band equaliser (EQ)
  • Time alignment and subwoofer control for clear, powerful sound
• USB Media Playback Support
  • Play music, videos, and photos directly from a USB drive in popular file formats.
• Universal Single-DIN Chassis
  • Fits a wide range of vehicles with simple integration (additional accessories may be required).
• Touch Controls Multi-Colour Key Illumination
  • Easy-to-use controls with customisable lighting to match your vehicle's interior.

LCD Display

• Size: 10.1"
• Resolution: 1024 x 600
• Screen Adjustment:
  • Tilt: ± 25 Degrees
  • Swivel: ± 15 Degrees
  • Height: ± 45mm

General Specifications

• Operating System: Linux
• DIN Size: 1 DIN Body (Single DIN)
• Power Output: 4CH x 50W (4 Ohm) MAX Power

Media Playback

• MP3 / MP4 / MKV / FLAC / Xvid

USB Inputs

• USB1 (Rear): Apple CarPlay / Android Auto with Charging Function (5V / 1.5A)
• USB2 (Rear): Media with Charging Function (5V / 1.5A)
• USB MAX Capability: FAT32 / 32GB

Aux Inputs / Outputs

• Rear A/V Input (RCA Type - 3pcs): Yes
• Composite Video Output: Yes
• Reverse Camera Input: Yes (720P AHD Compatible)
• Second Camera Input: Yes (720P AHD Compatible)

Smartphone Connectivity

• Apple CarPlay: Wireless and Wired
• Android Auto: Wireless and Wired

Bluetooth

• Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
• Bluetooth Version: V4.2+EDR
• Microphone: External Microphone
• ID3 Tag/Information (Artist, Album, Song): Yes
• HFP Profile: HFP 1.6

Tuner

• AM/FM Presets: AM: 10 / FM: 10
• FM Frequency Span: 87.5-108.0MHz (0.05MHz Step)
• AM Frequency Span: 522-1710KHz (9KHz Step)
• RDS: Yes

RCA Preamp Outputs

• RCA Preamp Output: 2-Pair (Front / Rear)
• Dual Subwoofer RCA Output: Yes
• Subwoofer Level Control: Yes
• Preamp Voltage: 4V p-p

Tone Control

• 10 Band EQ: 32/63/125/250/500/1K/2K/4K/8K/16K
• Loudness: Yes
• LPF - Frequencies (Sub): Yes
• Preset EQs: 6
• Time Alignment: Yes

Other Features

• Steering Wheel Control: Yes, with Aerpro SWC Adaptor (Sold Separately)
• OSD Language: English
• LED Colour (Buttons / Keys): 6-Colour Options (Red, Yellow, Green, Blue, Purple, White)

Inclusions

• Main Unit with Detachable Display
• Single DIN Metal Frame & Hardware
• Wiring Harness with ISO Connection
• 3 Wire Learning SWC Lead
• External Microphone with Mount
• GPS Antenna with Adhesive Pad
• QR Digital Manual Leaflet
