ACV 42XBM009 Steering Wheel Interface CAN Bus 40 Pin With PDC Support For BMW & Mini
- Stock Status: In Stock
- Item Condition : New
- Available QTY : 10
- Brand: ACV
- Model: 42XBM009
- EAN: 7427288182458
- Warranty: 1 Year Warranty
Available Options
Description
Steering wheel control interface for BMW/Mini vehicles, designed to retain factory steering wheel functions when upgrading to an aftermarket head unit. This 40-pin Quadlock CAN/PDC adapter ensures reliable integration of vehicle signals and supports key OEM functions.
Features:
- Steering wheel control retention: Keeps original BMW/Mini steering wheel buttons functional with aftermarket radios.
- CAN bus integration: Supports ignition, lighting, reverse, speed, and ground signals.
- Quadlock 40-pin connection: OEM-style plug for direct, clean installation.
- Multilead output: 3.5mm jack / loose wire connection for steering control input.
- PDC support: Retains parking sensor tones where supported by vehicle.
- Stable signal communication: Ensures proper interaction between vehicle and head unit.
Product Compatibility Chart
| Make | Model | Varitions | Years | Notes |
| BMW | 1 Series |
E82 (2011 > ) | 2004 - 2013 | E81, E82, E87, E88 |
| BMW | 3 Series | 2005 - 2013 | E90, E91, E92, E93 | |
| BMW | 5 Series | 2003 - 2010 | E60, E61 | |
| BMW | 6 Series | 2004 - 2010 | E63, E64 | |
| BMW | 7 Series | 2001 - 2008 | E65, E66 | |
| BMW | Mini | 2006 - 2015 | R55, R56, R57, R58, R59 | |
| BMW | X1 | 2009 - 2015 | E84 | |
| BMW | X5 | 2007 - 2013 | E70 |
Compatibility depends on factory audio system (standard or OEM MOST). Vehicles with fiber amplifier may require additional MOST interface (e.g., 42xbm012).
Retained functions
- Steering wheel controls (volume, track, mode depending on head unit)
- PDC / parking sensor tones
- CAN signals: ignition, lighting, reverse, speed, handbrake

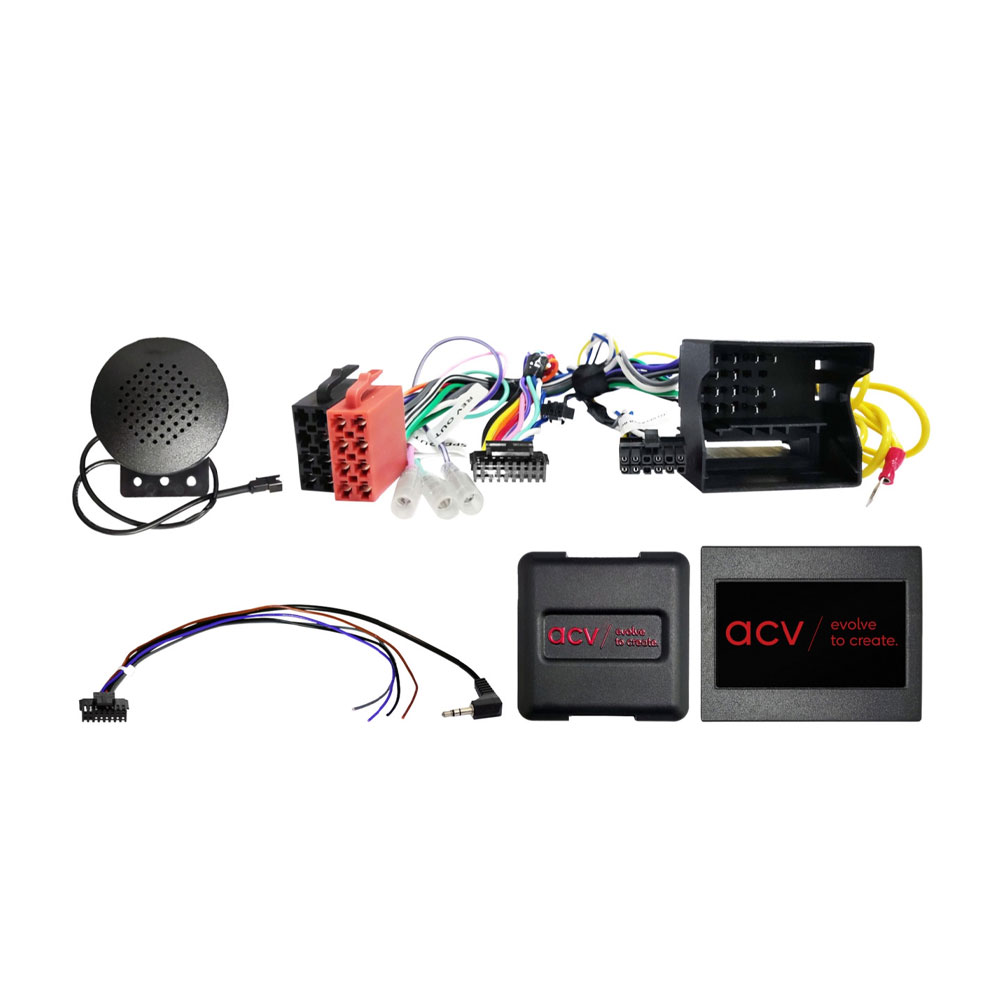

Included in the kit
- 40-pin BMW Quadlock CAN interface
- Multilead steering control cable (3.5mm jack / loose wire)
- Power and signal wiring harness
Installation notes
- Confirm Quadlock 40-pin compatibility before installation
- MOST-equipped vehicles may require additional adapter
- DIP switch configuration required per aftermarket radio
- Professional installation strongly recommended
- Test all functions before final assembly
Disclaimers
- Features may vary depending on vehicle year, trim, and software version
- Aftermarket head unit compatibility affects button mapping
- Output current limit: 250 mA max
- Any wiring modification may void product warranty
What's Included
- 42XBM009 Steering Control Adaptor
- FREE Stereo Patch Lead
Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare case "modification" is necessary.
Please make sure that is the correct Steering Control Adaptor for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the connection in the picture listed is the same as you have in your vehicle. If in doubt please email us with your vehicle details and we will confirm what you require.
