Car audio steering wheel control and BOSE retention interface for select Nissan car models with 6 function audio controls on the steering wheel and 20 pin connectors at the back of the radio. (Does not include the i button)

The cable adapts from the 20 pin Nissan connector (the connector has a larger size terminal at either end of the connector) in the car to standard aftermarket ISO connectors. This replaces the need for a separate ISO radio replacement adapter cable.

This interface will allow the original audio control buttons on the steering wheel to work with the new aftermarket radio. The interface will work the volume, track skip, source and phone buttons. (6 function steering wheels)

This interface fits cars with the newer 20 way car audio connector that has two larger size terminals at either end of the connector. These radios will also have an additional smaller connector, this is used for CD changer and navigation audio. It is not used when changing the head unit.

The amplifier interface included with this product converts the high level audio output of a new head unit to a low level pre amplified signal which will work with the factory fit Nissan BOSE amplifier.

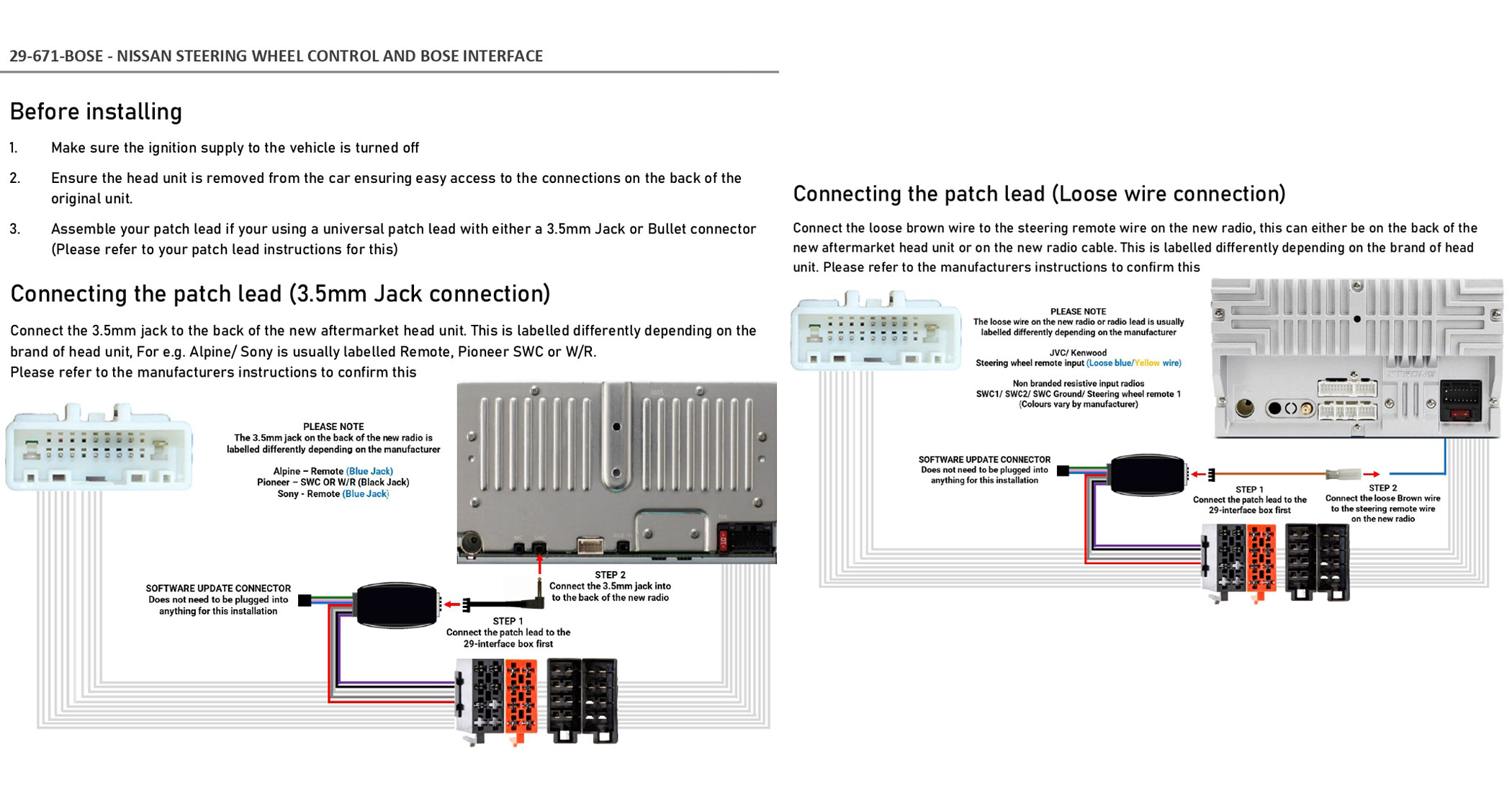

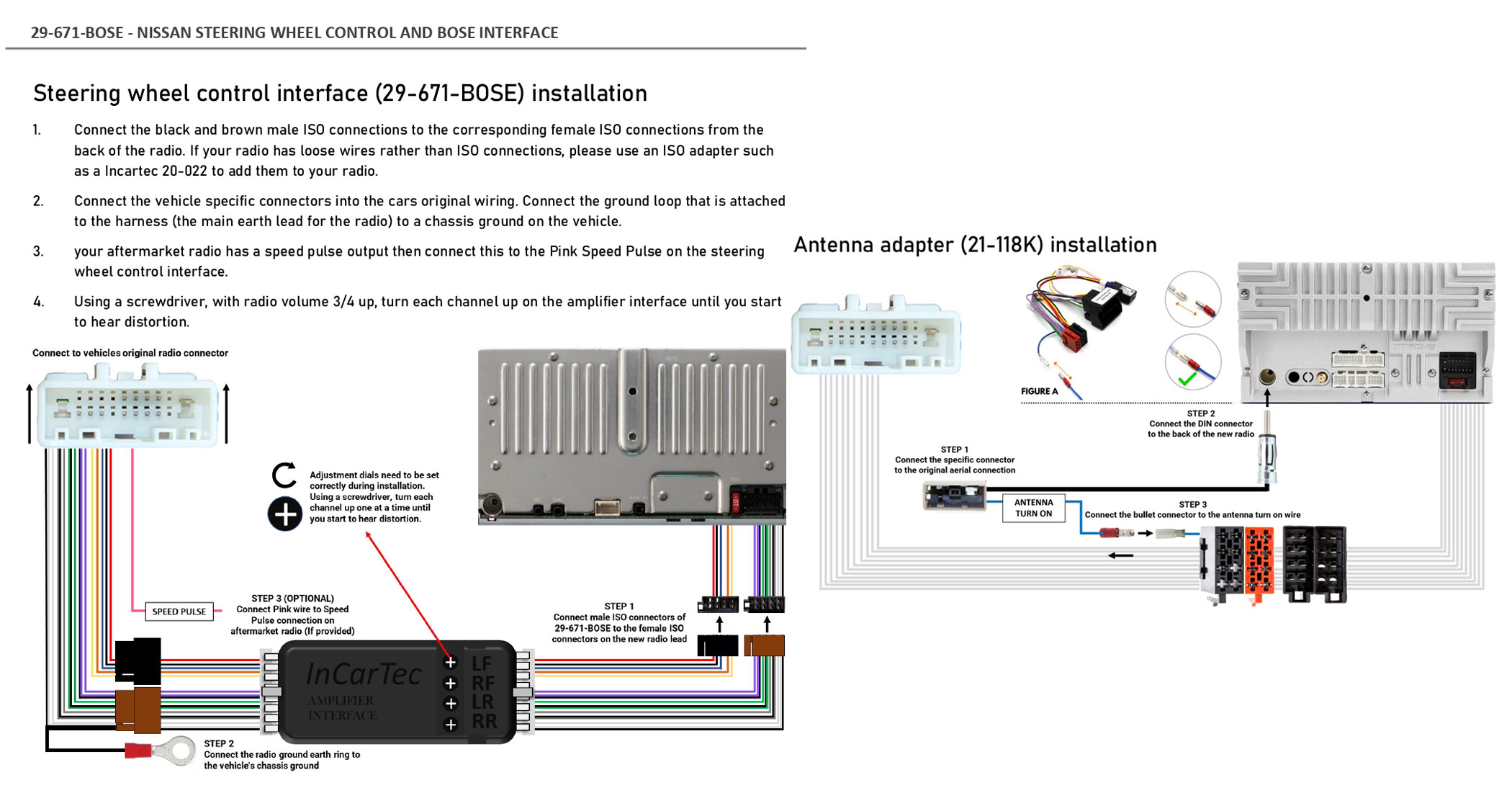

Installation Notes

• Connect male ISO(S) of the steering wheel control interface to the female ISO(S) of the aftermarket radio lead/head unit
• Loose black wire - Connect the radio ground earth ring to the vehicles chassis ground
• Loose pink wire - Connect the pink wire to the speed pulse connector on the aftermarket radio (Not all radios have this, please check manufacturers instructions)
• Loose blue wire (Antenna turn-on) - This needs to be connected to the antenna turn on cable on the antenna adapter cable. We would recommend using our interface with a Nissan antenna adapter With male bullet connection, our part number 21-118K

Compatibility Notes

• Qashqai 2007-2013 cars with original Nissan Connect sat nav (Double DIN navigation radio) and BOSE audio. Not compatible for Qashqai cars with original dash top navigation screens.

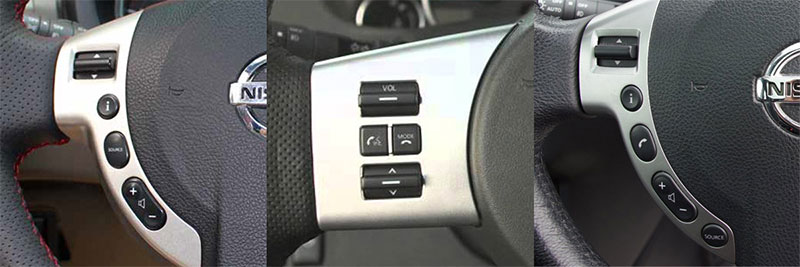

Below are examples of 6 function steering wheels.

What's Included

• 29-671-BOSE Steering Control Adaptor
• Stereo Patch Lead

Works with the following brands

• Alpine
• Clarion
• JVC
• Kenwood
• Pioneer
• Sony

Patch lead INCLUDED  for the steering controls depending on the make of radio being fitted.

TECHNICAL NOTE:

• CAR AUDIO FITTING ACCESSORIES ARE SOLD WITH LIMITED INSTRUCTIONS.
• SOME KNOWLEDGE OF CAR AUDIO INSTALLATION IS HELPUL IN CASE A MODIFICATION IN SOME RARE CASES MAY BE NECESSARY OR NEEDED.

IMPORTANT NOTE

• China Branded Headunit, please make sure your unit has 3 wires for connecting the patch lead to the car stereo that you are installing.

• Please make sure that is the correct Steering Control Adaptor for your vehicles by firstly checking to see if your make, model and year of car is listed in the advert. Secondly by checking to see if the connection in the picture is the same as you have in your vehicle. If the connection in the car is different from what you see in the picture then this adaptor is NOT suitable.

We try to provide upto date information. If you are unsure about the model number please feel free to contact our customer service and we will be happy to help you selecting correct stalk adaptor for your car.
