Volkswagen Sony Mechless Bluetooth USB iPhone iPod Car Stereo Upgrade Kit
- Stock Status: Out Of Stock
- Item Condition : New
- Available QTY : 0
- Brand: Sony
- Model: DSX-A410BT + FKIT-VW-01
- Other Part #: 38446
- EAN: 7427282689793
- Warranty: 2 Years Warranty
Description

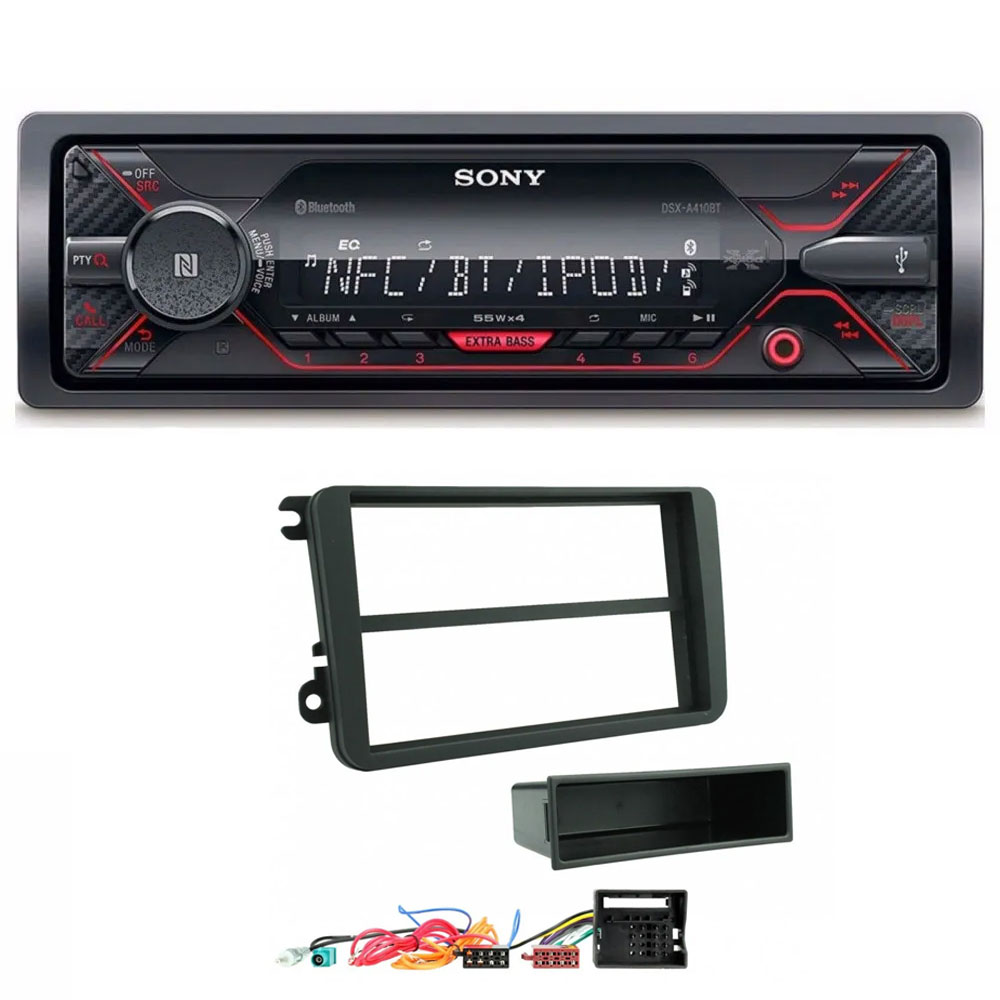

Package Includes
- Sony DSX-A410BT Mechless Digital Media Receiver Bluetooth USB iPhone iPod Car Stereo
- VW Fascia Panel Adaptor
- VW Wiring Harness Adaptor Lead
Product Compatibility Chart
Make | Model | Years | Notes |
Volkswagen | Caddy | 2003 - 2010 | |
Volkswagen | Eos | 2006 - 2016 | |
Volkswagen | Golf | 2003 - 2013 | |
Volkswagen | Jetta | 2005 - 2011 | |
Volkswagen | Passat | 2005 - 2015 | |
Volkswagen | Polo | 2009 - 2014 | Only suitable with Dashboard in Picture below |
Volkswagen | Scirocco | 2006 - 2010 | |
Volkswagen | Touran | 2006 - 2010 | |
Volkswagen | Vento | 2010 - 2019 |
Note:
To use as a double din fascia the middle bar needs to be cut.
For Polo the dashboard should look like this
Please Note: You will need to connect the red wire to the ignition supply in the fuse box.
There is an Aerial Adaptor also included with the Wiring Adaptor.
Please Note
- Red wire has to be connected to a separate ignition feed in the vehicle to make aftermarket head unit to power up
- Orange cable requires connection to illumination wire but only if the radio requires this for dimming purposes at night.
- Blue wire needs to be connected to the Remote Antenna or ignition supply wire (if rem ant wire not available) on back of car stereo.
Please Note
- When connected your new stereo may not power up, and this is no fault of the wiring harness purchased.
- Audi / VW / Skoda / Fiat and other vehicles tend not to have an ignition switched live feed.
- In these cases it is necessary to manually connect a spurred live feed from fuse box for example to feed switched power so the new stereo turns on and off with the key.
- The wire in particular on the new wiring harness will be the red wire.
Sony DSX-A410BT Mechless Digital Media Receiver Bluetooth USB iPhone iPod Car Stereo
Size & Weight
- Dimensions (W X H X D) 178x50x119mm
- Weight 0.7kg
General Features
- USB (Front)
- AUX (Front)
- EQ (EQ10)
- High Pass Filter (80 / 100 / 120)
- Low Pass Filter (80 / 100 / 120)
- Subwoofer Direct Connection (Easy)
- Extra Bass (1,2)
- Output Power 4 x 55W
- PRE Out x 2 (Rear + Sub)
- SUB Out
Tuner Features
- Preset FM18 / AM12
- RDS / EON
Panel Design
- Display Color (Color Variation / Negative Or Positive) Black colour / Negative
- Display Device (LCD / FL / OEL / TFT) LCD (with Acryl)
- Key Illumination Red
iPhone / iPod Music Playback Control via USB
- Pause
- Repeat All / Track
- Resume
- Shuffle Off / Track
Bluetooth Features
- Built-In Microphone
- MIC Gain Adjustment (Low / Mid / Hi)
- Version Bluetooth Version 3.0
Bluetooth Audio Features
- Audio Codec SBC, AAC
- Audio Level Adjustment (-6dB - +6dB)
- CUE / REV
- Pause (Bluetooth Audio)
- Track +/-
USB Mass Storage Device Control Features
- Jump Mode
- Compatible File Formats (Codec) MP3, WMA, FLAC
- List Browse
- USB Device Control (Pause)
- USB Device Control (Repeat) ALL / TRACK / ALBUM
- Resume
- Shuffle Off / Album / Device
USB Profile
- USB Mass Storage Device
- USB Media Transfer Protocol
- USB Android Open Accessory Protocol (2.0)
What's In The Box
- Trim Ring (Collar): Black (Not Painted)
- Panel Case
NO CD MECHANISM
Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification" may be necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
Technical | |
Size | Single DIN |
Plays | MP3, WMA, FLAC |
Max. Power Output | 4 x 55W |
Radio Data System | Yes |
Bluetooth | Yes |
iPod Ready | Yes |
Aux In | Front Aux In |
USB | Front USB |
Pre Out | 2 RCA Pre Out (Rear + Sub) |
