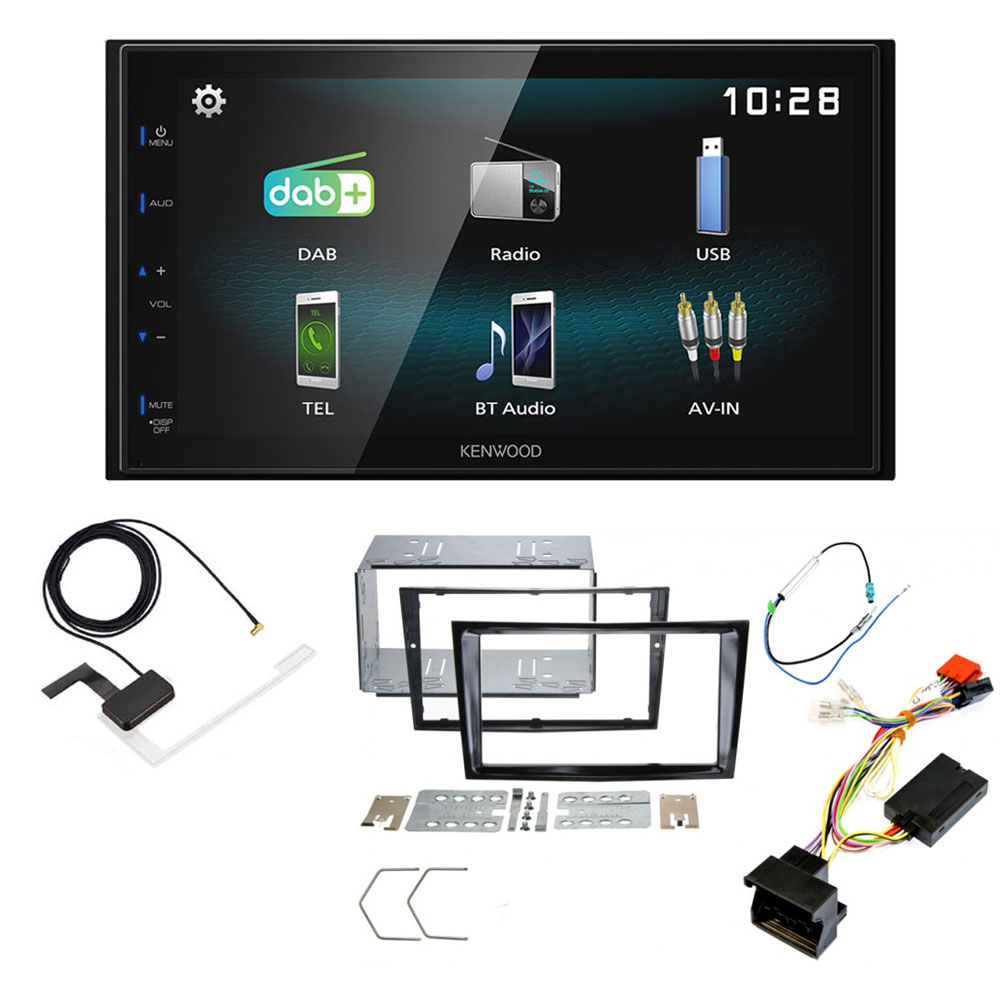

Package Includes

• Kenwood DMX125DAB Mechless 6.8” WVGA Digital Media AV Receiver DAB+, Bluetooth, USB Car Stereo
• DAB Aerial
• Double Din Fascia (Piano black)
• Double Din Fitting Cage
• Steering Control Interface Adaptor
• Antenna Adaptor Cable
• Original Radio Release Keys
• Stereo Patch Lead

Fascia Adaptor

This adaptor will convert the non din-sized aperture left after removing the factory stereo to a din size ready for head unit installation. The high quality finish, colour and texture are designed specifically to maintain the original look of your vehicles interior.

This fitting kit is supplied with a gloss black (also called piano black) fascia adapter panel suitable for a double din aftermarket radio. The fascia adapter allows the fitting of an aftermarket radio into the dashboard by matching the shape, style and colour of the original radio. Use the fascia adapter with the supplied fitting cage to install a double din radio.

Steering Control Adaptor

A stalk/steering wheel control adaptor enables you to utilise the original factory remote audio (whether built onto steering wheel or fitted on a stalk next to the steering wheel) with an aftermarket unit.

A Quadlock to ISO adapter cable with CANbus steering control interface is supplied in the kit. This cable adapts from the original connector in the car, known as a quadlock, to standard aftermarket connectors for the new stereo, known as ISO connectors. The CANbus steering wheel control interface will retain the use of the original radio controls on the steering wheel with an aftermarket stereo. The CANbus interface generates a key present ignition supply to the new stereo, this means the stereo will turn on with the first click of the key and stay on until the key is removed from the ignition barrel. The interface also generates speed pulse, reverse gear and handbrake output signals, these are used when installing multimedia, navigation units and reverse cameras. This interface is built into the Quadlock to ISO harness adapter so installation.

The CANbus interface requires a data wire to be connected at the rear of the display screen at the top of the dashboard (instructions are included), because our interface connects to the data signal here, rather than at the rear of the radio, it means that it never loses the data connection to the car. Other interfaces, when connected at the rear of the radio, will lose the data connection, this is because the car recognises that the original radio is no longer present and shuts down the data signal. This data signal does not shut down at the display screen.

Aerial Adaptor

An Aerial Adaptor is needed when replacing the original factory fitted head unit with an aftermarket head unit.

A Fakra to DIN antenna adapter is included in the kit. This adapts from the original style antenna connectors in the car, known as Fakra connectors, to a standard aftermarket connector for the new stereo, known as a DIN connector.

The KENWOOD DMX125DAB Car Stereo has a crisp, clear 6.8” resistive touch screen, multi-format playback and rear camera input. It has a USB input for connectivity and Android Mirroring with compatible Android smartphones. Built-in DAB ensures this is a must-have upgrade for any vehicle!

Key Features

• Capacitive 6.8" WVGA touch screen
• Android USB mirorring ready
• DSP / DTA /13 band equalizer
• DAB+ tuner built in
• 3 preouts, (2.0V) (Front/Rear/Sub(mono))
• AV-in, Video-out & RCAM-in
• Bluetooth handsfree & audiostreaming built-in
• Rear USB, 1A Charge
• MP3, WMA, AAC, WAV & FLAC audio file playback
• MPEG1/2 & MPEG4, H.264, WMV & MKV video file playback
• Shortbody, only 75mm installation depth

General Features

• DIN Size 2 DIN
• Smooth GUI
• Key Illumination Blue LED
• Touch sensor
• Touch Sensor Tone
• Optional IR remote controller, KNA-RCDV331
• Digital Clock (24H)
• ISO connector
• Built-in Bluetooth
• DAB Tuner Built-in
• Android USB Mirroring

Monitor Features

• Screen Type Capacitive touch panel
• LCD type 6,8 inch Wide VGA
• Display Type Glare
• High Resolution VGA Display
• LCD backlight LED
• Touch Panel Clear resistive
• Display Mode 1 Mode: Full
• Screen adjust: Brightness
• Screen adjust: Colour
• Screen adjust: Contrast
• NTSC/PAL judge (Auto)
• Display Off Mode

Multimedia GUI Features

• OSDC Type Graphic
• Demonstration Mode
• Opening Screen Type standard
• R-CAM interrupt
• R-CAM Caution On Screen Display
• Menu text in selectable language
  • English (Default)
  • Espagñol
  • Français
  • Deutch
  • Italiano
  • Nederlands
  • Finnish
  • Russian
  • Português
  • Polski
  • Cestina
  • Magyar

Tuner Features

• Station Select Auto / Manual
• FM Reception
• AM Reception, (MW Reception)
• Up/Down Seek/Scan
• Tuner Presets (FM/AM) 30 Presets (18FM / 12AM)
• Automatic Memory Entry (AME)
• Radio Data System
• Traffic Information
• Local search
• Auto TP search
• Enhanced Other Networks Function (EON)
• Program Type Function (PTY)

CE DAB Tuner Features

• DAB+ tuner built-in
• Intelligent seek
• Tuning mode / Seek mode Auto1/Auto2/Manual
• Service preset 15 ch * 1 bank presets,
• Alphabet Search
• Traffic Information
• DAB-DAB/DAB-FM auto switch
• Time Shift
• DLS (Dynamic Label)
• PTY (Programme Type) search
• PTY (Programme Type) watch
• Announcement Switching (ASW) Select
• Soft linking

Bluetooth General Features

• Max num. of regist. phones for HFP & A2DP 8 phones
• Hands Free Profile (HPF) V1.6
• Audio Streaming (A2DP), (SBC)
• Phonebook Access Profile (PBAP)
• Number of PBAP entries Up to 1000 phonebook entries
• PBAP call history Up to 50 entries of dialed, received and missed calls
• Voice Control
• Noise Canceller
• Echo Canceller
• High-quality noise canceling microphone included

Playable Audio file

• AAC (*.m4a) files are playable USB
• AAC (*.aac) files are playable USB
• MP3 files are playable USB
• WMA (.wma) files are playable USB
• WAV (.wav) files are playable USB
• FLAC files are playable USB

CE_Playable Video file

• MPEG1/2 files are playable USB
• MPEG4 files are playable USB
• WMV files are playable USB
• H.264 files are playable USB
• mkv files are playable USB

USB Features

• Rear USB Terminal
• USB Type 2.0 Full speed
• MP3 playback with ID3 Tag Display
• WMA (Windows Media File) playback
• AAC (Advanced Audio Codec) playback
• MPEG1 Video decoder
• MPEG2 Video Decoder
• MPEG4 Video Decoder
• Repeat/Scan/Random search
• Repeat / Random Play
• 1A Charge Capability for Smartphone.

Audio features

• Max. Output Power (MOSFET Power IC) 4 x 50W
• Pre-out    3RCA: Front/Rear/Subwoofer
• Pre-out Output Level 2V
• Subwoofer Reference Level Adj
• Balance/Fader Control
• Beep On/Off

Multimedia DSP Features

• DSP Chip AK7601
• Position Control
• Position Preset 4 Presets
• Graphic Equalizer 13 bands
• G-EQ manual setting
• High Pass Filter (HPF) (Front/Rear/Center)
• HPF Cut Off Frequency 14 steps
• HPF Cut Slope Level 4 steps
• Low Pass Filter (LPF) (Non-Fading)
• LPF Cut Off Frequency 14 steps
• LPF Cut Slope Level 4 steps
• Source DSP Memory
• Channel Level Control
• Loudness
• Tweeter volume
• Bass Boost
• Speaker Size & Location Control
• X'over network

Video Features

• Audio Video Output
• Audio/Video Input
• Video-In for Rear-view Camera 1 dedicated video input (RCA)

Connectivity

• USB interface
• Reverse sensor wire
• Parking sensor (handbrake) wire
• 2-way (Tel/Navi) mute wire
• AV-Input (Non Switchable) (RCA)
• AV Output Video only (RCA)
• Rear View Camera Input
• FM Antenna Input
• DAB Aerial input SMB connector
• External microphone input
• OEM Wired Remote Control ready

Car Audio Fitting Accessories are sold with limited instructions. Some knowledge of car audio installation is helpful, as in some rare cases "modification"  may be  necessary or needed.
Please make sure that is the correct Fitting Kit for your vehicle by firstly checking to see if your vehicle make, model and year is listed in the description. Secondly by checking to see if the shape & connection in the picture listed is the same as you have in your vehicle. If in doubt please Contact US with your vehicle details and we will confirm what you require.
