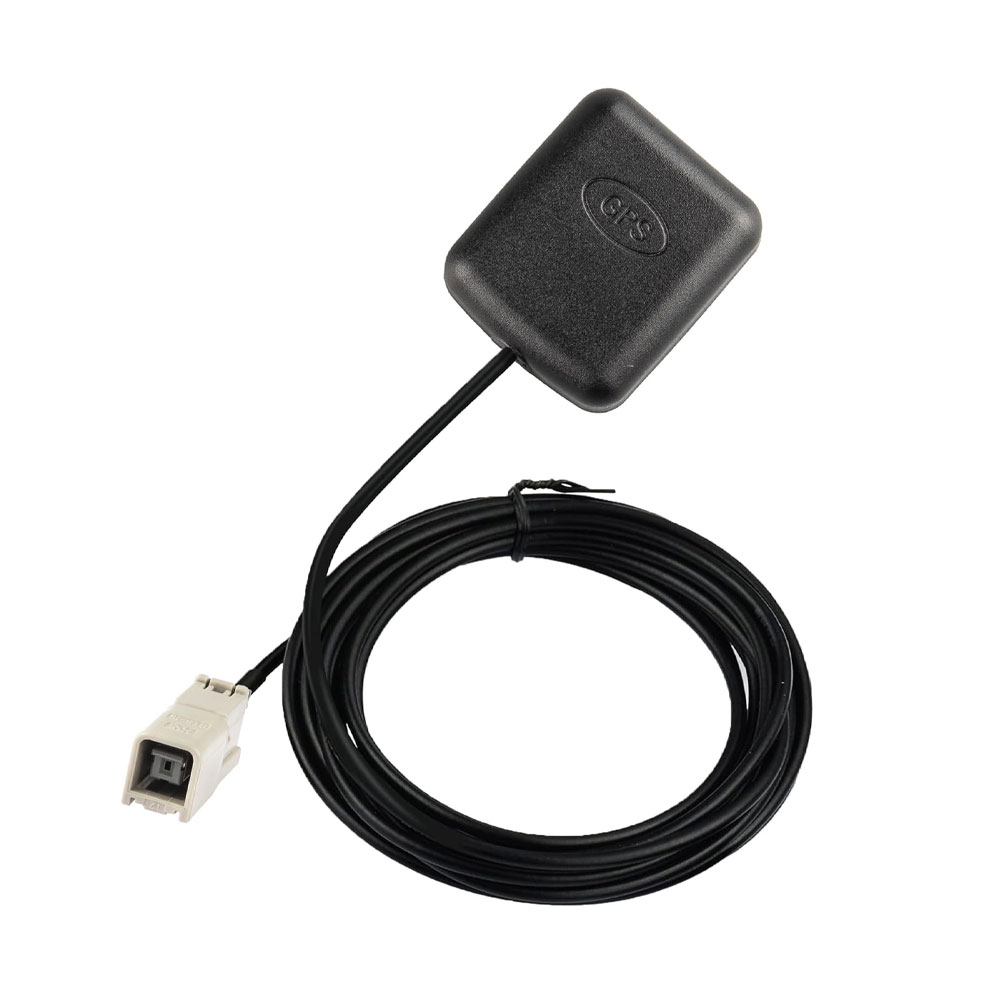

Kenwood GPS Aerial For DMX / DNX Units

 This is a Pattern part and not a Original Kenwood part.

Application

This gps antenna fit for Clarion NX700, NX600, NX509 Navigation Radio. Fit for Honda Navigation, Nissan Navigation, Toyota Navigation, Mercedes Command 2.0, Alpine Navigation, Kenwood DNX Model which have GT5 connector.

Magnet Base

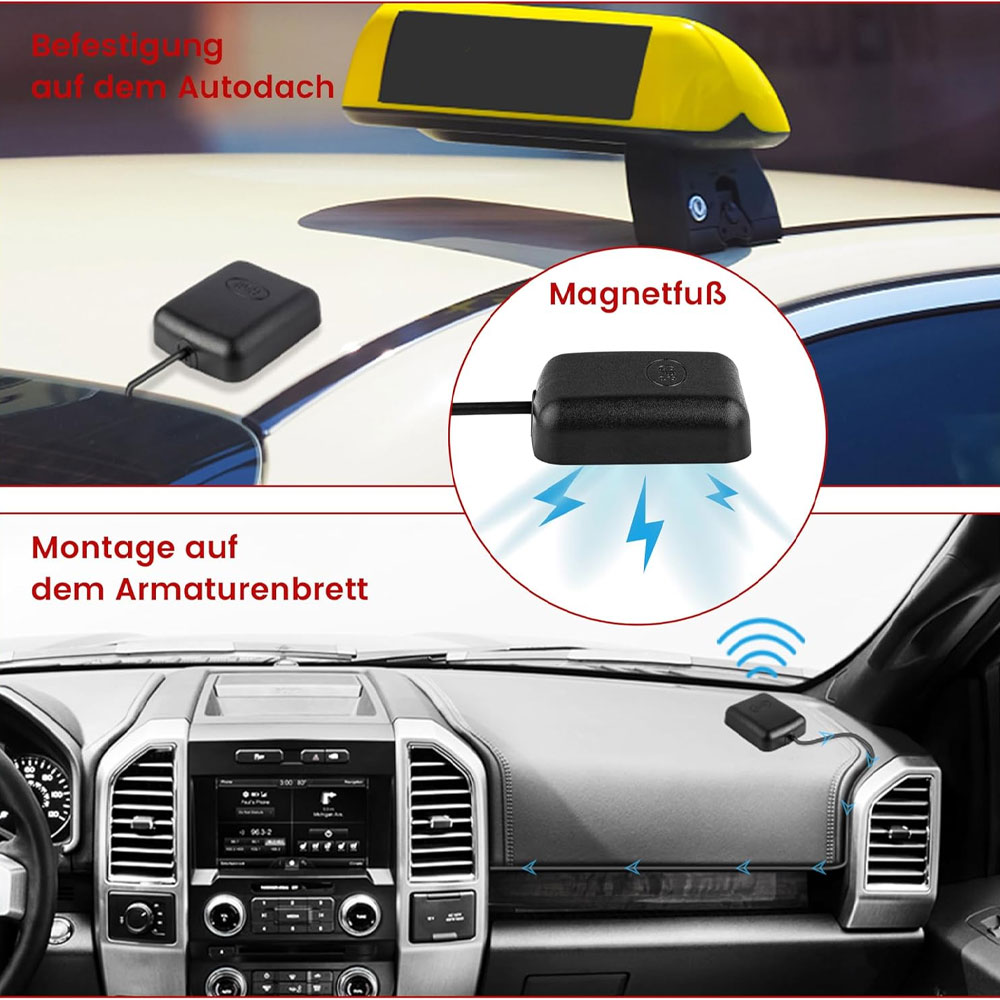

Base material: Magnet The mounting base can be attached to any metal surface by magnets, such as the roof of car, inside the car body, outside the car body, etc. You can easily change the installation location of the gps aerial.

Connector

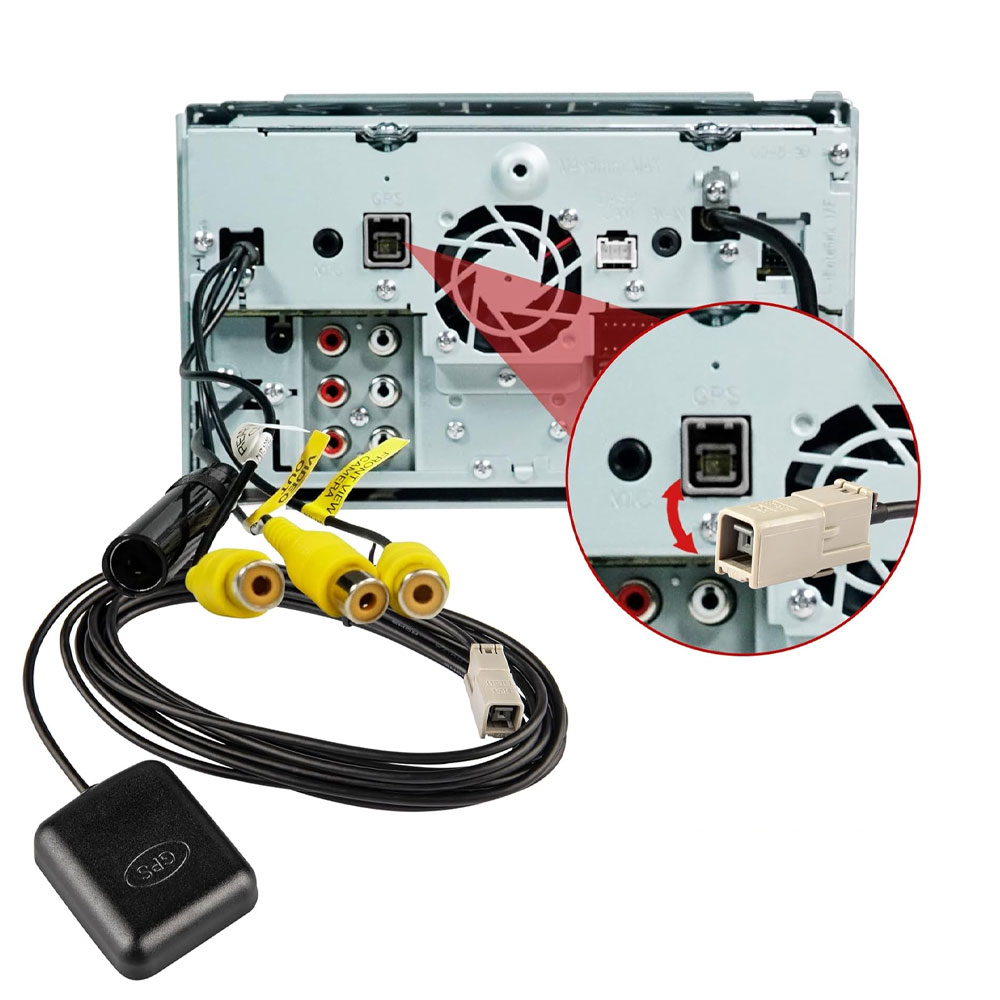

Connector HRS GT5 1S Plug into the GPS navigation receiver car radio head unit and it work.

Function

This gps antenna can amplify the GPS signal and clearly to pinpoint the location.

Specification

• Center Frequency: 1575,42MHz±3 MHz | V.S.W.R ＜2.0
• Band Width: ± 5 MHz
• Impedance: 50 ohm
• Polarisation: RHCP
• LNA Gain: 28dB
• Noise Figure: 1.5dB
• DC Voltage: 3-5V DC
• DC Current: 15mA Max
• Length: 3m
