DRVA510R110 Dashboard Camera and Rear Camera

Key Features

Front Dash Cam DRV-A510W Features

• 2K Wide Quad High Definition Recording, making super-high resolution recording and replay possible
• Captures 2560x1440px H.265/ MP4 Video @ 30fps, AAC Audio & JPEG (2560x1440px) Picture Format
• Features a F1.8 lens which boasts industry-leading-brightness and 136° diagonal ultra-wide viewing angle
• HDR (High Dynamic Range) easily records clear images in dark or well-lit settings without underexposing or overexposing the image
• 2.0" Full-colour TFT (Thin Film Transistor) display provides easy access to checking recorded videos and changing settings
• GPS receiver that records speed, date and location coordinates
• Equipped with a G-Sensor designed to detect an outside force
• Compact dash cam: Dimensions 58.5 x 42.8 x 24.4 mm
• Rear-View Camera Input to record front and rear images simultaneously with included KCA-R110 Full-HD Waterproof IP67-Rated Camera
• Smart Parking Mode: Vibration Detection, Motion Detection or Time-lapse (Optional Hardwired Kit CA-DR1130 Required)
• 32GB Micro SD card included - (Micro SDHC/SDXC card UHS Speed Class (U3), Maximum Size Recording Media: 8GB up to 256GB)
• Smartphone App (iOS & Android app) via Bluetooth or WiFi for wireless uploading footage from the dash cam to an iPhone or Android smartphone
• Review and edit recorded videos using the KENWOOD Video Player desktop software for PC & Macs
• Supplied with Adjustable Adhesive Mount, USB Car Charger, Power Cable & Cable Clips

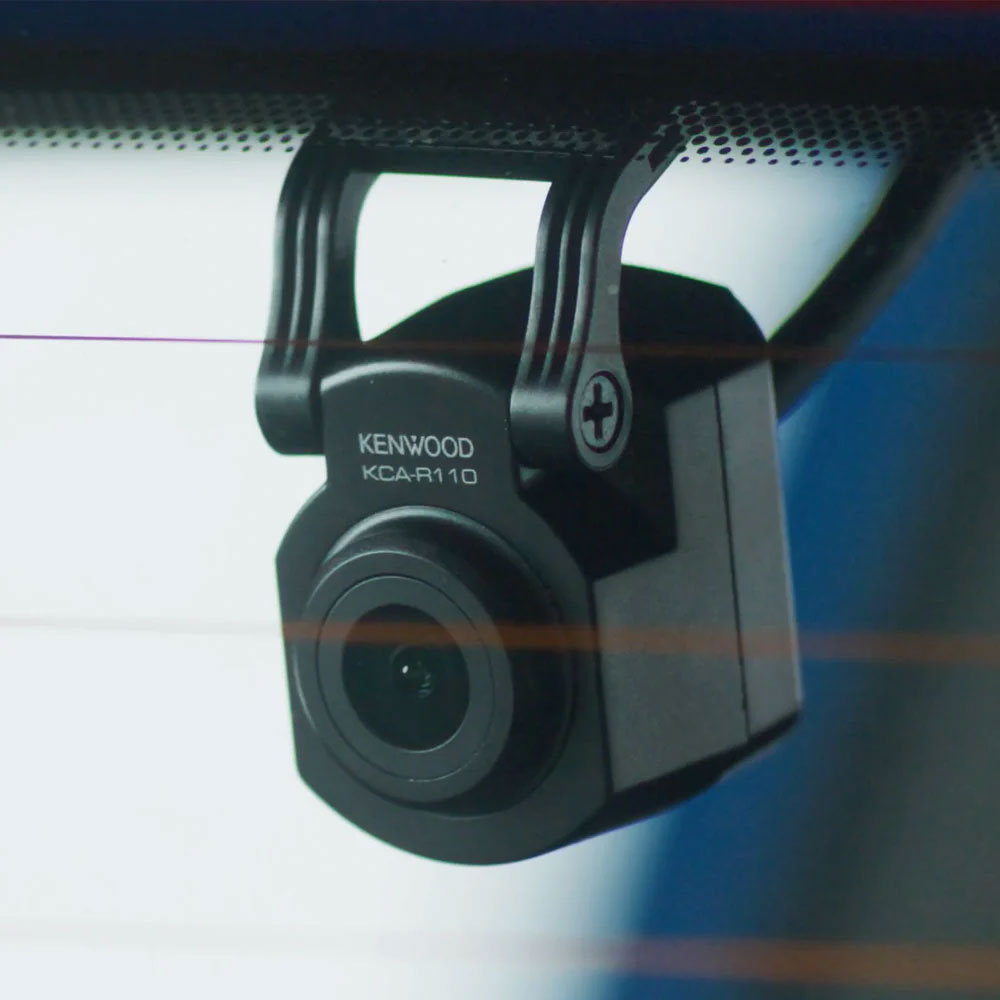

KCA-R110 Full-HD Waterproof Rear-View Dash Cam Features

• IP67 Waterproof & Dustproof protection rating allows you to install the KCA-110 rear-view dash camera outside or inside the vehicle
• Full HD Recording, making super-high resolution recording and replay possible
• Features a F2.0 lens, which boasts industry-leading-brightness and 131.6° diagonal ultra-wide viewing angle
• High Dynamic Range (HDR): for enhancing the suppression of over-exposure and under intense light
• Adjustable Rear Dash Camera mounting holder enables viewing position change by up to 170°
• Video files are stored separately as F (Front) and R (Rear) on the microSD card of the front dashboard camera
• When the hardwire kit CA-DR1130 is fitted to activate Smart Parking Mode. The rear-view camera will record when Motion Detection, Vibration Detection or Time-lapse Mode is selected
• Adhesive bracket for inside installation with a 2.5m cable included
• 5.5m Connection cable & double-joint bracket included

SD Card 32GB Micro SD Included

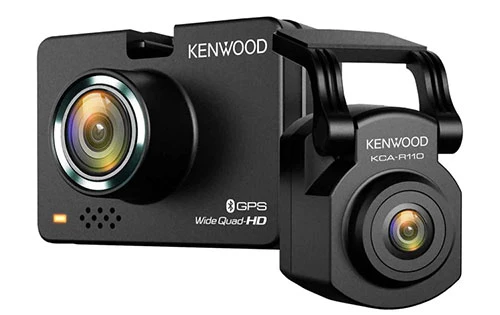

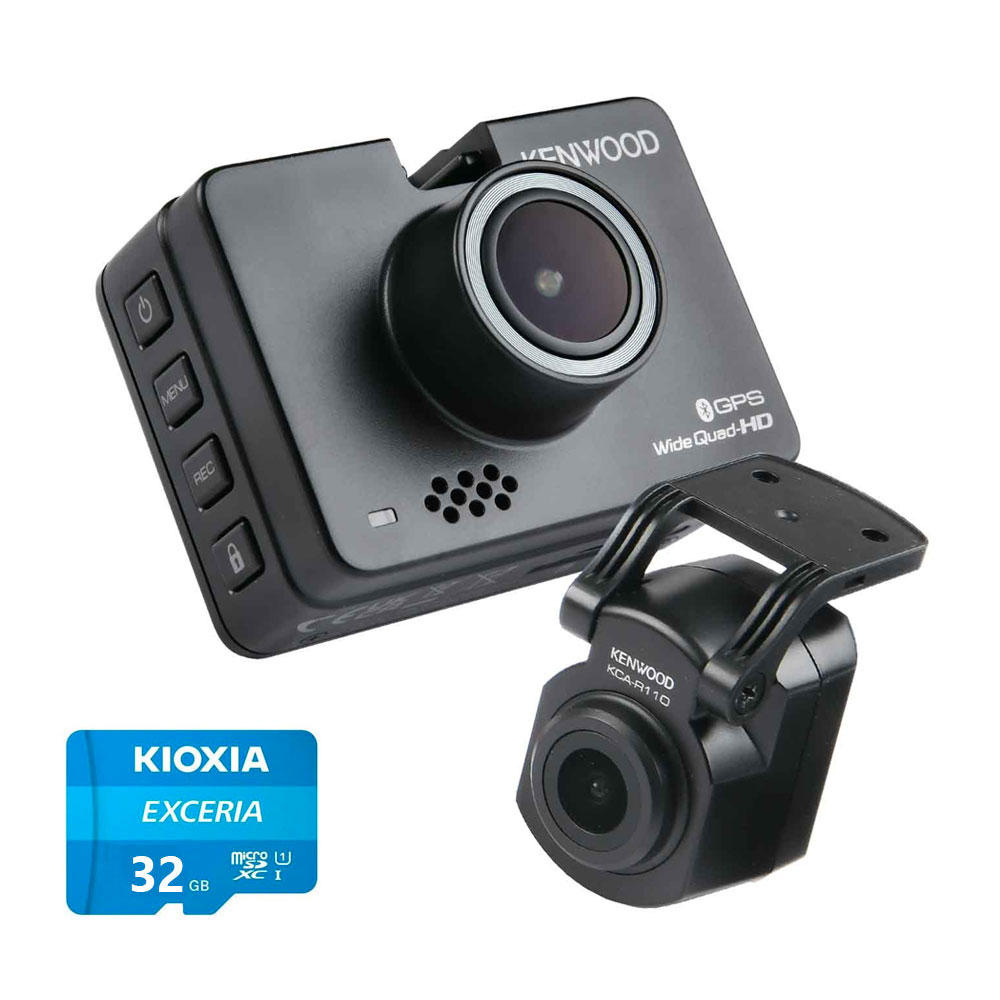

Seamless Road Coverage

Featuring the DRV-A510W Front Dashboard Camera with 2K Wide Quad-HD recording and a powerful 5-megapixel CMOS sensor, this bundle ensures clear video quality for your front view. Combine it seamlessly with the KCA-R110 Full-HD rear-view camera, providing dual-channel recording capabilities. Enhance your driving experience with comprehensive road coverage and peace of mind, courtesy of the DRVA510R110 bundle.

Dual Mode Max Recording Features of Front & Rear Dash Cameras:

• Front: DRV-A510W: 2K Wide Quad-HD Recording
• Rear: KCA-R110: Full-HD Recording

Capture Every Detail in Stunning 2K Wide Quad-HD Video

Elevate your driving experience with the DRV-A510W Dash Cam, featuring a powerful 5-megapixel CMOS sensor. Capture every detail in stunning 2K HD video, delivering over twice the resolution of Full HD! Experience super-high-resolution recording and flawless replay, ensuring you never miss a moment on the road. Upgrade to the DRV-A510W and see the difference!

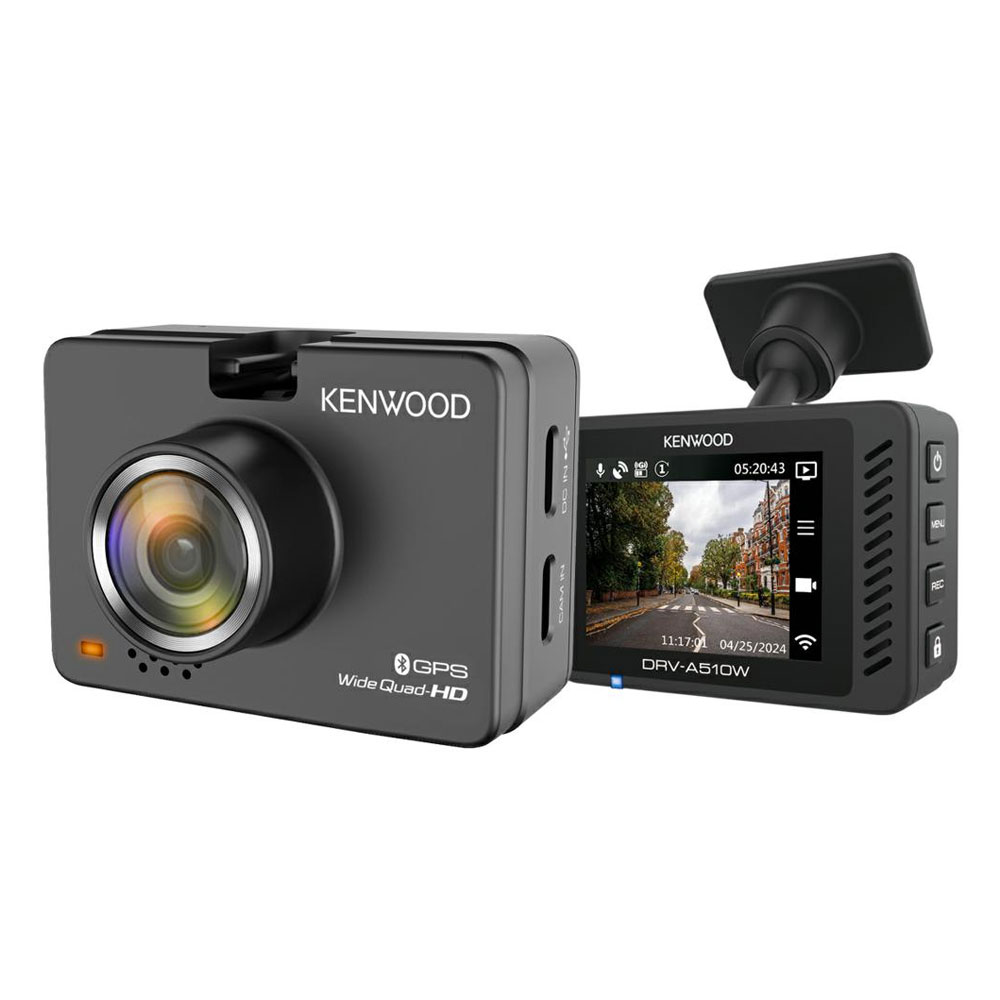

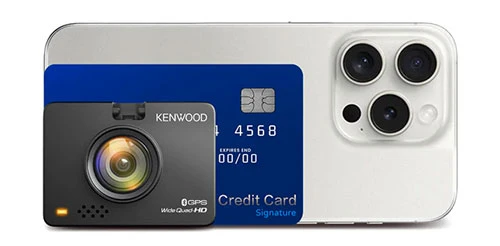

Small Size, Big Impact

Say goodbye to bulky gadgets and hello to the sleek and stealthy DRV-A510W Dash Cam! This little dynamo is smaller than a credit card (yep, you read that right) with dimensions of just 58.5 x 42.8 x 24.2 mm. It keeps your windshield clutter-free while capturing every glorious detail in 2K.

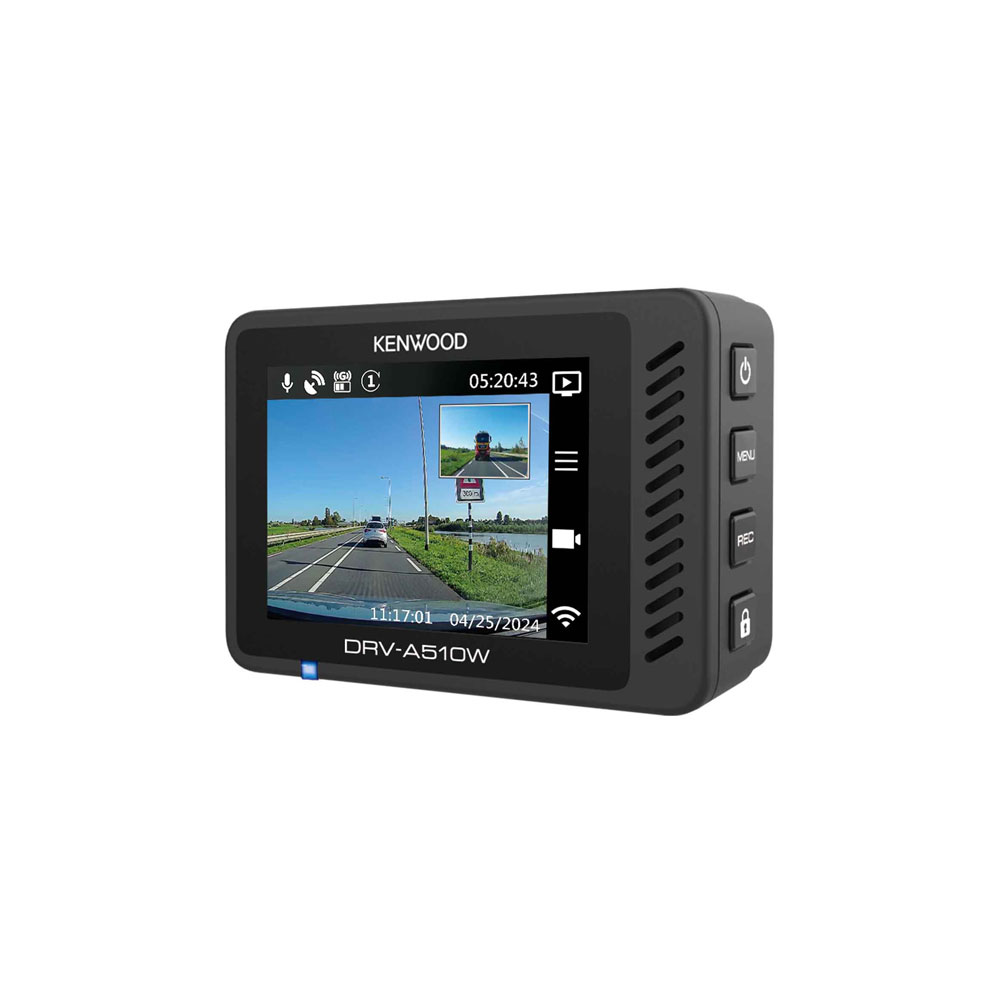

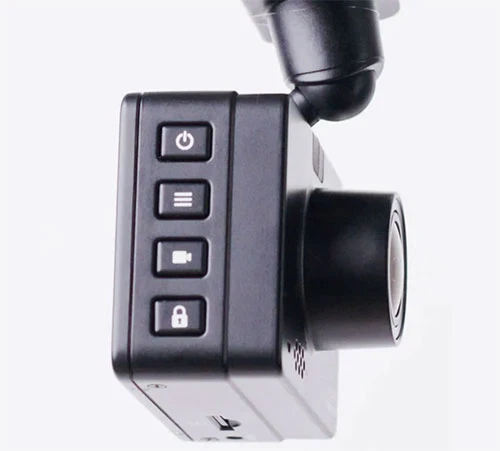

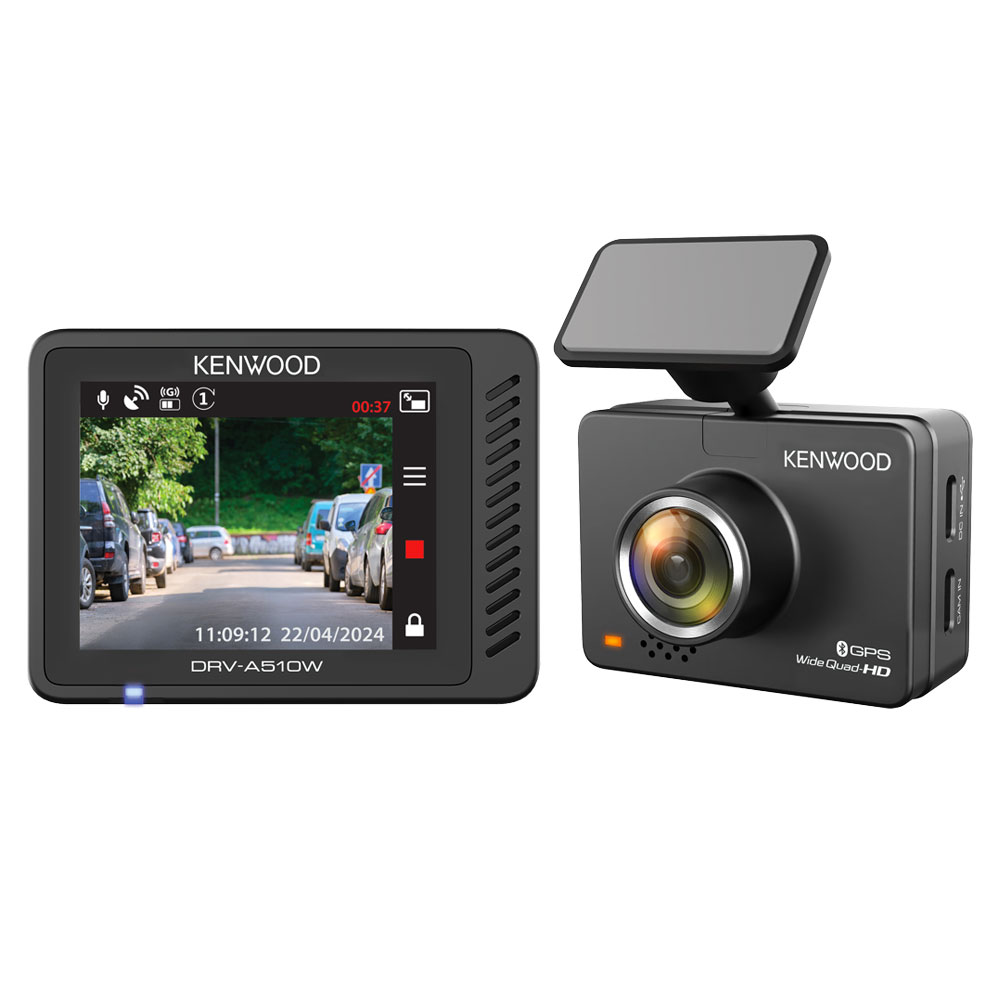

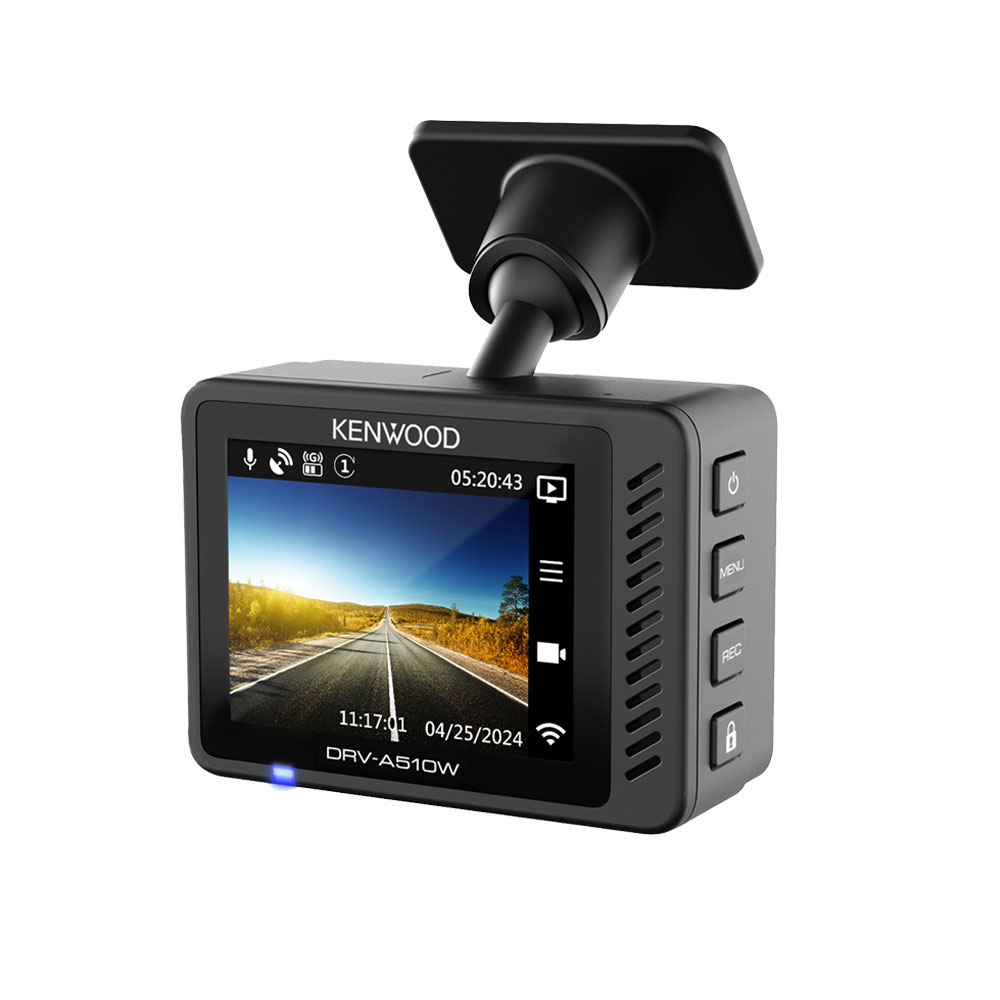

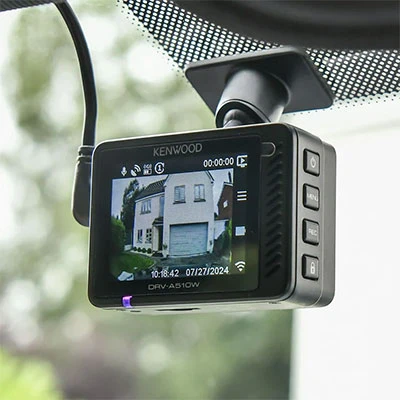

Drive, Record, Replay: The 2" Display Keeps You in the Know!

Get ready to experience the ultimate convenience with the DRV-A510W Dash Cam’s 2.0” Full-Colour TFT Display! This high-res screen fits the cam like a glove, letting you view your recorded footage. With its intuitive GUI and large, legible text, navigating through your footage is as easy as pie. Hello to effortless access and clear playback. Drive, record, and replay with the DRV-A510W!

No More Shadows: Experience Superior Clarity with WDR & HDR!

Experience unmatched clarity with our Wide Dynamic Range (WDR) and High Dynamic Range (HDR) technology. Say goodbye to blown-out highlights and crushed blacks—now, your footage stays crystal clear in any lighting condition. Whether you're cruising in bright daylight, or tackling tricky tunnel entrances and exits, WDR and HDR ensure you get consistent, high-quality visuals every time. Light it up right with WDR & HDR!

Capture Every Detail: 136º with F1.8 Lens Ultra-Wide Viewing Angle

Discover unparalleled video clarity with our F1.8 Lens, featuring industry-leading brightness. This dash cam records razor-sharp Full-HD videos both day and night, avoiding underexposure and overexposure. With an ultra-wide viewing angle of 136º, it captures a broad range without missing a thing. Small details, like other vehicles' license plates, are clearly visible. Enhance your driving experience with the ultimate in video quality and coverage.

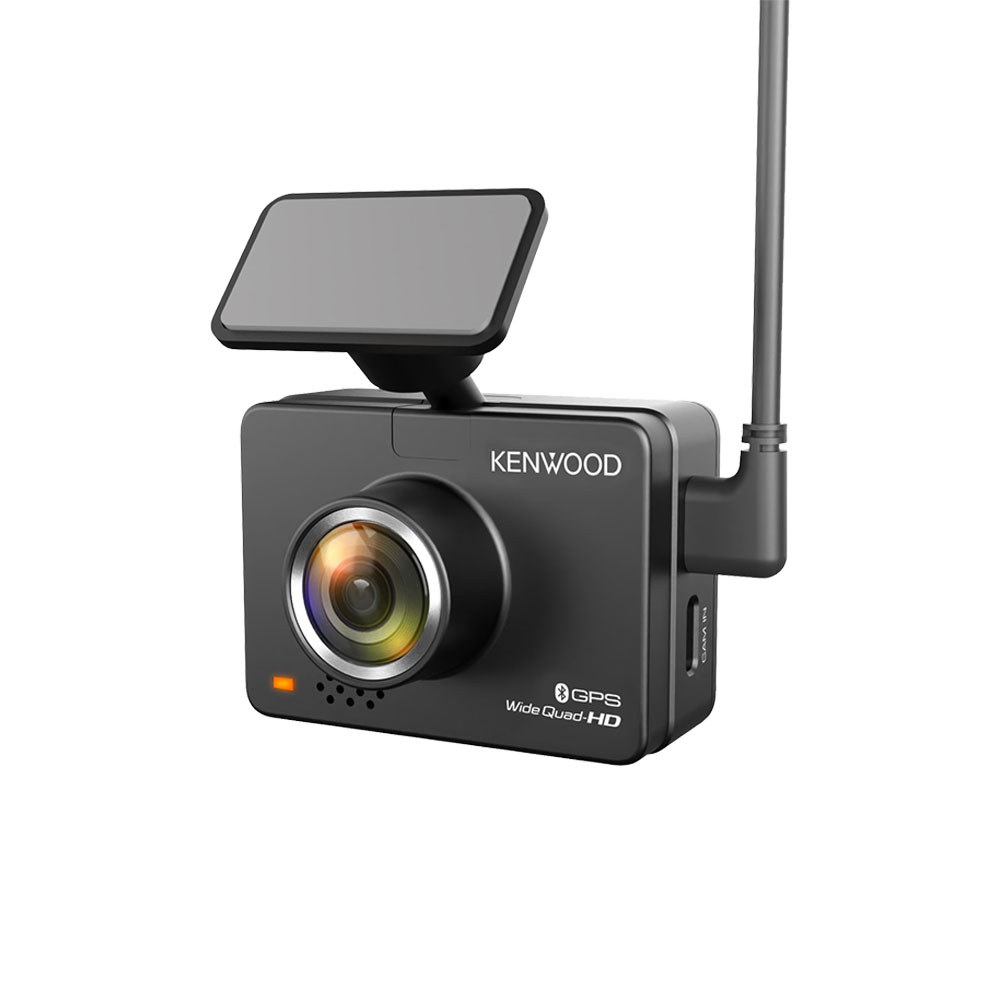

Your New Co-Pilot: 3-axis G-Sensor & GPS Receiver

Stay secure with our 3-axis G-Sensor and GPS Receiver. The G-Sensor detects external forces and saves recorded footage instantly, while the GPS Receiver adds location, date, and speed data to your videos. Even if you don't know your location, your dash cam does, making this little device your new co-pilot.

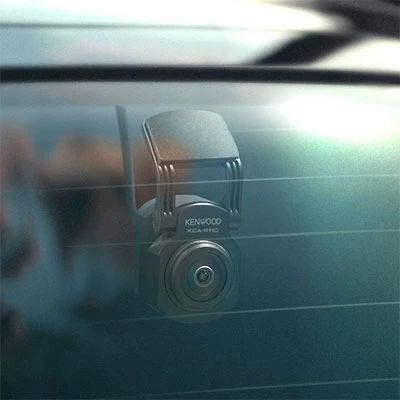

Resolution

Experience unparalleled clarity with the KCA-R110 Rear-View Camera, featuring Full-High Definition 2 Mega-pixel (1920x1080px) recording. Capture detail in stunning resolution for a safer and more informed driving experience.

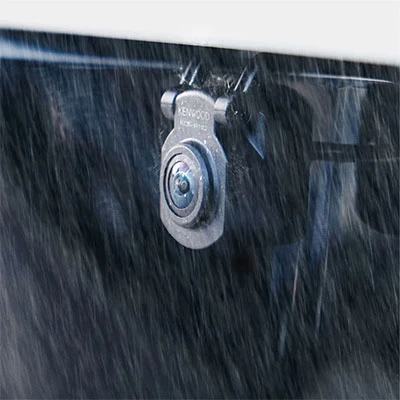

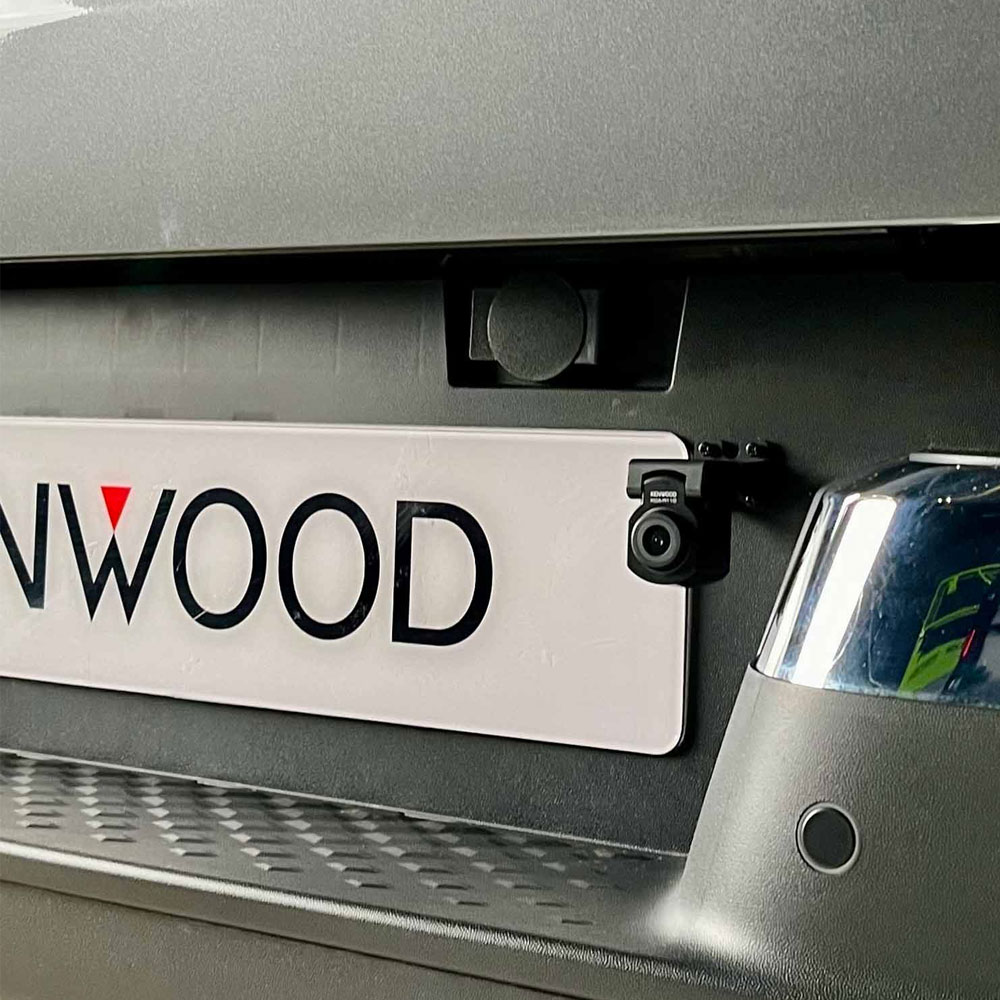

Ultimate Flexibility: Full-HD Waterproof Rear-View Dash Cam

The IP67 dust and water resistance rating allows the rear-view camera to be installed outside the vehicle, perfect for vans without a rear window. This ensures a clear view of all video footage.

Enhance Security: Smart Parking Mode

Optional CA-DR1130 Hardwire Kit Required

Upgrade to Smart Parking Mode with the CA-DR1130 hardwire kit. This feature activates Vibration Detection, Motion Detection, or Time-lapse recording when your vehicle is parked. The dash cam records 30 seconds of video upon detecting vibrations or motion. With Time-lapse if selected, it captures continuous footage until your car starts again. Enjoy peace of mind with constant protection, even when you're away.

DRV-A510W Front 2K Wide Quad-HD Dash Cam Specifications

• Image Sensor: 1/2.8" CMOS
• Number of Pixels: 3.7M Pixels (2560 x 1440)
• Lens Type: F1.8 Fixed focus lens
• Diagonal field of view: 136°
• LCD screen: 2.0" Full Colour TFT (Thin Film Transistor)
• Recording Resolution: 2K Wide Quad-HD (2560 x 1440) Resolution (3.7M) (max)
• Front & Rear 2 Camera Recording: with included KCA-R110 Full-HD waterproof IP67 rated rear-view dash camera. Installation outside or inside the vehicle
• 2 Channel Recording Resolution: 2K Wide Quad HD Front & Full HD Rear
• Frame Rate: 30 fps (Frames Per Second)
• Photo Format & Size: JPEG & 2560 x 1440 Pixels
• Recording Format: H.265 / MP4
• Video Clip Lenght: 1 Minute
• Audio File Fomat: AAC (Advanced Audio Coding)
• GPS Reciever: (Records Speed, Time & Location)
• G-Sensor: High / Medium (Default) / Low / Off
• HDR Record Enhancement
• Smart Parking Mode & Recording: With optional CA-DR1130 hardwire kit | Recording: Vibration Detection, Motion Detection or Time-Lapse
• Smartphone APP: via Bluetooth/WiFi connectivity (Available for iPhones & Android smartphones)
• Recording Media & Maximum Size Recording Media: Micro SDHC/SDHC card UHS Speed Class (U3) | 8GB up to 256 GB
• Menu Language: English (Default) /GE/FR/DU/IT/ES/PT/PL/CZ/RO
• Operation voltage: 5 VDC
• Power Supply type & Voltage: USB Car Charger + 4m power cable (Or use optional hardwire kit CA-DR1130) | 12 - 24 VDC

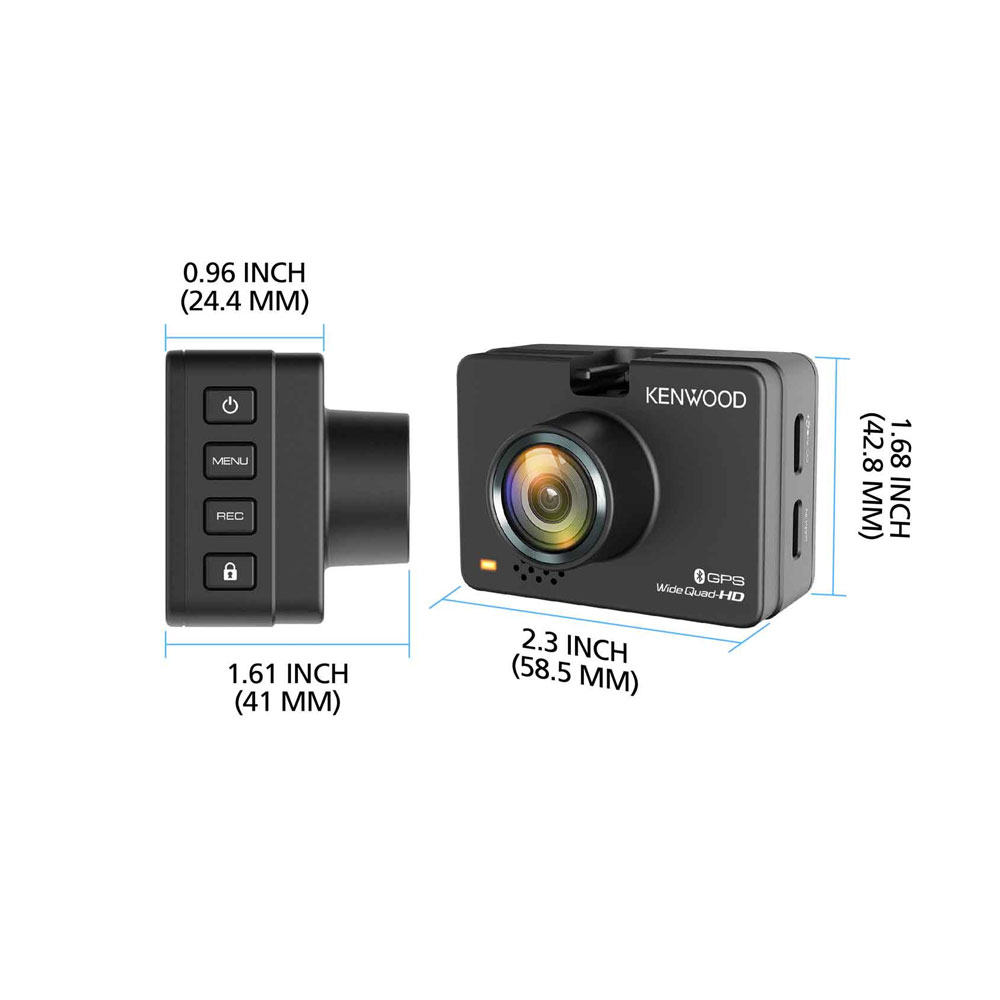

• Dimensions & Weight: W: 58.5 x H: 42.8 x D: 24.4 mm | 65 Grams (Camera Only)
• PC/MAC Film Application: KENWOOD Video Player

Accessories Included

• DC cable: 4.0 meter USB-A type to USB-C type power cable.
• Car Charger Adapter: Car Cigarette Lighter to USB-A.
• Cable Clip: 4 pieces.
• Adhesive car mount bracket: Included x 1.
• Spare Adhesive pad: 2 pieces.

KCA-R110 Rear-View Full-HD Dash Cam Specifications

• IPX Rating: IP67 Rated - Waterproof & Dustproof
• Image Sensor: 1/2.9 inch colour CMOS sensor
• Number of Pixels: Full HD (2.0M Pixels)
• Recording Resolution: 1920 x 1080 pixels
• Recording & Video Signal Format: H.264 (MP4)
• HDR (HIGH DYNAMIC RANGE)
• Lens Type: F2.0 Fixed Focus
• Field of View (Diagnol): 131.6°
• Frame Rate: 30 fps (Frames Per Second)
• Mounting System Adhesive Tape / Screws
• Maximum Current Consumption: 0.3A
• Dimensions (WXHXD): W: 50 x H: 27 x D: 32 mm

Accessories

• KCA-R110 Rear-View Camera with 2.5m cable,
• Mounting bracket (170° up/down angle adjustment)
• Double-joint Bracket
• Connection cable 550 cm
• Screws (Parker-type) Ø 2.5 x 10mm
• 4 pieces, Adhesive tape pads x 2

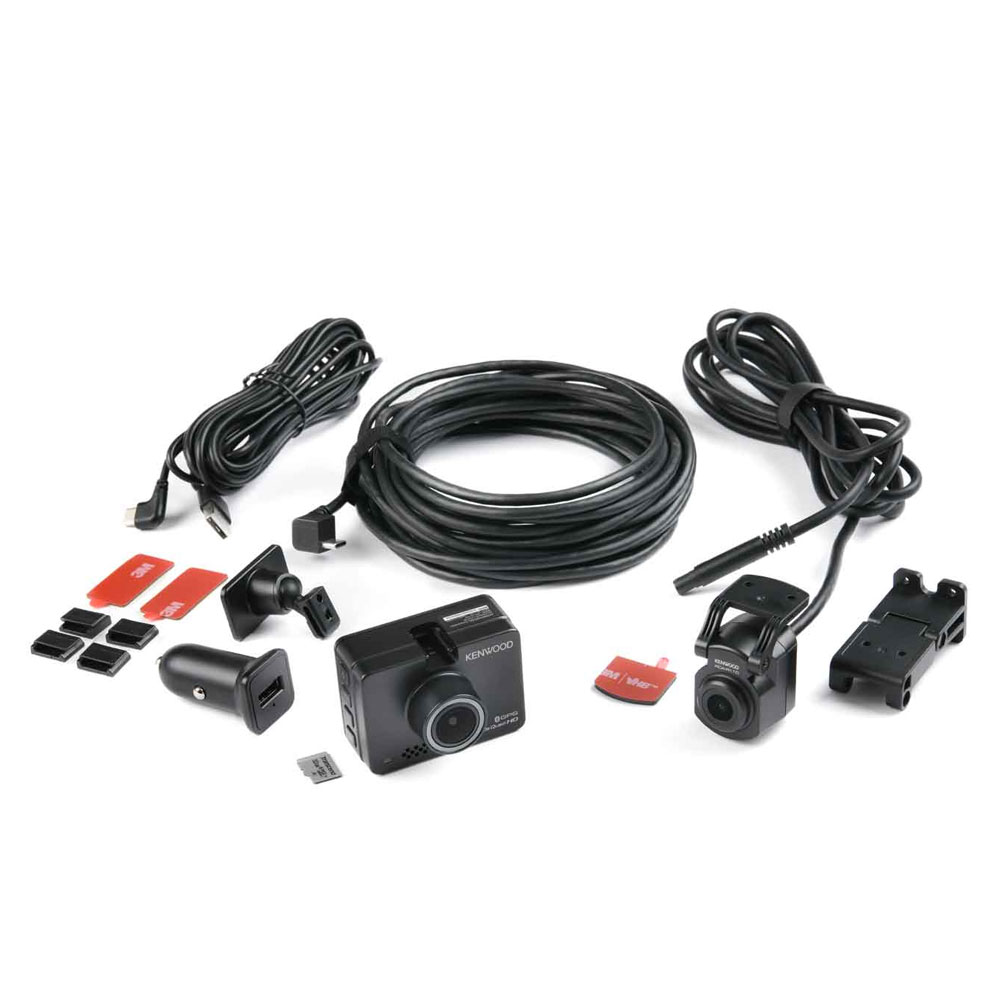

Whats in the Box (Inc Cable Lengths)

• DRV-A510W 2K Wide Quad-HD Dash Cam
• KCA-R110 Rear-View Camera
• 32GB Micro SDXC SD-Card UHS Speed Class (Memory Card)
• 4.0-meter USB-A type to USB-C type DC power cable
• Cigar lighter car charger adapter USB-A, 4m lead (12~24V DC) required for power. If not using the optional CA-DR1130 hardwire kit
• Adhesive mount x 1
• Spare adhesive pads x 2
• Cable clips x 4
