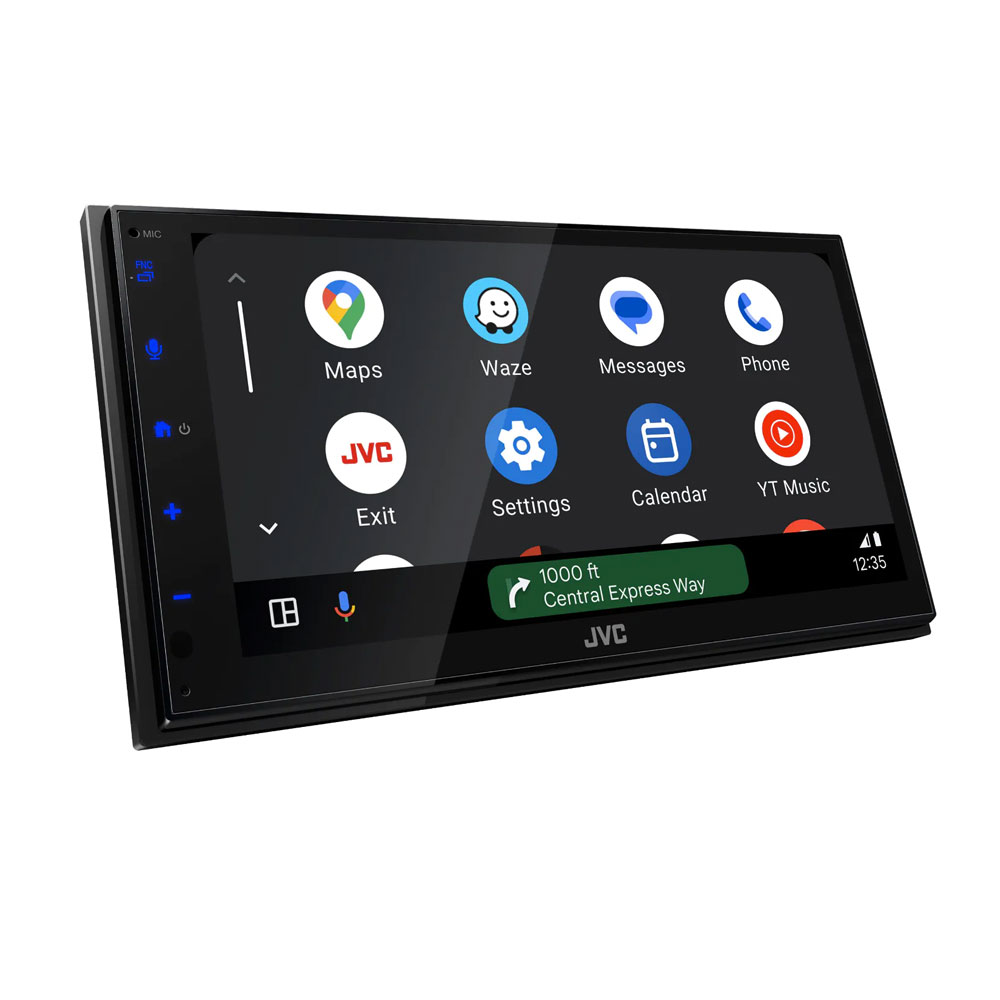

KW-M595DBT

Key Features

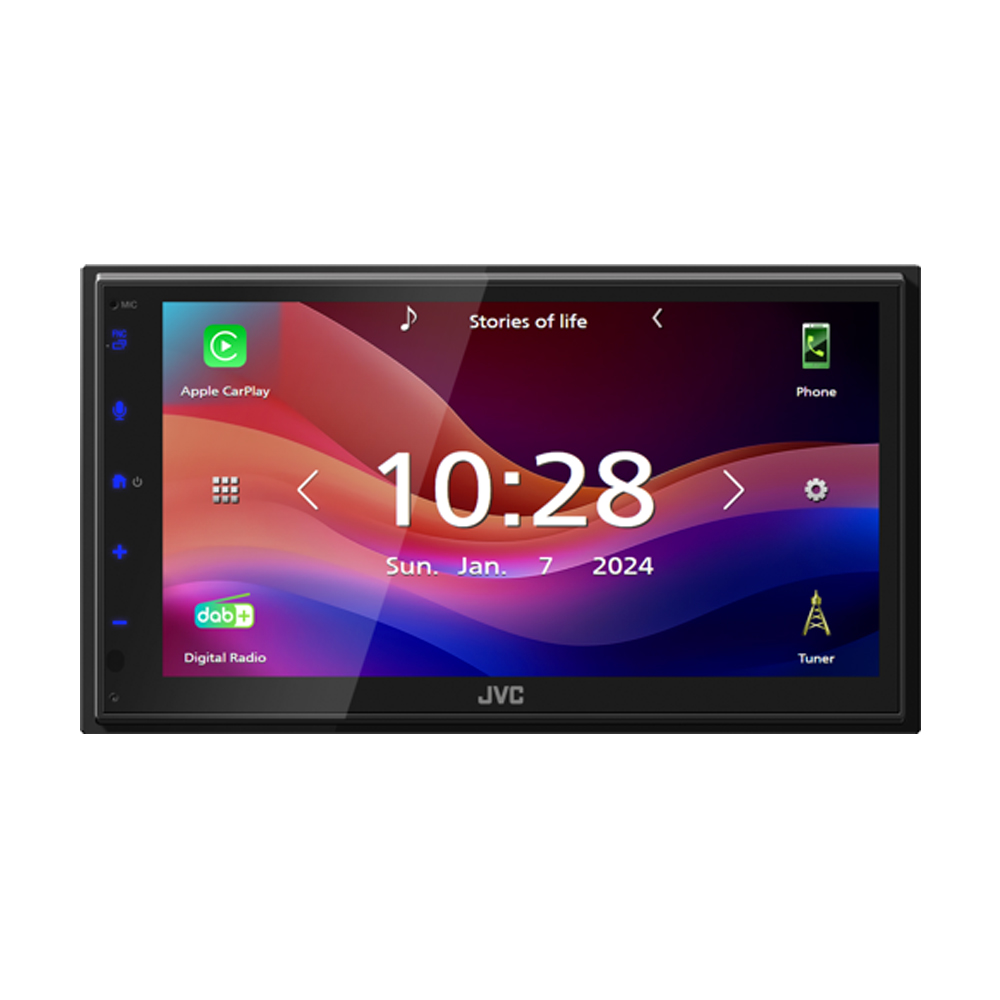

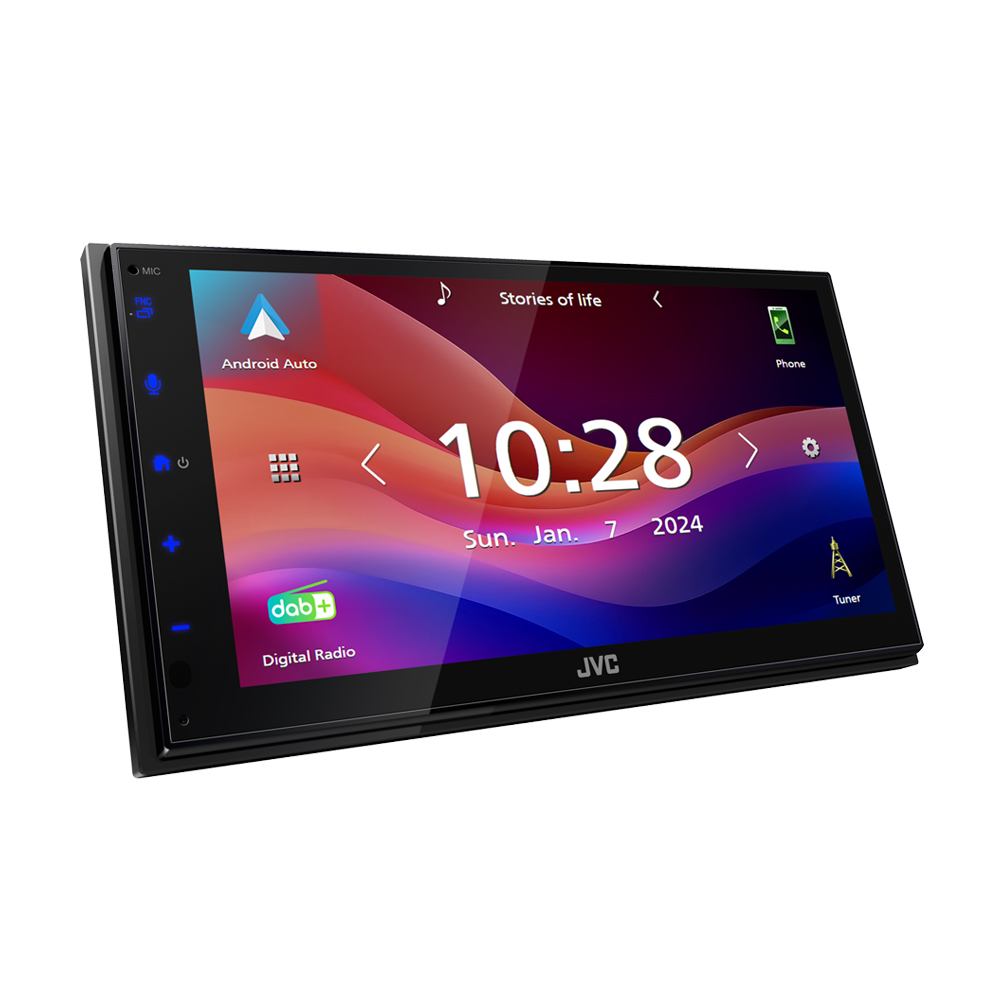

• 6.8 inch WSVGA Capacitive Touch Screen
• White Key Illumination
• Enhanced GUI & Graphics
• Enhanced Smartphone Connections:
• Wired Apple CarPlay
• Wired Android Auto
• Wired iPhone & Android Auto USB Mirroring
• Built-in Bluetooth technology
• DAB+ Digital Radio Tuner / FM (RDS) / AM tuner
• High Speed USB Input - 2.1A
• Full HD Video File Format Playback
• Rear Camera Input
• AV Input
• Video Output
• 13-Band Graphic Equaliser
• Digital Time Alignment
• Front, Rear Subwoofer Pre-outs - 2.5V
• Steering Wheel Remote Interface ready
• Wireless Remote ready

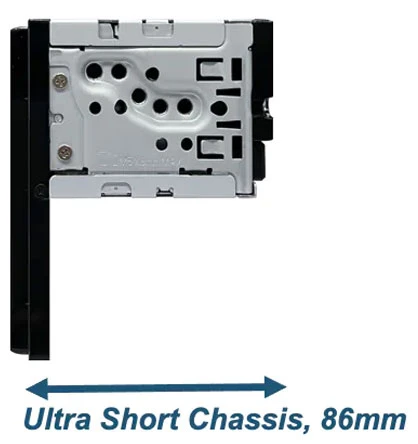

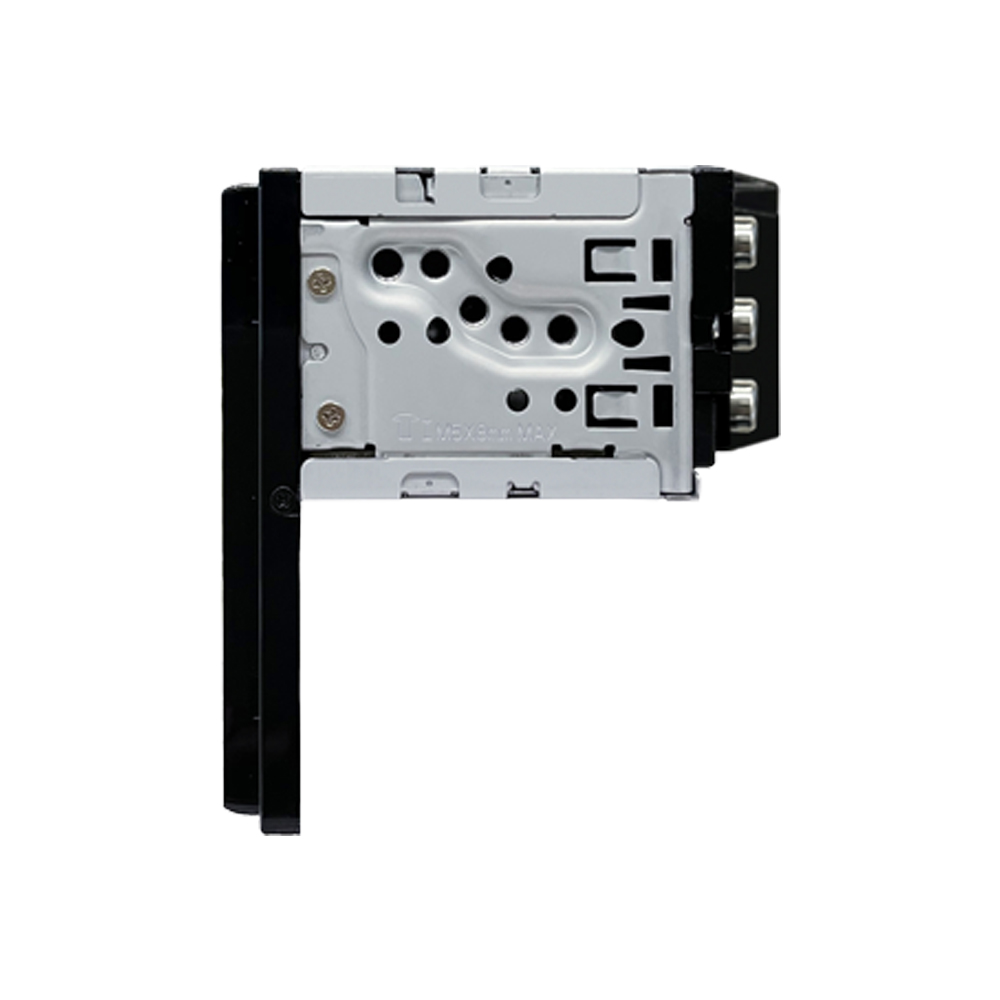

• Single DIN Short Chassis Design

DAB AERIAL REQUIRED FOR DAB FEATURE TO WORK. (NOT INCLUDED)

Monitor Features

• 6.80” WVGA (1024 x 600px) with Clear Capacitive Touch Screen
• Protective Film with Anti-Fingerprint
• White key illumination
• Fixed Panel
• 3 Display Mode: Full(Initial) / Auto(Full/Normal) / Normal
• Screen adjustments: Brightness, tint, colour, contrast and Backlight
• Dimmer sensor: Manual / Sync & Dimmer level control (Auto/On/Off)
• NTSC / PAL judge (Auto)
• Display OFF mode

Graphical User Interface (GUI)

• Demonstration Mode (default ON)
• Home screen, 4 Top SRC keys are customisable
• Wallpaper customizable (6 presets + 2 user set)
• Text scroll
• Rear view camera interrupt with parking guide lines & caution on screen
• Visual source mode: Mirroring / CarPlay / Android Auto
• Selection of 14 languages for menu & text:
• English UK(default) English US, Spanish, French, German, Italian, Dutch, Russian,
• Portuguese, Hebrew, Greek, Polish, Czech and Hungarian

Tuner Features

• FM / AM(LW/MW) radio / 24 x FM and 12x AM Presets
• RDS / EON / Radio text plus / PTY / Local seek / Traffic information.
• Manual/Auto memory entry.
• Auto1/Auto2/Manual tuning mode/seek mode / Seek/scan up/down.

DAB+ Tuner Features

• DAB+ (Band III) tuner / 15 presets
• DAB-DAB / DAB-FM Auto Switch / Seamless DAB-FM blending
• Traffic information / PTY search / PTY watch / ASW select
• Alphabet / Intelligent search / DLS (Dynamic label) / Slide Show / Softlink
• Audio Format: MPEG1 Audio Layer II, MPEG4 HE-AAC-v2

Bluetooth Features

• High quality wide-band Hands-free speech (HFP V1.7)
• High quality microphone built-in
• Private mode
• Interrupt call request
• Audio streaming (A2DP V1.2) with AAC / SBC codec support
• Music library browsing (AVRCP V1.6)
• Album artwork display
• Accessible phonebook entries (PBAP) with alphabet search (English / Hebrew)
• Secure Simple Pairing (SSP)
• Auto pairing via USB (iPhone & Android)
• Optimised Noise & Echo canceller

USB Input Features

• High speed type-A USB port / FAT16/32 NTFS/exFAT
• Max. 2.1A quick charge for selected phones (BC 1.2 compatible)
• Mass storage class
• Tag information display / Album art display / Time code display
• List access / Category search and Link search
• Folder or All random play / Folder, File or Repeat All play / Skip
• Drive change / Last position/resume play

Supported CODEC’s (USB)

• Audio: MP3 / WMA / AAC / WAV / FLAC
• Video: MPEG1 / MPEG2 / MPEG4 / H.264 / WMV / MKV
• Pictures (for user Wallpaper): JPEG / PNG / BMP

Android Features

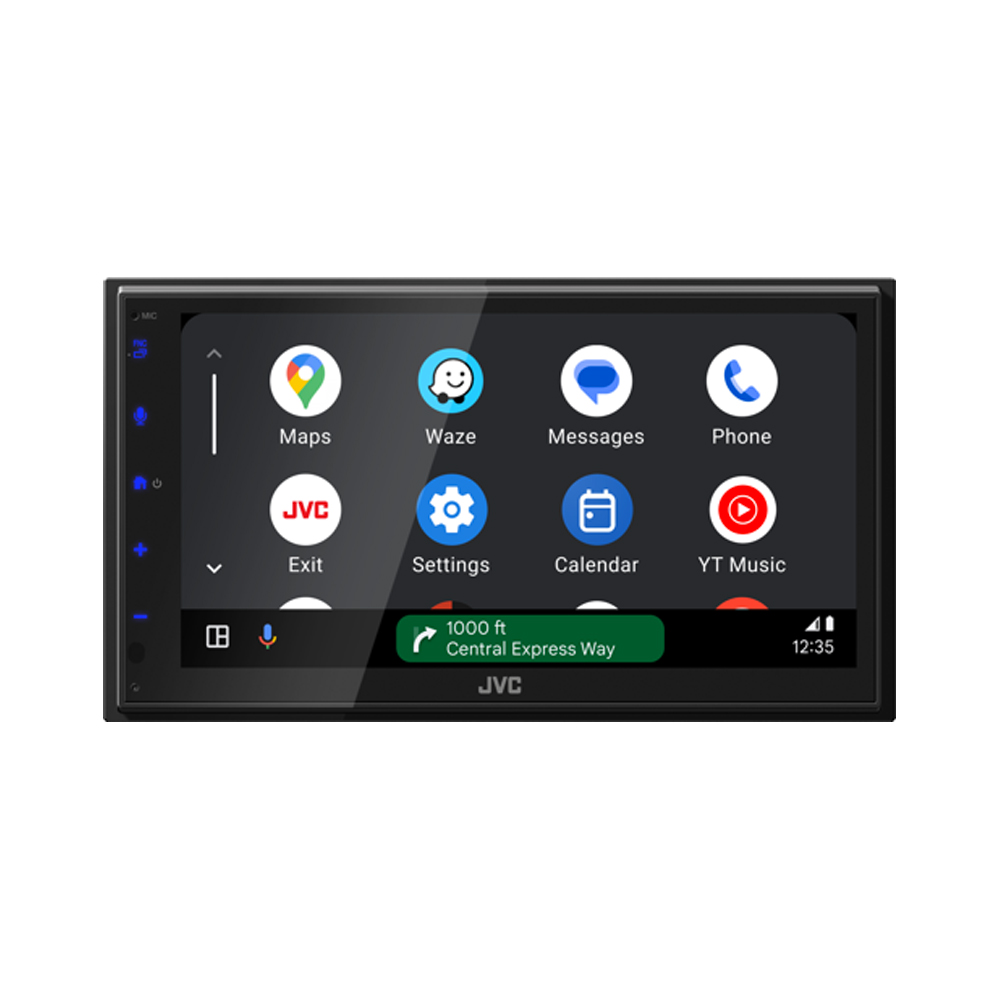

• Works with Android Auto™ via USB

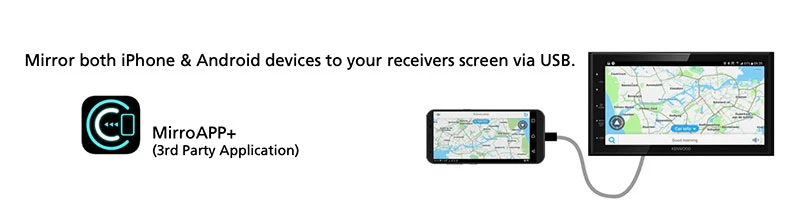

• USB mirroring for Android with 'MirrorApp+' smartphone app
• Music playback via Bluetooth

Apple CarPlay/iPhone Features

• Made for iPhone.

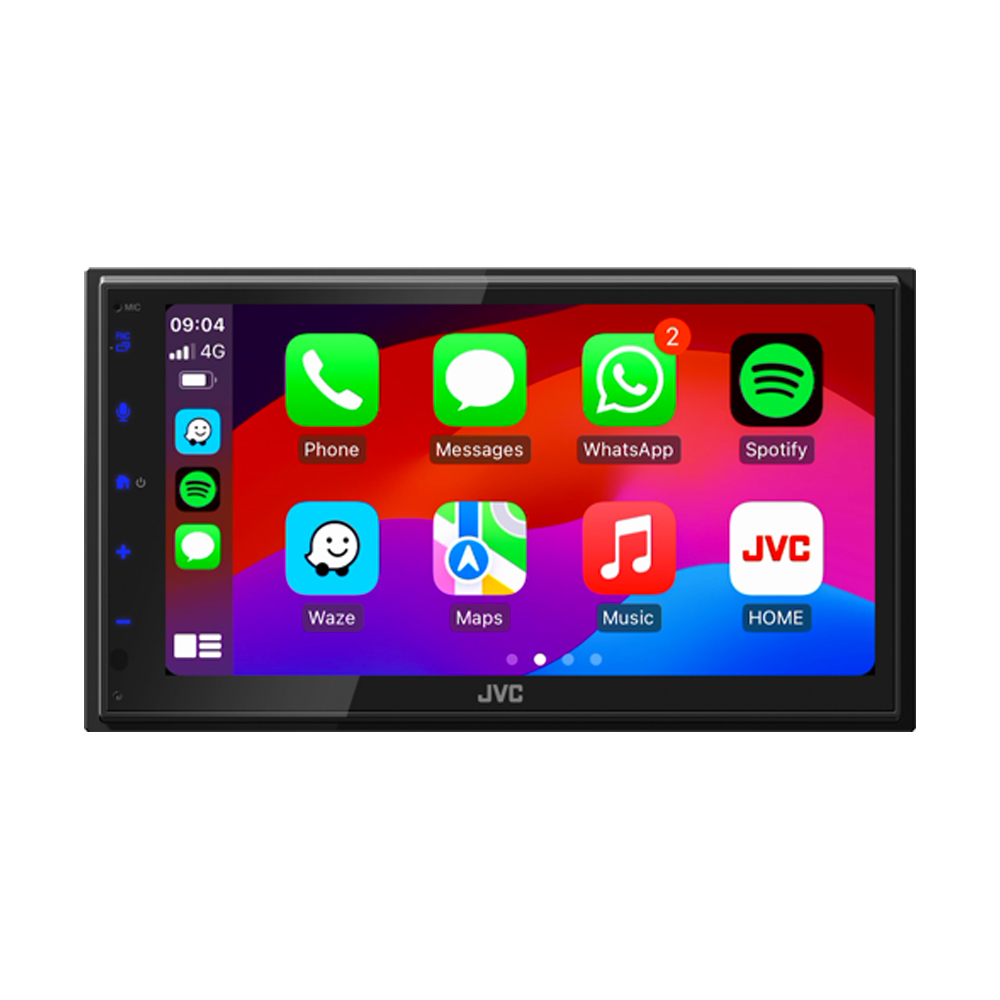

• Works with Apple CarPlay™ (via USB)
• USB mirroring for iPhone with 'MirrorApp+' smartphone app

Audio Features

• 50W x 4 Max power output / 22W x 4 RMS
• 2 RCA pre-outs (Front & rear) + Subwoofer (mono) with 2,5V Preout level
• Reverse with Attenuator (-20dB) / Mute
• Beep On / Off (default)
• Balance & Fader control
• Volume offset for each source
• Built-in amplifier Off

Digital Sound Processor (DSP)

• Digital Time alignment (DTA): Position control + 4 presets, Position Room Size
• 13-Band graphic equaliser: 7 presets, 3 user set for each source
• High-pass filter / Low-pass filter.
• Subwoofer Phase Control (Normal/Reverse) / X’over
• Speaker size control: Front/Rear/Subwoofer
• Channel level control / Bass Boost & Loudness control / Tweeter Volume

Video Features

• AV-out: Available Source: USB
• Rear Camera Input (NTSC/PAL auto Switching)

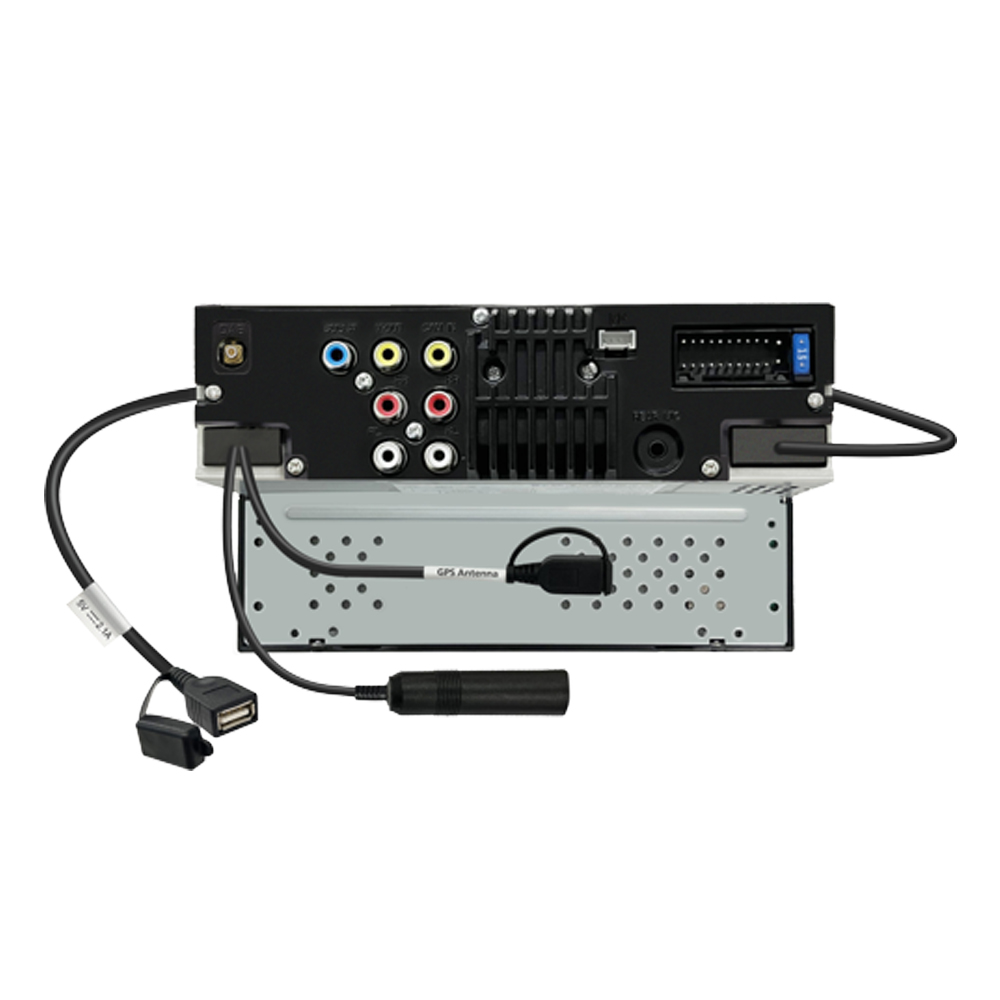

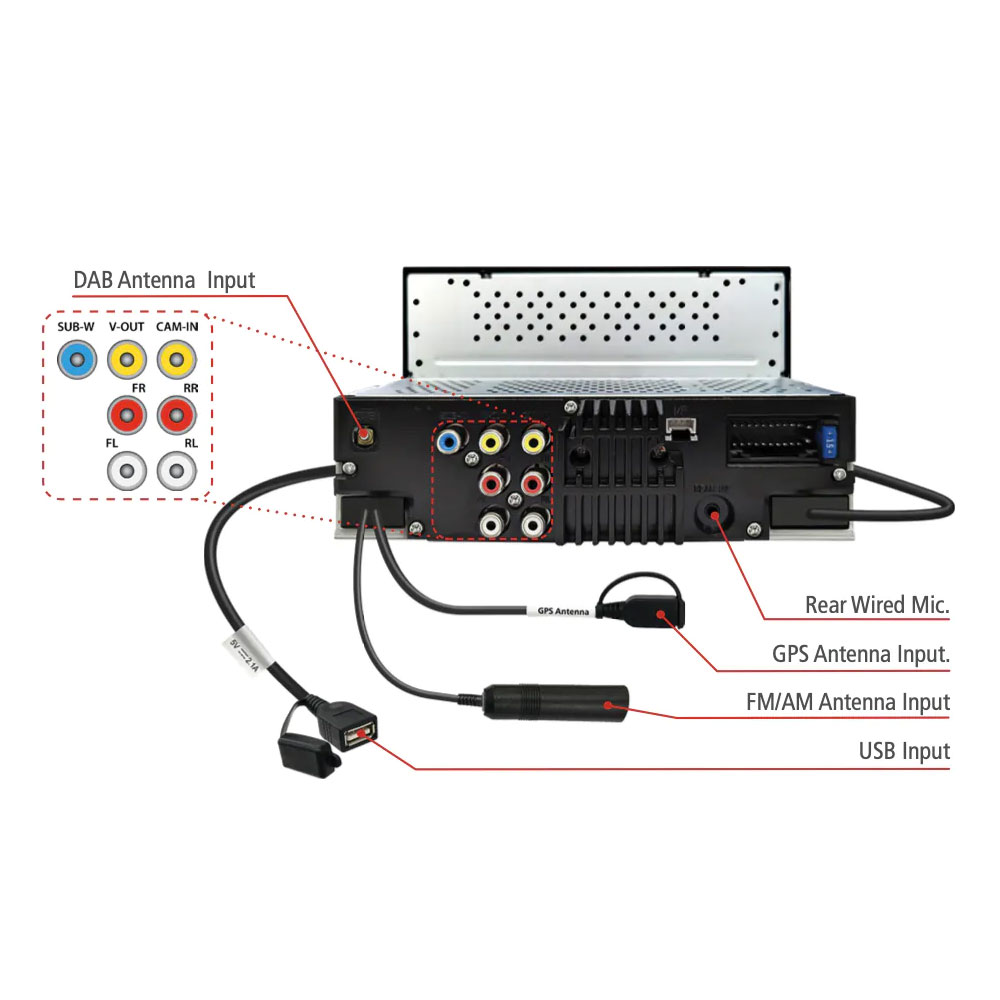

Connectivity

• Third-party Wired Steering Remote Interface ready. (Optional interface required)
• Learning Steering Remote (RESISTIVE protocols only!)
• Rear view camera input (RCA)
• Video-out (RCA)
• Rear USB2.0 (pigtail 1m cable)
• 2 RCA pre-outs (Front & rear) + Subwoofer (mono)
• FM/AM antenna input ( JASO)
• DAB antenna input (SMB)
• 22 Pin Molex Connector:
• Power Antenna Control • Power Control (P-Cont) • Illumination/Dimmer Wire
• Wired Remote Wire • Reverse sensor wire • Parking brake sensor wire

General Features

• Optional IR remote controller: KNA-RCDV331
• Firmware/software update via USB
• Backup memory
• Installation Dimensions (W×H×D): 182×112×86mm (with Sleeve)
• Operating Voltage: 14.4V (10.5 – 16 V allowable)
• Maximum Current Consumption: 15 A
• Weight: 1,3kg

Accessories

• 22Pin Molex Connector to ISO Connector lead
• GPS/Glonass antenna with mounting plate (3,5m cable)
• Extension Parking Cable (2m)

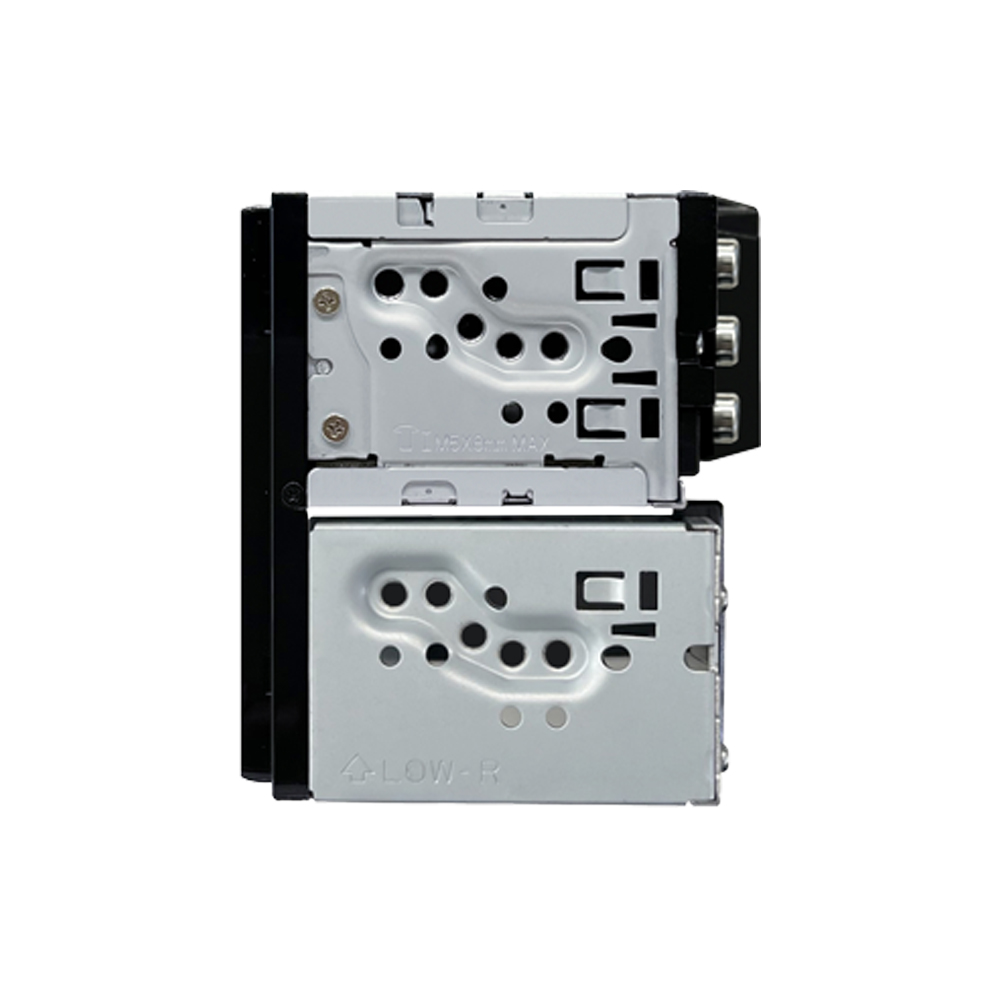

• 2DIN Sleeve & Lever
• 1DIN adapter bracket set (pre-mounted)
• Remover for Escutcheon (trim)
