C3-650 2-Way Convertible Component / Coaxial System

2-Way Convertible Component / Coaxial System: 6.5-inch (165 mm) Woofer, 1-inch (25 mm) Silk Dome Tweeter

There are times when an installation calls for a separate woofer and tweeter and other times when a coaxial is the better approach. With the Evolution® C3 Convertible Component Systems, the same product can be deployed in either configuration, delivering outstanding audio power and quality in each application.

The C3-650 system features 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

The C3 tweeters are built with 1-inch silk dome diaphragms that deliver powerful, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs. They can also be mounted onto the woofers in a coaxial format using the included fixtures.

C3 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Four levels of tweeter attenuation are provided, as well as three levels of mid-range presence adjustment, for twelve possible voicing combinations!

Woofer grilles are included, each consisting of a black grille tray and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Powerful
Sold as a pair.

General Specifications

• Continuous Power Handling (RMS) 75 W
• Recommended Amplifier Power (RMS) 25 - 150 W / Ch.
• System Efficiency 90.0 dB @ 1 W / 1 m
• System Nominal Impedance 4 Ω
• System Frequency Response 48 Hz - 25 KHz ± 3 dB

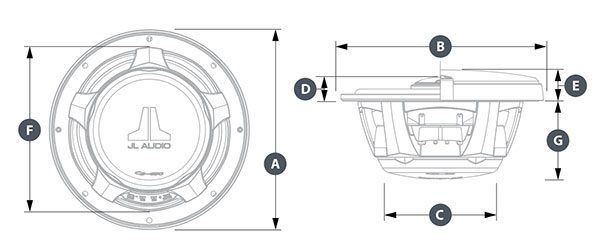

Coaxial Physical Specifications

Note: Illustration may not be to Scale

• Frame Outer Diameter (A) 6.50 in / 165 mm
• Grille Tray Outer Diameter (B) 6.74 in / 171 mm
• Motor Outer Diameter (C) 4.08 in / 104 mm
• Frontal Coaxial Tweeter Protrusion (D) 0.75 in / 19 mm
• Frontal Grille Protrusion (E) 1.03 in / 26 mm
• Mounting Hole Diameter (F) 5.56 in / 141 mm
• Mounting Depth (G) 2.55 in / 65 mm

Frontal coaxial tweeter protrusion measured from mounting surface
Frontal grille protrusion measured from mounting surface

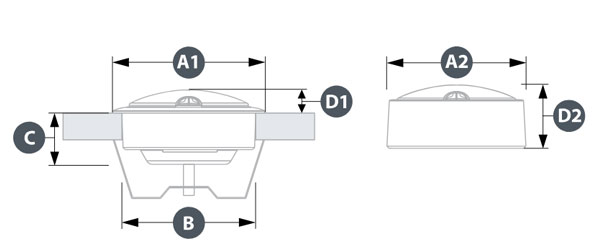

Tweeter Physical Specifications

Note: Illustration may not be to Scale

• Flush Mount Fixture Diameter (A1)    2.12 in / 54 mm
• Surface Mount Fixture Diameter (A2)    1.93 in / 49 mm
• Flush Mount Mounting Hole Diameter (B)    1.875 in / 48 mm
• Flush Mount Fixture Mounting Depth (C)    0.71 in / 18 mm
• Flush Mount Tweeter Frontal Protrusion (D1)    0.32 in / 8 mm
• Surface Mount Tweeter Frontal Protrusion (D2)    0.95 in / 24 mm

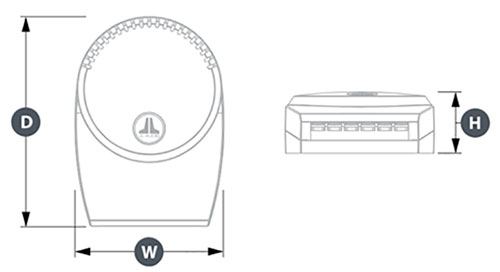

Crossover Physical Specifications

Note: Illustration may not be to Scale

• Width (W) 3.36 in / 85 mm
• Height (H) 1.44 in / 37 mm
• Depth (D) 4.72 in / 120 mm

What's in the box

• 2 x C3-650cw Woofers
• 2 x C3-100ct Tweeters
• 2 x C3-650-XO Crossovers
• 2 x Woofer grilles
• 2 x Flush mount tweeter housings
• 2 x Surface mount tweeter housings
• 2 x Coaxial mount tweeter fixtures
• 2 x Metal spring clips for tweeter fixtures
• 2 x M4x30mm Pan-head machine screws
• 2 x Crimp-on 0.187" Male quick slides
• 2 x Crimp-on 0.110" Male quick slides
• 2 x Crimp-on 0.25" Female quick slides
• 2 x Crimp-on 0.187" Female quick slides
• 4 x Crimp-on 0.110" Female quick slides
• 12 x Crimp-on spade connectors
• 4 x 1" Flat head self-tapping screws
• 12 x 1-1/8" Pan head self-tapping screws
• 8 x Speed clips
• Owner's manual
• Woofer cutout template
