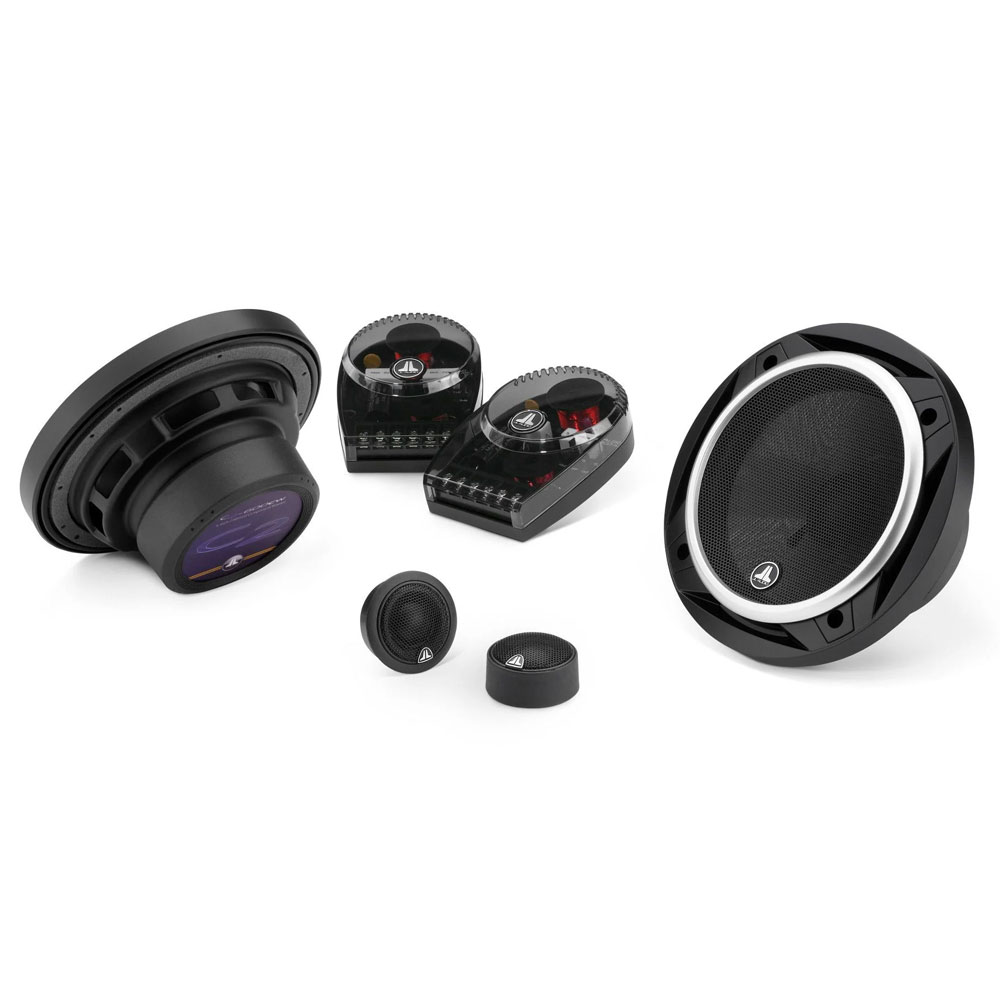

C2-600 Component Speaker System

2-Way Component System: 6-inch (150 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter

C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.

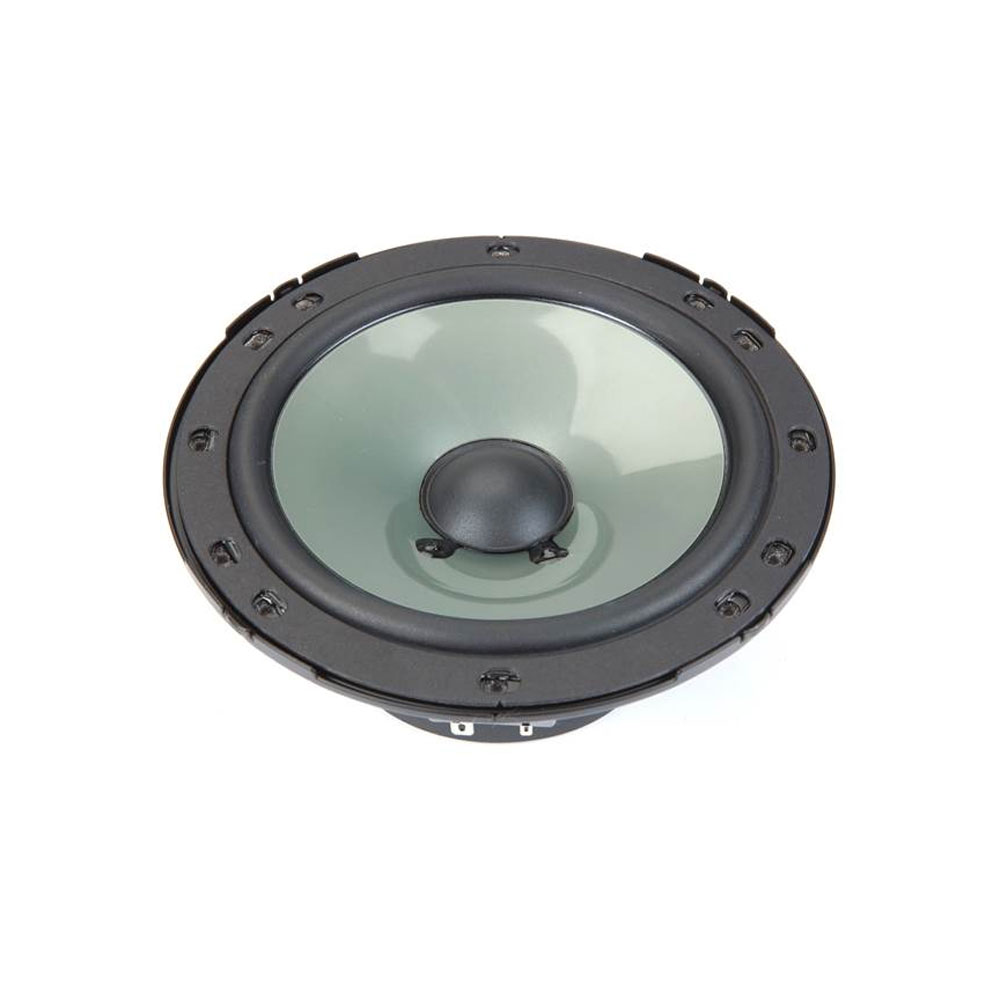

The C2-600 system features 6-inch (150 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

The 6-inch (150 mm) format is a direct fit in many Japanese vehicles where a full-size 6.5-inch speaker (165 mm) will not fit without modification. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6-inch (150 mm) speaker.

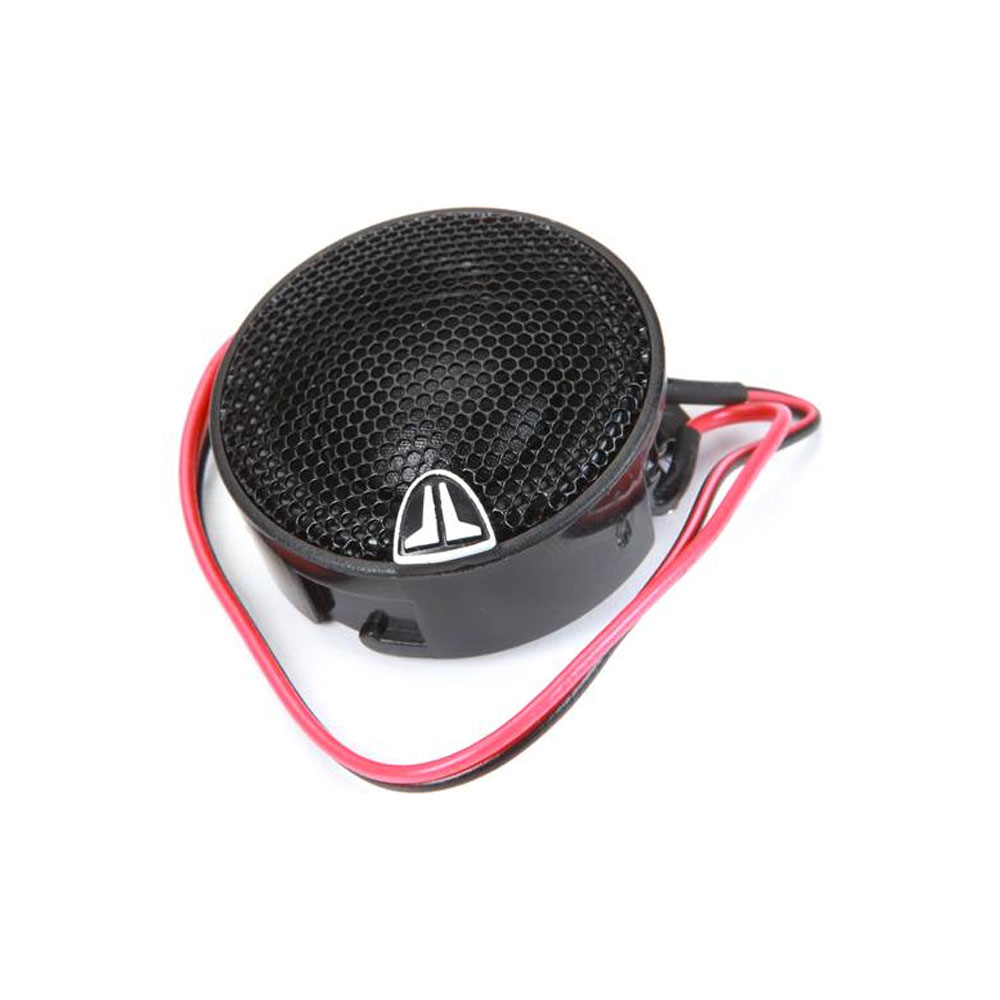

The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.

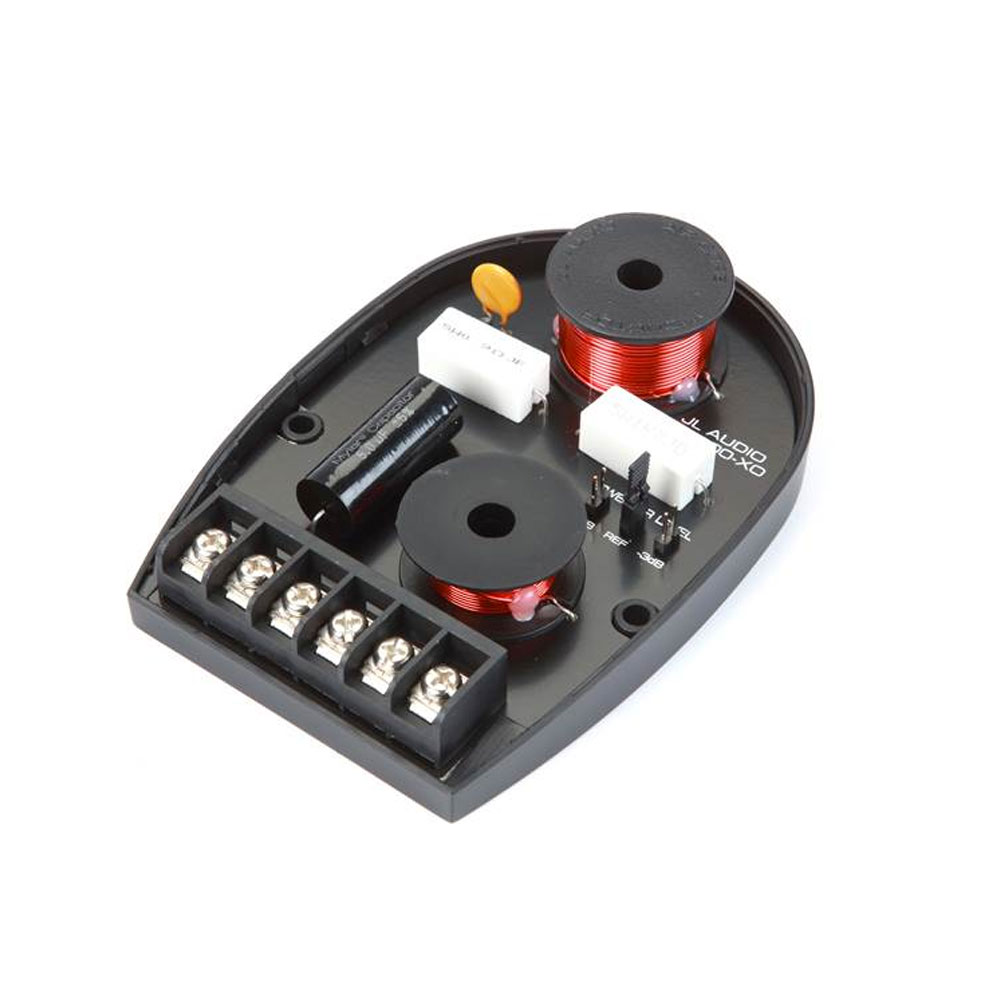

C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector.

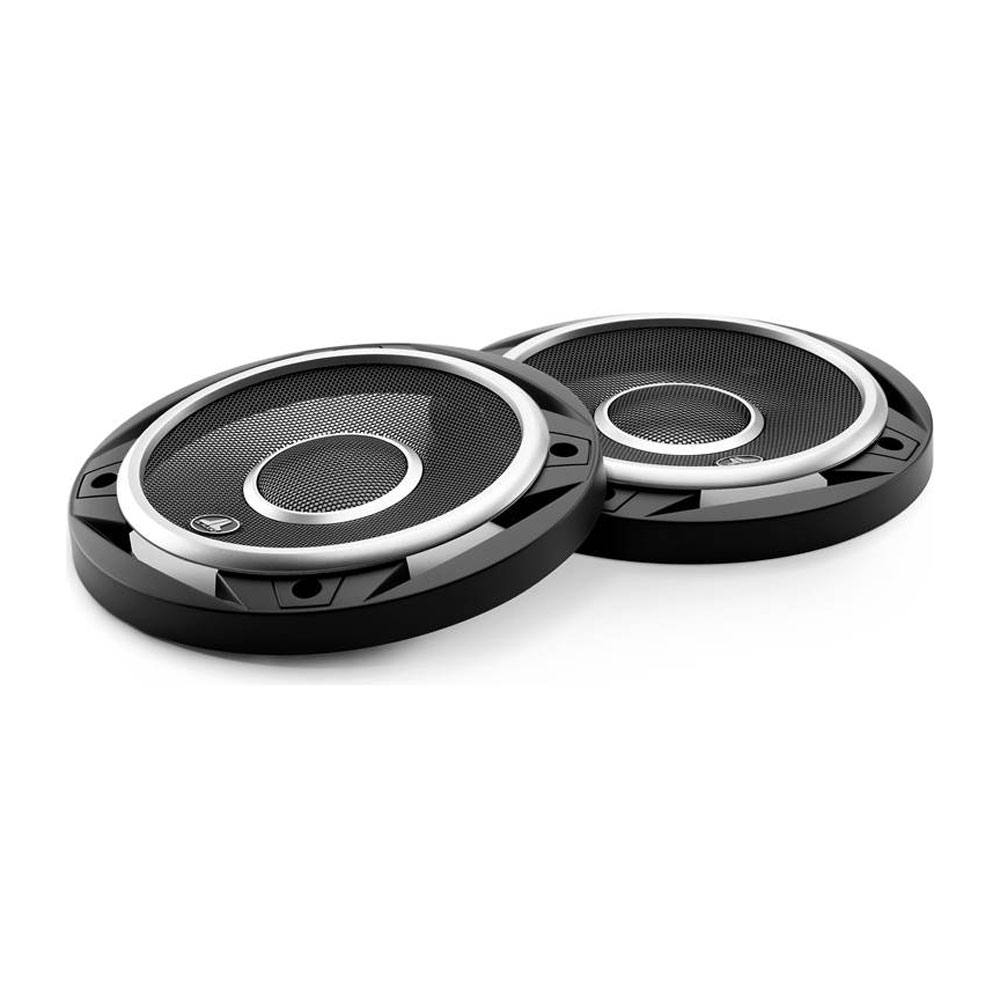

Woofer grilles are included: each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Dynamic

General Specifications

• Continuous Power Handling (RMS) 60 W
• Recommended Amplifier Power (RMS) 15 - 100 W / Ch.
• System Efficiency 90.5 dB @ 1 W / 1 m
• System Nominal Impedance 4 Ω
• System Frequency Response 59 Hz - 22 KHz ± 3 dB

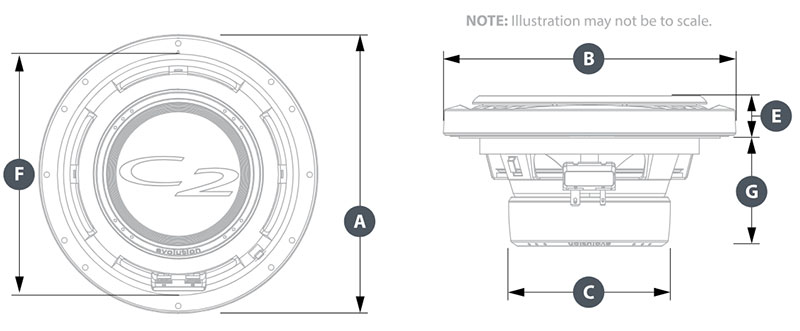

Woofer Physical Specifications

• Frame Outer Diameter* (A) 6.21 in / 158 mm
• Grille Tray Outer Diameter (B) 6.51 in / 163 mm
• Motor Outer Diameter (C) 3.15 in / 80 mm
• Frontal Coaxial Tweeter Protrusion (D) N/A
• Frontal Grille Protrusion** (E) 0.91 in / 23 mm
• Mounting Hole Diameter (F) 5.00 in / 127 mm
• Mounting Depth (G) 2.38 in / 60 mm

Does not take into account mounting tabs
Frontal grille protrusion measured from mounting surface

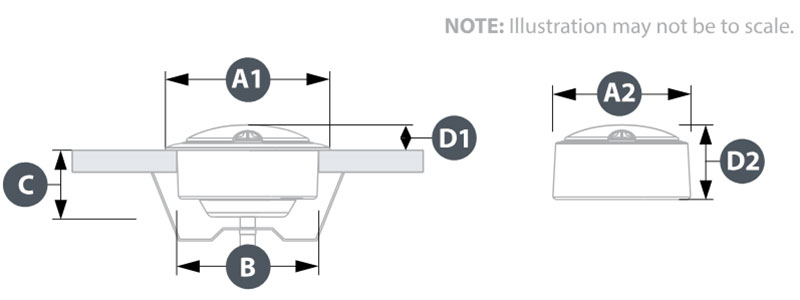

Tweeter Physical Specifications

• Flush Mount Fixture Diameter (A1) 1.87 in / 48 mm
• Surface Mount Fixture Diameter (A2) 1.69 in / 43 mm
• Flush Mount Mounting Hole Diameter (B) 1.625 in / 41 mm
• Flush Mount Mounting Depth (C) 0.76 in / 19 mm
• Flush Mount Tweeter Frontal Protrusion (D1) 0.29 in / 7 mm
• Surface Mount Tweeter Frontal Protrusion (D2) 0.92 in / 23 mm

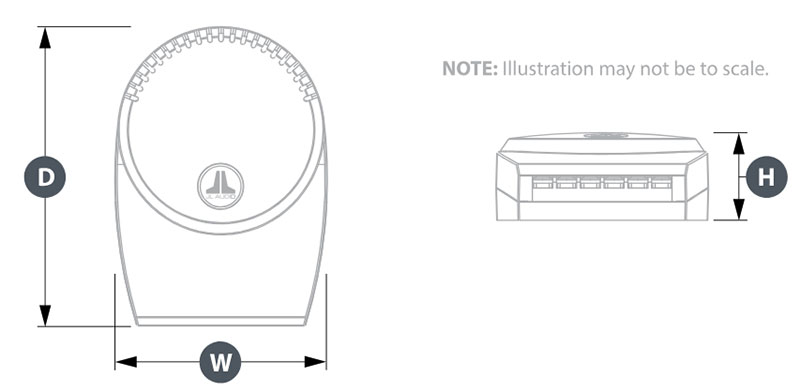

Crossover Physical Specifications

• Width (W) 3.36 in / 85 mm
• Height (H) 1.44 in / 37 mm
• Depth (D) 4.72 in / 120 mm

What's in the Box

• 2 x C2-600 Woofers
• 2 x C2-075ct Tweeters (with 6" wires attached)
• 2 x C2-600-XO Crossovers
• 2 x Woofer grilles
• 2 x Self-adhesive JL Audio badges
• 2 x Flush mount tweeter housings
• 2 x Surface mount tweeter housings
• 2 x Metal spring clips for tweeter fixtures
• 2 x M4x30mm Pan-head machine screws
• 2 x Crimp-on 0.187" Male quick slides
• 2 x Crimp-on 0.110" Male quick slides
• 2 x Crimp-on 0.205" Female quick slides
• 2 x Crimp-on 0.110" Female quick slides
• 4 x 7/8" Flat head self-tapping screws
• 12 x 1-1/8" Pan head self-tapping screws
• 8 x Speed clips
• 12 x Crimp-on spade connectors
• Owner's manual
• Woofer cutout template

Sold As A Pair
