C2-525X Coaxial Speakers System

Coaxial Speaker System: 5.25-inch (130 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter

C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.

The C2-525x system features 5.25-inch (130 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.

Each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.

Sonic character: Clean and Dynamic

Sold As a Pair. Speaker grilles are included,

General Specifications

• Continuous Power Handling (RMS) 60 W
• Recommended Amplifier Power (RMS) 15 - 100 W / Ch.
• System Efficiency 89.0 dB @ 1 W / 1 m
• System Nominal Impedance 4 Ω
• System Frequency Response 63 Hz - 22 KHz ± 3 dB

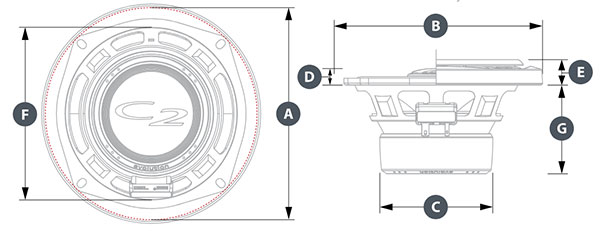

Coaxial Physical Specifications

NOTE: ILLUSTRATION MAY NOT BE TO SCALE

• Frame Outer Diameter (A) 5.80 in / 147 mm
• Grille Tray Outer Diameter (B) 6.01 in / 153 mm
• Motor Outer Diameter (C) 2.76 in / 70 mm
• Frontal Coaxial Tweeter Protrusion (D) 0.46 in / 12 mm
• Frontal Grille Protrusion (E) 0.72 in / 18 mm
• Mounting Hole Diameter (F) 4.56 in / 116 mm
• Mounting Depth (G) 2.50 in / 64 mm

Does not take into account mounting tabs
Frontal coaxial tweeter protrusion measured from mounting surface
Frontal grille protrusion measured from mounting surface

What's in the box

• Two 5-1/4" 2-way speakers
• 2 Grilles
• 8 Self-tapping screws (#8 x 1-3/16")
• 8 Speed clips
• 2 Crimpable female quick slides (0.205"/5.2mm)
• 2 Crimpable female quick slides (0.11"/2.8mm)
• 2 JL Audio logo grille badges
• Owner's Manual
• Paper template
